FIL35 SUR 840 2220 NW OP COMF DALI BK. (F31SF084MOOC840DB) | Lighting and Luminaires | LAMP
Fil 35

Fil 35 ComfortF31SF084MOOC840DBFIL35 SUR 840 2220 NW OP COMF DALI BK.

Suspended or mounted structure model FIL35 SUR 840 LAMP brand. Made in extruded recycled aluminum with a rate of 80%, with and opal comfort diffuser made of a translucent polycarbonate diffuser and an optical film to achieve a controlled light distribution and low UGR<19. Model for LED MID-POWER, colour temperature 4000K with CRI80 and with electronic DALI wiring included. With IP43, except for suspended installation, which becomes IP20, IK07 protection rating. Insulation Class I. Photobiological safety group 0. LED lifetime: 70.000 L80 B10. Available finishes: White, black and grey. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.
Plum:
13,5W
Color temperature:
4000K
Lumen output:
1223
Gear:
Adjustable DALI
Finishing:
Matte black RAL 9011
Length:
840mm

Features

Certificates

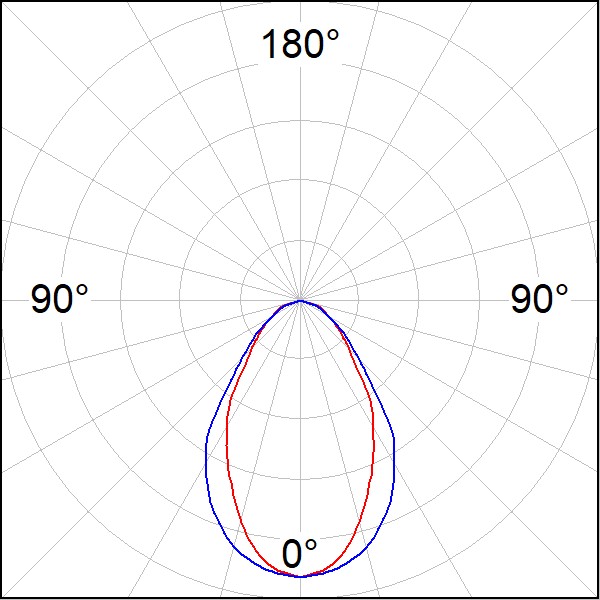

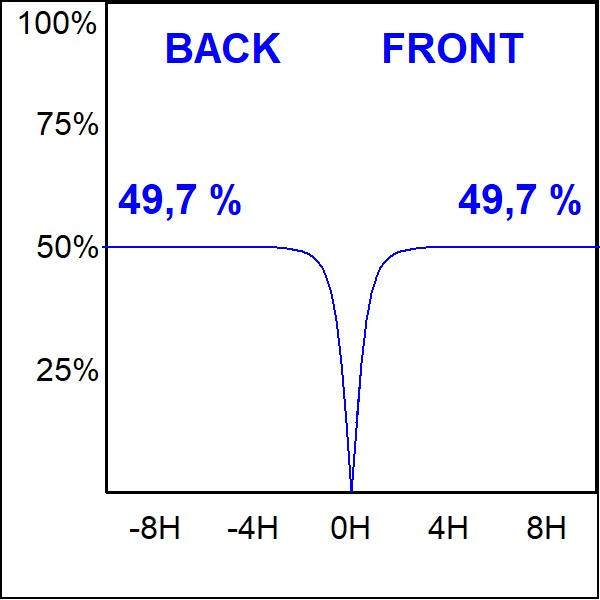

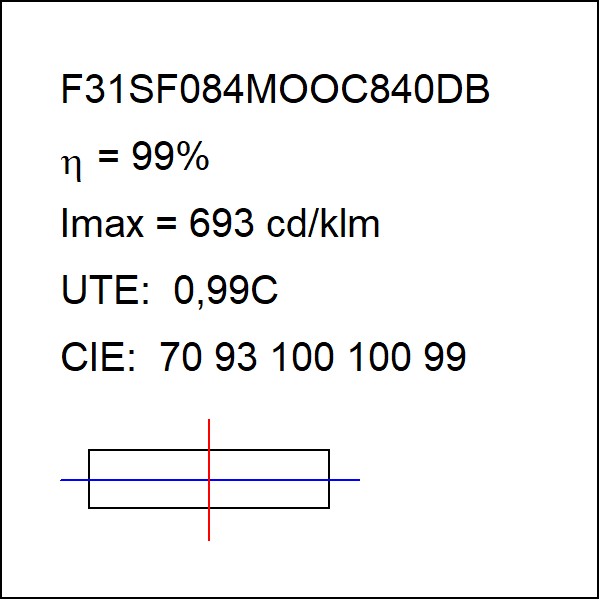

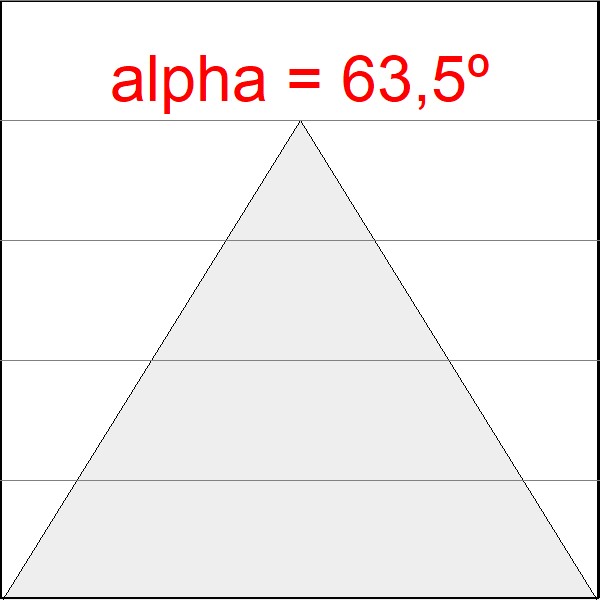

Photometric data

Do you need more information?

Product variants

CodePlumKlm outGearFinishingLength
F31SF140LOOC840NB14,4W4000K1390Non-adjustableMatte black RAL 90111400mm
F31SF112MOOC840NG18W4000K1630Non-adjustableGloss grey1120mm
F31SF084LOOC840DB8,8W4000K834Adjustable DALIMatte black RAL 9011840mm
F31SF112LOOC830DW12,1W3000K1068Adjustable DALIMatte white RAL 90101120mm
F31RE168LOOC830DG17,1W3000K1601Adjustable DALIGloss grey1680mm
F31SF112LOOC840NG12,1W4000K1112Non-adjustableGloss grey1120mm
F31RE084LOOC830DW8,8W3000K801Adjustable DALIMatte white RAL 9010840mm
F31RE112LOOC830DB12,1W3000K1068Adjustable DALIMatte black RAL 90111120mm
F31SF084LOOC830DG8,8W3000K801Adjustable DALIGloss grey840mm
F31RE168LOOC830DB17,1W3000K1601Adjustable DALIMatte black RAL 90111680mm
F31SF112LOOC840DB12,1W4000K1112Adjustable DALIMatte black RAL 90111120mm
F31TR112LOOC830NW12,1W3000K1068Non-adjustableMatte white RAL 90101120mm
F31SF112MOOC830DW18W3000K1571Adjustable DALIMatte white RAL 90101120mm
F31SF084LOOC830NG8,8W3000K801Non-adjustableGloss grey840mm
F31RE140LOOC830DW14,4W3000K1334Adjustable DALIMatte white RAL 90101400mm
F31RE140LOOC830DG14,4W3000K1334Adjustable DALIGloss grey1400mm
F31SF168LOOC840NG17,1W4000K1668Non-adjustableGloss grey1680mm
F31RE084LOOC830DB8,8W3000K801Adjustable DALIMatte black RAL 9011840mm
F31SF112MOOC830DB18W3000K1571Adjustable DALIMatte black RAL 90111120mm
F31SF140LOOC840DW14,4W4000K1390Adjustable DALIMatte white RAL 90101400mm
F31SF084LOOC840NB8,8W4000K834Non-adjustableMatte black RAL 9011840mm
F31RE084LOOC840NB8,8W4000K834Non-adjustableMatte black RAL 9011840mm
F31TR112LOOC840DW12,1W4000K1112Adjustable DALIMatte white RAL 90101120mm
F31RE140LOOC830NB14,4W3000K1334Non-adjustableMatte black RAL 90111400mm
F31RE140LOOC830NG14,4W3000K1334Non-adjustableGloss grey1400mm
F31RE112LOOC830NW12,1W3000K1068Non-adjustableMatte white RAL 90101120mm
F31RE112LOOC830NB12,1W3000K1068Non-adjustableMatte black RAL 90111120mm
F31SF140LOOC830DW14,4W3000K1334Adjustable DALIMatte white RAL 90101400mm
F31RE140LOOC840NG14,4W4000K1390Non-adjustableGloss grey1400mm
F31SF168LOOC830NB17,1W3000K1601Non-adjustableMatte black RAL 90111680mm
F31SF084LOOC840NW8,8W4000K834Non-adjustableMatte white RAL 9010840mm
F31SF112LOOC840NB12,1W4000K1112Non-adjustableMatte black RAL 90111120mm
F31RE168LOOC840DW17,1W4000K1668Adjustable DALIMatte white RAL 90101680mm
F31SF112LOOC830NG12,1W3000K1068Non-adjustableGloss grey1120mm
F31RE112LOOC830DG12,1W3000K1068Adjustable DALIGloss grey1120mm
F31SF168LOOC840DG17,1W4000K1668Adjustable DALIGloss grey1680mm
F31SF112LOOC840NW12,1W4000K1112Non-adjustableMatte white RAL 90101120mm
F31SF168LOOC830DB17,1W3000K1601Adjustable DALIMatte black RAL 90111680mm
F31RE112LOOC830NG12,1W3000K1068Non-adjustableGloss grey1120mm
F31RE168LOOC840NG17,1W4000K1668Non-adjustableGloss grey1680mm
F31SF084LOOC840DG8,8W4000K834Adjustable DALIGloss grey840mm
F31SF168LOOC830NG17,1W3000K1601Non-adjustableGloss grey1680mm
F31SF140LOOC830NB14,4W3000K1334Non-adjustableMatte black RAL 90111400mm
F31RE140LOOC830DB14,4W3000K1334Adjustable DALIMatte black RAL 90111400mm
F31RE168LOOC830DW17,1W3000K1601Adjustable DALIMatte white RAL 90101680mm
F31RE112LOOC840DB12,1W4000K1112Adjustable DALIMatte black RAL 90111120mm
F31RE084LOOC840NG8,8W4000K834Non-adjustableGloss grey840mm
F31RE084LOOC830NG8,8W3000K801Non-adjustableGloss grey840mm
F31SF140LOOC840NW14,4W4000K1390Non-adjustableMatte white RAL 90101400mm
F31SF140MOOC840DB21,2W4000K2038Adjustable DALIMatte black RAL 90111400mm
F31SF140MOOC830DW21,2W3000K1964Adjustable DALIMatte white RAL 90101400mm
F31RE112LOOC840NG12,1W4000K1112Non-adjustableGloss grey1120mm
F31SF084LOOC830NB8,8W3000K801Non-adjustableMatte black RAL 9011840mm
F31RE168LOOC840NB17,1W4000K1668Non-adjustableMatte black RAL 90111680mm
F31SF140LOOC830DG14,4W3000K1334Adjustable DALIGloss grey1400mm
F31TR168LOOC840DW17,1W4000K1668Adjustable DALIMatte white RAL 90101680mm
F31TR140LOOC830NW14,4W3000K1334Non-adjustableMatte white RAL 90101400mm
F31TR140LOOC840NW14,4W4000K1390Non-adjustableMatte white RAL 90101400mm
F31RE140LOOC840DW14,4W4000K1390Adjustable DALIMatte white RAL 90101400mm
F31RE084LOOC840DG8,8W4000K834Adjustable DALIGloss grey840mm
F31RE168LOOC840NW17,1W4000K1668Non-adjustableMatte white RAL 90101680mm
F31RE168LOOC830NW17,1W3000K1601Non-adjustableMatte white RAL 90101680mm
F31RE084LOOC830NB8,8W3000K801Non-adjustableMatte black RAL 9011840mm
F31TR140LOOC830DW14,4W3000K1334Adjustable DALIMatte white RAL 90101400mm
F31SF084LOOC830DW8,8W3000K801Adjustable DALIMatte white RAL 9010840mm
F31RE168LOOC830NB17,1W3000K1601Non-adjustableMatte black RAL 90111680mm
F31SF112LOOC830NW12,1W3000K1068Non-adjustableMatte white RAL 90101120mm
F31RE140LOOC840DB14,4W4000K1390Adjustable DALIMatte black RAL 90111400mm
F31SF168LOOC840DB17,1W4000K1668Adjustable DALIMatte black RAL 90111680mm
F31RE168LOOC840DB17,1W4000K1668Adjustable DALIMatte black RAL 90111680mm
F31SF140LOOC840DB14,4W4000K1390Adjustable DALIMatte black RAL 90111400mm
F31RE140LOOC840DG14,4W4000K1390Adjustable DALIGloss grey1400mm
F31TR168LOOC830NW17,1W3000K1601Non-adjustableMatte white RAL 90101680mm
F31RE112LOOC840DG12,1W4000K1112Adjustable DALIGloss grey1120mm
F31SF168LOOC840DW17,1W4000K1668Adjustable DALIMatte white RAL 90101680mm
F31RE140LOOC840NW14,4W4000K1390Non-adjustableMatte white RAL 90101400mm
F31RE112LOOC840DW12,1W4000K1112Adjustable DALIMatte white RAL 90101120mm
F31TR084LOOC830NW8,8W3000K801Non-adjustableMatte white RAL 9010840mm
F31SF140LOOC840NG14,4W4000K1390Non-adjustableGloss grey1400mm
F31TR084LOOC830DW8,8W3000K801Adjustable DALIMatte white RAL 9010840mm
F31RE168LOOC840DG17,1W4000K1668Adjustable DALIGloss grey1680mm
F31SF168LOOC840NW17,1W4000K1668Non-adjustableMatte white RAL 90101680mm
F31SF112LOOC840DW12,1W4000K1112Adjustable DALIMatte white RAL 90101120mm
F31SF112LOOC830NB12,1W3000K1068Non-adjustableMatte black RAL 90111120mm
F31SF168LOOC830DW17,1W3000K1601Adjustable DALIMatte white RAL 90101680mm
F31RE140LOOC840NB14,4W4000K1390Non-adjustableMatte black RAL 90111400mm
F31SF140LOOC830DB14,4W3000K1334Adjustable DALIMatte black RAL 90111400mm
F31SF140LOOC840DG14,4W4000K1390Adjustable DALIGloss grey1400mm
F31TR168LOOC830DW17,1W3000K1601Adjustable DALIMatte white RAL 90101680mm
F31SF140MOOC840NW21,2W4000K2038Non-adjustableMatte white RAL 90101400mm
F31TR112LOOC830DW12,1W3000K1068Adjustable DALIMatte white RAL 90101120mm
F31SF168LOOC840NB17,1W4000K1668Non-adjustableMatte black RAL 90111680mm
F31TR168LOOC840NW17,1W4000K1668Non-adjustableMatte white RAL 90101680mm
F31RE084LOOC840DW8,8W4000K834Adjustable DALIMatte white RAL 9010840mm
F31SF084LOOC830DB8,8W3000K801Adjustable DALIMatte black RAL 9011840mm
F31SF084LOOC840DW8,8W4000K834Adjustable DALIMatte white RAL 9010840mm
F31RE084LOOC830DG8,8W3000K801Adjustable DALIGloss grey840mm
F31RE112LOOC830DW12,1W3000K1068Adjustable DALIMatte white RAL 90101120mm
F31TR084LOOC840NW8,8W4000K834Non-adjustableMatte white RAL 9010840mm
F31TR140LOOC840DW14,4W4000K1390Adjustable DALIMatte white RAL 90101400mm
F31RE084LOOC840NW8,8W4000K834Non-adjustableMatte white RAL 9010840mm
F31RE112LOOC840NB12,1W4000K1112Non-adjustableMatte black RAL 90111120mm
F31SF168LOOC830DG17,1W3000K1601Adjustable DALIGloss grey1680mm
F31TR084LOOC840DW8,8W4000K834Adjustable DALIMatte white RAL 9010840mm
F31SF112MOOC830NW18W3000K1571Non-adjustableMatte white RAL 90101120mm
F31RE112LOOC840NW12,1W4000K1112Non-adjustableMatte white RAL 90101120mm
F31SF112MOOC840DB18W4000K1630Adjustable DALIMatte black RAL 90111120mm
F31SF140LOOC830NG14,4W3000K1334Non-adjustableGloss grey1400mm
F31SF084LOOC830NW8,8W3000K801Non-adjustableMatte white RAL 9010840mm
F31SF140LOOC830NW14,4W3000K1334Non-adjustableMatte white RAL 90101400mm
F31SF168LOOC830NW17,1W3000K1601Non-adjustableMatte white RAL 90101680mm
F31RE140LOOC830NW14,4W3000K1334Non-adjustableMatte white RAL 90101400mm
F31RE084LOOC840DB8,8W4000K834Adjustable DALIMatte black RAL 9011840mm
F31SF112LOOC830DB12,1W3000K1068Adjustable DALIMatte black RAL 90111120mm
F31RE168LOOC830NG17,1W3000K1601Non-adjustableGloss grey1680mm
F31SF112LOOC830DG12,1W3000K1068Adjustable DALIGloss grey1120mm
F31SF112LOOC840DG12,1W4000K1112Adjustable DALIGloss grey1120mm
F31SF084LOOC840NG8,8W4000K834Non-adjustableGloss grey840mm
F31TR112LOOC840NW12,1W4000K1112Non-adjustableMatte white RAL 90101120mm
F31RE084LOOC830NW8,8W3000K801Non-adjustableMatte white RAL 9010840mm
F31SF168MOOC840NW25,2W4000K2445Non-adjustableMatte white RAL 90101680mm
F31SF084MOOC840NB13,5W4000K1223Non-adjustableMatte black RAL 9011840mm
F31SF168MOOC840DW25,2W4000K2445Adjustable DALIMatte white RAL 90101680mm
F31SF168MOOC840DB25,2W4000K2445Adjustable DALIMatte black RAL 90111680mm
F31SF084MOOC840DB13,5W4000K1223Adjustable DALIMatte black RAL 9011840mm
F31SF168MOOC830NW25,2W3000K2357Non-adjustableMatte white RAL 90101680mm
F31SF084MOOC830NW13,5W3000K1179Non-adjustableMatte white RAL 9010840mm
F31SF112MOOC840NW18W4000K1630Non-adjustableMatte white RAL 90101120mm
F31SF084MOOC840NW13,5W4000K1223Non-adjustableMatte white RAL 9010840mm
F31SF112MOOC840DW18W4000K1630Adjustable DALIMatte white RAL 90101120mm
