SurfaceF31SF112MOTE940DBFIL35 SUR 1120 2960 9NW TECH DALI BK
Suspended or mounted structure model FIL35 TECH 1120 LAMP brand. Made in extruded recycled aluminum with a rate of 80%, with matt black reflector ULTRA COMFORT Matt black and optics for light distribution control and low glare UGR<12. Model for LED MID-POWER, colour temperature 4000K with CRI90 and with electronic wiring Dali included. With IP43, except for suspended installation, which becomes IP20, IK07 protection rating. Insulation Class I. Photobiological safety group 0. LED lifetime: 50.000 L90 B10. Available finishes: White, black and grey. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.
- Plum:
- 17,8W
- Color temperature:
- 4000K
- Lumen output:
- 1760
- Gear:
- Adjustable DALI
- Finishing:
- Matte black RAL 9011
- Length:
- 1120mm
Features
Certificates

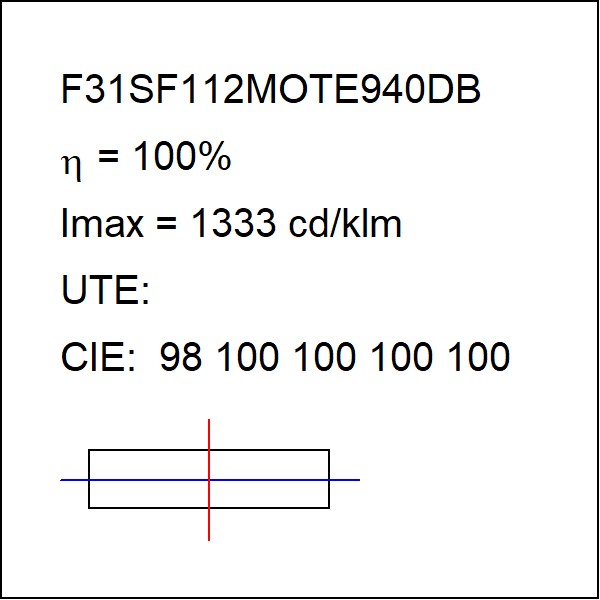

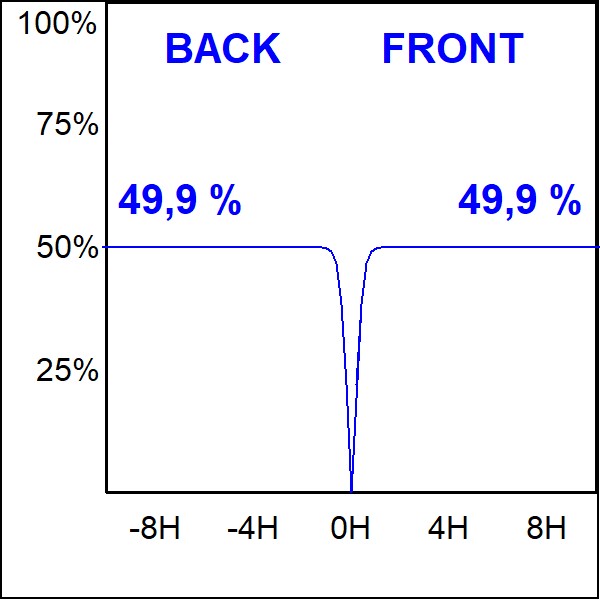

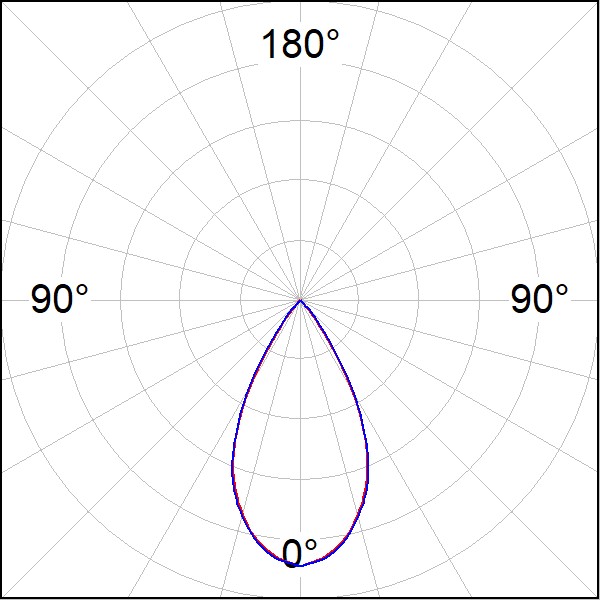

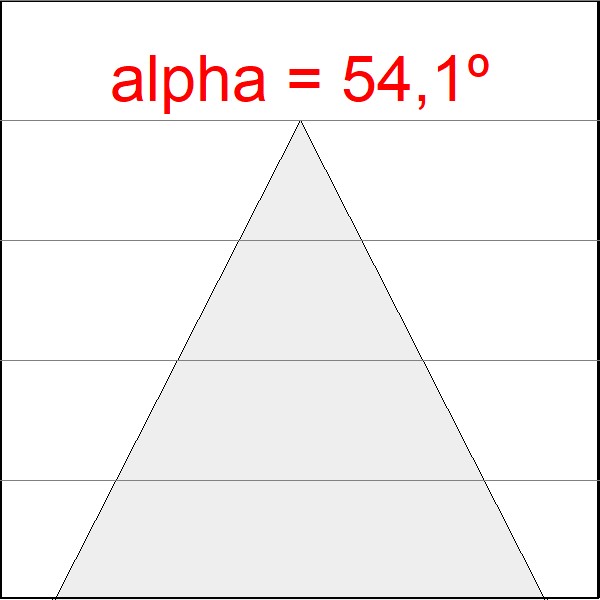

Photometric data
Do you need more information?
Product variants
| Code | Plum | K | lm out | Gear | Finishing | Length |
|---|---|---|---|---|---|---|
| F31SF112MOTE930NB | 17,8W | 3000K | 1680 | Non-adjustable | Matte black RAL 9011 | 1120mm |
| F31SF168MOTE940NB | 26,7W | 4000K | 2640 | Non-adjustable | Matte black RAL 9011 | 1680mm |
| F31SF168MOTE940DB | 26,7W | 4000K | 2640 | Adjustable DALI | Matte black RAL 9011 | 1680mm |
| F31SF168MOTE930NB | 26,7W | 3000K | 2520 | Non-adjustable | Matte black RAL 9011 | 1680mm |
| F31SF168MOTE930DB | 26,7W | 3000K | 2520 | Adjustable DALI | Matte black RAL 9011 | 1680mm |
| F31SF112MOTE940NB | 17,8W | 4000K | 1760 | Non-adjustable | Matte black RAL 9011 | 1120mm |
| F31SF112MOTE940DB | 17,8W | 4000K | 1760 | Adjustable DALI | Matte black RAL 9011 | 1120mm |
| F31SF112MOTE930DB | 17,8W | 3000K | 1680 | Adjustable DALI | Matte black RAL 9011 | 1120mm |
| F31SF084MOTE940NB | 13,7W | 4000K | 1320 | Non-adjustable | Matte black RAL 9011 | 840mm |
| F31SF084MOTE940DB | 13,7W | 4000K | 1320 | Adjustable DALI | Matte black RAL 9011 | 840mm |
| F31SF084MOTE930NB | 13,7W | 3000K | 1260 | Non-adjustable | Matte black RAL 9011 | 840mm |
| F31SF084MOTE930DB | 13,7W | 3000K | 1260 | Adjustable DALI | Matte black RAL 9011 | 840mm |
| F31SF112MOTE930NW | 17,8W | 3000K | 1680 | Non-adjustable | Matte white RAL 9010 | 1120mm |
| F31SF084MOTE930NW | 13,7W | 3000K | 1260 | Non-adjustable | Matte white RAL 9010 | 840mm |
| F31SF168MOTE940NW | 26,7W | 4000K | 2640 | Non-adjustable | Matte white RAL 9010 | 1680mm |
| F31SF084MOTE940NW | 13,7W | 4000K | 1320 | Non-adjustable | Matte white RAL 9010 | 840mm |
| F31SF084MOTE930DW | 13,7W | 3000K | 1260 | Adjustable DALI | Matte white RAL 9010 | 840mm |
| F31SF084MOTE940DW | 13,7W | 4000K | 1320 | Adjustable DALI | Matte white RAL 9010 | 840mm |
| F31SF112MOTE930DW | 17,8W | 3000K | 1680 | Adjustable DALI | Matte white RAL 9010 | 1120mm |
| F31SF112MOTE940DW | 17,8W | 4000K | 1760 | Adjustable DALI | Matte white RAL 9010 | 1120mm |
| F31SF112MOTE940NW | 17,8W | 4000K | 1760 | Non-adjustable | Matte white RAL 9010 | 1120mm |
| F31SF168MOTE930DW | 26,7W | 3000K | 2520 | Adjustable DALI | Matte white RAL 9010 | 1680mm |
| F31SF168MOTE930NW | 26,7W | 3000K | 2520 | Non-adjustable | Matte white RAL 9010 | 1680mm |
| F31SF168MOTE940DW | 26,7W | 4000K | 2640 | Adjustable DALI | Matte white RAL 9010 | 1680mm |
Accessories
Suspension
