Ocult System

Ocult System Downlight 12 ModulesOS1DO1222MF840NBOCULT SYS. DOWN. 12 2400 NW MFL BK.

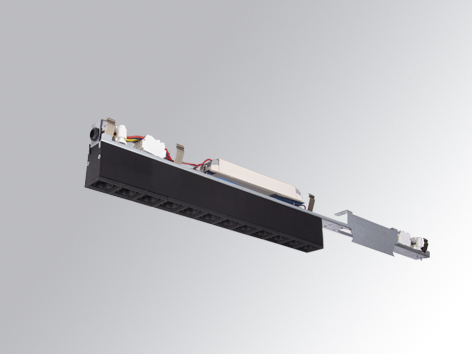

Fixed linear Downlight module to adapt to structure, model OCULT SYS.DOWN. 12 2400 NW MFL BK, LAMP brand. Body made of anodized aluminium to optimise heat dissipation and reflector made of ABS painted in black matt. With fast connection system. Model with LED HI-POWER with a neutral white colour temperature and control gear included. Optical system designed to obtain high visual comfort (UGR<(><<)>3).With Medium Flood optics. 33º shielding angle. Insulation class I
Overture:
24º
Power:
24W
Color temperature:
4000K
Lumen output:
2160
Gear:
Non-adjustable
Finishing:
Matte black RAL 9011
Lumen LED:
2400

Features

Certificates

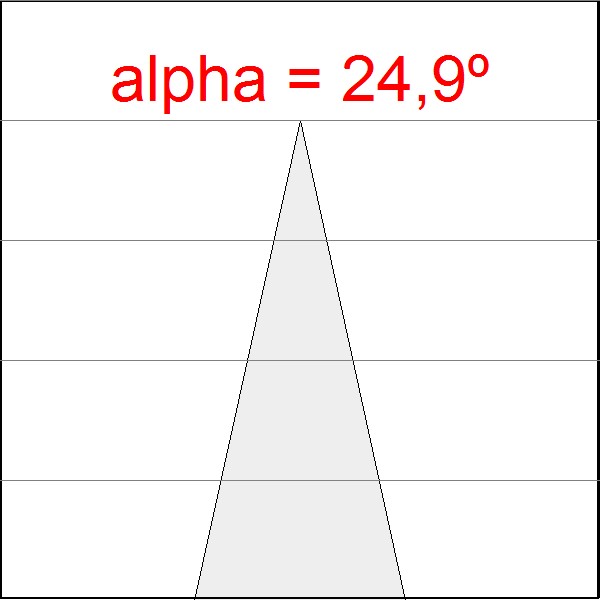

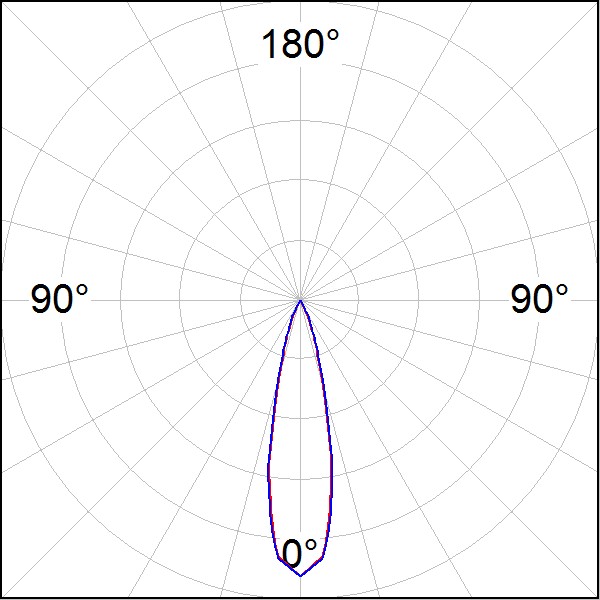

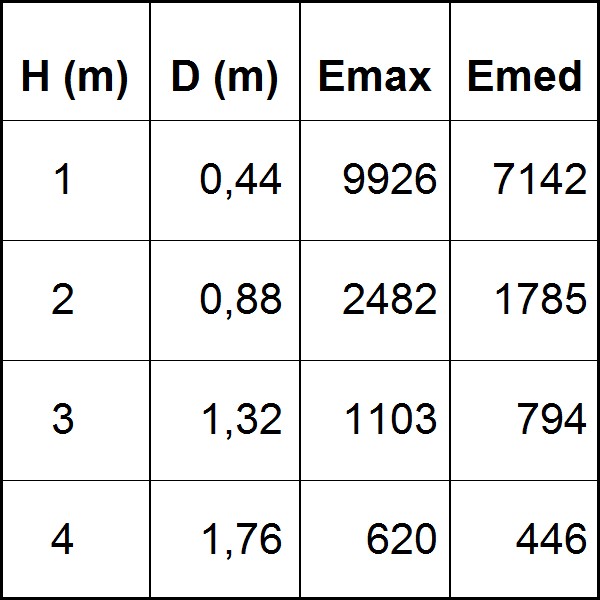

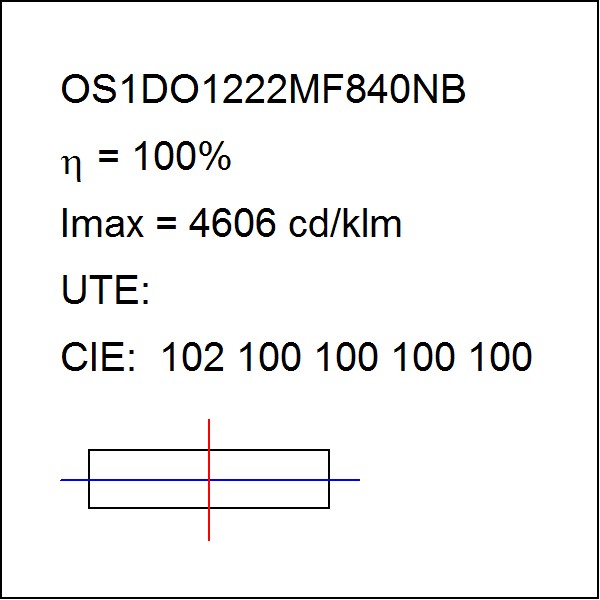

Photometric data

Do you need more information?

Product variants

CodeWKlm outGearFinishinglm
OS1DO1222MF830DB24º24W3000K2160Adjustable DALIMatte black RAL 90112400
OS1DO1222MF830NB24º24W3000K2160Non-adjustableMatte black RAL 90112400
OS1DO1222MF840DB24º24W4000K2160Adjustable DALIMatte black RAL 90112400
OS1DO1222MF840NB24º24W4000K2160Non-adjustableMatte black RAL 90112400
OS1DO1222WF830DB48º24W3000K2196Adjustable DALIMatte black RAL 90112400
OS1DO1222WF830NB48º24W3000K2196Non-adjustableMatte black RAL 90112400
OS1DO1222WF840DB48º24W4000K2196Adjustable DALIMatte black RAL 90112400
OS1DO1222WF840NB48º24W4000K2196Non-adjustableMatte black RAL 90112400

Accessories

Assembly
