Ocult System Downlight 12 ModulesOS1DO1222WF840NBOCULT SYS. DOWN. 12 2400 NW WFL BK.
Fixed linear Downlight module to adapt to structure, model OCULT SYS.DOWN. 12 2400, LAMP brand. Body made of anodized aluminium to optimise heat dissipation and reflector made of ABS painted in black matt. With fast connection system. Model with LED HI-POWER with a 4000K colour temperature, CRI 80 and control gear included. With Wide Flood optics. Glare rating UGR<16 (for 4h, 8h 70/50/20). 33º shielding angle. Insulation class I. Lifetime: 50.000 L80 B10
- Overture:
- 48º
- Power:
- 26,9W
- Color temperature:
- 4000K
- Lumen output:
- 2196
- Gear:
- Non-adjustable
- Finishing:
- Matte black RAL 9011
Features
Certificates

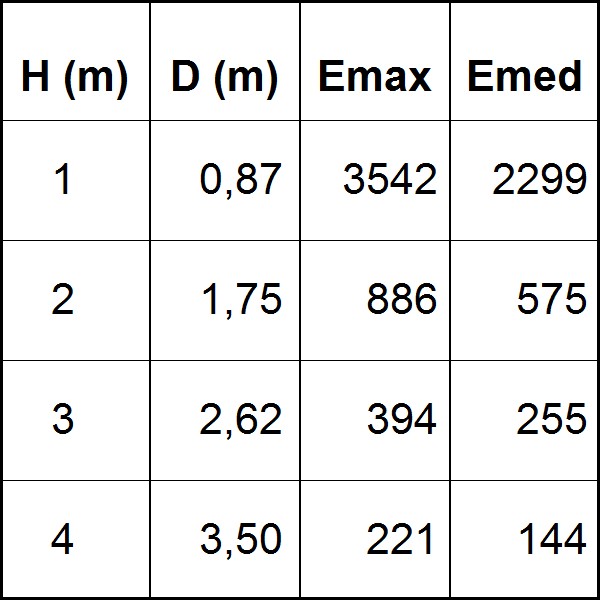

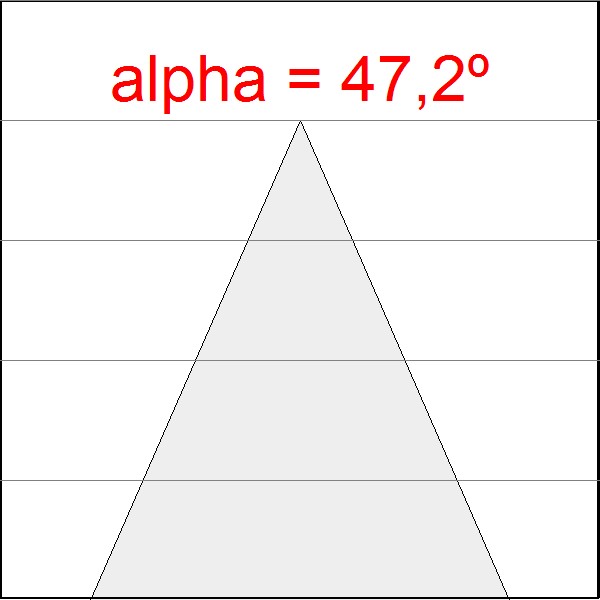

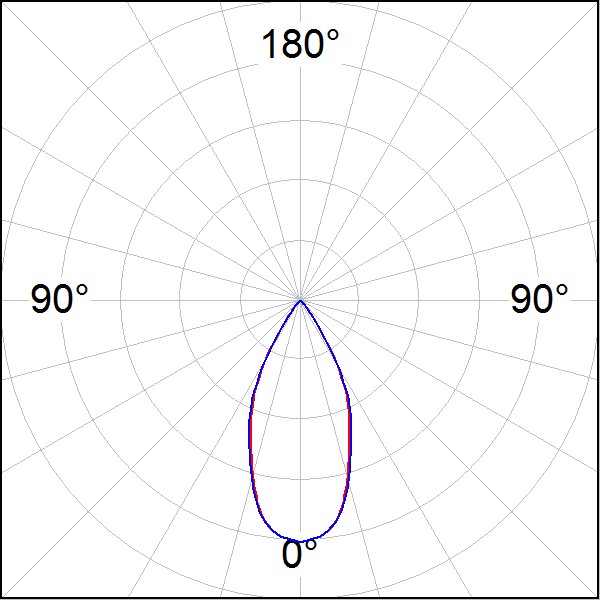

Photometric data
Do you need more information?
Product variants
| Code | ∢ | W | K | lm out | Gear | Finishing |
|---|---|---|---|---|---|---|
| OS1DO1222MF830DB | 24º | 26,9W | 3000K | 2160 | Adjustable DALI | Matte black RAL 9011 |
| OS1DO1222MF830NB | 24º | 26,9W | 3000K | 2160 | Non-adjustable | Matte black RAL 9011 |
| OS1DO1222MF840DB | 24º | 26,9W | 4000K | 2160 | Adjustable DALI | Matte black RAL 9011 |
| OS1DO1222MF840NB | 24º | 26,9W | 4000K | 2160 | Non-adjustable | Matte black RAL 9011 |
| OS1DO1222WF830DB | 48º | 26,9W | 3000K | 2196 | Adjustable DALI | Matte black RAL 9011 |
| OS1DO1222WF830NB | 48º | 26,9W | 3000K | 2196 | Non-adjustable | Matte black RAL 9011 |
| OS1DO1222WF840DB | 48º | 26,9W | 4000K | 2196 | Adjustable DALI | Matte black RAL 9011 |
| OS1DO1222WF840NB | 48º | 26,9W | 4000K | 2196 | Non-adjustable | Matte black RAL 9011 |
Accessories
Suspension
Optical
Assembly
- OSCO1000BOCULT SYSTEM ACC. COVER 1000 BK.
- OSCO200BOCULT SYSTEM ACC. COVER 200 BK.
- OSCO300BOCULT SYSTEM ACC. COVER 300 BK.
- OSCO400BOCULT SYSTEM ACC. COVER 400 BK.
- OSCO500BOCULT SYSTEM ACC. COVER 500 BK.
- OSCO600BOCULT SYSTEM ACC. COVER 600 BK.
- OSCO700BOCULT SYSTEM ACC. COVER 700 BK.
- OSCO800BOCULT SYSTEM ACC. COVER 800 BK.
- OSCO900BOCULT SYSTEM ACC. COVER 900 BK.
- OSCO1000WOCULT SYSTEM ACC. COVER 1000 WH.
- OSCO200WOCULT SYSTEM ACC. COVER 200 WH.
- OSCO300WOCULT SYSTEM ACC. COVER 300 WH.
- OSCO400WOCULT SYSTEM ACC. COVER 400 WH.
- OSCO500WOCULT SYSTEM ACC. COVER 500 WH.
- OSCO600WOCULT SYSTEM ACC. COVER 600 WH.
- OSCO700WOCULT SYSTEM ACC. COVER 700 WH.
- OSCO800WOCULT SYSTEM ACC. COVER 800 WH.
- OSCO900WOCULT SYSTEM ACC. COVER 900 WH.
- OSREPR1000BOCULT SYS. ACC. REC PROFILE 1000 BK.
- OSREPR1100BOCULT SYS. ACC. REC PROFILE 1100 BK.
- OSREPR1200BOCULT SYS. ACC. REC PROFILE 1200 BK.
- OSREPR1300BOCULT SYS. ACC. REC PROFILE 1300 BK.
- OSREPR1400BOCULT SYS. ACC. REC PROFILE 1400 BK.
- OSREPR1500BOCULT SYS. ACC. REC PROFILE 1500 BK.
- OSREPR1600BOCULT SYS. ACC. REC PROFILE 1600 BK.
- OSREPR1700BOCULT SYS. ACC. REC PROFILE 1700 BK.
- OSREPR1800BOCULT SYS. ACC. REC PROFILE 1800 BK.
- OSREPR1900BOCULT SYS. ACC. REC PROFILE 1900 BK.
- OSREPR2000BOCULT SYS. ACC. REC PROFILE 2000 BK.
- OSREPR500BOCULT SYS. ACC. REC PROFILE 500 BK.
- OSREPR600BOCULT SYS. ACC. REC PROFILE 600 BK.
- OSREPR700BOCULT SYS. ACC. REC PROFILE 700 BK.
- OSREPR800BOCULT SYS. ACC. REC PROFILE 800 BK.
- OSREPR900BOCULT SYS. ACC. REC PROFILE 900 BK.
- OSREPR1000WOCULT SYS. ACC. REC PROFILE 1000 WH.
- OSREPR1100WOCULT SYS. ACC. REC PROFILE 1100 WH.
- OSREPR1200WOCULT SYS. ACC. REC PROFILE 1200 WH.
- OSREPR1300WOCULT SYS. ACC. REC PROFILE 1300 WH.
- OSREPR1400WOCULT SYS. ACC. REC PROFILE 1400 WH.
- OSREPR1500WOCULT SYS. ACC. REC PROFILE 1500 WH.
- OSREPR1600WOCULT SYS. ACC. REC PROFILE 1600 WH.
- OSREPR1700WOCULT SYS. ACC. REC PROFILE 1700 WH.
- OSREPR1800WOCULT SYS. ACC. REC PROFILE 1800 WH.
- OSREPR1900WOCULT SYS. ACC. REC PROFILE 1900 WH.
- OSREPR2000WOCULT SYS. ACC. REC PROFILE 2000 WH.
- OSREPR500WOCULT SYS. ACC. REC PROFILE 500 WH.
- OSREPR600WOCULT SYS. ACC. REC PROFILE 600 WH.
- OSREPR700WOCULT SYS. ACC. REC PROFILE 700 WH.
- OSREPR800WOCULT SYS. ACC. REC PROFILE 800 WH.
- OSREPR900WOCULT SYS. ACC. REC PROFILE 900 WH.
- OSSUPR1000BOCULT SYS. ACC. SUR PROFILE 1000 BK.
- OSSUPR1100BOCULT SYS. ACC. SUR PROFILE 1100 BK.
- OSSUPR1200BOCULT SYS. ACC. SUR PROFILE 1200 BK.
- OSSUPR1300BOCULT SYS. ACC. SUR PROFILE 1300 BK.
- OSSUPR1400BOCULT SYS. ACC. SUR PROFILE 1400 BK.
- OSSUPR1500BOCULT SYS. ACC. SUR PROFILE 1500 BK.
- OSSUPR1600BOCULT SYS. ACC. SUR PROFILE 1600 BK.
- OSSUPR1700BOCULT SYS. ACC. SUR PROFILE 1700 BK.
- OSSUPR1800BOCULT SYS. ACC. SUR PROFILE 1800 BK.
- OSSUPR1900BOCULT SYS. ACC. SUR PROFILE 1900 BK.
- OSSUPR2000BOCULT SYS. ACC. SUR PROFILE 2000 BK.
- OSSUPR500BOCULT SYS. ACC. SUR PROFILE 500 BK.
- OSSUPR600BOCULT SYS. ACC. SUR PROFILE 600 BK.
- OSSUPR700BOCULT SYS. ACC. SUR PROFILE 700 BK.
- OSSUPR800BOCULT SYS. ACC. SUR PROFILE 800 BK.
- OSSUPR900BOCULT SYS. ACC. SUR PROFILE 900 BK.
- OSSUPR1000WOCULT SYS. ACC. SUR PROFILE 1000 WH.
- OSSUPR1100WOCULT SYS. ACC. SUR PROFILE 1100 WH.
- OSSUPR1200WOCULT SYS. ACC. SUR PROFILE 1200 WH.
- OSSUPR1300WOCULT SYS. ACC. SUR PROFILE 1300 WH.
- OSSUPR1400WOCULT SYS. ACC. SUR PROFILE 1400 WH.
- OSSUPR1500WOCULT SYS. ACC. SUR PROFILE 1500 WH.
- OSSUPR1600WOCULT SYS. ACC. SUR PROFILE 1600 WH.
- OSSUPR1700WOCULT SYS. ACC. SUR PROFILE 1700 WH.
- OSSUPR1800WOCULT SYS. ACC. SUR PROFILE 1800 WH.
- OSSUPR1900WOCULT SYS. ACC. SUR PROFILE 1900 WH.
- OSSUPR2000WOCULT SYS. ACC. SUR PROFILE 2000 WH.
- OSSUPR500WOCULT SYS. ACC. SUR PROFILE 500 WH.
- OSSUPR600WOCULT SYS. ACC. SUR PROFILE 600 WH.
- OSSUPR700WOCULT SYS. ACC. SUR PROFILE 700 WH.
- OSSUPR800WOCULT SYS. ACC. SUR PROFILE 800 WH.
- OSSUPR900WOCULT SYS. ACC. SUR PROFILE 900 WH.
Adjustment and control
- OSCTAI1000NOCULT SYS. ACC. INTER. CONNECTOR 1000
- OSCTAI100DOCULT SYS. ACC.INTER.CONNECTOR DALI 100
- OSCTAI100NOCULT SYS. ACC. INTER. CONNECTOR 100
- OSCTAI1100DOCULT SYS. ACC.INTER.CONNECTOR DALI 1100
- OSCTAI1100NOCULT SYS. ACC. INTER. CONNECTOR 1100
- OSCTAI1200DOCULT SYS. ACC.INTER.CONNECTOR DALI 1200
- OSCTAI1200NOCULT SYS. ACC. INTER. CONNECTOR 1200
- OSCTAI1300DOCULT SYS. ACC.INTER.CONNECTOR DALI 1300
- OSCTAI1300NOCULT SYS. ACC. INTER. CONNECTOR 1300
- OSCTAI1400DOCULT SYS. ACC.INTER.CONNECTOR DALI 1400
- OSCTAI1400NOCULT SYS. ACC. INTER. CONNECTOR 1400
- OSCTAI1500DOCULT SYS. ACC.INTER.CONNECTOR DALI 1500
- OSCTAI1500NOCULT SYS. ACC. INTER. CONNECTOR 1500
- OSCTAI200DOCULT SYS. ACC.INTER.CONNECTOR DALI 200
- OSCTAI200NOCULT SYS. ACC. INTER. CONNECTOR 200
- OSCTAI300DOCULT SYS. ACC.INTER.CONNECTOR DALI 300
- OSCTAI300NOCULT SYS. ACC. INTER. CONNECTOR 300
- OSCTAI400DOCULT SYS. ACC.INTER.CONNECTOR DALI 400
- OSCTAI400NOCULT SYS. ACC. INTER. CONNECTOR 400
- OSCTAI500DOCULT SYS. ACC.INTER.CONNECTOR DALI 500
- OSCTAI500NOCULT SYS. ACC. INTER. CONNECTOR 500
- OSCTAI600DOCULT SYS. ACC.INTER.CONNECTOR DALI 600
- OSCTAI600NOCULT SYS. ACC. INTER. CONNECTOR 600
- OSCTAI700DOCULT SYS. ACC.INTER.CONNECTOR DALI 700
- OSCTAI700NOCULT SYS. ACC. INTER. CONNECTOR 700
- OSCTAI800DOCULT SYS. ACC.INTER.CONNECTOR DALI 800
- OSCTAI800NOCULT SYS. ACC. INTER. CONNECTOR 800
- OSCTAI900DOCULT SYS. ACC.INTER.CONNECTOR DALI 900
- OSCTAI900NOCULT SYS. ACC. INTER. CONNECTOR 900
