Kombic 100 Downlight

Kombic 150 Surface OpalKombic 100 Surface Opal WellbeingK21SF2040OPWB4NWWKOMBIC 150 SF 1800 IP43 WBN OP WH/WH

Suspended or ceiling mounting downlight model KOMBIC 150 SF by Lamp brand. Body made of white aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. White interior reflector and optical film. Heatsink made of die-cast aluminium. COB LED, colour temperature Wellbeing de 4000K con CRI95 and Ra greater than 50. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 60.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 19W
Color temperature:: 4000K
Lumen output:: 1474
Gear:: Non-adjustable
Finishing:: Matte white RAL 9010

Features

Certificates

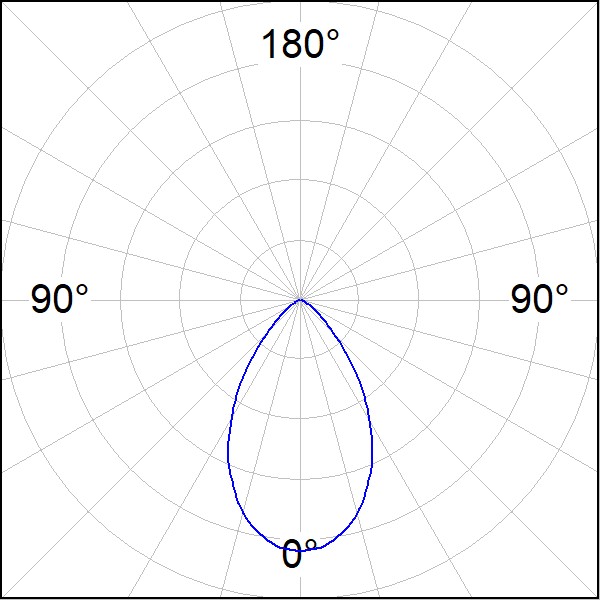

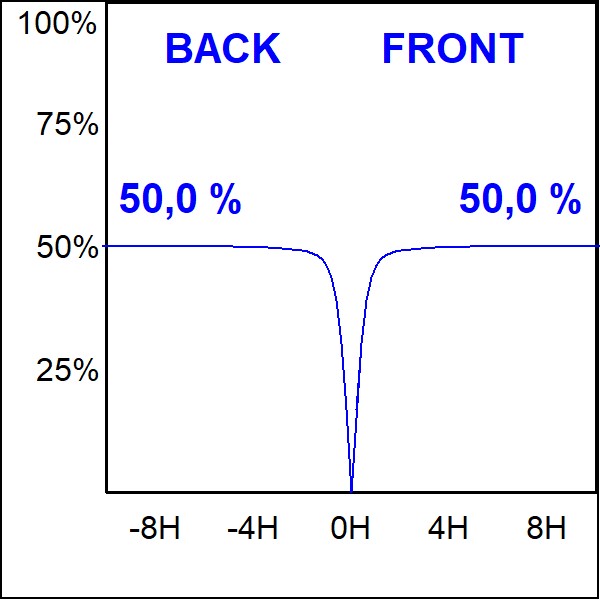

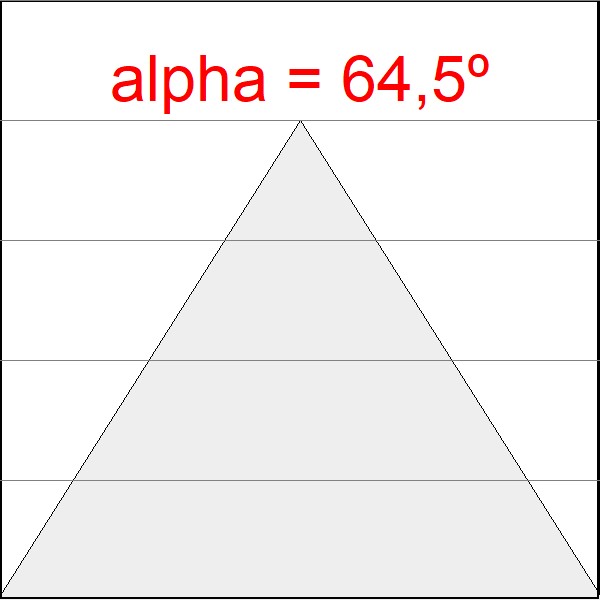

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11SF1540OPWB3NRW	13,9W	3000K	971	-	BRILLIANT METALLIC POLYCARBONATE
K11SF1540OPWB3NRB	13,9W	3000K	971	-	BRILLIANT METALLIC POLYCARBONATE
K21SF2040OPWB4NWW	19W	4000K	1474	-	Matte white RAL 9010
K11SF2040OPWB3DWW	20W	3000K	1206	DALI	Matte white RAL 9010
K11SF2040OPWB3DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3DRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3DWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB3NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3NRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3NWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB3NWW	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4DRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4DWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4DWW	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4NRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4NWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4NWW	-	-	-	-	Matte white RAL 9010
K21SF2040OPWB3DMW	19W	3000K	1308	DALI	metalized polycarbonate mate

Accessories

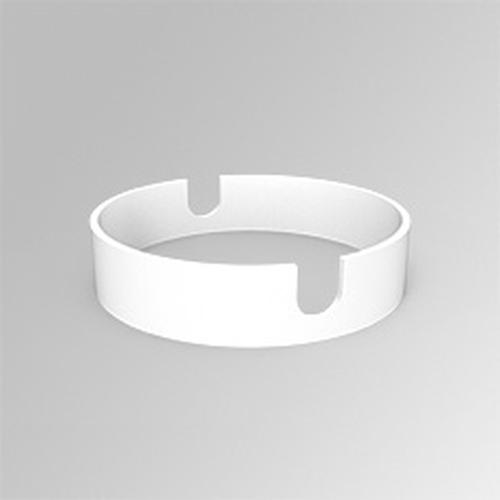

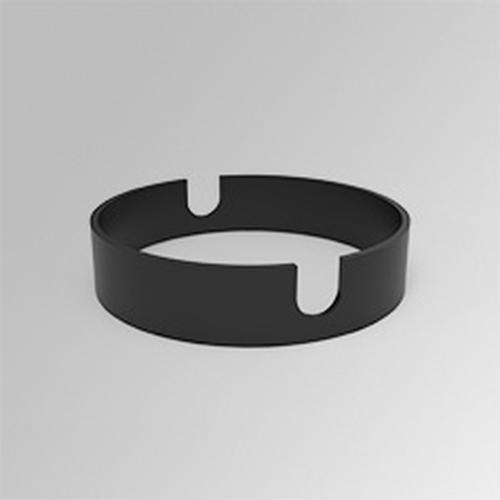

Suspension

K21SUADLATBKKOMBIC 150 SF ADAPT. LATERAL CABLE BK

K21SUADLATWHKOMBIC 150 SF ADAPT. LATERAL CABLE WH

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	ST	Sus. Track									30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
			25	2500lm							30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000K	D	DALI	M	Metalized Matt
											40	4000K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K
									9	90	27	2700K
											30	3000K
											40	4000K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000K	D	DALI	W	White
											40	4000K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000K	D	DALI	M	Metalized Matt	W	White 02
											40	4000K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
