Kombic 100 Downlight

Kombic 100 Surface Opal WellbeingK11SF2040OPWB4DWBKOMBIC 100 SF 1800 IP43 WBN OP DA WH/BK

Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of white aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. White interior reflector and optical film. Heatsink made of die-cast aluminium. COB LED, colour temperature 3000K with CRI95. Luminaire with electronic wiring Dali included. Insolation Class I. Lifetime: 60.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Lumen output:: -
Finishing:: Matte white RAL 9010

Features

Certificates

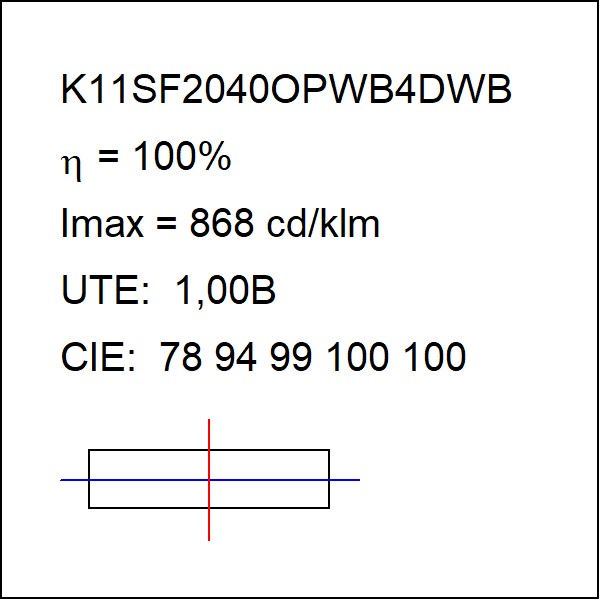

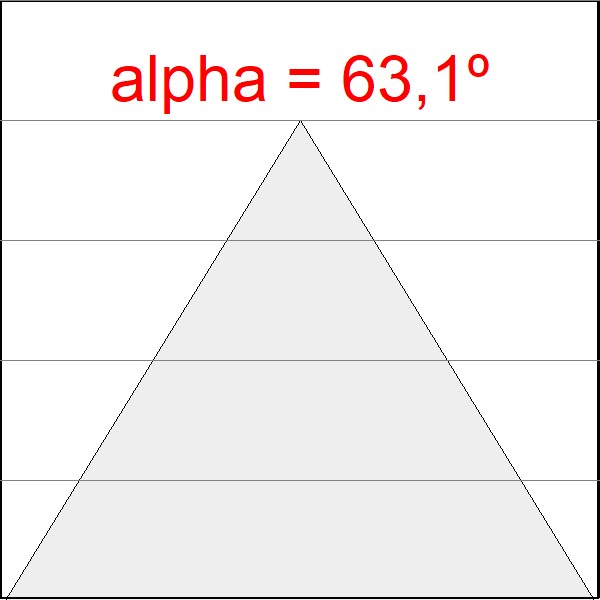

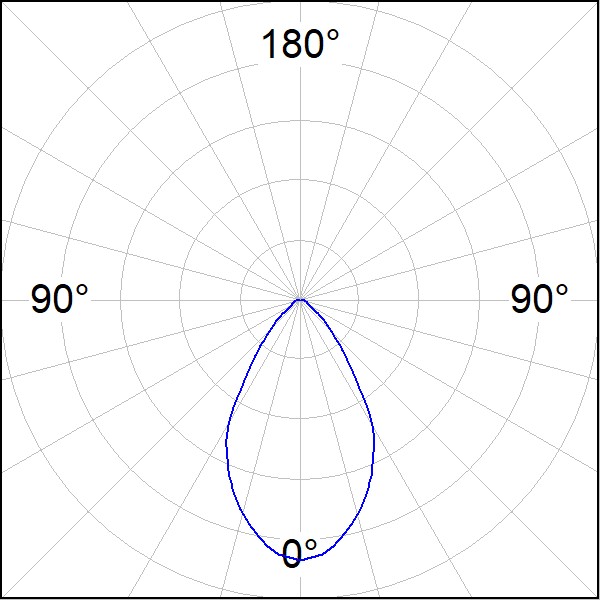

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11SF1540OPWB3NRW	13,9W	3000K	971	-	BRILLIANT METALLIC POLYCARBONATE
K11SF1540OPWB3NRB	13,9W	3000K	971	-	BRILLIANT METALLIC POLYCARBONATE
K21SF2040OPWB4NWW	19W	4000K	1474	-	Matte white RAL 9010
K11SF2040OPWB3DWW	20W	3000K	1206	DALI	Matte white RAL 9010
K11SF2040OPWB3DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3DRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3DWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB3NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB3NRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB3NWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB3NWW	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4DRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4DWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4DWW	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040OPWB4NRB	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SF2040OPWB4NWB	-	-	-	-	Matte white RAL 9010
K11SF2040OPWB4NWW	-	-	-	-	Matte white RAL 9010

Accessories

Suspension

K11SUADLATBKKOMBIC 100 SF ADAPT. LATERAL CABLE BK

K11SUADLATWHKOMBIC 100 SF ADAPT. LATERAL CABLE WH

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	ST	Sus. Track									30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
			25	2500lm							30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000K	D	DALI	M	Metalized Matt
											40	4000K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K
									9	90	27	2700K
											30	3000K
											40	4000K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000K	D	DALI	W	White
											40	4000K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000K	D	DALI	M	Metalized Matt	W	White 02
											40	4000K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
