Kombic 100 Downlight

Kombic 100 Surface Opal CRI 90K11SF1540OP927NMWKOMBIC 100 SF 1500 IP43 9VWW OP MA/WH

Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of white aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Matte metallic interior reflector and optical film. Heatsink made of die-cast aluminium. COB LED, colour temperature 2700K with CRI90. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 13,7W
Color temperature:: 2700K
Lumen output:: 1135
Gear:: Non-adjustable
Finishing:: metalized polycarbonate mate

Features

Certificates

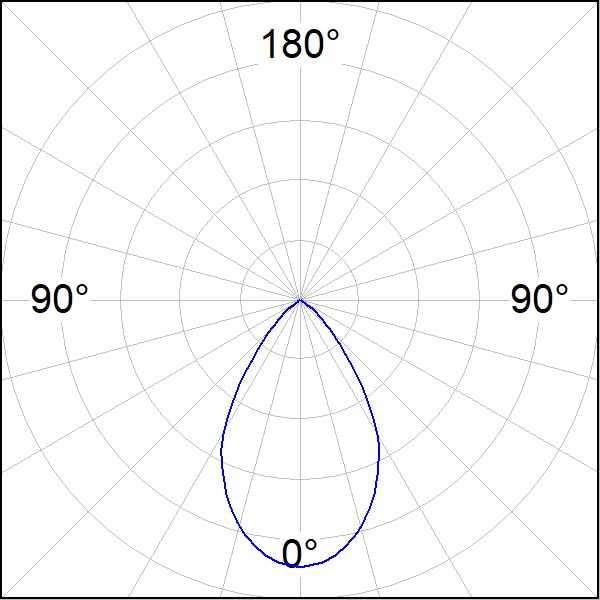

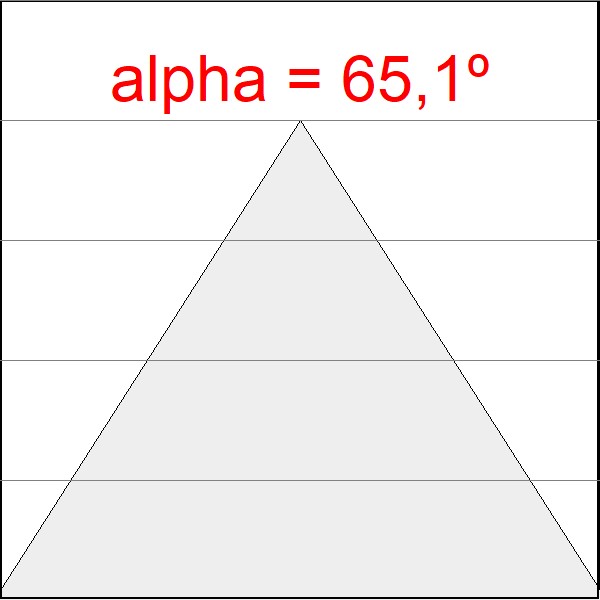

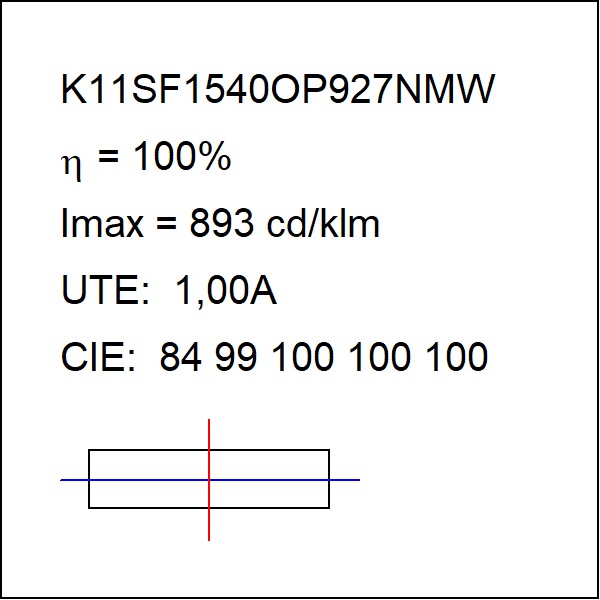

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11SF1540OP930NWW	13,7W	3000K	1224	-	Matte white RAL 9010
K11SF1540OP927NMW	13,7W	2700K	1135	-	metalized polycarbonate mate
K11SF2040OP940NWW	20,4W	4000K	1785	-	Matte white RAL 9010
K11SF1540OP940DWW	13,7W	4000K	1330	DALI	Matte white RAL 9010
K11SF1540WF927NBB	-	-	-	-	Matte black RAL 9011
K11SF2040OP930DWW	20,4W	3000K	1672	DALI	Matte white RAL 9010
K11SF2040OP927NWW	20,4W	2700K	1582	-	Matte white RAL 9010
K11SF2040OP940DWW	20,4W	4000K	1785	DALI	Matte white RAL 9010

Accessories

Suspension

K11SUADLATBKKOMBIC 100 SF ADAPT. LATERAL CABLE BK

K11SUADLATWHKOMBIC 100 SF ADAPT. LATERAL CABLE WH

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
															M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
			25	2500lm							30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000K	D	DALI	M	Metalized Matt
											40	4000K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K
									9	90	27	2700K
											30	3000K
											40	4000K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000K	D	DALI	W	White
											40	4000K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000K	D	DALI	M	Metalized Matt	W	White 02
											40	4000K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
