Kombic 70 Downlight

K71ST1520RW927NBBKOMBIC 70 SUT 1500 IP20 9VWW RF WFL B/B

LAMP Suspended or ceiling mounting downlight KOMBIC 70 SUT 1500. Body made of recycled aluminium extrusion at a rate of 75% and reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Inner reflector finished in black and Wide Flood reflector for greater efficiency and to achieve controlled light distribution and low glare level, less than UGR<19. Heatsink made of die-cast aluminium. COB LED, colour temperature 2700K and IRC90. Electronic ON OFF gear included. IP20 rated. Insulation Class II. Photobiological safety group 0. LED life time: 72.000 L80 B10. Available finishes: White and black.

Power:: 10,5W
Color temperature:: 2700K
Lumen output:: 730
Gear:: Non-adjustable
Finishing:: Matte black RAL 9011

Features

Certificates

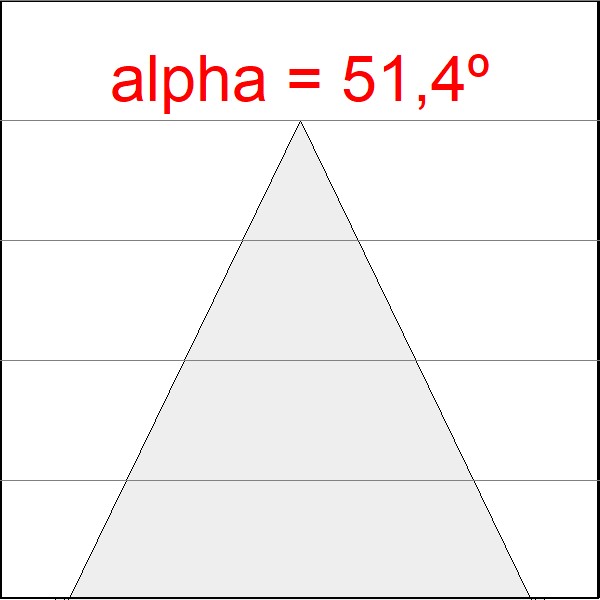

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K71TK1540WF940NWW	10,5W	4000K	884	-	Matte white RAL 9010
K71TK1540WF940NBB	10,5W	4000K	788	-	Matte black RAL 9011
K71TK1540WF940DWW	10,3W	4000K	884	DALI	Matte white RAL 9010
K71TK1540WF940DBB	10,3W	4000K	788	DALI	Matte black RAL 9011
K71TK1540WF930NWW	10,5W	3000K	829	-	Matte white RAL 9010
K71TK1540WF930NBB	10,5W	3000K	739	-	Matte black RAL 9011
K71TK1540WF930DWW	10,3W	3000K	829	DALI	Matte white RAL 9010
K71TK1540WF930DBB	10,3W	3000K	739	DALI	Matte black RAL 9011
K71TK1540WF927NWW	10,5W	2700K	795	-	Matte white RAL 9010
K71TK1540WF927NBB	10,5W	2700K	708	-	Matte black RAL 9011
K71TK1540WF927DWW	10,3W	2700K	795	DALI	Matte white RAL 9010
K71TK1540WF927DBB	10,3W	2700K	708	DALI	Matte black RAL 9011
K71TK1540WF840NWW	10,5W	4000K	1022	-	Matte white RAL 9010
K71TK1540WF840NBB	10,5W	4000K	911	-	Matte black RAL 9011
K71TK1540WF840DWW	10,3W	4000K	1022	DALI	Matte white RAL 9010
K71TK1540WF840DBB	10,3W	4000K	911	DALI	Matte black RAL 9011
K71TK1540WF830NWW	10,5W	3000K	973	-	Matte white RAL 9010
K71TK1540WF830NBB	10,5W	3000K	868	-	Matte black RAL 9011
K71TK1540WF830DWW	10,3W	3000K	973	DALI	Matte white RAL 9010
K71TK1540WF830DBB	10,3W	3000K	868	DALI	Matte black RAL 9011
K71TK1540WF827NWW	10,5W	2700K	929	-	Matte white RAL 9010
K71TK1540WF827NBB	10,5W	2700K	828	-	Matte black RAL 9011
K71TK1540WF827DWW	10,3W	2700K	929	DALI	Matte white RAL 9010
K71TK1540WF827DBB	10,3W	2700K	828	DALI	Matte black RAL 9011
K71TK1540OP940NWW	10,5W	4000K	849	-	Matte white RAL 9010
K71TK1540OP940DWW	10,3W	4000K	849	DALI	Matte white RAL 9010
K71TK1540OP930NWW	10,5W	3000K	796	-	Matte white RAL 9010
K71TK1540OP930DWW	10,3W	3000K	796	DALI	Matte white RAL 9010
K71TK1540OP927NWW	10,5W	2700K	763	-	Matte white RAL 9010
K71TK1540OP927DWW	10,3W	2700K	763	DALI	Matte white RAL 9010
K71TK1540OP840NWW	10,5W	4000K	981	-	Matte white RAL 9010
K71TK1540OP840DWW	10,3W	4000K	981	DALI	Matte white RAL 9010
K71TK1540OP830NWW	10,5W	3000K	935	-	Matte white RAL 9010
K71TK1540OP830DWW	10,3W	3000K	935	DALI	Matte white RAL 9010
K71TK1540OP827NWW	10,5W	2700K	892	-	Matte white RAL 9010
K71TK1540OP827DWW	10,3W	2700K	892	DALI	Matte white RAL 9010
K71TK1520RW940NWW	10,5W	4000K	1002	-	Matte white RAL 9010
K71TK1520RW940NBB	10,5W	4000K	813	-	Matte black RAL 9011
K71TK1520RW940DWW	10,3W	4000K	1002	DALI	Matte white RAL 9010
K71TK1520RW940DBB	10,3W	4000K	813	DALI	Matte black RAL 9011
K71TK1520RW930NWW	10,5W	3000K	940	-	Matte white RAL 9010
K71TK1520RW930NBB	10,5W	3000K	762	-	Matte black RAL 9011
K71TK1520RW930DWW	10,3W	3000K	940	DALI	Matte white RAL 9010
K71TK1520RW930DBB	10,3W	3000K	762	DALI	Matte black RAL 9011
K71TK1520RW927NWW	10,5W	2700K	901	-	Matte white RAL 9010
K71TK1520RW927NBB	10,5W	2700K	730	-	Matte black RAL 9011
K71TK1520RW927DWW	10,3W	2700K	901	DALI	Matte white RAL 9010
K71TK1520RW927DBB	10,3W	2700K	730	DALI	Matte black RAL 9011
K71TK1520RW840NWW	10,5W	4000K	1158	-	Matte white RAL 9010
K71TK1520RW840NBB	10,5W	4000K	939	-	Matte black RAL 9011
K71TK1520RW840DWW	10,3W	4000K	1158	DALI	Matte white RAL 9010
K71TK1520RW840DBB	10,3W	4000K	939	DALI	Matte black RAL 9011
K71TK1520RW830NWW	10,5W	3000K	1104	-	Matte white RAL 9010
K71TK1520RW830NBB	10,5W	3000K	895	-	Matte black RAL 9011
K71TK1520RW830DWW	10,3W	3000K	1104	DALI	Matte white RAL 9010
K71TK1520RW830DBB	10,3W	3000K	895	DALI	Matte black RAL 9011
K71TK1520RW827NWW	10,5W	2700K	1053	-	Matte white RAL 9010
K71TK1520RW827NBB	10,5W	2700K	854	-	Matte black RAL 9011
K71TK1520RW827DWW	10,3W	2700K	1053	DALI	Matte white RAL 9010
K71TK1520RW827DBB	10,3W	2700K	854	DALI	Matte black RAL 9011
K71TK1520RF940NWW	10,5W	4000K	1066	-	Matte white RAL 9010
K71TK1520RF940NBB	10,5W	4000K	934	-	Matte black RAL 9011
K71TK1520RF940DWW	10,3W	4000K	1066	DALI	Matte white RAL 9010
K71TK1520RF940DBB	10,3W	4000K	934	DALI	Matte black RAL 9011
K71TK1520RF930NWW	10,5W	3000K	1000	-	Matte white RAL 9010
K71TK1520RF930NBB	10,5W	3000K	876	-	Matte black RAL 9011
K71TK1520RF930DWW	10,3W	3000K	1000	DALI	Matte white RAL 9010
K71TK1520RF930DBB	10,3W	3000K	876	DALI	Matte black RAL 9011
K71TK1520RF927NWW	10,5W	2700K	959	-	Matte white RAL 9010
K71TK1520RF927NBB	10,5W	2700K	840	-	Matte black RAL 9011
K71TK1520RF927DWW	10,3W	2700K	959	DALI	Matte white RAL 9010
K71TK1520RF927DBB	10,3W	2700K	840	DALI	Matte black RAL 9011
K71TK1520RF840NWW	10,5W	4000K	1232	-	Matte white RAL 9010
K71TK1520RF840NBB	10,5W	4000K	1080	-	Matte black RAL 9011
K71TK1520RF840DWW	10,3W	4000K	1232	DALI	Matte white RAL 9010
K71TK1520RF840DBB	10,3W	4000K	1080	DALI	Matte black RAL 9011
K71TK1520RF830NWW	10,5W	3000K	1174	-	Matte white RAL 9010
K71TK1520RF830NBB	10,5W	3000K	1029	-	Matte black RAL 9011
K71TK1520RF830DWW	10,3W	3000K	1174	DALI	Matte white RAL 9010
K71TK1520RF830DBB	10,3W	3000K	1029	DALI	Matte black RAL 9011
K71TK1520RF827NWW	10,5W	2700K	1120	-	Matte white RAL 9010
K71TK1520RF827NBB	10,5W	2700K	981	-	Matte black RAL 9011
K71TK1520RF827DWW	10,3W	2700K	1120	DALI	Matte white RAL 9010
K71TK1520RF827DBB	10,3W	2700K	981	DALI	Matte black RAL 9011
K71ST1540WF940NWW	10,5W	4000K	884	-	Matte white RAL 9010
K71ST1540WF940NBB	10,5W	4000K	788	-	Matte black RAL 9011
K71ST1540WF940DWW	10,3W	4000K	884	DALI	Matte white RAL 9010
K71ST1540WF940DBB	10,3W	4000K	788	DALI	Matte black RAL 9011
K71ST1540WF930NWW	10,5W	3000K	829	-	Matte white RAL 9010
K71ST1540WF930NBB	10,5W	3000K	739	-	Matte black RAL 9011
K71ST1540WF930DWW	10,3W	3000K	829	DALI	Matte white RAL 9010
K71ST1540WF930DBB	10,3W	3000K	739	DALI	Matte black RAL 9011
K71ST1540WF927NWW	10,5W	2700K	795	-	Matte white RAL 9010
K71ST1540WF927NBB	10,5W	2700K	708	-	Matte black RAL 9011
K71ST1540WF927DWW	10,3W	2700K	795	DALI	Matte white RAL 9010
K71ST1540WF927DBB	10,3W	2700K	708	DALI	Matte black RAL 9011
K71ST1540WF840NWW	10,5W	4000K	1022	-	Matte white RAL 9010
K71ST1540WF840NBB	10,5W	4000K	911	-	Matte black RAL 9011
K71ST1540WF840DWW	10,3W	4000K	1022	DALI	Matte white RAL 9010
K71ST1540WF840DBB	10,3W	4000K	911	DALI	Matte black RAL 9011
K71ST1540WF830NWW	10,5W	3000K	973	-	Matte white RAL 9010
K71ST1540WF830NBB	10,5W	3000K	868	-	Matte black RAL 9011
K71ST1540WF830DWW	10,3W	3000K	973	DALI	Matte white RAL 9010
K71ST1540WF830DBB	10,3W	3000K	868	DALI	Matte black RAL 9011
K71ST1540WF827NWW	10,5W	2700K	929	-	Matte white RAL 9010
K71ST1540WF827NBB	10,5W	2700K	828	-	Matte black RAL 9011
K71ST1540WF827DWW	10,3W	2700K	929	DALI	Matte white RAL 9010
K71ST1540WF827DBB	10,3W	2700K	828	DALI	Matte black RAL 9011
K71ST1540OP940NWW	10,5W	4000K	849	-	Matte white RAL 9010
K71ST1540OP940DWW	10,3W	4000K	849	DALI	Matte white RAL 9010
K71ST1540OP930NWW	10,5W	3000K	796	-	Matte white RAL 9010
K71ST1540OP930DWW	10,3W	3000K	796	DALI	Matte white RAL 9010
K71ST1540OP927NWW	10,5W	2700K	763	-	Matte white RAL 9010
K71ST1540OP927DWW	10,3W	2700K	763	DALI	Matte white RAL 9010
K71ST1540OP840NWW	10,5W	4000K	981	-	Matte white RAL 9010
K71ST1540OP840DWW	10,3W	4000K	981	DALI	Matte white RAL 9010
K71ST1540OP830NWW	10,5W	3000K	935	-	Matte white RAL 9010
K71ST1540OP830DWW	10,3W	3000K	935	DALI	Matte white RAL 9010
K71ST1540OP827NWW	10,5W	2700K	892	-	Matte white RAL 9010
K71ST1540OP827DWW	10,3W	2700K	892	DALI	Matte white RAL 9010
K71ST1520RW940NWW	10,5W	4000K	1002	-	Matte white RAL 9010
K71ST1520RW940NBB	10,5W	4000K	813	-	Matte black RAL 9011
K71ST1520RW940DWW	10,3W	4000K	1002	DALI	Matte white RAL 9010
K71ST1520RW940DBB	10,3W	4000K	813	DALI	Matte black RAL 9011
K71ST1520RW930NWW	10,5W	3000K	940	-	Matte white RAL 9010
K71ST1520RW930NBB	10,5W	3000K	762	-	Matte black RAL 9011
K71ST1520RW930DWW	10,3W	3000K	940	DALI	Matte white RAL 9010
K71ST1520RW930DBB	10,3W	3000K	762	DALI	Matte black RAL 9011
K71ST1520RW927NWW	10,5W	2700K	901	-	Matte white RAL 9010
K71ST1520RW927NBB	10,5W	2700K	730	-	Matte black RAL 9011
K71ST1520RW927DWW	10,3W	2700K	901	DALI	Matte white RAL 9010
K71ST1520RW927DBB	10,3W	2700K	730	DALI	Matte black RAL 9011
K71ST1520RW840NWW	10,5W	4000K	1158	-	Matte white RAL 9010
K71ST1520RW840NBB	10,5W	4000K	939	-	Matte black RAL 9011
K71ST1520RW840DWW	10,3W	4000K	1158	DALI	Matte white RAL 9010
K71ST1520RW840DBB	10,3W	4000K	939	DALI	Matte black RAL 9011
K71ST1520RW830NWW	10,5W	3000K	1104	-	Matte white RAL 9010
K71ST1520RW830NBB	10,5W	3000K	895	-	Matte black RAL 9011
K71ST1520RW830DWW	10,3W	3000K	1104	DALI	Matte white RAL 9010
K71ST1520RW830DBB	10,3W	3000K	895	DALI	Matte black RAL 9011
K71ST1520RW827NWW	10,5W	2700K	1053	-	Matte white RAL 9010
K71ST1520RW827NBB	10,5W	2700K	854	-	Matte black RAL 9011
K71ST1520RW827DWW	10,3W	2700K	1053	DALI	Matte white RAL 9010
K71ST1520RW827DBB	10,3W	2700K	854	DALI	Matte black RAL 9011
K71ST1520RF940NWW	10,5W	4000K	1066	-	Matte white RAL 9010
K71ST1520RF940NBB	10,5W	4000K	934	-	Matte black RAL 9011
K71ST1520RF940DWW	10,3W	4000K	1066	DALI	Matte white RAL 9010
K71ST1520RF940DBB	10,3W	4000K	934	DALI	Matte black RAL 9011
K71ST1520RF930NWW	10,5W	3000K	1000	-	Matte white RAL 9010
K71ST1520RF930NBB	10,5W	3000K	876	-	Matte black RAL 9011
K71ST1520RF930DWW	10,3W	3000K	1000	DALI	Matte white RAL 9010
K71ST1520RF930DBB	10,3W	3000K	876	DALI	Matte black RAL 9011
K71ST1520RF927NWW	10,5W	2700K	959	-	Matte white RAL 9010
K71ST1520RF927NBB	10,5W	2700K	840	-	Matte black RAL 9011
K71ST1520RF927DWW	10,3W	2700K	959	DALI	Matte white RAL 9010
K71ST1520RF927DBB	10,3W	2700K	840	DALI	Matte black RAL 9011
K71ST1520RF840NWW	10,5W	4000K	1232	-	Matte white RAL 9010
K71ST1520RF840NBB	10,5W	4000K	1080	-	Matte black RAL 9011
K71ST1520RF840DWW	10,3W	4000K	1232	DALI	Matte white RAL 9010
K71ST1520RF840DBB	10,3W	4000K	1080	DALI	Matte black RAL 9011
K71ST1520RF830NWW	10,5W	3000K	1174	-	Matte white RAL 9010
K71ST1520RF830NBB	10,5W	3000K	1029	-	Matte black RAL 9011
K71ST1520RF830DWW	10,3W	3000K	1174	DALI	Matte white RAL 9010
K71ST1520RF830DBB	10,3W	3000K	1029	DALI	Matte black RAL 9011
K71ST1520RF827NWW	10,5W	2700K	1120	-	Matte white RAL 9010
K71ST1520RF827NBB	10,5W	2700K	981	-	Matte black RAL 9011
K71ST1520RF827DWW	10,3W	2700K	1120	DALI	Matte white RAL 9010
K71ST1520RF827DBB	10,3W	2700K	981	DALI	Matte black RAL 9011
K71SF1540WF940NWW	9,5W	4000K	884	-	Matte white RAL 9010
K71SF1540WF940NBB	9,5W	4000K	788	-	Matte black RAL 9011
K71SF1540WF940DWW	10,8W	4000K	884	DALI	Matte white RAL 9010
K71SF1540WF940DBB	10,8W	4000K	788	DALI	Matte black RAL 9011
K71SF1540WF930NWW	9,5W	3000K	829	-	Matte white RAL 9010
K71SF1540WF930NBB	9,5W	3000K	739	-	Matte black RAL 9011
K71SF1540WF930DWW	10,8W	3000K	829	DALI	Matte white RAL 9010
K71SF1540WF930DBB	10,8W	3000K	739	DALI	Matte black RAL 9011
K71SF1540WF927NWW	9,5W	2700K	795	-	Matte white RAL 9010
K71SF1540WF927NBB	9,5W	2700K	708	-	Matte black RAL 9011
K71SF1540WF927DWW	10,8W	2700K	795	DALI	Matte white RAL 9010
K71SF1540WF927DBB	10,8W	2700K	708	DALI	Matte black RAL 9011
K71SF1540WF840NWW	9,5W	4000K	1022	-	Matte white RAL 9010
K71SF1540WF840NBB	9,5W	4000K	911	-	Matte black RAL 9011
K71SF1540WF840DWW	10,8W	4000K	1022	DALI	Matte white RAL 9010
K71SF1540WF840DBB	10,8W	4000K	911	DALI	Matte black RAL 9011
K71SF1540WF830NWW	9,5W	3000K	973	-	Matte white RAL 9010
K71SF1540WF830NBB	9,5W	3000K	868	-	Matte black RAL 9011
K71SF1540WF830DWW	10,8W	3000K	973	DALI	Matte white RAL 9010
K71SF1540WF830DBB	10,8W	3000K	868	DALI	Matte black RAL 9011
K71SF1540WF827NWW	9,5W	2700K	929	-	Matte white RAL 9010
K71SF1540WF827NBB	9,5W	2700K	828	-	Matte black RAL 9011
K71SF1540WF827DWW	10,8W	2700K	929	DALI	Matte white RAL 9010
K71SF1540WF827DBB	10,8W	2700K	828	DALI	Matte black RAL 9011
K71SF1540OP940NWW	9,5W	4000K	849	-	Matte white RAL 9010
K71SF1540OP940DWW	10,8W	4000K	849	DALI	Matte white RAL 9010
K71SF1540OP930NWW	9,5W	3000K	796	-	Matte white RAL 9010
K71SF1540OP930DWW	10,8W	3000K	796	DALI	Matte white RAL 9010
K71SF1540OP927NWW	9,5W	2700K	763	-	Matte white RAL 9010
K71SF1540OP927DWW	10,8W	2700K	763	DALI	Matte white RAL 9010
K71SF1540OP840NWW	9,5W	4000K	981	-	Matte white RAL 9010
K71SF1540OP840DWW	10,8W	4000K	981	DALI	Matte white RAL 9010
K71SF1540OP830NWW	9,5W	3000K	935	-	Matte white RAL 9010
K71SF1540OP830DWW	10,8W	3000K	935	DALI	Matte white RAL 9010
K71SF1540OP827NWW	9,5W	2700K	892	-	Matte white RAL 9010
K71SF1540OP827DWW	10,8W	2700K	892	DALI	Matte white RAL 9010
K71SF1520RW940NWW	9,5W	4000K	1002	-	Matte white RAL 9010
K71SF1520RW940NBB	9,5W	4000K	813	-	Matte black RAL 9011
K71SF1520RW940DWW	10,8W	4000K	1002	DALI	Matte white RAL 9010
K71SF1520RW940DBB	10,8W	4000K	813	DALI	Matte black RAL 9011
K71SF1520RW930NWW	9,5W	3000K	940	-	Matte white RAL 9010
K71SF1520RW930NBB	9,5W	3000K	762	-	Matte black RAL 9011
K71SF1520RW930DWW	10,8W	3000K	940	DALI	Matte white RAL 9010
K71SF1520RW930DBB	10,8W	3000K	762	DALI	Matte black RAL 9011
K71SF1520RW927NWW	9,5W	2700K	901	-	Matte white RAL 9010
K71SF1520RW927NBB	9,5W	2700K	730	-	Matte black RAL 9011
K71SF1520RW927DWW	10,8W	2700K	901	DALI	Matte white RAL 9010
K71SF1520RW927DBB	10,8W	2700K	730	DALI	Matte black RAL 9011
K71SF1520RW840NWW	9,5W	4000K	1158	-	Matte white RAL 9010
K71SF1520RW840NBB	9,5W	4000K	939	-	Matte black RAL 9011
K71SF1520RW840DWW	10,8W	4000K	1158	DALI	Matte white RAL 9010
K71SF1520RW840DBB	10,8W	4000K	939	DALI	Matte black RAL 9011
K71SF1520RW830NWW	9,5W	3000K	1104	-	Matte white RAL 9010
K71SF1520RW830NBB	9,5W	3000K	895	-	Matte black RAL 9011
K71SF1520RW830DWW	10,8W	3000K	1104	DALI	Matte white RAL 9010
K71SF1520RW830DBB	10,8W	3000K	895	DALI	Matte black RAL 9011
K71SF1520RW827NWW	9,5W	2700K	1053	-	Matte white RAL 9010
K71SF1520RW827NBB	9,5W	2700K	854	-	Matte black RAL 9011
K71SF1520RW827DWW	10,8W	2700K	1053	DALI	Matte white RAL 9010
K71SF1520RW827DBB	10,8W	2700K	854	DALI	Matte black RAL 9011
K71SF1520RF940NWW	9,5W	4000K	1066	-	Matte white RAL 9010
K71SF1520RF940NBB	9,5W	4000K	934	-	Matte black RAL 9011
K71SF1520RF940DWW	10,8W	4000K	1066	DALI	Matte white RAL 9010
K71SF1520RF940DBB	10,8W	4000K	934	DALI	Matte black RAL 9011
K71SF1520RF930NWW	9,5W	3000K	1000	-	Matte white RAL 9010
K71SF1520RF930NBB	9,5W	3000K	876	-	Matte black RAL 9011
K71SF1520RF930DWW	10,8W	3000K	1000	DALI	Matte white RAL 9010
K71SF1520RF930DBB	10,8W	3000K	876	DALI	Matte black RAL 9011
K71SF1520RF927NWW	9,5W	2700K	959	-	Matte white RAL 9010
K71SF1520RF927NBB	9,5W	2700K	840	-	Matte black RAL 9011
K71SF1520RF927DWW	10,8W	2700K	959	DALI	Matte white RAL 9010
K71SF1520RF927DBB	10,8W	2700K	840	DALI	Matte black RAL 9011
K71SF1520RF840NWW	9,5W	4000K	1232	-	Matte white RAL 9010
K71SF1520RF840NBB	9,5W	4000K	1080	-	Matte black RAL 9011
K71SF1520RF840DWW	10,8W	4000K	1232	DALI	Matte white RAL 9010
K71SF1520RF840DBB	10,8W	4000K	1080	DALI	Matte black RAL 9011
K71SF1520RF830NWW	9,5W	3000K	1174	-	Matte white RAL 9010
K71SF1520RF830NBB	9,5W	3000K	1029	-	Matte black RAL 9011
K71SF1520RF830DWW	10,8W	3000K	1174	DALI	Matte white RAL 9010
K71SF1520RF830DBB	10,8W	3000K	1029	DALI	Matte black RAL 9011
K71SF1520RF827NWW	9,5W	2700K	1120	-	Matte white RAL 9010
K71SF1520RF827NBB	9,5W	2700K	981	-	Matte black RAL 9011
K71SF1520RF827DWW	10,8W	2700K	1120	DALI	Matte white RAL 9010
K71SF1520RF827DBB	10,8W	2700K	981	DALI	Matte black RAL 9011

Family	Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Exterior Finishes
K71	15	1500lm	23	IP23	RF	Reflector Flood	8	80	27	2700 K	N	ON/OFF	W	White	W	White 02
					RW	Reflector Wide Flood	9	90	30	3000 K	D	DALI	B	Black	B	Black 02
									40	4000 K
			44	IP44	OP	Opal	8	80	27	2700 K	N	ON/OFF	W	White	W	White 02
							9	90	30	3000 K	D	DALI
									40	4000 K
			23	IP43	WF	Wide Flood	8	80	27	2700 K	N	ON/OFF	W	White	W	White 02
					EL	Elliptic	9	90	30	3000 K	D	DALI	B	Black	B	Black 02
									40	4000 K

Family	Lm LED		IP		Optics		CRI		K		Gear		Reflector Finish		Exterior Finishes
K71	15	1500lm	65	IP65	OP	Opal 54º	9	90	27	2700 K	N	ON/OFF	W	White	W	White 02
							8	80	30	3000 K	D	Dali
									40	4000 K

Family	Installation						Optic		CRI						Reflector		Ext. Finish
K71	SF	Surface	15	1500lm	20	IP23	RF	Reflector Flood	8	80	27	2700K	N	ON/OFF	B	Black	B	Black
	TK	Track					RW	Reflector Wide Flood	9	90	30	3000K	D	DALI	W	White	W	White
	ST	Suspended Track									40	4000K
					40	IP43	OP	Opal	8	80	27	2700K	N	ON/OFF	W	White	W	White
									9	90	30	3000K	D	DALI
											40	4000K
							WF	Wide Flood	8	80	27	2700K	N	ON/OFF	B	Black	B	Black
									9	90	30	3000K	D	DALI	W	White	W	White
											40	4000K
