Kombic 100 Surface Track OpticK11ST1540WF930NWWKOMBIC 100 SUT 1500 IP40 9WW WFL WH/WH.
Square recessed downlight model KOMBIC 100 SQ by Lamp brand. Reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Matte metallic interior reflector and frame in white finish. Heatsink made of die-cast aluminium. COB LED, colour temperature 4000K with CR80. Luminaire with electronic wiring included. Insolation Class II. Lifetime: 50.000 L70 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution and low UGR<19. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.
- Power:
- 10W
- Color temperature:
- 3000K
- Lumen output:
- 1098
- Finishing:
- Matte white RAL 9010
Features
Certificates

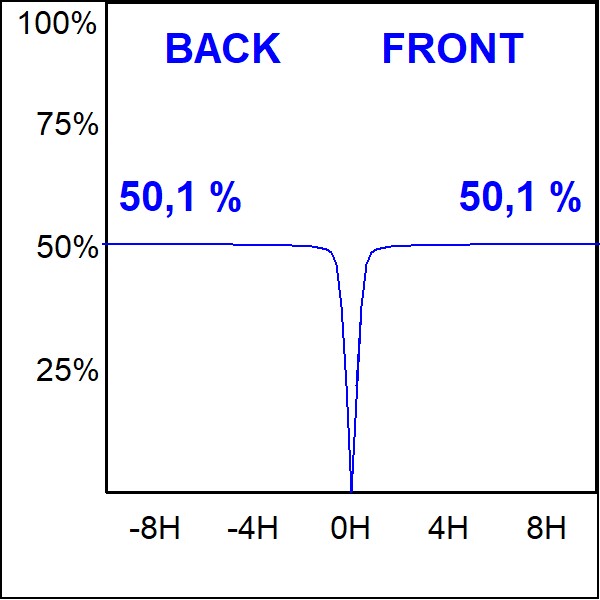

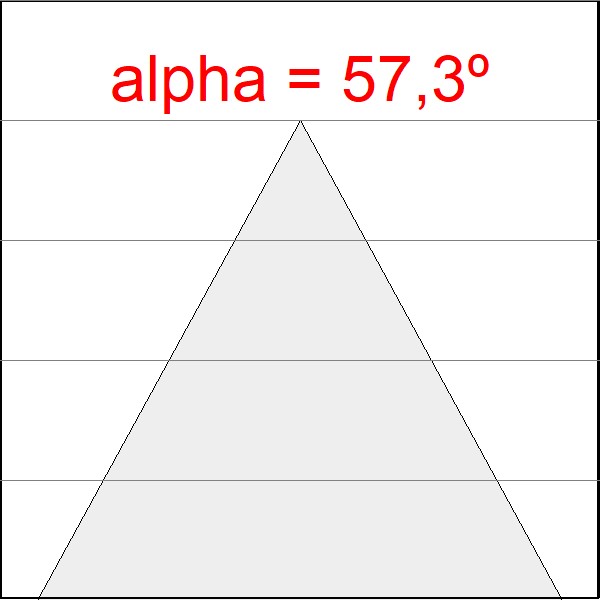

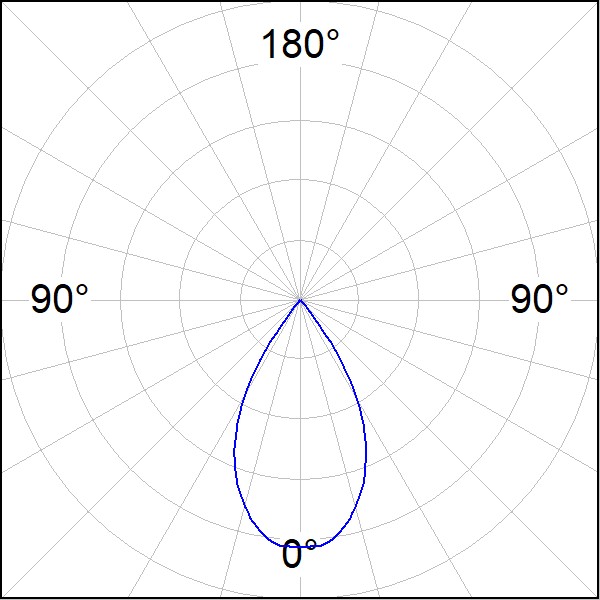

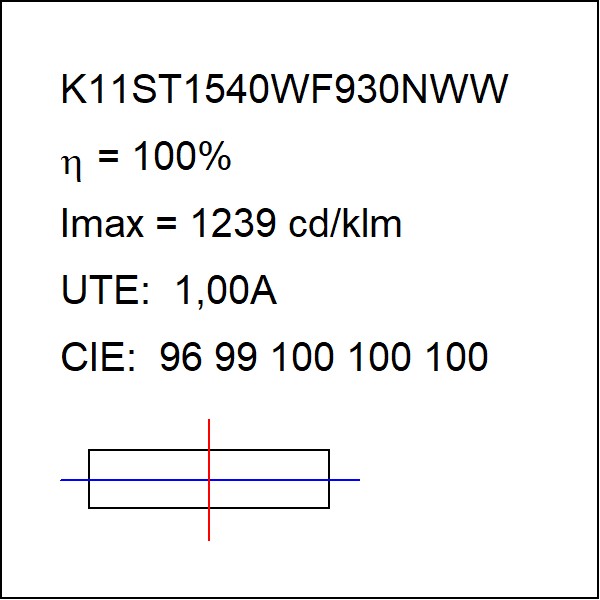

Photometric data
Do you need more information?
Product variants
| Code | W | K | lm out | Gear | Finishing |
|---|---|---|---|---|---|
| K11ST2540WF840NWW | 14W | 4000K | 1765 | - | Matte white RAL 9010 |
| K11ST2540WF840NWB | 14W | 4000K | 1765 | - | Matte white RAL 9010 |
| K11ST2540WF840NMW | 14W | 4000K | 1748 | - | metalized polycarbonate mate |
| K11ST2540WF840NMB | 14W | 4000K | 1748 | - | metalized polycarbonate mate |
| K11ST2540WF840NBW | 14W | 4000K | 1694 | - | Matte black RAL 9011 |
| K11ST2540WF840NBB | 14W | 4000K | 1694 | - | Matte black RAL 9011 |
| K11ST2540WF840DWW | 14W | 4000K | 1765 | DALI | Matte white RAL 9010 |
| K11ST2540WF840DWB | 14W | 4000K | 1765 | DALI | Matte white RAL 9010 |
| K11ST2540WF840DMW | 14W | 4000K | 1748 | DALI | metalized polycarbonate mate |
| K11ST2540WF840DMB | 14W | 4000K | 1748 | DALI | metalized polycarbonate mate |
| K11ST2540WF840DBW | 14W | 4000K | 1694 | DALI | Matte black RAL 9011 |
| K11ST2540WF840DBB | 14W | 4000K | 1694 | DALI | Matte black RAL 9011 |
| K11ST2540WF830NWW | 14W | 3000K | 1722 | - | Matte white RAL 9010 |
| K11ST2540WF830NWB | 14W | 3000K | 1722 | - | Matte white RAL 9010 |
| K11ST2540WF830NMW | 14W | 3000K | 1705 | - | metalized polycarbonate mate |
| K11ST2540WF830NMB | 14W | 3000K | 1705 | - | metalized polycarbonate mate |
| K11ST2540WF830NBW | 14W | 3000K | 1652 | - | Matte black RAL 9011 |
| K11ST2540WF830NBB | 14W | 3000K | 1652 | - | Matte black RAL 9011 |
| K11ST2540WF830DWW | 14W | 3000K | 1722 | DALI | Matte white RAL 9010 |
| K11ST2540WF830DWB | 14W | 3000K | 1722 | DALI | Matte white RAL 9010 |
| K11ST2540WF830DMW | 14W | 3000K | 1705 | DALI | metalized polycarbonate mate |
| K11ST2540WF830DMB | 14W | 3000K | 1705 | DALI | metalized polycarbonate mate |
| K11ST2540WF830DBW | 14W | 3000K | 1652 | DALI | Matte black RAL 9011 |
| K11ST2540WF830DBB | 14W | 3000K | 1652 | DALI | Matte black RAL 9011 |
| K11ST2040WF840NWW | 10W | 4000K | 1286 | - | Matte white RAL 9010 |
| K11ST2040WF840NWB | 10W | 4000K | 1286 | - | Matte white RAL 9010 |
| K11ST2040WF840NMW | 10W | 4000K | 1274 | - | metalized polycarbonate mate |
| K11ST2040WF840NMB | 10W | 4000K | 1274 | - | metalized polycarbonate mate |
| K11ST2040WF840NBW | 10W | 4000K | 1234 | - | Matte black RAL 9011 |
| K11ST2040WF840NBB | 10W | 4000K | 1234 | - | Matte black RAL 9011 |
| K11ST2040WF840DWW | 10W | 4000K | 1286 | DALI | Matte white RAL 9010 |
| K11ST2040WF840DWB | 10W | 4000K | 1286 | DALI | Matte white RAL 9010 |
| K11ST2040WF840DMW | 10W | 4000K | 1274 | DALI | metalized polycarbonate mate |
| K11ST2040WF840DMB | 10W | 4000K | 1274 | DALI | metalized polycarbonate mate |
| K11ST2040WF840DBW | 10W | 4000K | 1234 | DALI | Matte black RAL 9011 |
| K11ST2040WF840DBB | 10W | 4000K | 1234 | DALI | Matte black RAL 9011 |
| K11ST2040WF830NWW | 10W | 3000K | 1286 | - | Matte white RAL 9010 |
| K11ST2040WF830NWB | 10W | 3000K | 1286 | - | Matte white RAL 9010 |
| K11ST2040WF830NMW | 10W | 3000K | 1274 | - | metalized polycarbonate mate |
| K11ST2040WF830NMB | 10W | 3000K | 1274 | - | metalized polycarbonate mate |
| K11ST2040WF830NBW | 10W | 3000K | 1234 | - | Matte black RAL 9011 |
| K11ST2040WF830NBB | 10W | 3000K | 1234 | - | Matte black RAL 9011 |
| K11ST2040WF830DWW | 10W | 3000K | 1286 | DALI | Matte white RAL 9010 |
| K11ST2040WF830DWB | 10W | 3000K | 1286 | DALI | Matte white RAL 9010 |
| K11ST2040WF830DMW | 10W | 3000K | 1274 | DALI | metalized polycarbonate mate |
| K11ST2040WF830DMB | 10W | 3000K | 1274 | DALI | metalized polycarbonate mate |
| K11ST2040WF830DBW | 10W | 3000K | 1234 | DALI | Matte black RAL 9011 |
| K11ST2040WF830DBB | 10W | 3000K | 1234 | DALI | Matte black RAL 9011 |
| K11TK2540WF840NWW | 14W | 4000K | 1765 | - | Matte white RAL 9010 |
| K11TK2540WF840NWB | 14W | 4000K | 1765 | - | Matte white RAL 9010 |
| K11TK2540WF840NMW | 14W | 4000K | 1748 | - | metalized polycarbonate mate |
| K11TK2540WF840NMB | 14W | 4000K | 1748 | - | metalized polycarbonate mate |
| K11TK2540WF840NBW | 14W | 4000K | 1694 | - | Matte black RAL 9011 |
| K11TK2540WF840NBB | 14W | 4000K | 1694 | - | Matte black RAL 9011 |
| K11TK2540WF840DWW | 14W | 4000K | 1765 | DALI | Matte white RAL 9010 |
| K11TK2540WF840DWB | 14W | 4000K | 1765 | DALI | Matte white RAL 9010 |
| K11TK2540WF840DMW | 14W | 4000K | 1748 | DALI | metalized polycarbonate mate |
| K11TK2540WF840DMB | 14W | 4000K | 1748 | DALI | metalized polycarbonate mate |
| K11TK2540WF840DBW | 14W | 4000K | 1694 | DALI | Matte black RAL 9011 |
| K11TK2540WF840DBB | 14W | 4000K | 1694 | DALI | Matte black RAL 9011 |
| K11TK2540WF830NWW | 14W | 3000K | 1722 | - | Matte white RAL 9010 |
| K11TK2540WF830NWB | 14W | 3000K | 1722 | - | Matte white RAL 9010 |
| K11TK2540WF830NMW | 14W | 3000K | 1705 | - | metalized polycarbonate mate |
| K11TK2540WF830NMB | 14W | 3000K | 1705 | - | metalized polycarbonate mate |
| K11TK2540WF830NBW | 14W | 3000K | 1652 | - | Matte black RAL 9011 |
| K11TK2540WF830NBB | 14W | 3000K | 1652 | - | Matte black RAL 9011 |
| K11TK2540WF830DWW | 14W | 3000K | 1722 | DALI | Matte white RAL 9010 |
| K11TK2540WF830DWB | 14W | 3000K | 1722 | DALI | Matte white RAL 9010 |
| K11TK2540WF830DMW | 14W | 3000K | 1705 | DALI | metalized polycarbonate mate |
| K11TK2540WF830DMB | 14W | 3000K | 1705 | DALI | metalized polycarbonate mate |
| K11TK2540WF830DBW | 14W | 3000K | 1652 | DALI | Matte black RAL 9011 |
| K11TK2540WF830DBB | 14W | 3000K | 1652 | DALI | Matte black RAL 9011 |
| K11TK2040WF840NWW | 10W | 4000K | 1286 | - | Matte white RAL 9010 |
| K11TK2040WF840NWB | 10W | 4000K | 1286 | - | Matte white RAL 9010 |
| K11TK2040WF840NMW | 10W | 4000K | 1274 | - | metalized polycarbonate mate |
| K11TK2040WF840NMB | 10W | 4000K | 1274 | - | metalized polycarbonate mate |
| K11TK2040WF840NBW | 10W | 4000K | 1234 | - | Matte black RAL 9011 |
| K11TK2040WF840NBB | 10W | 4000K | 1234 | - | Matte black RAL 9011 |
| K11TK2040WF840DWW | 10W | 4000K | 1286 | DALI | Matte white RAL 9010 |
| K11TK2040WF840DWB | 10W | 4000K | 1286 | DALI | Matte white RAL 9010 |
| K11TK2040WF840DMW | 10W | 4000K | 1274 | DALI | metalized polycarbonate mate |
| K11TK2040WF840DMB | 10W | 4000K | 1274 | DALI | metalized polycarbonate mate |
| K11TK2040WF840DBW | 10W | 4000K | 1234 | DALI | Matte black RAL 9011 |
| K11TK2040WF840DBB | 10W | 4000K | 1234 | DALI | Matte black RAL 9011 |
| K11TK2040WF830NWW | 10W | 3000K | 1286 | - | Matte white RAL 9010 |
| K11TK2040WF830NWB | 10W | 3000K | 1286 | - | Matte white RAL 9010 |
| K11TK2040WF830NMW | 10W | 3000K | 1274 | - | metalized polycarbonate mate |
| K11TK2040WF830NMB | 10W | 3000K | 1274 | - | metalized polycarbonate mate |
| K11TK2040WF830NBW | 10W | 3000K | 1234 | - | Matte black RAL 9011 |
| K11TK2040WF830NBB | 10W | 3000K | 1234 | - | Matte black RAL 9011 |
| K11TK2040WF830DWW | 10W | 3000K | 1286 | DALI | Matte white RAL 9010 |
| K11TK2040WF830DWB | 10W | 3000K | 1286 | DALI | Matte white RAL 9010 |
| K11TK2040WF830DMW | 10W | 3000K | 1274 | DALI | metalized polycarbonate mate |
| K11TK2040WF830DMB | 10W | 3000K | 1274 | DALI | metalized polycarbonate mate |
| K11TK2040WF830DBW | 10W | 3000K | 1234 | DALI | Matte black RAL 9011 |
| K11TK2040WF830DBB | 10W | 3000K | 1234 | DALI | Matte black RAL 9011 |
| K11TK1540WF927NBW | 10W | 2700K | 1002 | - | Matte black RAL 9011 |
| K11TK2040WF930NBW | 14W | 3000K | 1410 | - | Matte black RAL 9011 |
| K11ST1540WFWB4NWW | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB4NWB | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB4NMW | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB4NMB | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB4NBW | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB4NBB | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB4DWW | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB4DWB | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB4DMW | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB4DMB | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB4DBW | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB4DBB | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB3NWW | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB3NWB | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB3NMW | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB3NMB | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB3NBW | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB3NBB | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB3DWW | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB3DWB | - | - | - | - | Matte white RAL 9010 |
| K11ST1540WFWB3DMW | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB3DMB | - | - | - | - | metalized polycarbonate mate |
| K11ST1540WFWB3DBW | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WFWB3DBB | - | - | - | - | Matte black RAL 9011 |
| K11ST1540WF940NWW | 10W | 4000K | 1134 | - | Matte white RAL 9010 |
| K11ST1540WF940NWB | 10W | 4000K | 1134 | - | Matte white RAL 9010 |
| K11ST1540WF940NMW | 10W | 4000K | 1124 | - | metalized polycarbonate mate |
| K11ST1540WF940NMB | 10W | 4000K | 1124 | - | metalized polycarbonate mate |
| K11ST1540WF940NBW | 10W | 4000K | 1089 | - | Matte black RAL 9011 |
| K11ST1540WF940NBB | 10W | 4000K | 1089 | - | Matte black RAL 9011 |
| K11ST1540WF940DWW | 10W | 4000K | 1134 | - | Matte white RAL 9010 |
| K11ST1540WF940DWB | 10W | 4000K | 1134 | - | Matte white RAL 9010 |
| K11ST1540WF940DMW | 10W | 4000K | 1124 | - | metalized polycarbonate mate |
| K11ST1540WF940DMB | 10W | 4000K | 1124 | - | metalized polycarbonate mate |
| K11ST1540WF940DBW | 10W | 4000K | 1089 | - | Matte black RAL 9011 |
| K11ST1540WF940DBB | 10W | 4000K | 1089 | - | Matte black RAL 9011 |
| K11ST1540WF930NWW | 10W | 3000K | 1098 | - | Matte white RAL 9010 |
| K11ST1540WF930NWB | 10W | 3000K | 1098 | - | Matte white RAL 9010 |
| K11ST1540WF930NMW | 10W | 3000K | 1088 | - | metalized polycarbonate mate |
| K11ST1540WF930NMB | 10W | 3000K | 1088 | - | metalized polycarbonate mate |
| K11ST1540WF930NBW | 10W | 3000K | 1054 | - | Matte black RAL 9011 |
| K11ST1540WF930NBB | 10W | 3000K | 1054 | - | Matte black RAL 9011 |
| K11ST1540WF930DWW | 10W | 3000K | 1098 | - | Matte white RAL 9010 |
| K11ST1540WF930DWB | 10W | 3000K | 1098 | - | Matte white RAL 9010 |
| K11ST1540WF930DMW | 10W | 3000K | 1088 | - | metalized polycarbonate mate |
| K11ST1540WF930DMB | 10W | 3000K | 1088 | - | metalized polycarbonate mate |
| K11ST1540WF930DBW | 10W | 3000K | 1054 | - | Matte black RAL 9011 |
| K11ST1540WF930DBB | 10W | 3000K | 1054 | - | Matte black RAL 9011 |
| K11ST1540WF927NWW | 10W | 2700K | 1044 | - | Matte white RAL 9010 |
| K11ST1540WF927NWB | 10W | 2700K | 1044 | - | Matte white RAL 9010 |
| K11ST1540WF927NMW | 10W | 2700K | 1034 | - | metalized polycarbonate mate |
| K11ST1540WF927NMB | 10W | 2700K | 1034 | - | metalized polycarbonate mate |
| K11ST1540WF927NBW | 10W | 2700K | 1002 | - | Matte black RAL 9011 |
| K11ST1540WF927NBB | 10W | 2700K | 1002 | - | Matte black RAL 9011 |
| K11ST1540WF927DWW | 10W | 2700K | 1044 | - | Matte white RAL 9010 |
| K11ST1540WF927DWB | 10W | 2700K | 1044 | - | Matte white RAL 9010 |
| K11ST1540WF927DMW | 10W | 2700K | 1034 | - | metalized polycarbonate mate |
| K11ST1540WF927DMB | 10W | 2700K | 1034 | - | metalized polycarbonate mate |
| K11ST1540WF927DBW | 10W | 2700K | 1002 | - | BRILLIANT METALLIC POLYCARBONATE |
| K11ST1540WF927DBB | 10W | 2700K | 1002 | - | Matte black RAL 9011 |
