Kombic 100 Downlight

Kombic 100 Surface ON / OFF OpticK11SF2540WF840NMBKOMBIC 100 SF 2500 IP43 NW WFL MA/BK

Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of black aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Matte metallic interior reflector . Heatsink made of die-cast aluminium. COB LED, colour temperature 4000K with CRI80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L70 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution and low glare level, less than UGR 17. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 19,7W
Color temperature:: 4000K
Lumen output:: 1792
Gear:: Non-adjustable
Finishing:: metalized polycarbonate mate

Features

Certificates

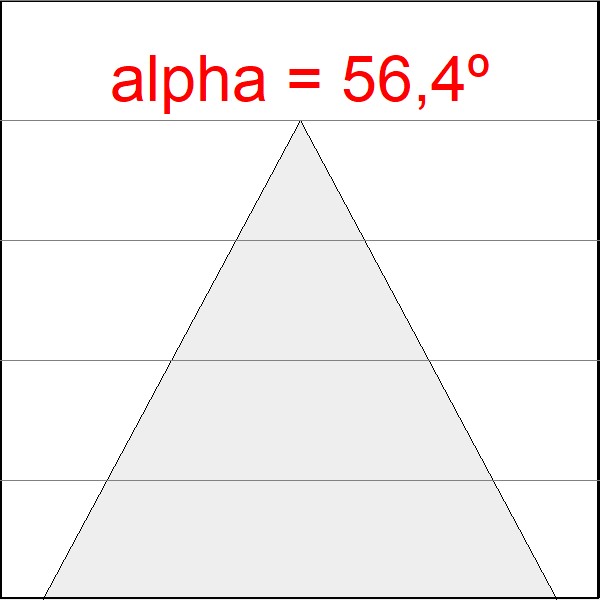

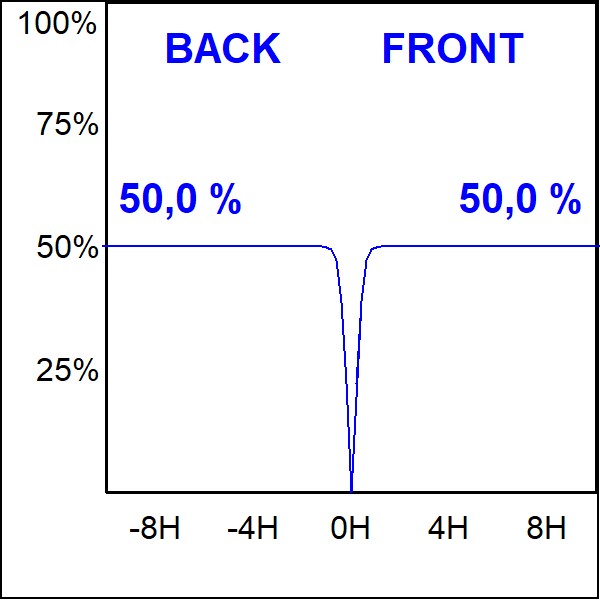

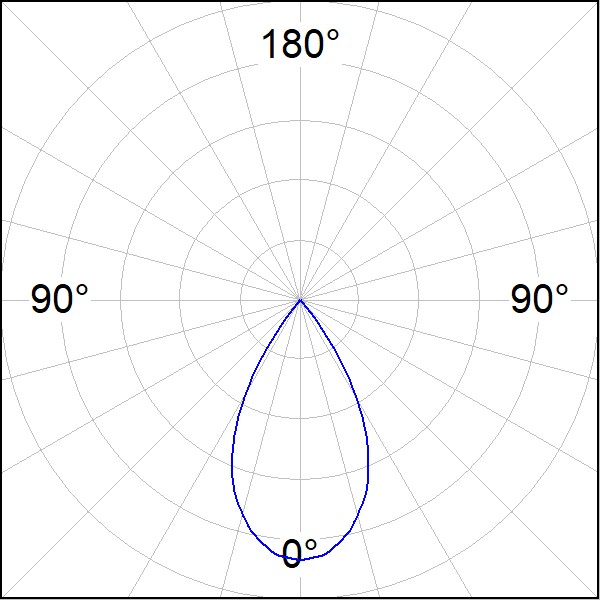

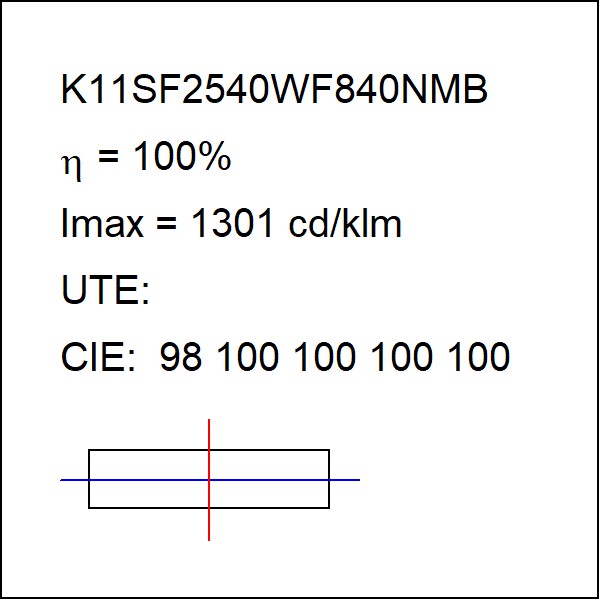

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11SF2540WF840NWW	19,7W	4000K	1802	-	Matte white RAL 9010
K11SF2540WF840NWB	19,7W	4000K	1802	-	Matte white RAL 9010
K11SF2540WF840NMW	19,7W	4000K	1792	-	metalized polycarbonate mate
K11SF2540WF840NMB	19,7W	4000K	1792	-	metalized polycarbonate mate
K11SF2540WF840NBW	19,7W	4000K	1704	-	Matte black RAL 9011
K11SF2540WF830NWW	19,7W	3000K	1701	-	Matte white RAL 9010
K11SF2540WF830NWB	19,7W	3000K	1701	-	Matte white RAL 9010
K11SF2540WF830NMW	19,7W	3000K	1692	-	metalized polycarbonate mate
K11SF2540WF830NMB	19,7W	3000K	1692	-	metalized polycarbonate mate
K11SF2540WF830NBW	19,7W	3000K	1609	-	Matte black RAL 9011
K11SF2540WF830NBB	19,7W	3000K	1609	-	Matte black RAL 9011
K11SF2040WF840NWW	14,5W	4000K	1343	-	Matte white RAL 9010
K11SF2040WF840NWB	14,5W	4000K	1343	-	Matte white RAL 9010
K11SF2040WF840NMW	14,5W	4000K	1351	-	metalized polycarbonate mate
K11SF2040WF840NMB	14,5W	4000K	1351	-	metalized polycarbonate mate
K11SF2040WF840NBW	14,5W	4000K	1277	-	Matte black RAL 9011
K11SF2040WF840NBB	14,5W	4000K	1277	-	Matte black RAL 9011
K11SF2040WF830NWW	14,5W	3000K	1275	-	Matte white RAL 9010
K11SF2040WF830NWB	14,5W	3000K	1275	-	Matte white RAL 9010
K11SF2040WF830NMW	14,5W	3000K	1268	-	metalized polycarbonate mate
K11SF2040WF830NMB	14,5W	3000K	1268	-	metalized polycarbonate mate
K11SF2040WF830NBW	14,5W	3000K	1205	-	Matte black RAL 9011
K11SF2040WF830NBB	14,5W	3000K	1205	-	Matte black RAL 9011
K11SF2540WF840NBB	19,7W	4000K	1704	-	Matte black RAL 9011
K11SF1540WF940NWW	13,4W	4000K	1166	DALI	Matte white RAL 9010
K11SF2040WF927NBB	20,3W	2700K	1396	-	Matte black RAL 9011
K11SF2040WF930NWW	20,3W	3000K	1556	-	Matte white RAL 9010
K11SF2040WF940DBB	20,3W	4000K	1552	DALI	Matte black RAL 9011
K11SF1540WFWB3NWW	13,9W	3000K	857	-	Matte white RAL 9010
K11SF2040WF9TWDWW	20,7W	2700-6500K	1050	DALI	Matte white RAL 9010
K11SF2040WF9TWDBW	20,7W	2700-6500K	1001	DALI	Matte black RAL 9011
K11SF2040WF9TWDMB	20,7W	2700-6500K	1050	DALI	metalized polycarbonate mate
K11SF2040WF9TWDMW	20,7W	2700-6500K	1050	DALI	metalized polycarbonate mate
K11SF2040WF9TWDBB	20,7W	2700-6500K	1001	DALI	Matte black RAL 9011
K11SF2040WF9TWDWB	20,7W	2700-6500K	1050	DALI	Matte white RAL 9010
K11SF2040WF940NBB	20,3W	4000K	1552	-	Matte black RAL 9011
K11SF1540WF930DBB	13,7W	3000K	1015	DALI	Matte black RAL 9011
K11SF1540WF930NBB	13,7W	3000K	1015	-	Matte black RAL 9011
K11SF2040WF930DBB	20,3W	3000K	1472	DALI	Matte black RAL 9011
K11SF1540WF930DWW	13,7W	3000K	1074	DALI	Matte white RAL 9010
K11SF2040WF830DWW	14,8W	3000K	1275	DALI	Matte white RAL 9010
K11SF2040WF927DWW	20,3W	2700K	1476	DALI	Matte white RAL 9010
K11SF2540WF840DWB	21,6W	4000K	1802	DALI	Matte white RAL 9010
K11SF2540WF840DMW	21,6W	4000K	1792	DALI	metalized polycarbonate mate
K11SF2540WF840DBW	21,6W	4000K	1704	DALI	Matte black RAL 9011
K11SF2540WF840DBB	21,6W	4000K	1704	DALI	Matte black RAL 9011
K11SF2540WF830DWW	21,6W	3000K	1701	DALI	Matte white RAL 9010
K11SF2540WF830DMW	21,6W	3000K	1692	DALI	metalized polycarbonate mate
K11SF2540WF830DBW	21,6W	3000K	1609	DALI	Matte black RAL 9011
K11SF2040WF840DWW	14,8W	4000K	1343	DALI	Matte white RAL 9010
K11SF2040WF840DMW	14,8W	4000K	1351	DALI	metalized polycarbonate mate
K11SF2040WF840DMB	14,8W	4000K	1351	DALI	metalized polycarbonate mate
K11SF2040WF830DWB	14,8W	3000K	1275	DALI	Matte white RAL 9010
K11SF2040WF830DMW	14,8W	3000K	1268	DALI	metalized polycarbonate mate
K11SF2040WF830DMB	14,8W	3000K	1268	DALI	metalized polycarbonate mate
K11SF2040WF830DBW	14,8W	3000K	1205	DALI	Matte black RAL 9011
K11SF2540WF840DWW	21,6W	4000K	1802	DALI	Matte white RAL 9010
K11SF2540WF840DMB	21,6W	4000K	1792	DALI	metalized polycarbonate mate
K11SF2540WF830DWB	21,6W	3000K	1701	DALI	Matte white RAL 9010
K11SF2540WF830DMB	21,6W	3000K	1692	DALI	metalized polycarbonate mate
K11SF2540WF830DBB	21,6W	3000K	1609	DALI	Matte black RAL 9011
K11SF2040WF840DWB	14,8W	4000K	1343	DALI	Matte white RAL 9010
K11SF2040WF840DBW	14,8W	4000K	1277	DALI	Matte black RAL 9011
K11SF2040WF840DBB	14,8W	4000K	1277	DALI	Matte black RAL 9011
K11SF2040WF830DBB	14,8W	3000K	1205	DALI	Matte black RAL 9011
K11SF2040WF927NWW	20,3W	2700K	1476	-	Matte white RAL 9010
K11SF2040WF840NBBE	-	-	-	-	-
K11SF2040WF830NBBE	-	-	-	-	-
K11SF1540WF930NMB	13,7W	3000K	1068	-	metalized polycarbonate mate
K11SF2040WF930DBW	20,3W	3000K	1472	DALI	Matte black RAL 9011
K11SF2040WF940NWW	20,3W	4000K	1640	-	Matte white RAL 9010

Accessories

Suspension

K11SUADLATBKKOMBIC 100 SF ADAPT. LATERAL CABLE BK

K11SUADLATWHKOMBIC 100 SF ADAPT. LATERAL CABLE WH

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
															M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	ST	Sus. Track									30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	20	2000lm	40	IP 43	OP	Opal	9	CRI90	TW	Tunable White	D	DALI	R	Bright	W	White 02
	ST	Sus. Track													M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000 K	D	DALI	M	Metalized Matt
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K
									9	90	27	2700 K
											30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700 K	N	ON/OFF	W	White
							EL	Elliptic			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700 K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000 K	D	DALI	W	White
											40	4000 K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700 K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000 K	D	DALI	M	Metalized Matt	W	White 02
											40	4000 K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700 K	N	ON/OFF	B	Black	B	Black 02
											30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700 K	N	ON/OFF	W	White
							EL	Elliptic			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
