Kombic 100 Downlight

Kombic 100 Surface ON / OFF OpticK11SF2040WF830NMBKOMBIC 100 SF 2000 IP43 WW WFL MA/BK

Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of black aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Matte metallic interior reflector . Heatsink made of die-cast aluminium. COB LED, colour temperature 3000K with CRI80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution and low glare level, less than UGR 17.

Power:: 14,5W
Color temperature:: 3000K
Lumen output:: 1268
Gear:: Non-adjustable
Finishing:: Matte black RAL 9011

Features

Certificates

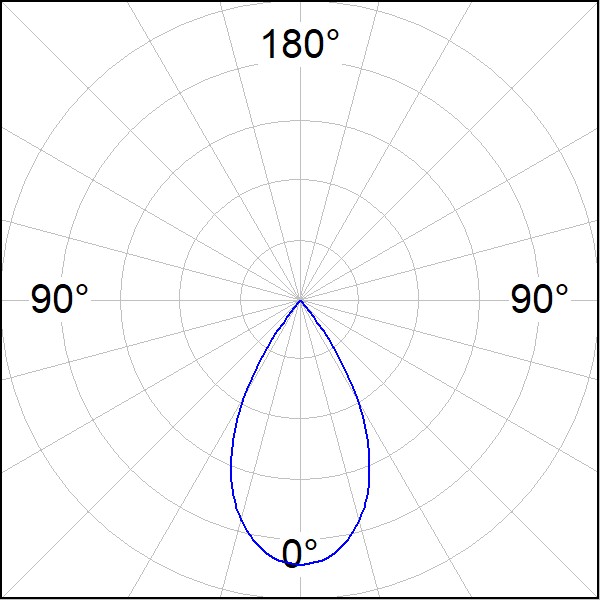

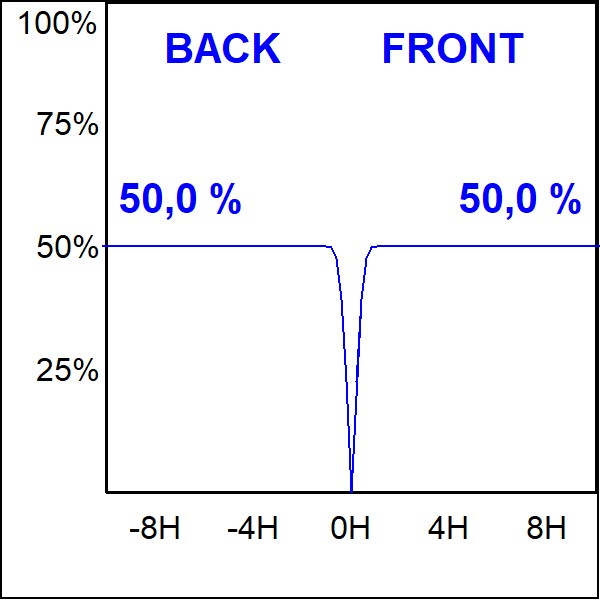

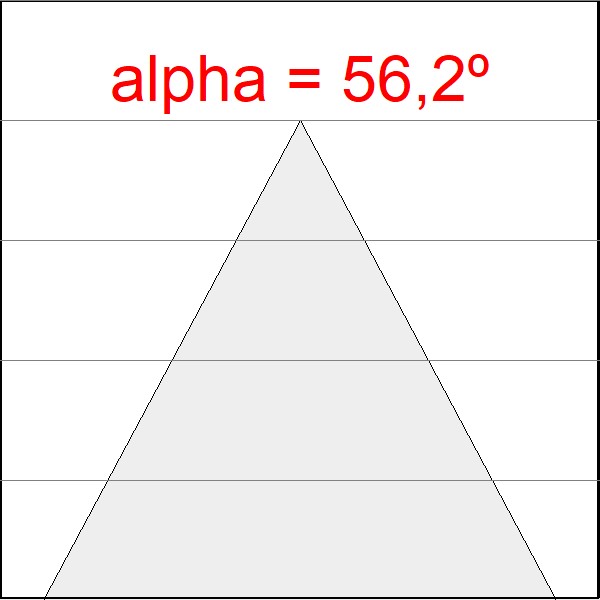

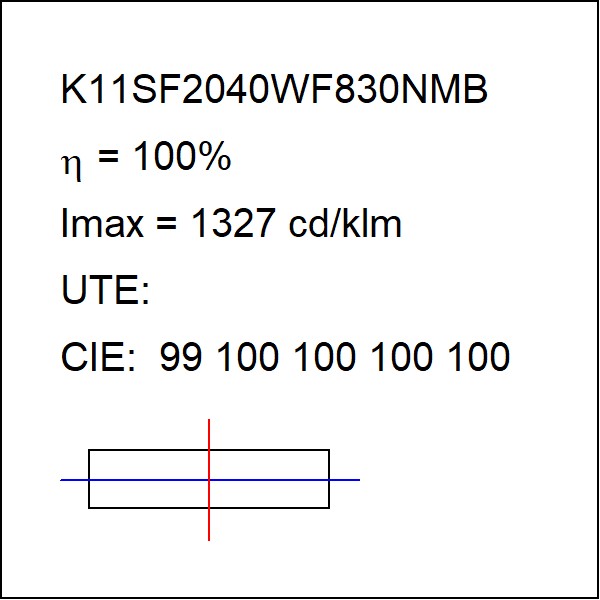

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11SF2540WF840NWW	18W	4000K	1802	-	Matte Traffic white RAL 9016
K11SF2540WF840NWB	18W	4000K	1802	-	Matte black RAL 9011
K11SF2540WF840NMW	18W	4000K	1792	-	Matte Traffic white RAL 9016
K11SF2540WF840NMB	18W	4000K	1792	-	Matte black RAL 9011
K11SF2540WF840NBW	18W	4000K	1704	-	Matte Traffic white RAL 9016
K11SF2540WF830NWW	18W	3000K	1701	-	Matte Traffic white RAL 9016
K11SF2540WF830NWB	18W	3000K	1701	-	Matte black RAL 9011
K11SF2540WF830NMW	18W	3000K	1692	-	Matte Traffic white RAL 9016
K11SF2540WF830NMB	18W	3000K	1692	-	Matte black RAL 9011
K11SF2540WF830NBW	18W	3000K	1609	-	Matte Traffic white RAL 9016
K11SF2540WF830NBB	18W	3000K	1609	-	Matte black RAL 9011
K11SF2040WF840NWW	12W	4000K	1343	-	Matte Traffic white RAL 9016
K11SF2040WF840NWB	12W	4000K	1343	-	Matte black RAL 9011
K11SF2040WF840NMW	12W	4000K	1351	-	Matte Traffic white RAL 9016
K11SF2040WF840NMB	12W	4000K	1351	-	Matte black RAL 9011
K11SF2040WF840NBW	12W	4000K	1277	-	Matte Traffic white RAL 9016
K11SF2040WF840NBB	12W	4000K	1277	-	Matte black RAL 9011
K11SF2040WF830NWW	12W	3000K	1275	-	Matte Traffic white RAL 9016
K11SF2040WF830NWB	12W	3000K	1275	-	Matte black RAL 9011
K11SF2040WF830NMW	12W	3000K	1268	-	Matte Traffic white RAL 9016
K11SF2040WF830NMB	12W	3000K	1268	-	Matte black RAL 9011
K11SF2040WF830NBW	12W	3000K	1205	-	Matte Traffic white RAL 9016
K11SF2040WF830NBB	12W	3000K	1205	-	Matte black RAL 9011
K11SF2540WF840NBB	18W	4000K	1704	-	Matte black RAL 9011
K11SF1540WF940NWW	12W	4000K	1166	DALI	-
K11SF2040WF927NBB	17W	2700K	1312	-	-
K11SF2040WF930NWW	17W	3000K	1432	-	-
K11SF2040WF940DBB	17W	4000K	1472	DALI	-

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000 K	D	DALI	M	Metalized Matt
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K
									9	90	27	2700 K
											30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
	SQ	Square													M	Metalized Matt
															W	White

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
	SQ	Square	20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	65	IP 65	OP	Opal	WB3	3000 WB	N	ON/OFF	M	Mate	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI

Kombic 100 Surface ON / OFF OpticK11SF2040WF830NMBKOMBIC 100 SF 2000 IP43 WW WFL MA/BK

Features

Certificates

Photometric data

Product variants

Accessories

Suspension

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000 K	D	DALI	M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	40	4000 K			W	White
							EL	Elliptic
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80
									9	90
					43	IP 43: WW EL	WW	Wallwasher	8	80
							EL	Elliptic	9	90
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80

					43	IP 43: WW EL	WW	Wallwasher	8	80
							EL	Elliptic

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	ST	Sus. Track									30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K
