Kombic 100 Downlight

Kombic 100 Orientable OpticK11RO2040WF927DBBKOMBIC 100 RO 2000 IP43 WFL 9VWW DA B/B

Adjustable recessed downlight model KOMBIC 100 RO 2000 from the LAMP brand. Aluminum injection frame and R-PC FR WHITE TM recycled polycarbonate reflector with bromine-free flame retardant. Flammability degree V0 according to UL94. Interior reflector finished in black. Adjustable luminaire +/-20º with wide flood optics for greater efficiency and control of light distribution and reduction of UGR<19 glare. Aluminum injection heat sink with cataphoresis treatment for greater thermal stability. COB LED, with 2700K color temperature with CRI90. DALI electronic equipment included. With an IP43 degree of protection. Insulation class II. Photobiological safety group 0. Hours of life: >100.000 L90 B10. Finished in black and white.

Power:: 14W
Color temperature:: 2700K
Lumen output:: 1341
Gear:: Adjustable DALI
Finishing:: Matte black RAL 9011

Features

Certificates

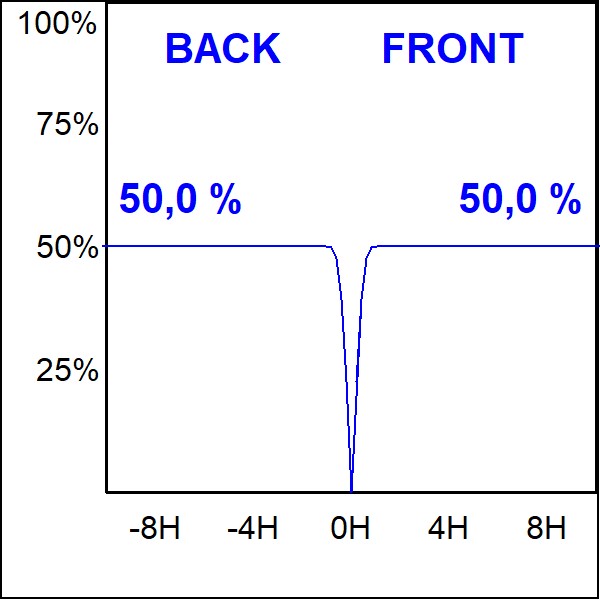

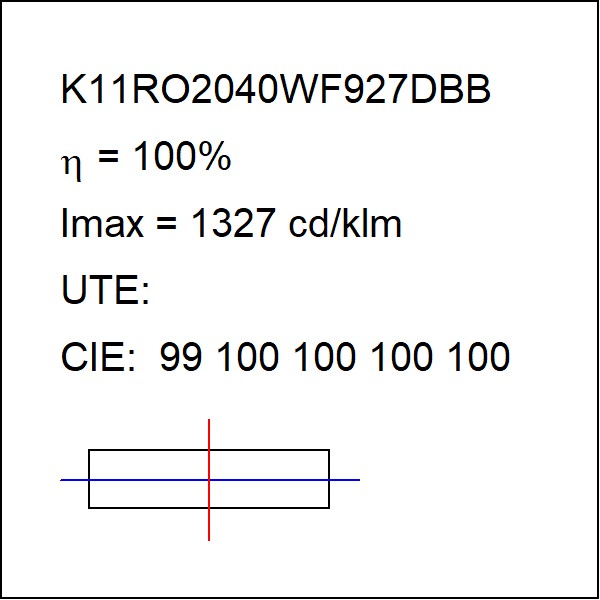

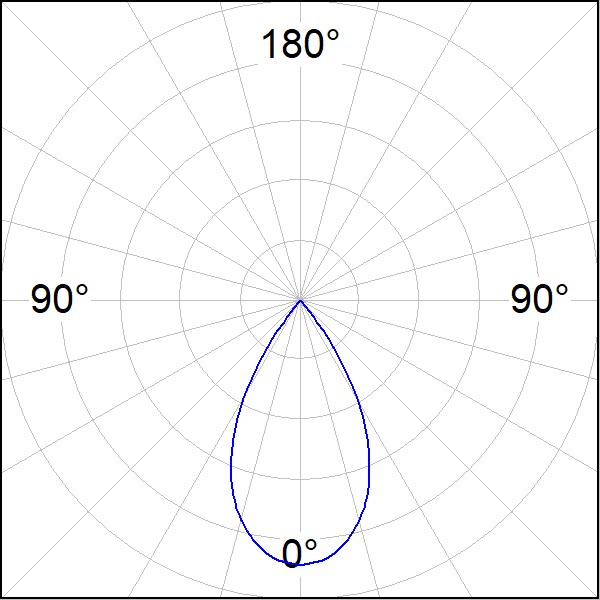

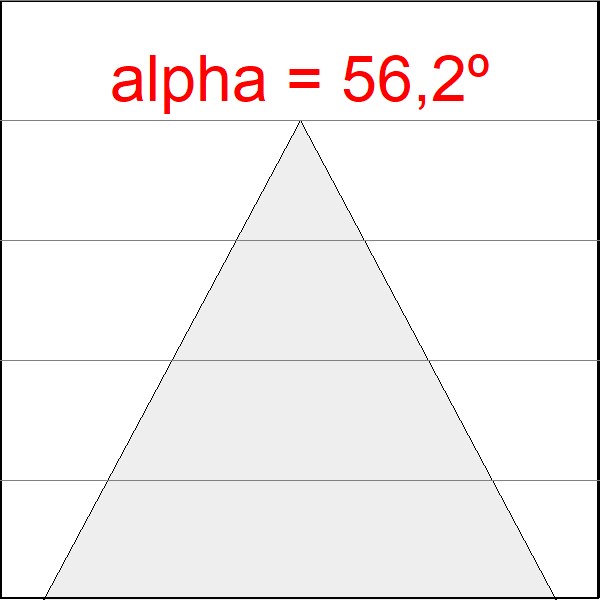

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11RO2540WF840NWW	14W	4000K	1765	-	Matte white RAL 9010
K11RO2540WF840NBB	14W	4000K	1694	-	Matte black RAL 9011
K11RO2540WF840DWW	14W	4000K	1765	DALI	Matte white RAL 9010
K11RO2540WF840DBB	14W	4000K	1694	DALI	Matte black RAL 9011
K11RO2540WF830NWW	14W	3000K	1722	-	Matte white RAL 9010
K11RO2540WF830NBB	14W	3000K	1652	-	Matte black RAL 9011
K11RO2540WF830DWW	14W	3000K	1722	DALI	Matte white RAL 9010
K11RO2540WF830DBB	14W	3000K	1652	DALI	Matte black RAL 9011
K11RO2040WF940NWW	14W	4000K	1519	-	Matte white RAL 9010
K11RO2040WF940NBB	14W	4000K	1457	-	Matte black RAL 9011
K11RO2040WF940DWW	14W	4000K	1519	DALI	Matte white RAL 9010
K11RO2040WF940DBB	14W	4000K	1457	DALI	Matte black RAL 9011
K11RO2040WF930NWW	14W	3000K	1470	-	Matte white RAL 9010
K11RO2040WF930NBB	14W	3000K	1410	-	Matte black RAL 9011
K11RO2040WF930DWW	14W	3000K	1470	DALI	Matte white RAL 9010
K11RO2040WF930DBB	14W	3000K	1410	DALI	Matte black RAL 9011
K11RO2040WF927NWW	14W	2700K	1397	-	Matte white RAL 9010
K11RO2040WF927NBB	14W	2700K	1341	-	Matte black RAL 9011
K11RO2040WF927DWW	14W	2700K	1397	DALI	Matte white RAL 9010
K11RO2040WF927DBB	14W	2700K	1341	DALI	Matte black RAL 9011
K11RO2040WF840NWW	10W	4000K	1319	-	Matte white RAL 9010
K11RO2040WF840NBB	10W	4000K	1266	-	Matte black RAL 9011
K11RO2040WF840DWW	10W	4000K	1319	DALI	Matte white RAL 9010
K11RO2040WF840DBB	10W	4000K	1266	DALI	Matte black RAL 9011
K11RO2040WF830NWW	10W	3000K	1286	-	Matte white RAL 9010
K11RO2040WF830NBB	10W	3000K	1234	-	Matte black RAL 9011
K11RO2040WF830DWW	10W	3000K	1286	DALI	Matte white RAL 9010
K11RO2040WF830DBB	10W	3000K	1234	DALI	Matte black RAL 9011
K11RO1540WF940NWW	10W	4000K	1134	-	Matte white RAL 9010
K11RO1540WF940NBB	10W	4000K	1089	-	Matte black RAL 9011
K11RO1540WF940DWW	10W	4000K	1134	DALI	Matte white RAL 9010
K11RO1540WF940DBB	10W	4000K	1089	DALI	Matte black RAL 9011
K11RO1540WF930NWW	10W	3000K	1098	-	Matte white RAL 9010
K11RO1540WF930NBB	10W	3000K	1054	-	Matte black RAL 9011
K11RO1540WF930DWW	10W	3000K	1098	DALI	Matte white RAL 9010
K11RO1540WF930DBB	10W	3000K	1054	DALI	Matte black RAL 9011
K11RO1540WF927NWW	10W	2700K	1044	-	Matte white RAL 9010
K11RO1540WF927NBB	10W	2700K	1002	-	Matte black RAL 9011
K11RO1540WF927DWW	10W	2700K	1044	DALI	Matte white RAL 9010
K11RO1540WF927DBB	10W	2700K	1002	DALI	Matte black RAL 9011

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
															M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
											30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K
			25	2500lm	40	IP40	WF	Wide Flood 50º	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	8	80	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square	20	2000lm							30	3000K	D	DALI	M	Metalized Matt
			25	2500lm							40	4000K			W	White
									9	90	27	2700K
											30	3000K
											35	3500K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
									9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	30	3000K	N	ON/OFF	W	White
							EL	Elliptic			40	4000K	D	DALI	B	Black	B	Black 02
			25	2500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF			W	White 02
											30	3000K	D	DALI	M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher			40	4000K			W	White
							EL	Elliptic	8	80	30	3000K	N	ON/OFF	B	Black	B	Black 02
											40	4000K	D	DALI			W	White 02
									8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
