Kombic 100 Downlight

Kombic 100 Optic WellbeingK11RD2040WFWB3DMWKOMBIC 100 RD 1800 IP43 WBW WFL DA MA/WH

Round recessed downlight model KOMBIC 100 RD by Lamp brand. Reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. IInterior reflector and frame in black finish. Heatsink made of die-cast aluminium. COB LED, with dynamic white colour temperature (2700-6500K) with CRI90. Luminaire with electronic wiring Dali DT8 included. Insolation Class II. Lifetime: 70.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 19,5W
Color temperature:: 3000K
Lumen output:: 1662
Finishing:: metalized polycarbonate mate

Features

Certificates

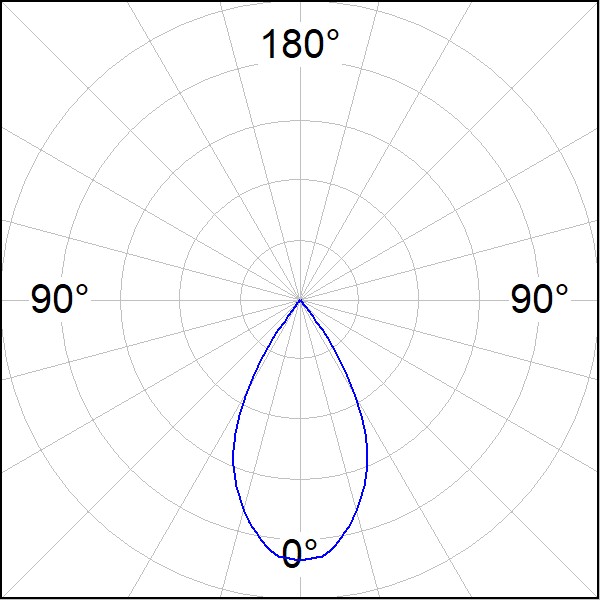

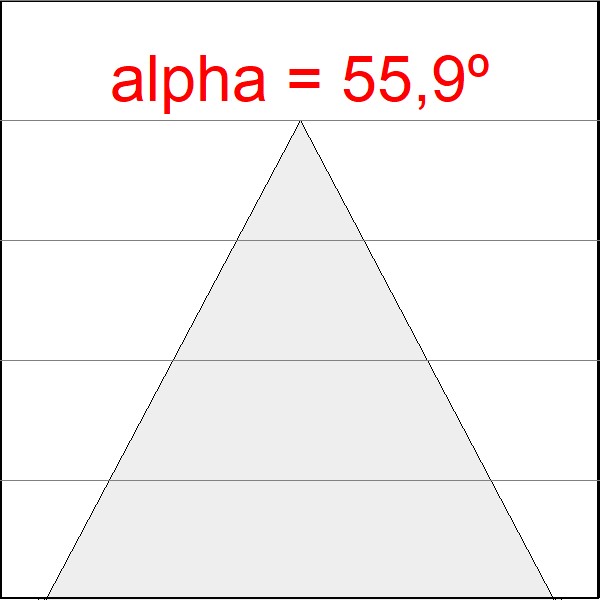

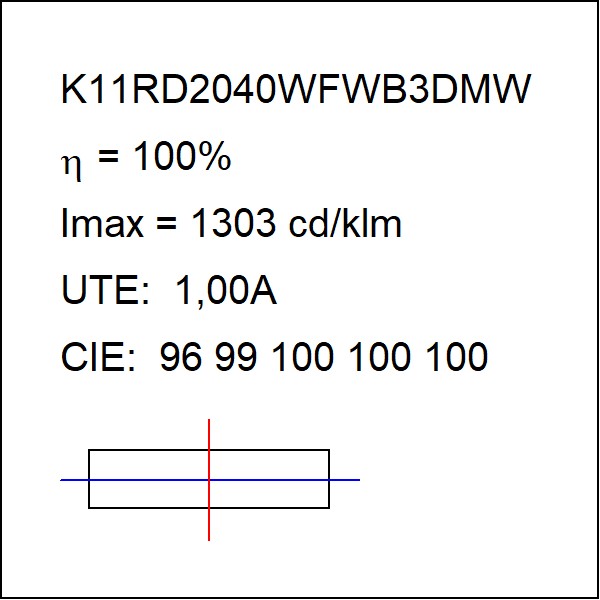

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11RD1540WFWB3DWW	13,5W	3000K	1221	DALI	Matte white RAL 9010
K11RD1540WFWB4NWW	13,5W	4000K	1293	-	Matte white RAL 9010
K11RD2040WFWB3DWW	19,5W	3000K	1662	DALI	Matte white RAL 9010
K11RD1540WFWB4NMW	13,5W	4000K	1293	-	metalized polycarbonate mate
K11RD1540WFWB4NBW	13,5W	4000K	1249	-	Matte black RAL 9011
K11RD1540WFWB4NBB	13,5W	4000K	1249	-	Matte black RAL 9011
K11RD1540WFWB4DWW	13,5W	4000K	1293	-	Matte white RAL 9010
K11RD1540WFWB4DMW	13,5W	4000K	1293	-	metalized polycarbonate mate
K11RD1540WFWB4DBW	13,5W	4000K	1249	-	Matte black RAL 9011
K11RD2040WFWB4NWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11RD2040WFWB4NMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11RD2040WFWB4NBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB4NBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB4DWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11RD2040WFWB4DMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11RD2040WFWB4DBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB4DBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB3NWW	19,5W	3000K	1662	-	Matte white RAL 9010
K11RD2040WFWB3NMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11RD2040WFWB3NBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11RD2040WFWB3NBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11RD2040WFWB3DMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11RD2040WFWB3DBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11RD2040WFWB3DBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB4NWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11SQ2040WFWB4NMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11SQ2040WFWB4NBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB4NBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB4DWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11SQ2040WFWB4DMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11SQ2040WFWB4DBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB4DBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB3NWW	19,5W	3000K	1662	-	Matte white RAL 9010
K11SQ2040WFWB3NMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11SQ2040WFWB3NBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB3NBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB3DWW	19,5W	3000K	1662	-	Matte white RAL 9010
K11SQ2040WFWB3DMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11SQ2040WFWB3DBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB3DBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11SF2040WFWB4NWW	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4NWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4NBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB4NBB	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB4DWW	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4DWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4DBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB4DBB	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3NWW	20W	3000K	1057	-	Matte white RAL 9010
K11SF2040WFWB3NWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB3NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3NBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3NBB	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3DWW	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB3DWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB3DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3DBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3DBB	-	-	-	-	Matte black RAL 9011

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
											30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K
			25	2500lm	40	IP40	WF	Wide Flood 50º	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	8	80	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square	20	2000lm							30	3000K	D	DALI	M	Metalized Matt
			25	2500lm							40	4000K			W	White
									9	90	27	2700K
											30	3000K
											35	3500K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
									9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	30	3000K	N	ON/OFF	W	White
							EL	Elliptic			40	4000K	D	DALI	B	Black	B	Black 02
			25	2500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF			W	White 02
											30	3000K	D	DALI	M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher			40	4000K			W	White
							EL	Elliptic	8	80	30	3000K	N	ON/OFF	B	Black	B	Black 02
											40	4000K	D	DALI			W	White 02
									8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
