Kombic 100 Downlight

Kombic 100 Optic WellbeingK11RD1540WFWB4NBBKOMBIC 100 RD 1200 IP43 WBN WFL BK/BK

Round recessed downlight model KOMBIC 100 RD 1200 IP43 WBW WFL WH/WH, LAMP brand. Reflector made of polycarbonate. Matte metallic interior reflector and frame in white finish, injected die cast aluminium heat sink. Model for LED COB, with warm white colour temperature and control gear included IP43 protection rating. Optic Wide Flood to achieve a controlled light distribution and low glare level, less than UGR 18. Insulation class II. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 13,5W
Color temperature:: 4000K
Lumen output:: 1249
Finishing:: Matte black RAL 9011

Features

Certificates

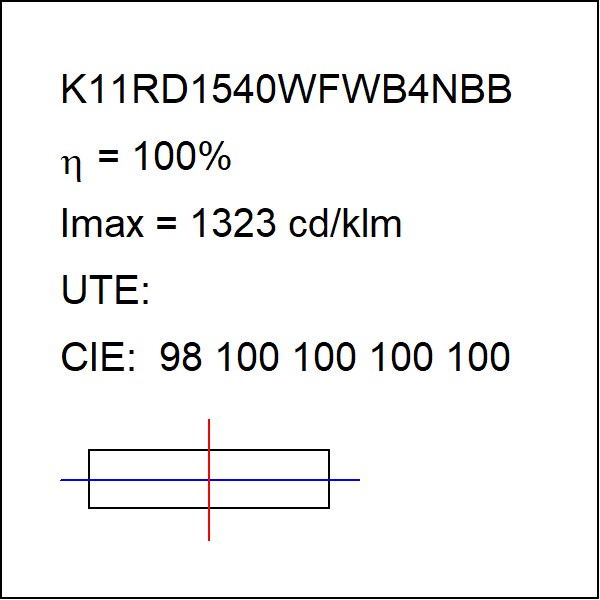

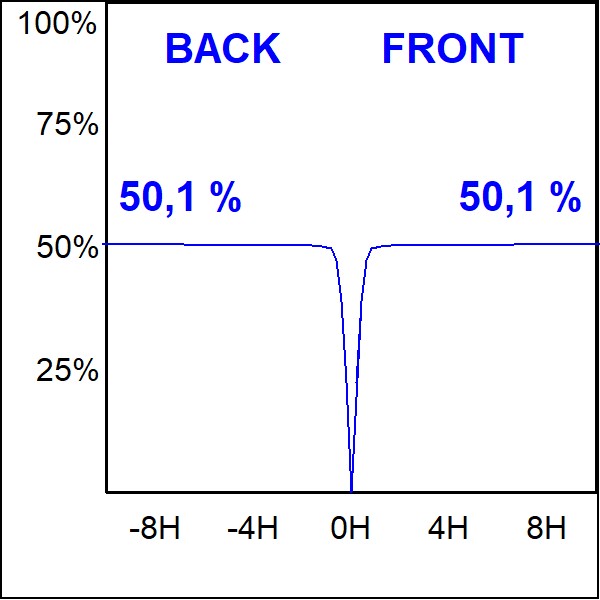

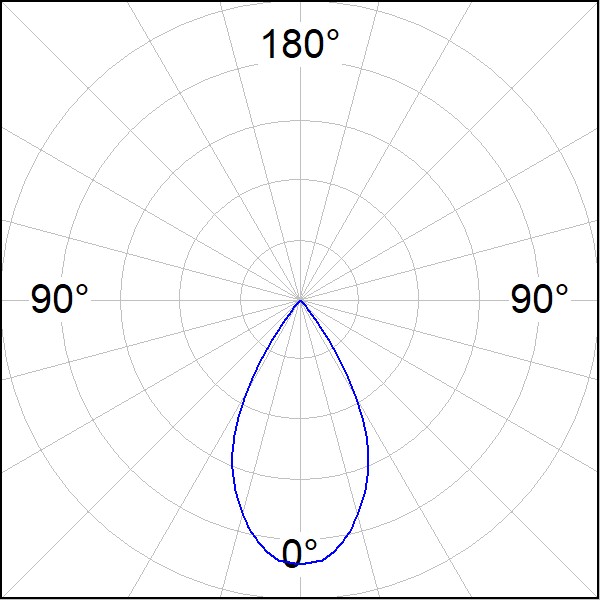

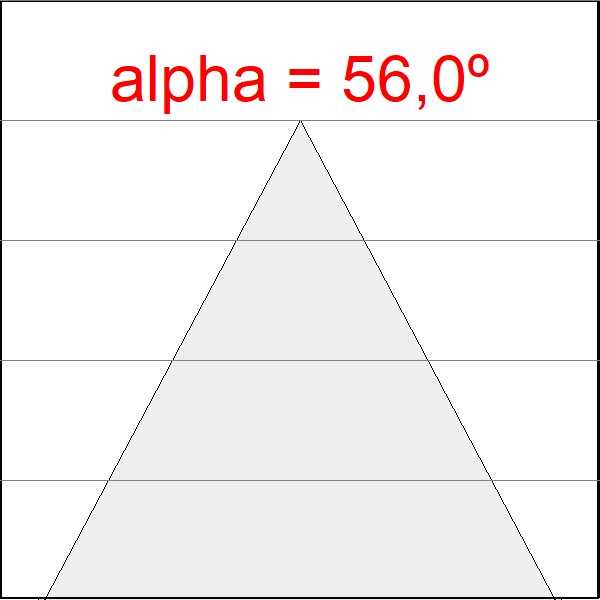

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11RD1540WFWB3DWW	13,5W	3000K	1221	DALI	Matte white RAL 9010
K11RD1540WFWB4NWW	13,5W	4000K	1293	-	Matte white RAL 9010
K11RD2040WFWB3DWW	19,5W	3000K	1662	DALI	Matte white RAL 9010
K11RD1540WFWB4NMW	13,5W	4000K	1293	-	metalized polycarbonate mate
K11RD1540WFWB4NBW	13,5W	4000K	1249	-	Matte black RAL 9011
K11RD1540WFWB4NBB	13,5W	4000K	1249	-	Matte black RAL 9011
K11RD1540WFWB4DWW	13,5W	4000K	1293	-	Matte white RAL 9010
K11RD1540WFWB4DMW	13,5W	4000K	1293	-	metalized polycarbonate mate
K11RD1540WFWB4DBW	13,5W	4000K	1249	-	Matte black RAL 9011
K11RD2040WFWB4NWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11RD2040WFWB4NMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11RD2040WFWB4NBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB4NBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB4DWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11RD2040WFWB4DMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11RD2040WFWB4DBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB4DBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11RD2040WFWB3NWW	19,5W	3000K	1662	-	Matte white RAL 9010
K11RD2040WFWB3NMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11RD2040WFWB3NBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11RD2040WFWB3NBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11RD2040WFWB3DMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11RD2040WFWB3DBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11RD2040WFWB3DBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB4NWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11SQ2040WFWB4NMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11SQ2040WFWB4NBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB4NBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB4DWW	19,5W	4000K	1756	-	Matte white RAL 9010
K11SQ2040WFWB4DMW	19,5W	4000K	1756	-	metalized polycarbonate mate
K11SQ2040WFWB4DBW	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB4DBB	19,5W	4000K	1696	-	Matte black RAL 9011
K11SQ2040WFWB3NWW	19,5W	3000K	1662	-	Matte white RAL 9010
K11SQ2040WFWB3NMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11SQ2040WFWB3NBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB3NBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB3DWW	19,5W	3000K	1662	-	Matte white RAL 9010
K11SQ2040WFWB3DMW	19,5W	3000K	1662	-	metalized polycarbonate mate
K11SQ2040WFWB3DBW	19,5W	3000K	1605	-	Matte black RAL 9011
K11SQ2040WFWB3DBB	19,5W	3000K	1605	-	Matte black RAL 9011
K11SF2040WFWB4NWW	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4NWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4NBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB4NBB	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB4DWW	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4DWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB4DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB4DBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB4DBB	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3NWW	20W	3000K	1057	-	Matte white RAL 9010
K11SF2040WFWB3NWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB3NMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3NMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3NBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3NBB	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3DWW	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB3DWB	-	-	-	-	Matte white RAL 9010
K11SF2040WFWB3DMW	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3DMB	-	-	-	-	metalized polycarbonate mate
K11SF2040WFWB3DBW	-	-	-	-	Matte black RAL 9011
K11SF2040WFWB3DBB	-	-	-	-	Matte black RAL 9011

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
											30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K
			25	2500lm	40	IP40	WF	Wide Flood 50º	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	8	80	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square	20	2000lm							30	3000K	D	DALI	M	Metalized Matt
			25	2500lm							40	4000K			W	White
									9	90	27	2700K
											30	3000K
											35	3500K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
									9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	30	3000K	N	ON/OFF	W	White
							EL	Elliptic			40	4000K	D	DALI	B	Black	B	Black 02
			25	2500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF			W	White 02
											30	3000K	D	DALI	M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher			40	4000K			W	White
							EL	Elliptic	8	80	30	3000K	N	ON/OFF	B	Black	B	Black 02
											40	4000K	D	DALI			W	White 02
									8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
