Ocult System Spotlight 1000OS1SP10SP830DBWOCULT SYS. SPOT 1000 WW SP DALI BK/WH.
Spotlight to adapt to the structure OCULT SYS. model OCULT SYS. SPOT 1000 WW SP BK/WH., LAMP brand. Body made of injected aluminum and extruded aluminum cover painted in black. Passive dissipation for a correct thermal management. With quick connection system. Model for HI-POWER LED. With warm white color temperature and built-in electronic equipment. With Spot optics. Spot high purity aluminum reflector. Class of insulation I.
- Overture:
- 17º
- Power:
- 7,7W
- Color temperature:
- 3000K
- Lumen output:
- 773
- Gear:
- Adjustable DALI
- Finishing:
- Texturised matt white RAL 9016
Features
Certificates

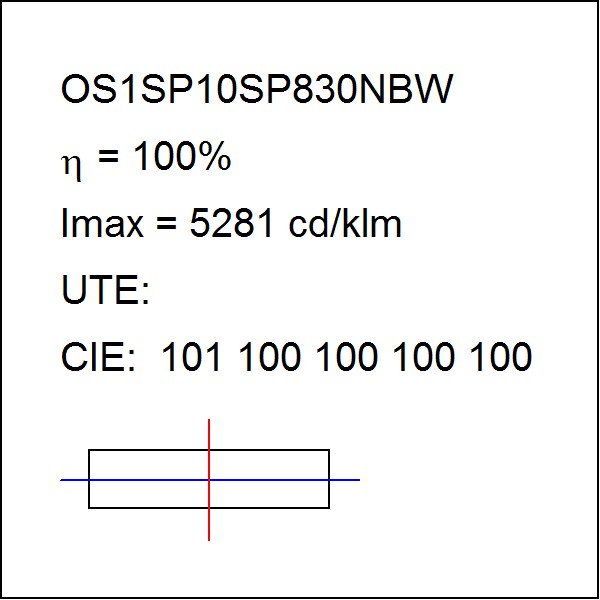

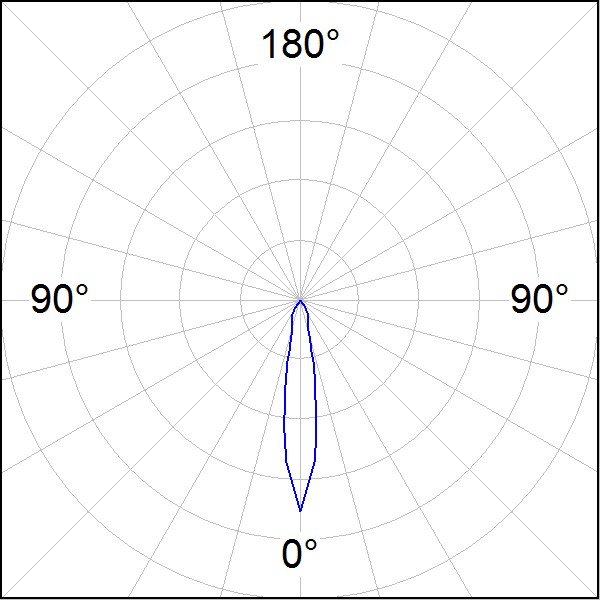

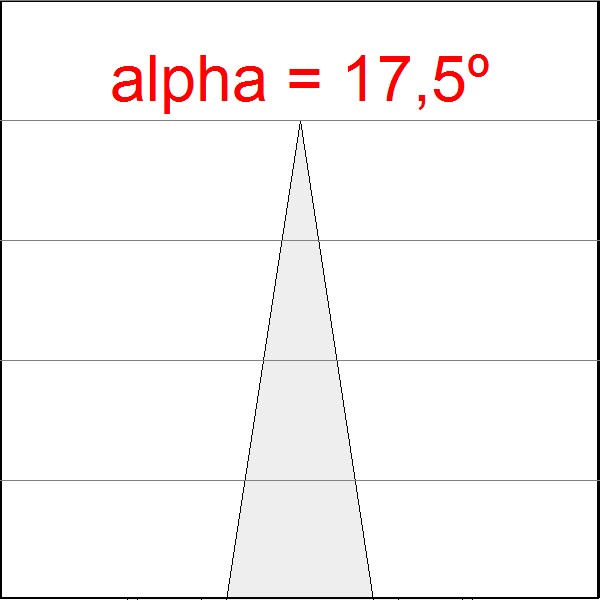

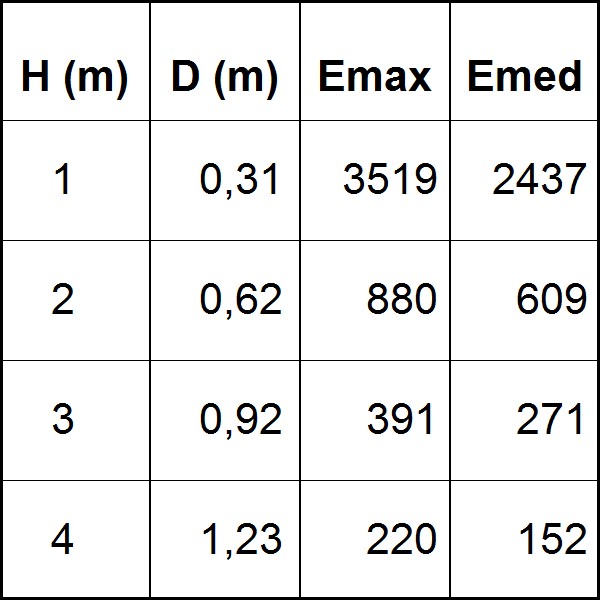

Photometric data
Do you need more information?
Product variants
| Code | ∢ | W | K | lm out | Gear | Finishing |
|---|---|---|---|---|---|---|
| OS1SP10SS840NBW | 10º | 7,6W | 4000K | 537 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10SS840NBB | 10º | 7,6W | 4000K | 537 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10SS840DBW | 10º | 7,6W | 4000K | 537 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10SS840DBB | 10º | 7,6W | 4000K | 537 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10SS830NBW | 10º | 7,6W | 3000K | 498 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10SS830NBB | 10º | 7,6W | 3000K | 498 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10SS830DBW | 10º | 7,6W | 3000K | 498 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10SS830DBB | 10º | 7,6W | 3000K | 498 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10SP840NBW | 17º | 7,7W | 4000K | 819 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10SP840NBB | 17º | 7,7W | 4000K | 819 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10SP840DBW | 17º | 7,7W | 4000K | 819 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10SP840DBB | 17º | 7,7W | 4000K | 819 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10SP830NBW | 17º | 7,7W | 3000K | 773 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10SP830NBB | 17º | 7,7W | 3000K | 773 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10SP830DBW | 17º | 7,7W | 3000K | 773 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10SP830DBB | 17º | 7,7W | 3000K | 773 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10MF840NBW | 23º | 7,7W | 4000K | 854 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10MF840NBB | 23º | 7,7W | 4000K | 854 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10MF840DBW | 23º | 7,7W | 4000K | 854 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10MF840DBB | 23º | 7,7W | 4000K | 854 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10MF830NBW | 23º | 7,7W | 3000K | 806 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10MF830NBB | 23º | 7,7W | 3000K | 806 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10MF830DBW | 23º | 7,7W | 3000K | 806 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10MF830DBB | 23º | 7,7W | 3000K | 806 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10FL840NBW | 37º | 7,7W | 4000K | 738 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10FL840NBB | 37º | 7,7W | 4000K | 738 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10FL840DBW | 37º | 7,7W | 4000K | 738 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10FL840DBB | 37º | 7,7W | 4000K | 738 | Adjustable DALI | Texturised black RAL 9011 |
| OS1SP10FL830NBW | 37º | 8,5W | 3000K | 637 | Non-adjustable | Texturised matt white RAL 9016 |
| OS1SP10FL830NBB | 37º | 8,5W | 3000K | 637 | Non-adjustable | Texturised black RAL 9011 |
| OS1SP10FL830DBW | 37º | 8,5W | 3000K | 637 | Adjustable DALI | Texturised matt white RAL 9016 |
| OS1SP10FL830DBB | 37º | 8,5W | 3000K | 637 | Adjustable DALI | Texturised black RAL 9011 |
Accessories
Suspension
Optical
Assembly
- OSCO1000BOCULT SYSTEM ACC. COVER 1000 BK.
- OSCO200BOCULT SYSTEM ACC. COVER 200 BK.
- OSCO300BOCULT SYSTEM ACC. COVER 300 BK.
- OSCO400BOCULT SYSTEM ACC. COVER 400 BK.
- OSCO500BOCULT SYSTEM ACC. COVER 500 BK.
- OSCO600BOCULT SYSTEM ACC. COVER 600 BK.
- OSCO700BOCULT SYSTEM ACC. COVER 700 BK.
- OSCO800BOCULT SYSTEM ACC. COVER 800 BK.
- OSCO900BOCULT SYSTEM ACC. COVER 900 BK.
- OSCO1000WOCULT SYSTEM ACC. COVER 1000 WH.
- OSCO200WOCULT SYSTEM ACC. COVER 200 WH.
- OSCO300WOCULT SYSTEM ACC. COVER 300 WH.
- OSCO400WOCULT SYSTEM ACC. COVER 400 WH.
- OSCO500WOCULT SYSTEM ACC. COVER 500 WH.
- OSCO600WOCULT SYSTEM ACC. COVER 600 WH.
- OSCO700WOCULT SYSTEM ACC. COVER 700 WH.
- OSCO800WOCULT SYSTEM ACC. COVER 800 WH.
- OSCO900WOCULT SYSTEM ACC. COVER 900 WH.
- OSREPR1000BOCULT SYS. ACC. REC PROFILE 1000 BK.
- OSREPR1100BOCULT SYS. ACC. REC PROFILE 1100 BK.
- OSREPR1200BOCULT SYS. ACC. REC PROFILE 1200 BK.
- OSREPR1300BOCULT SYS. ACC. REC PROFILE 1300 BK.
- OSREPR1400BOCULT SYS. ACC. REC PROFILE 1400 BK.
- OSREPR1500BOCULT SYS. ACC. REC PROFILE 1500 BK.
- OSREPR1600BOCULT SYS. ACC. REC PROFILE 1600 BK.
- OSREPR1700BOCULT SYS. ACC. REC PROFILE 1700 BK.
- OSREPR1800BOCULT SYS. ACC. REC PROFILE 1800 BK.
- OSREPR1900BOCULT SYS. ACC. REC PROFILE 1900 BK.
- OSREPR2000BOCULT SYS. ACC. REC PROFILE 2000 BK.
- OSREPR500BOCULT SYS. ACC. REC PROFILE 500 BK.
- OSREPR600BOCULT SYS. ACC. REC PROFILE 600 BK.
- OSREPR700BOCULT SYS. ACC. REC PROFILE 700 BK.
- OSREPR800BOCULT SYS. ACC. REC PROFILE 800 BK.
- OSREPR900BOCULT SYS. ACC. REC PROFILE 900 BK.
- OSREPR1000WOCULT SYS. ACC. REC PROFILE 1000 WH.
- OSREPR1100WOCULT SYS. ACC. REC PROFILE 1100 WH.
- OSREPR1200WOCULT SYS. ACC. REC PROFILE 1200 WH.
- OSREPR1300WOCULT SYS. ACC. REC PROFILE 1300 WH.
- OSREPR1400WOCULT SYS. ACC. REC PROFILE 1400 WH.
- OSREPR1500WOCULT SYS. ACC. REC PROFILE 1500 WH.
- OSREPR1600WOCULT SYS. ACC. REC PROFILE 1600 WH.
- OSREPR1700WOCULT SYS. ACC. REC PROFILE 1700 WH.
- OSREPR1800WOCULT SYS. ACC. REC PROFILE 1800 WH.
- OSREPR1900WOCULT SYS. ACC. REC PROFILE 1900 WH.
- OSREPR2000WOCULT SYS. ACC. REC PROFILE 2000 WH.
- OSREPR500WOCULT SYS. ACC. REC PROFILE 500 WH.
- OSREPR600WOCULT SYS. ACC. REC PROFILE 600 WH.
- OSREPR700WOCULT SYS. ACC. REC PROFILE 700 WH.
- OSREPR800WOCULT SYS. ACC. REC PROFILE 800 WH.
- OSREPR900WOCULT SYS. ACC. REC PROFILE 900 WH.
- OSSUPR1000BOCULT SYS. ACC. SUR PROFILE 1000 BK.
- OSSUPR1100BOCULT SYS. ACC. SUR PROFILE 1100 BK.
- OSSUPR1200BOCULT SYS. ACC. SUR PROFILE 1200 BK.
- OSSUPR1300BOCULT SYS. ACC. SUR PROFILE 1300 BK.
- OSSUPR1400BOCULT SYS. ACC. SUR PROFILE 1400 BK.
- OSSUPR1500BOCULT SYS. ACC. SUR PROFILE 1500 BK.
- OSSUPR1600BOCULT SYS. ACC. SUR PROFILE 1600 BK.
- OSSUPR1700BOCULT SYS. ACC. SUR PROFILE 1700 BK.
- OSSUPR1800BOCULT SYS. ACC. SUR PROFILE 1800 BK.
- OSSUPR1900BOCULT SYS. ACC. SUR PROFILE 1900 BK.
- OSSUPR2000BOCULT SYS. ACC. SUR PROFILE 2000 BK.
- OSSUPR500BOCULT SYS. ACC. SUR PROFILE 500 BK.
- OSSUPR600BOCULT SYS. ACC. SUR PROFILE 600 BK.
- OSSUPR700BOCULT SYS. ACC. SUR PROFILE 700 BK.
- OSSUPR800BOCULT SYS. ACC. SUR PROFILE 800 BK.
- OSSUPR900BOCULT SYS. ACC. SUR PROFILE 900 BK.
- OSSUPR1000WOCULT SYS. ACC. SUR PROFILE 1000 WH.
- OSSUPR1100WOCULT SYS. ACC. SUR PROFILE 1100 WH.
- OSSUPR1200WOCULT SYS. ACC. SUR PROFILE 1200 WH.
- OSSUPR1300WOCULT SYS. ACC. SUR PROFILE 1300 WH.
- OSSUPR1400WOCULT SYS. ACC. SUR PROFILE 1400 WH.
- OSSUPR1500WOCULT SYS. ACC. SUR PROFILE 1500 WH.
- OSSUPR1600WOCULT SYS. ACC. SUR PROFILE 1600 WH.
- OSSUPR1700WOCULT SYS. ACC. SUR PROFILE 1700 WH.
- OSSUPR1800WOCULT SYS. ACC. SUR PROFILE 1800 WH.
- OSSUPR1900WOCULT SYS. ACC. SUR PROFILE 1900 WH.
- OSSUPR2000WOCULT SYS. ACC. SUR PROFILE 2000 WH.
- OSSUPR500WOCULT SYS. ACC. SUR PROFILE 500 WH.
- OSSUPR600WOCULT SYS. ACC. SUR PROFILE 600 WH.
- OSSUPR700WOCULT SYS. ACC. SUR PROFILE 700 WH.
- OSSUPR800WOCULT SYS. ACC. SUR PROFILE 800 WH.
- OSSUPR900WOCULT SYS. ACC. SUR PROFILE 900 WH.
Adjustment and control
- OSCTAI1000NOCULT SYS. ACC. INTER. CONNECTOR 1000
- OSCTAI100DOCULT SYS. ACC.INTER.CONNECTOR DALI 100
- OSCTAI100NOCULT SYS. ACC. INTER. CONNECTOR 100
- OSCTAI1100DOCULT SYS. ACC.INTER.CONNECTOR DALI 1100
- OSCTAI1100NOCULT SYS. ACC. INTER. CONNECTOR 1100
- OSCTAI1200DOCULT SYS. ACC.INTER.CONNECTOR DALI 1200
- OSCTAI1200NOCULT SYS. ACC. INTER. CONNECTOR 1200
- OSCTAI1300DOCULT SYS. ACC.INTER.CONNECTOR DALI 1300
- OSCTAI1300NOCULT SYS. ACC. INTER. CONNECTOR 1300
- OSCTAI1400DOCULT SYS. ACC.INTER.CONNECTOR DALI 1400
- OSCTAI1400NOCULT SYS. ACC. INTER. CONNECTOR 1400
- OSCTAI1500DOCULT SYS. ACC.INTER.CONNECTOR DALI 1500
- OSCTAI1500NOCULT SYS. ACC. INTER. CONNECTOR 1500
- OSCTAI200DOCULT SYS. ACC.INTER.CONNECTOR DALI 200
- OSCTAI200NOCULT SYS. ACC. INTER. CONNECTOR 200
- OSCTAI300DOCULT SYS. ACC.INTER.CONNECTOR DALI 300
- OSCTAI300NOCULT SYS. ACC. INTER. CONNECTOR 300
- OSCTAI400DOCULT SYS. ACC.INTER.CONNECTOR DALI 400
- OSCTAI400NOCULT SYS. ACC. INTER. CONNECTOR 400
- OSCTAI500DOCULT SYS. ACC.INTER.CONNECTOR DALI 500
- OSCTAI500NOCULT SYS. ACC. INTER. CONNECTOR 500
- OSCTAI600DOCULT SYS. ACC.INTER.CONNECTOR DALI 600
- OSCTAI600NOCULT SYS. ACC. INTER. CONNECTOR 600
- OSCTAI700DOCULT SYS. ACC.INTER.CONNECTOR DALI 700
- OSCTAI700NOCULT SYS. ACC. INTER. CONNECTOR 700
- OSCTAI800DOCULT SYS. ACC.INTER.CONNECTOR DALI 800
- OSCTAI800NOCULT SYS. ACC. INTER. CONNECTOR 800
- OSCTAI900DOCULT SYS. ACC.INTER.CONNECTOR DALI 900
- OSCTAI900NOCULT SYS. ACC. INTER. CONNECTOR 900
