Ocult System

Ocult System PendularOS1PV05SP830DBBOCULT SYS. PEND.VERT. 500 WW SP DA BK/BK

Luminaire to adapt to structure OCULT SYS. Model OCULT SYS. PEND.VERT. 500 WW SP BK/BK., LAMP brand. Made of black aluminium profile lacquered and frontal black ring. Passive dissipation for proper thermal management. Model for HI-POWER LED. With warm white colour temperature and control gear included. With Spot optics. Insulation class I.
Overture:

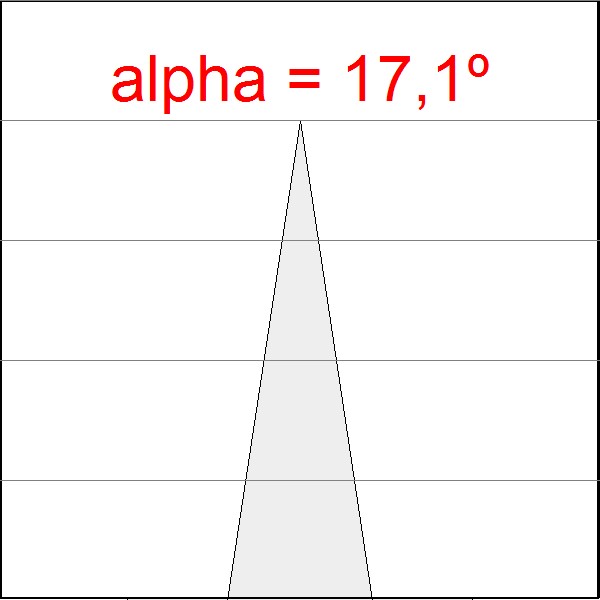

17º
Power:
4W
Color temperature:
3000K
Lumen output:
414
Gear:
Adjustable DALI
Finishing:
Texturised black RAL 9011
Lumen LED:
500

Features

Certificates

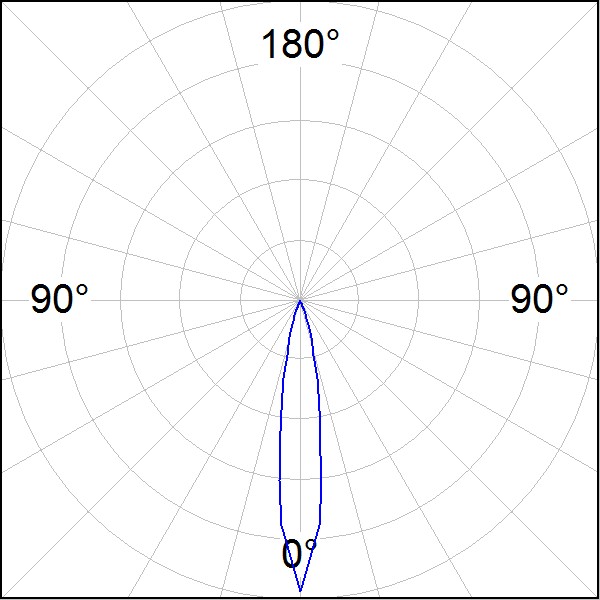

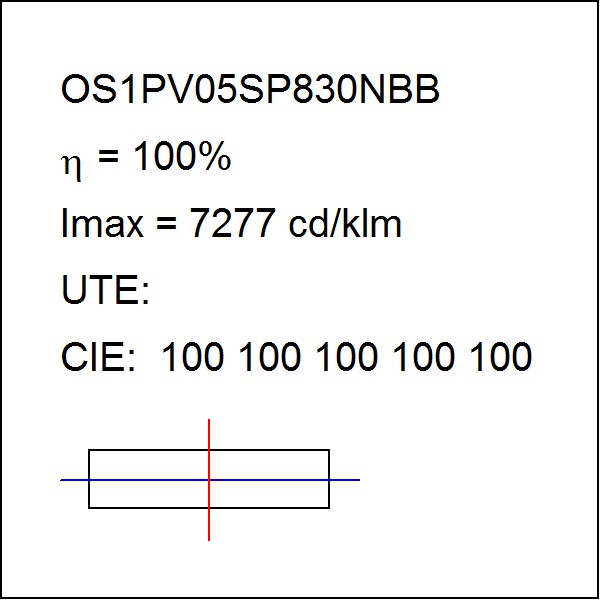

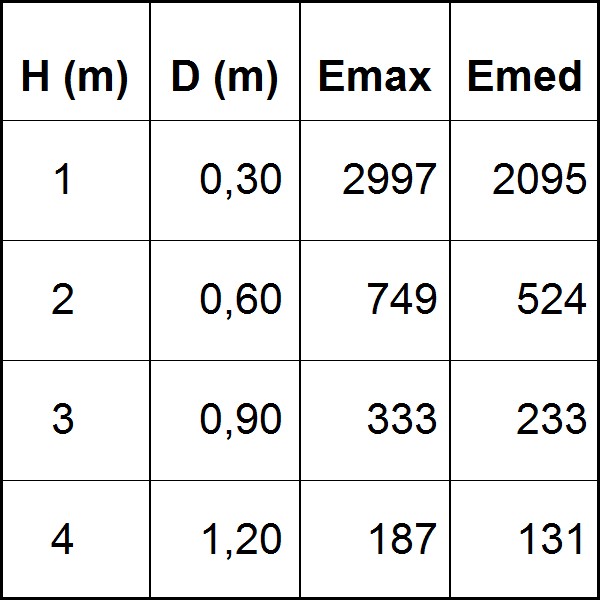

Photometric data

Do you need more information?

Product variants

CodeWKlm outGearFinishinglm
OS1PV05SP840NBB17º4W4000K443Non-adjustableTexturised black RAL 9011500
OS1PV05SP840NBW17º4W4000K443Non-adjustableTexturised matt white500
OS1PV05SP840DBW17º4W4000K443Adjustable DALITexturised matt white500
OS1PV05SP840DBB17º4W4000K443Adjustable DALITexturised black RAL 9011500
OS1PV05SP830NBW17º4W3000K414Non-adjustableTexturised matt white500
OS1PV05SP830NBB17º4W3000K414Non-adjustableTexturised black RAL 9011500
OS1PV05SP830DBW17º4W3000K414Adjustable DALITexturised matt white500
OS1PV05SP830DBB17º4W3000K414Adjustable DALITexturised black RAL 9011500
OS1PV05FL840NBW39º4W4000K349Non-adjustableTexturised matt white500
OS1PV05FL840NBB39º4W4000K349Non-adjustableTexturised black RAL 9011500
OS1PV05FL840DBW39º4W4000K349Adjustable DALITexturised matt white500
OS1PV05FL840DBB39º4W4000K349Adjustable DALITexturised black RAL 9011500
OS1PV05FL830NBW39º4W3000K331Non-adjustableTexturised matt white500
OS1PV05FL830NBB39º4W3000K331Non-adjustableTexturised black RAL 9011500
OS1PV05FL830DBW39º4W3000K331Adjustable DALITexturised matt white500
OS1PV05FL830DBB39º4W3000K331Adjustable DALITexturised black RAL 9011500

Accessories

Assembly
