Ocult System

Ocult System Downlight 9 ModulesOS1DO918WF830DBOCULT SYS. DOWN. 9 1800 WW WFL DALI BK.

Fixed linear Downlight module to adapt to structure, model OCULT SYS.DOWN. 9 1800 WW WFL BK, LAMP brand. Body made of anodized aluminium to optimise heat dissipation and reflector made of ABS painted in black matt. With fast connection system. Model with LED HI-POWER with a warm white colour temperature and control gear included. Optical system designed to obtain high visual comfort (UGR<16).With Wide Flood optics. 33º shielding angle. Insulation class I.
Overture:
48º
Power:
18W
Color temperature:
3000K
Lumen output:
1647
Gear:
Adjustable DALI
Finishing:
Matte black RAL 9011
Lumen LED:
1800

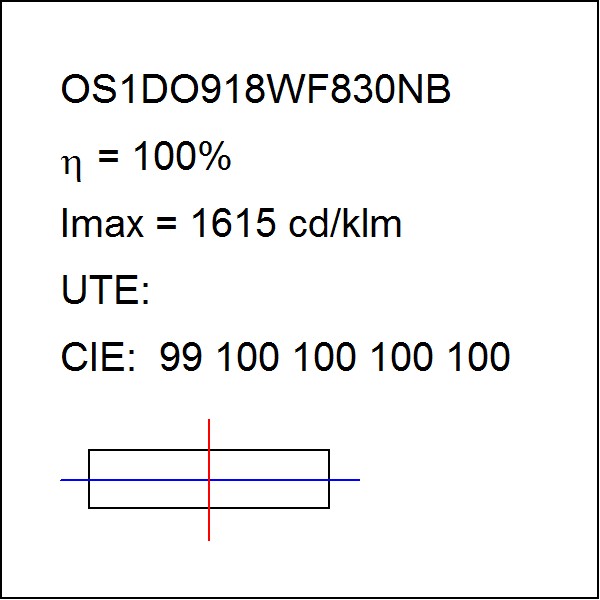

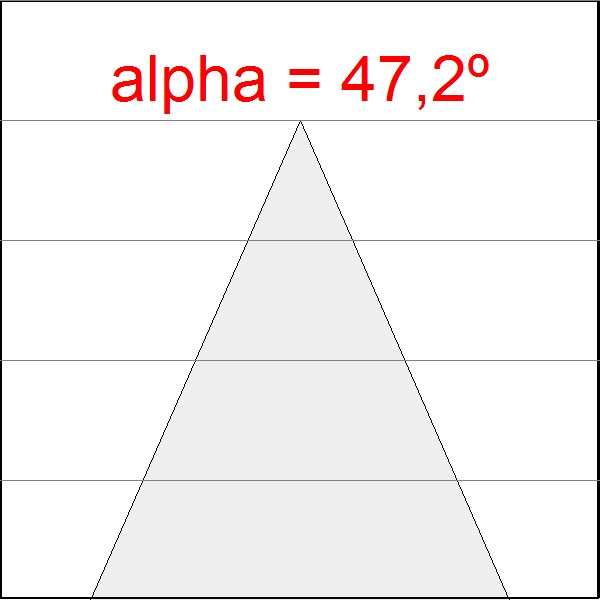

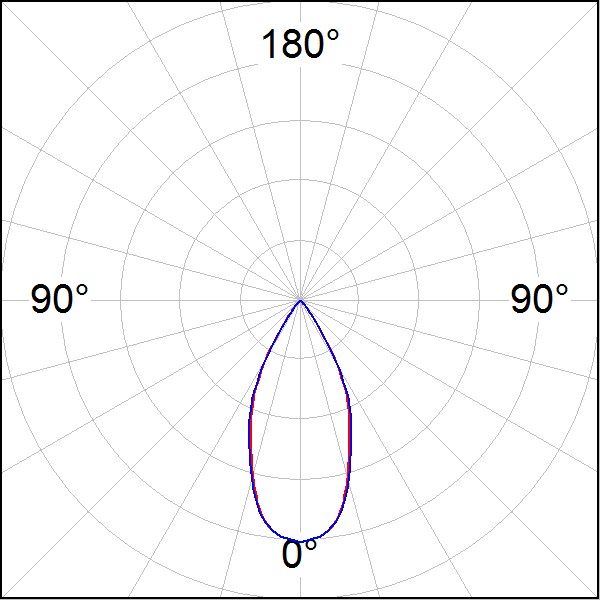

Photometric data

Do you need more information?

Product variants

CodeWKlm outGearFinishinglm
OS1DO918WF830DB48º18W3000K1647Adjustable DALIMatte black RAL 90111800
OS1DO918MF840NB24º18W4000K1620Non-adjustableMatte black RAL 90111800
OS1DO918MF840DB24º18W4000K1620Adjustable DALIMatte black RAL 90111800
OS1DO918MF830NB24º18W3000K1620Non-adjustableMatte black RAL 90111800
OS1DO918MF830DB24º18W3000K1620Adjustable DALIMatte black RAL 90111800
OS1DO918WF840NB48º18W4000K1647Non-adjustableMatte black RAL 90111800
OS1DO918WF840DB48º18W4000K1647Adjustable DALIMatte black RAL 90111800
OS1DO918WF830NB48º18W3000K1647Non-adjustableMatte black RAL 90111800

Accessories

Assembly
