Kombic 100 Downlight

Kombic 100 Surface Track ReflectorK11TK2023RW840DBWKOMBIC 100 TK 2000 IP23 NW RF WFL DA B/W

LAMP Suspended or ceiling mounting downlight KOMBIC 70 TK 1500. Body made of recycled aluminium and reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Wide Flood reflector for greater efficiency and to achieve controlled light distribution and low glare level, less than UGR<19. Heatsink made of die-cast aluminium. COB LED, colour temperature 4000K and IRC80. Electronic DALI gear included. IP23 rated. Insulation Class I. Photobiological safety group 0. LED life time: 50.000 L80 B10. Available finishes: White and black. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 13,9W
Color temperature:: 4000K
Lumen output:: 1491
Gear:: Adjustable DALI
Finishing:: Matte black RAL 9011

Features

Certificates

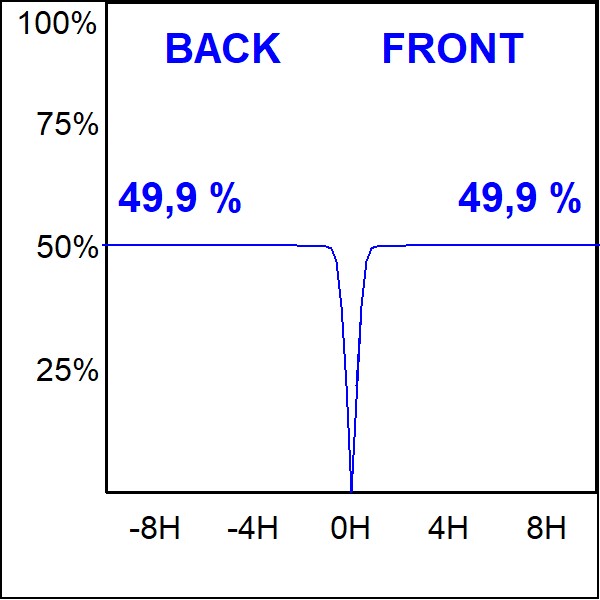

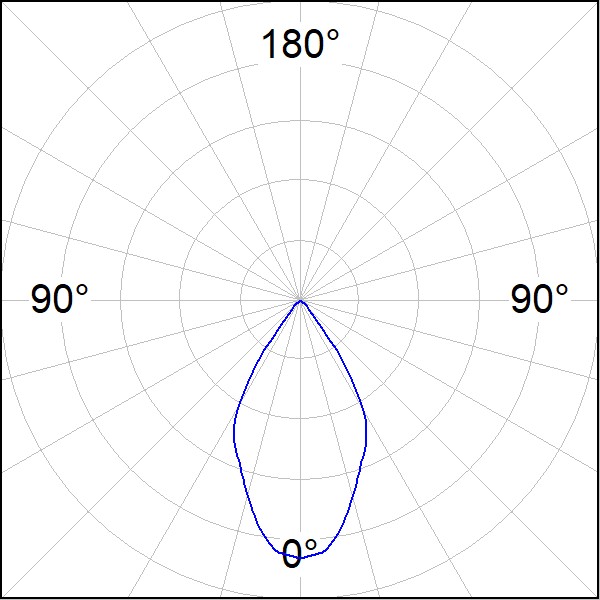

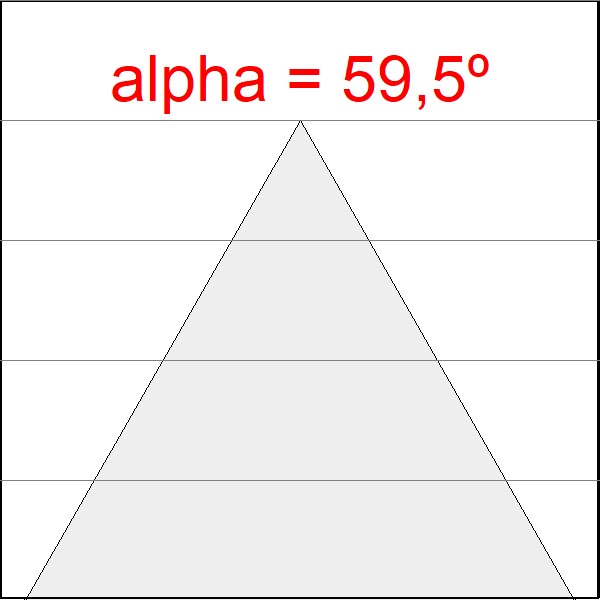

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11ST1523RW940NWW	14,1W	4000K	1406	-	Matte white RAL 9010
K11ST1523RW940NWB	14,1W	4000K	1406	-	Matte white RAL 9010
K11ST1523RW940NMW	14,1W	4000K	1406	-	metalized polycarbonate mate
K11ST1523RW940NMB	14,1W	4000K	1406	-	metalized polycarbonate mate
K11ST1523RW940NBW	14,1W	4000K	1299	-	Matte black RAL 9011
K11ST1523RW940NBB	14,1W	4000K	1299	-	Matte black RAL 9011
K11ST1523RW930NWW	14,1W	3000K	1318	-	Matte white RAL 9010
K11ST1523RW930NWB	14,1W	3000K	1318	-	Matte white RAL 9010
K11ST1523RW930NMW	14,1W	3000K	1318	-	metalized polycarbonate mate
K11ST1523RW930NMB	14,1W	3000K	1318	-	metalized polycarbonate mate
K11ST1523RW930NBW	14,1W	3000K	1218	-	Matte black RAL 9011
K11ST1523RW930NBB	14,1W	3000K	1218	-	Matte black RAL 9011
K11ST1523RW927NWW	14,1W	2700K	1264	-	Matte white RAL 9010
K11ST1523RW927NWB	14,1W	2700K	1264	-	Matte white RAL 9010
K11ST1523RW927NMW	14,1W	2700K	1264	-	metalized polycarbonate mate
K11ST1523RW927NMB	14,1W	2700K	1264	-	metalized polycarbonate mate
K11ST1523RW927NBW	14,1W	2700K	1168	-	Matte black RAL 9011
K11ST1523RW927NBB	14,1W	2700K	1168	-	Matte black RAL 9011
K11ST1523RF940NWW	14,1W	4000K	1474	-	Matte white RAL 9010
K11ST1523RF940NWB	14,1W	4000K	1474	-	Matte white RAL 9010
K11ST1523RF940NMW	14,1W	4000K	1474	-	metalized polycarbonate mate
K11ST1523RF940NMB	14,1W	4000K	1474	-	metalized polycarbonate mate
K11ST1523RF940NBW	14,1W	4000K	1416	-	Matte black RAL 9011
K11ST1523RF940NBB	14,1W	4000K	1416	-	Matte black RAL 9011
K11ST1523RF930NWW	14,1W	3000K	1382	-	Matte white RAL 9010
K11ST1523RF930NWB	14,1W	3000K	1382	-	Matte white RAL 9010
K11ST1523RF930NMW	14,1W	3000K	1382	-	metalized polycarbonate mate
K11ST1523RF930NMB	14,1W	3000K	1382	-	metalized polycarbonate mate
K11ST1523RF930NBW	14,1W	3000K	1328	-	Matte black RAL 9011
K11ST1523RF930NBB	14,1W	3000K	1328	-	Matte black RAL 9011
K11ST1523RF927NWW	14,1W	2700K	1325	-	Matte white RAL 9010
K11ST1523RF927NWB	14,1W	2700K	1325	-	Matte white RAL 9010
K11ST1523RF927NMW	14,1W	2700K	1325	-	metalized polycarbonate mate
K11ST1523RF927NMB	14,1W	2700K	1325	-	metalized polycarbonate mate
K11ST1523RF927NBW	14,1W	2700K	1273	-	Matte black RAL 9011
K11ST1523RF927NBB	14,1W	2700K	1273	-	Matte black RAL 9011
K11TK2023RW840DBW	13,9W	4000K	1491	DALI	Matte black RAL 9011
K11ST1523RW940DWW	13,9W	4000K	1406	DALI	-
K11ST1523RW940DWB	13,9W	4000K	1406	DALI	-
K11ST1523RW940DMW	13,9W	4000K	1406	DALI	-
K11ST1523RW940DMB	13,9W	4000K	1406	DALI	-
K11ST1523RW940DBW	13,9W	4000K	1299	DALI	-
K11ST1523RW940DBB	13,9W	4000K	1299	DALI	-
K11ST1523RW930DWW	13,9W	3000K	1318	DALI	-
K11ST1523RW930DWB	13,9W	3000K	1318	DALI	-
K11ST1523RW930DMW	13,9W	3000K	1318	DALI	-
K11ST1523RW930DMB	13,9W	3000K	1318	DALI	-
K11ST1523RW930DBW	13,9W	3000K	1218	DALI	-
K11ST1523RW930DBB	13,9W	3000K	1218	DALI	-
K11ST1523RW927DWW	13,9W	2700K	1264	DALI	-
K11ST1523RW927DWB	13,9W	2700K	1264	DALI	-
K11ST1523RW927DMW	13,9W	2700K	1264	DALI	-
K11ST1523RW927DMB	13,9W	2700K	1264	DALI	-
K11ST1523RW927DBW	13,9W	2700K	1168	DALI	-
K11ST1523RW927DBB	13,9W	2700K	1168	DALI	-
K11ST1523RF940DWW	13,9W	4000K	1474	DALI	-
K11ST1523RF940DWB	13,9W	4000K	1474	DALI	-
K11ST1523RF940DMW	13,9W	4000K	1474	DALI	-
K11ST1523RF940DMB	13,9W	4000K	1474	DALI	-
K11ST1523RF940DBW	13,9W	4000K	1416	DALI	-
K11ST1523RF940DBB	13,9W	4000K	1416	DALI	-
K11ST1523RF930DWW	13,9W	3000K	1382	DALI	-
K11ST1523RF930DWB	13,9W	3000K	1382	DALI	-
K11ST1523RF930DMW	13,9W	3000K	1382	DALI	-
K11ST1523RF930DMB	13,9W	3000K	1382	DALI	-
K11ST1523RF930DBW	13,9W	3000K	1328	DALI	-
K11ST1523RF930DBB	13,9W	3000K	1328	DALI	-
K11ST1523RF927DWW	13,9W	2700K	1325	DALI	-
K11ST1523RF927DWB	13,9W	2700K	1325	DALI	-
K11ST1523RF927DMW	13,9W	2700K	1325	DALI	-
K11ST1523RF927DMB	13,9W	2700K	1325	DALI	-
K11ST1523RF927DBW	13,9W	2700K	1273	DALI	-
K11ST1523RF927DBB	13,9W	2700K	1273	DALI	-

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											35	3500K			W	White
											40	4000 K
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF
											30	3000 K	D	DALI
											35	3500K
											40	4000 K
											TW	Tunable White	D	DALI

									8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K	N	ON/OFF
											40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	ST	Sus. Track									30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
											30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K
			25	2500lm	40	IP40	WF	Wide Flood 50º	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	8	80	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square	20	2000lm							30	3000K	D	DALI	M	Metalized Matt
			25	2500lm							40	4000K			W	White
									9	90	27	2700K
											30	3000K
											35	3500K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
									9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	30	3000K	N	ON/OFF	W	White
							EL	Elliptic			40	4000K	D	DALI	B	Black	B	Black 02
			25	2500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF			W	White 02
											30	3000K	D	DALI	M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher			40	4000K			W	White
							EL	Elliptic	8	80	30	3000K	N	ON/OFF	B	Black	B	Black 02
											40	4000K	D	DALI			W	White 02
									8	80	30	3000K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000K	D	DALI	W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
