Kombic 100 Downlight

Kombic 100 Opal WellbeingK11RD2065OPWB4DMWKOMBIC 100 RD 1800 IP65 WBN OP DA MA/WH

Round recessed downlight model KOMBIC 100 RD 1800 IP65 WBW OP MA/WH, LAMP brand. Reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Reflector made of polycarbonate. Matte metallic interior reflector and frame in white finish, and optical film, die cast aluminium heat sink. Model for LED COB, with 3000K colour temperature, CRI95 and control gear included. IP65 protection rating. Insulation class II. Group 0 photobiological safety. Lifetime: 60.000h L80 B10.

Lumen output:: -
Finishing:: metalized polycarbonate mate

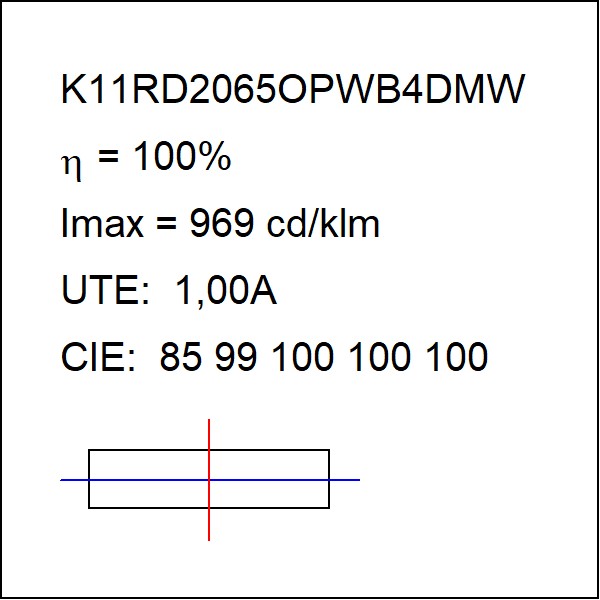

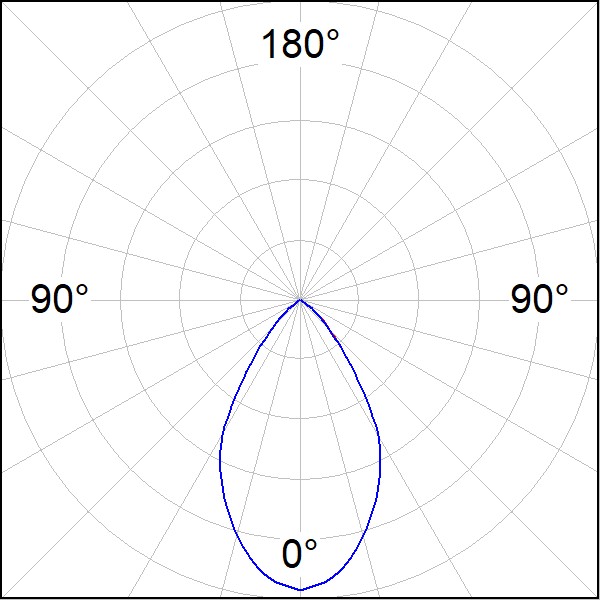

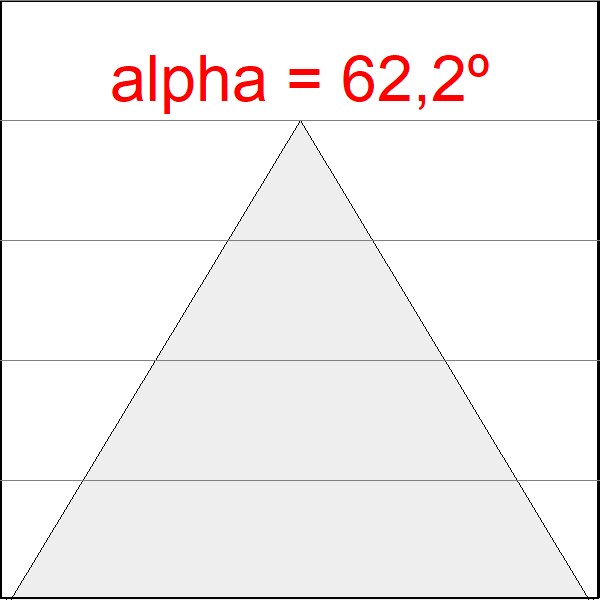

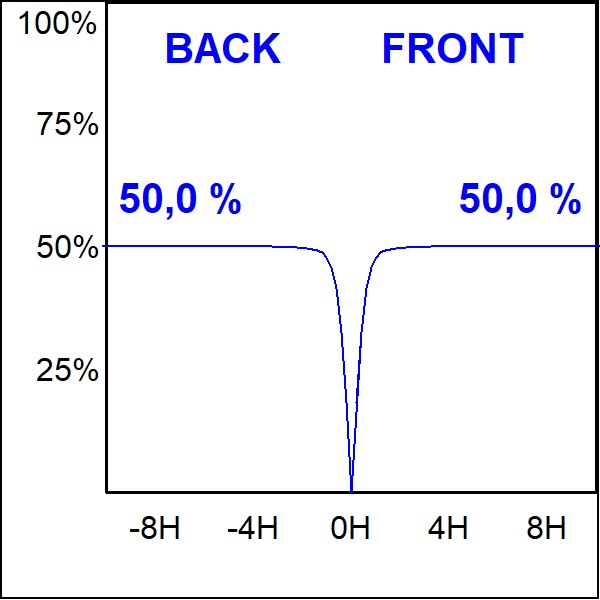

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11RD2040OPWB3NWW	20W	3000K	1206	-	Matte white RAL 9010
K11RD2040OPWB3NMW	20W	3000K	1243	-	metalized polycarbonate mate
K11SQ2040OPWB3NWW	20W	3000K	1206	-	Matte white RAL 9010
K11RD1540OP930DWW	13,4W	3000K	1225	DALI	Matte white RAL 9010
K11RD2040OPWB4DWW	20W	4000K	1398	DALI	Matte white RAL 9010
K11RD1540OPWB3NMW	13,9W	3000K	929	-	metalized polycarbonate mate
K11SQ2040OPWB3NRW	20W	3000K	1316	-	BRILLIANT METALLIC POLYCARBONATE
K11RD2040OPWB3DMW	20W	3000K	1243	DALI	metalized polycarbonate mate
K11RD1540OPWB4NWW	-	-	-	-	Matte white RAL 9010
K11RD1540OPWB4NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD1540OPWB4NMW	-	-	-	-	metalized polycarbonate mate
K11RD1540OPWB4DWW	-	-	-	-	Matte white RAL 9010
K11RD1540OPWB4DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD1540OPWB4DMW	-	-	-	-	metalized polycarbonate mate
K11RD1540OPWB3NWW	-	-	-	-	Matte white RAL 9010
K11RD1540OPWB3NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD1540OPWB3DWW	-	-	-	-	Matte white RAL 9010
K11RD1540OPWB3DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD1540OPWB3DMW	-	-	-	-	metalized polycarbonate mate
K11RD2065OPWB4NMW	20W	4000K	-	-	metalized polycarbonate mate
K11RD2065OPWB4DMW	-	-	-	-	metalized polycarbonate mate
K11RD2065OPWB3DMW	-	-	-	-	metalized polycarbonate mate
K11RD2040OPWB4NWW	-	-	-	-	Matte white RAL 9010
K11RD2040OPWB4NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD2040OPWB4NMW	-	-	-	-	metalized polycarbonate mate
K11RD2040OPWB4DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD2040OPWB4DMW	-	-	-	-	metalized polycarbonate mate
K11RD2040OPWB3NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11RD2040OPWB3DWW	-	-	-	-	Matte white RAL 9010
K11RD2040OPWB3DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SQ2040OPWB4NWW	-	-	-	-	Matte white RAL 9010
K11SQ2040OPWB4NRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SQ2040OPWB4NMW	-	-	-	-	metalized polycarbonate mate
K11SQ2040OPWB4DWW	-	-	-	-	Matte white RAL 9010
K11SQ2040OPWB4DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SQ2040OPWB4DMW	-	-	-	-	metalized polycarbonate mate
K11SQ2040OPWB3NMW	-	-	-	-	metalized polycarbonate mate
K11SQ2040OPWB3DWW	-	-	-	-	Matte white RAL 9010
K11SQ2040OPWB3DRW	-	-	-	-	BRILLIANT METALLIC POLYCARBONATE
K11SQ2040OPWB3DMW	-	-	-	-	metalized polycarbonate mate

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
															M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		LmLED		IP		Optic		IRC		K		Gear		Reflector Finish		Ext. Finish
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
			25	2500lm							30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000K	D	DALI	M	Metalized Matt
											40	4000K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K
									9	90	27	2700K
											30	3000K
											40	4000K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000K
											40	4000K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000K	D	DALI	W	White
											40	4000K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000K	D	DALI	M	Metalized Matt	W	White 02
											40	4000K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
