Kombic 100 Downlight

Kombic Downlight 100 ReflectorK11RD1523RF927NBWKOMBIC 100 RD 1500 IP23 9VWW RF FL BK/WH

Round recessed downlight model KOMBIC 100 RD by Lamp brand. Reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Black interior reflector and frame in white finish. Heatsink made of die-cast aluminium. COB LED, colour temperature 2700K with CRI90. Luminaire with electronic wiring included. Insolation Class II. Lifetime: 50.000 L80 B10. With IP23 degree of protection. Group 0 photobiological safety. Reflector aluminium Flood to achieve a controlled light distribution and low glare level UGR 17. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Power:: 14,5W
Color temperature:: 2700K
Lumen output:: 1273
Gear:: Non-adjustable
Finishing:: Matte black RAL 9011

Features

Certificates

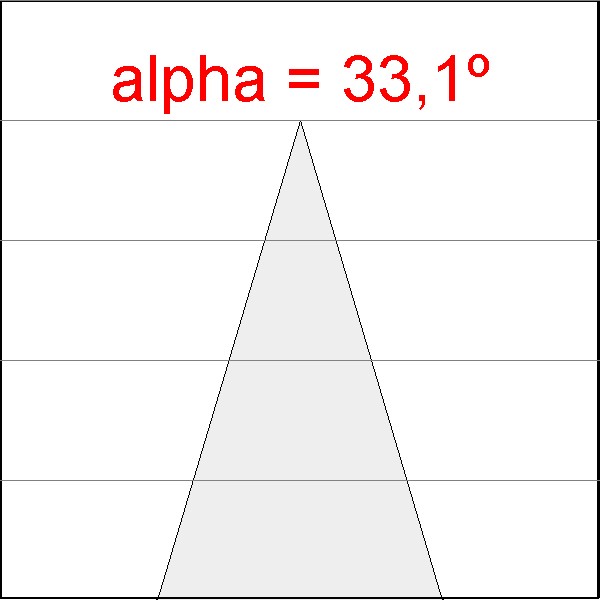

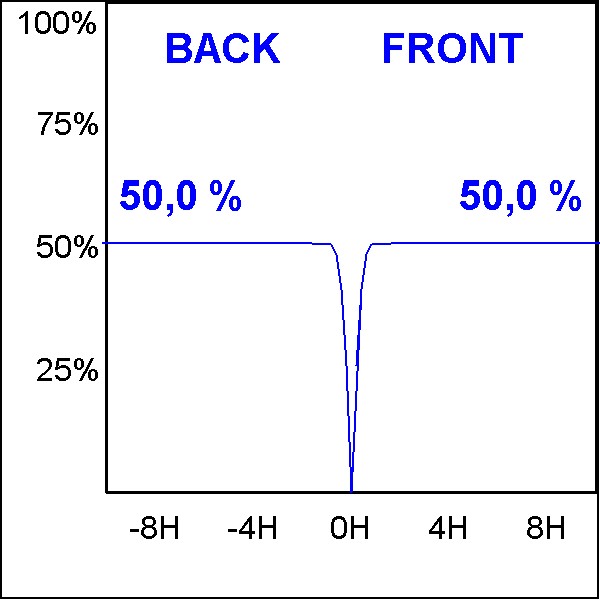

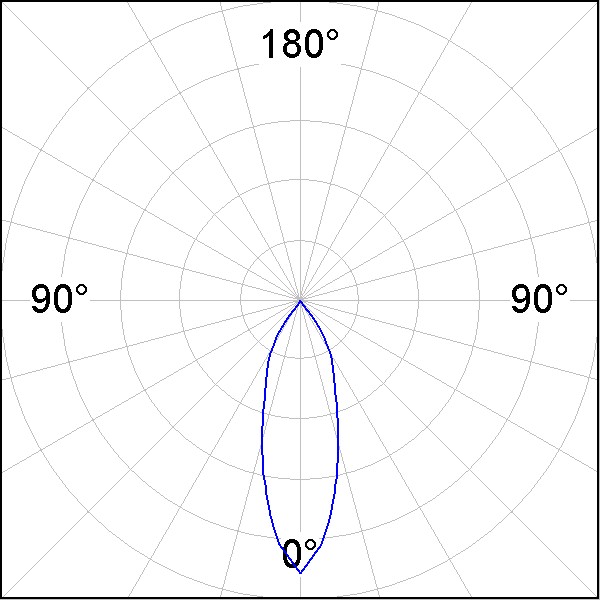

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing
K11RD2523RW840NWW	19,8W	4000K	2184	-	Matte white RAL 9010
K11RD2523RW840NMW	19,8W	4000K	2184	-	metalized polycarbonate mate
K11RD2523RW840NBW	19,8W	4000K	2002	-	Matte black RAL 9011
K11RD2523RW830NWW	19,8W	3000K	2081	-	Matte white RAL 9010
K11RD2523RW830NMW	19,8W	3000K	2081	-	metalized polycarbonate mate
K11RD2523RW830NBW	19,8W	3000K	1908	-	Matte black RAL 9011
K11RD2523RF840NWW	19,8W	4000K	2318	-	Matte white RAL 9010
K11RD2523RF840NMW	19,8W	4000K	2318	-	metalized polycarbonate mate
K11RD2523RF840NBW	19,8W	4000K	2185	-	Matte black RAL 9011
K11RD2523RF830NWW	19,8W	3000K	2208	-	Matte white RAL 9010
K11RD2523RF830NMW	19,8W	3000K	2208	-	metalized polycarbonate mate
K11RD2523RF830NBW	19,8W	3000K	2082	-	Matte black RAL 9011
K11RD2023RW940NWW	19,8W	4000K	1902	-	Matte white RAL 9010
K11RD2023RW940NMW	19,8W	4000K	1902	-	metalized polycarbonate mate
K11RD2023RW940NBW	19,8W	4000K	1744	-	Matte black RAL 9011
K11RD2023RW930NWW	19,8W	3000K	1784	-	Matte white RAL 9010
K11RD2023RW930NMW	19,8W	3000K	1784	-	metalized polycarbonate mate
K11RD2023RW930NBW	19,8W	3000K	1636	-	Matte black RAL 9011
K11RD2023RW927NWW	19,8W	2700K	1710	-	Matte white RAL 9010
K11RD2023RW927NMW	19,8W	2700K	1710	-	metalized polycarbonate mate
K11RD2023RW927NBW	19,8W	2700K	1568	-	Matte black RAL 9011
K11RD2023RW840NWW	14,5W	4000K	1614	-	Matte white RAL 9010
K11RD2023RW840NMW	14,5W	4000K	1614	-	metalized polycarbonate mate
K11RD2023RW840NBW	14,5W	4000K	1491	-	Matte black RAL 9011
K11RD2023RW840DWW	14,2W	4000K	1614	DALI	Matte white RAL 9010
K11RD2023RW830NWW	14,5W	3000K	1538	-	Matte white RAL 9010
K11RD2023RW830NMW	14,5W	3000K	1538	-	metalized polycarbonate mate
K11RD2023RW830NBW	14,5W	3000K	1421	-	Matte black RAL 9011
K11RD2023RF940NWW	19,8W	4000K	2019	-	Matte white RAL 9010
K11RD2023RF940NMW	19,8W	4000K	2019	-	metalized polycarbonate mate
K11RD2023RF940NBW	19,8W	4000K	1903	-	Matte black RAL 9011
K11RD2023RF930NWW	19,8W	3000K	1893	-	Matte white RAL 9010
K11RD2023RF930NMW	19,8W	3000K	1893	-	metalized polycarbonate mate
K11RD2023RF930NBW	19,8W	3000K	1785	-	Matte black RAL 9011
K11RD2023RF927NWW	19,8W	2700K	1815	-	Matte white RAL 9010
K11RD2023RF927NMW	19,8W	2700K	1815	-	metalized polycarbonate mate
K11RD2023RF927NBW	19,8W	2700K	1711	-	Matte black RAL 9011
K11RD2023RF840NWW	14,5W	4000K	1692	-	Matte white RAL 9010
K11RD2023RF840NMW	14,5W	4000K	1692	-	metalized polycarbonate mate
K11RD2023RF840NBW	14,5W	4000K	1226	-	Matte black RAL 9011
K11RD2023RF840DWW	14,2W	4000K	1692	DALI	Matte white RAL 9010
K11RD2023RF830NWW	14,5W	3000K	1612	-	Matte white RAL 9010
K11RD2023RF830NMW	14,5W	3000K	1612	-	metalized polycarbonate mate
K11RD2023RF830NBW	14,5W	3000K	1549	-	Matte black RAL 9011
K11RD1523RW940NWW	14,5W	4000K	1406	-	Matte white RAL 9010
K11RD1523RW940NMW	14,5W	4000K	1406	-	metalized polycarbonate mate
K11RD1523RW940NBW	14,5W	4000K	1299	-	Matte black RAL 9011
K11RD1523RW940DWW	14,2W	4000K	1406	DALI	Shiny white RAL 9010
K11RD1523RW930NWW	14,5W	3000K	1318	-	Matte white RAL 9010
K11RD1523RW930NMW	14,5W	3000K	1318	-	metalized polycarbonate mate
K11RD1523RW930NBW	14,5W	3000K	1218	-	Matte black RAL 9011
K11RD1523RF940NWW	14,5W	4000K	1474	-	Matte white RAL 9010
K11RD1523RF940NMW	14,5W	4000K	1474	-	metalized polycarbonate mate
K11RD1523RF940NBW	14,5W	4000K	1416	-	Matte black RAL 9011
K11RD1523RF940DWW	14,2W	4000K	1474	DALI	Matte white RAL 9010
K11RD1523RF930NWW	14,5W	3000K	1382	-	Matte white RAL 9010
K11RD1523RF930NMW	14,5W	3000K	1382	-	metalized polycarbonate mate
K11RD1523RF930NBW	14,5W	3000K	1328	-	Matte black RAL 9011
K11RD2523RW840NBB	19,8W	4000K	2002	-	Matte black RAL 9011
K11RD2523RW830NBB	19,8W	3000K	1908	-	Matte black RAL 9011
K11RD2523RF840NBB	19,8W	4000K	2185	-	Matte black RAL 9011
K11RD2523RF830NBB	19,8W	3000K	2082	-	Matte black RAL 9011
K11RD2023RW940NBB	19,8W	4000K	1744	-	Matte black RAL 9011
K11RD2023RW930NBB	19,8W	3000K	1636	-	Matte black RAL 9011
K11RD2023RW927NBB	19,8W	2700K	1568	-	Matte black RAL 9011
K11RD2023RW840NBB	14,5W	4000K	1491	-	Matte black RAL 9011
K11RD2023RW830NBB	14,5W	3000K	1421	-	Matte black RAL 9011
K11RD2023RF940NBB	19,8W	4000K	1903	-	Matte black RAL 9011
K11RD2023RF930NBB	19,8W	3000K	1785	-	Matte black RAL 9011
K11RD2023RF927NBB	19,8W	2700K	1711	-	Matte black RAL 9011
K11RD2023RF840NBB	14,5W	4000K	1226	-	Matte black RAL 9011
K11RD2023RF830NBB	14,5W	3000K	1549	-	Matte black RAL 9011
K11RD1523RW940NBB	14,5W	4000K	1299	-	Matte black RAL 9011
K11RD1523RW930NBB	14,5W	3000K	1218	-	Matte black RAL 9011
K11RD1523RF940NBB	14,5W	4000K	1416	-	Matte black RAL 9011
K11RD1523RF930NBB	14,5W	3000K	1328	-	Matte black RAL 9011
K11RD2523RF840DWW	20,3W	4000K	2318	DALI	Matte white RAL 9010
K11RD2523RW840DBW	20,3W	4000K	2002	DALI	Matte black RAL 9011
K11RD2023RW830DBB	14,2W	3000K	1421	DALI	Matte black RAL 9011
K11RD1523RW930DWW	14,2W	3000K	1318	DALI	Shiny white RAL 9010
K11RD2023RF830DBB	14,2W	3000K	1549	DALI	Matte black RAL 9011
K11RD1523RF940DMW	14,2W	4000K	1474	DALI	metalized polycarbonate mate
K11RD1523RF940DBW	14,2W	4000K	1416	DALI	Matte black RAL 9011
K11RD1523RF940DBB	14,2W	4000K	1416	DALI	Matte black RAL 9011
K11RD1523RF930DWW	14,2W	3000K	1382	DALI	Matte white RAL 9010
K11RD1523RF930DMW	14,2W	3000K	1382	DALI	metalized polycarbonate mate
K11RD1523RF930DBW	14,2W	3000K	1328	DALI	Matte black RAL 9011
K11RD1523RF930DBB	14,2W	3000K	1328	DALI	Matte black RAL 9011
K11RD1523RF927NWW	14,5W	2700K	1325	-	Matte white RAL 9010
K11RD1523RF927NMW	14,5W	2700K	1325	-	metalized polycarbonate mate
K11RD1523RF927NBW	14,5W	2700K	1273	-	Matte black RAL 9011
K11RD1523RF927NBB	14,5W	2700K	1273	-	Matte black RAL 9011
K11RD2023RF840DMW	14,2W	4000K	1692	DALI	metalized polycarbonate mate
K11RD1523RW930DMW	14,2W	3000K	1318	DALI	Shiny white RAL 9010
K11RD1523RW927NWW	14,5W	2700K	1264	-	Matte white RAL 9010
K11RD1523RW940DMW	14,2W	4000K	1406	DALI	Shiny white RAL 9010
K11RD1523RW940DBW	14,2W	4000K	1299	DALI	Shiny white RAL 9010
K11RD1523RW940DBB	14,2W	4000K	1299	DALI	Matte black RAL 9011
K11RD1523RW930DBW	14,2W	3000K	1218	DALI	Shiny white RAL 9010
K11RD1523RW930DBB	14,2W	3000K	1218	DALI	Matte black RAL 9011
K11RD1523RW927NMW	14,5W	2700K	1264	-	metalized polycarbonate mate
K11RD1523RW927NBW	14,5W	2700K	1168	-	Matte black RAL 9011
K11RD1523RW927NBB	14,5W	2700K	1168	-	Matte black RAL 9011
K11RD1523RW927DWW	14,2W	2700K	1264	DALI	Shiny white RAL 9010
K11RD1523RW927DMW	14,2W	2700K	1264	DALI	Shiny white RAL 9010
K11RD1523RW927DBW	14,2W	2700K	1168	DALI	Shiny white RAL 9010
K11RD1523RW927DBB	14,2W	2700K	1168	DALI	Matte black RAL 9011
K11RD1523RF927DWW	14,2W	2700K	1325	DALI	Shiny white RAL 9010
K11RD1523RF927DMW	14,2W	2700K	1325	-	Shiny white RAL 9010
K11RD1523RF927DBW	14,2W	2700K	1273	-	Shiny white RAL 9010
K11RD1523RF927DBB	14,2W	2700K	1273	-	Matte black RAL 9011
K11RD2523RW840DWW	20,3W	4000K	2184	DALI	Matte white RAL 9010
K11RD2523RW840DMW	20,3W	4000K	2184	DALI	metalized polycarbonate mate
K11RD2523RW840DBB	20,3W	4000K	2002	DALI	Matte black RAL 9011
K11RD2523RW830DWW	20,3W	3000K	2081	DALI	Matte white RAL 9010
K11RD2523RW830DMW	20,3W	3000K	2081	DALI	metalized polycarbonate mate
K11RD2523RW830DBW	20,3W	3000K	1908	DALI	Matte black RAL 9011
K11RD2523RW830DBB	20,3W	3000K	1908	DALI	Matte black RAL 9011
K11RD2523RF840DMW	20,3W	4000K	2318	DALI	metalized polycarbonate mate
K11RD2523RF840DBW	20,3W	4000K	2185	DALI	Matte black RAL 9011
K11RD2523RF840DBB	20,3W	4000K	2185	DALI	Matte black RAL 9011
K11RD2523RF830DWW	20,3W	3000K	2208	DALI	Matte white RAL 9010
K11RD2523RF830DMW	20,3W	3000K	2208	DALI	metalized polycarbonate mate
K11RD2523RF830DBW	20,3W	3000K	2082	DALI	Matte black RAL 9011
K11RD2523RF830DBB	20,3W	3000K	2082	DALI	Matte black RAL 9011
K11RD2023RW940DWW	20,3W	4000K	1902	DALI	Shiny white RAL 9010
K11RD2023RW940DMW	20,3W	4000K	1902	DALI	Shiny white RAL 9010
K11RD2023RW940DBW	20,3W	4000K	1744	DALI	Shiny white RAL 9010
K11RD2023RW940DBB	20,3W	4000K	1744	DALI	Matte black RAL 9011
K11RD2023RW930DWW	20,3W	3000K	1784	DALI	Shiny white RAL 9010
K11RD2023RW930DMW	20,3W	3000K	1784	DALI	Shiny white RAL 9010
K11RD2023RW930DBW	20,3W	3000K	1636	DALI	Shiny white RAL 9010
K11RD2023RW930DBB	20,3W	3000K	1636	DALI	Matte black RAL 9011
K11RD2023RW927DWW	20,3W	2700K	1710	DALI	Shiny white RAL 9010
K11RD2023RW927DMW	20,3W	2700K	1710	DALI	Shiny white RAL 9010
K11RD2023RW927DBW	20,3W	2700K	1568	DALI	Shiny white RAL 9010
K11RD2023RW927DBB	20,3W	2700K	1568	DALI	Matte black RAL 9011
K11RD2023RW840DMW	14,2W	4000K	1614	DALI	metalized polycarbonate mate
K11RD2023RW840DBW	14,2W	4000K	1491	DALI	Matte black RAL 9011
K11RD2023RW840DBB	14,2W	4000K	1491	DALI	Matte black RAL 9011
K11RD2023RW830DWW	14,2W	3000K	1538	DALI	Matte white RAL 9010
K11RD2023RW830DMW	14,2W	3000K	1538	DALI	metalized polycarbonate mate
K11RD2023RW830DBW	14,2W	3000K	1421	DALI	Matte black RAL 9011
K11RD2023RF940DWW	20,3W	4000K	2019	DALI	Matte white RAL 9010
K11RD2023RF940DMW	20,3W	4000K	2019	DALI	metalized polycarbonate mate
K11RD2023RF940DBW	20,3W	4000K	1903	DALI	Matte black RAL 9011
K11RD2023RF940DBB	20,3W	4000K	1903	DALI	Matte black RAL 9011
K11RD2023RF930DWW	20,3W	3000K	1893	DALI	Matte white RAL 9010
K11RD2023RF930DMW	20,3W	3000K	1893	DALI	metalized polycarbonate mate
K11RD2023RF930DBW	20,3W	3000K	1785	DALI	Matte black RAL 9011
K11RD2023RF930DBB	20,3W	3000K	1785	DALI	Matte black RAL 9011
K11RD2023RF927DWW	20,3W	2700K	1815	DALI	Shiny white RAL 9010
K11RD2023RF927DMW	20,3W	2700K	1815	DALI	Shiny white RAL 9010
K11RD2023RF927DBW	20,3W	2700K	1711	DALI	Shiny white RAL 9010
K11RD2023RF927DBB	20,3W	2700K	1711	DALI	Matte black RAL 9011
K11RD2023RF840DBW	14,2W	4000K	1226	DALI	Matte black RAL 9011
K11RD2023RF840DBB	14,2W	4000K	1226	DALI	Matte black RAL 9011
K11RD2023RF830DWW	14,2W	3000K	1612	DALI	Matte white RAL 9010
K11RD2023RF830DMW	14,2W	3000K	1612	DALI	metalized polycarbonate mate
K11RD2023RF830DBW	14,2W	3000K	1549	DALI	Matte black RAL 9011

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
															M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	ST	Sus. Track									30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	TK	Track	20	2000lm	40	IP 43	OP	Opal	9	CRI90	TW	Tunable White	D	DALI	R	Bright	W	White 02
	ST	Sus. Track													M	Metalized Matt	B	Black 02
															W	White

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Ext. Finishes
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square									30	3000 K	D	DALI	M	Metalized Matt
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K
									9	90	27	2700 K
											30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Family	Installation		Lm LED		IP		Optic		CRI		K		Gear		Reflector Finishes		Finishes
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700 K	N	ON/OFF	W	White
							EL	Elliptic			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700 K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000 K	D	DALI	W	White
											40	4000 K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700 K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000 K	D	DALI	M	Metalized Matt	W	White 02
											40	4000 K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700 K	N	ON/OFF	B	Black	B	Black 02
											30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700 K	N	ON/OFF	W	White
							EL	Elliptic			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		Lm LED		IP		Optic		IRC		K		Gear		Reflector Finishes		Ext. Finishes
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Family	Installation		LmLED				Optic		IRC		K		Gear		Refl. Finish		Ext. Finish
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
			25	2500lm							40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
