Fil 45 Direct Opal ComfortF41SF140MOPR840DWFIL45 SUR 1400 3250 NW OP COMF DALI WH.
Estructura de superficie para suspender o adosar modelo FIL45 SUR 1400 3250 NW OP COMF WH. de la marca LAMP. Fabricada en extrusión de aluminio pintado en color blanco mate con difusor opal confort formado por un policarbonato translucido y lámina óptica para un control de la distribución lumínica y deslumbramiento inferior UGR19. Modelo para LED MID-POWER, con temperatura de color blanco neutro y equipo electrónico incorporado. Con un grado de protección IP20, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0.
- Potencia:
- 22,4W
- Temperatura de color:
- 4000K
- Flujo de salida:
- 2521
- Equipo:
- Regulable DALI
- Longitud:
- 1400mm
- Acabado:
- Matte white RAL 9010
Características
Certificados

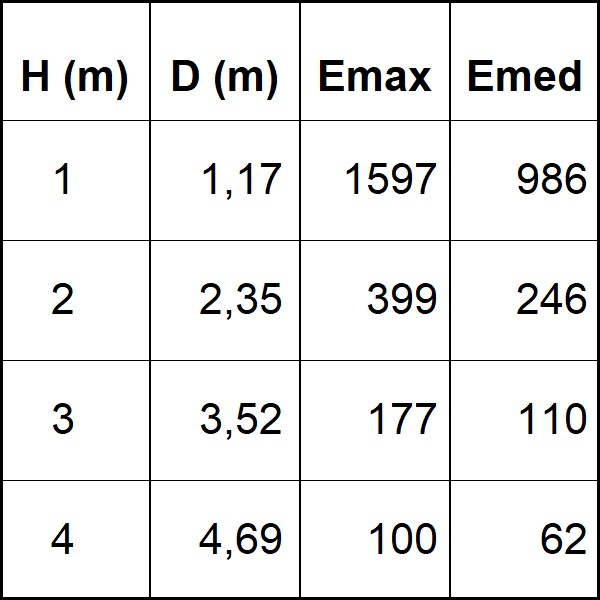

Datos fotométricos
¿Necesitas más información?
Variantes de este producto
| Código | W | K | lm out | Equipo | Longitud | Acabado |
|---|---|---|---|---|---|---|
| F41RE112MOPR840DW | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41RE140MOPR830DB | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41RE140MOPR830NB | 22,4W | 3000K | 2401 | No regulable | 1400mm | Matte black RAL 9011 |
| F41SF112MOPR830NB | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte black RAL 9011 |
| F41RE168MOPR840NB | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF084MOPR840NB | 13,4W | 4000K | 1512 | No regulable | 840mm | Matte black RAL 9011 |
| F41RE084MOPR830NG | 13,4W | 3000K | 1441 | No regulable | 840mm | Gloss grey |
| F41SF140MOPR830NW | 22,4W | 3000K | 2401 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830NG | 17,9W | 3000K | 1922 | No regulable | 1120mm | Gloss grey |
| F41RE140MOPR830NW | 22,4W | 3000K | 2401 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE168MOPR830NW | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte white RAL 9010 |
| F41SF140MOPR840DW | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830NB | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte black RAL 9011 |
| F41RE084MOPR830DG | 13,4W | 3000K | 1441 | Regulable DALI | 840mm | Gloss grey |
| F41RE112MOPR840NG | 17,9W | 4000K | 2017 | No regulable | 1120mm | Gloss grey |
| F41SF140MOPR840NB | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte black RAL 9011 |
| F41RE168MOPR830NG | 26,9W | 3000K | 2881 | No regulable | 1680mm | Gloss grey |
| F41RE084MOPR830NW | 13,4W | 3000K | 1441 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF112MOPR830DG | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Gloss grey |
| F41RE140MOPR840NG | 22,4W | 4000K | 2521 | No regulable | 1400mm | Gloss grey |
| F41RE084MOPR840DG | 13,4W | 4000K | 1512 | Regulable DALI | 840mm | Gloss grey |
| F41SF112MOPR840NB | 17,9W | 4000K | 2017 | No regulable | 1120mm | Matte black RAL 9011 |
| F41RE084MOPR840DW | 13,4W | 4000K | 1512 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41SF140MOPR840DB | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41SF168MOPR830DB | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41RE168MOPR840DG | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Gloss grey |
| F41SF112MOPR830DB | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41RE140MOPR840DG | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Gloss grey |
| F41SF168MOPR840DG | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Gloss grey |
| F41SF140MOPR830NG | 22,4W | 3000K | 2401 | No regulable | 1400mm | Gloss grey |
| F41RE140MOPR830DW | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41SF112MOPR830NG | 17,9W | 3000K | 1922 | No regulable | 1120mm | Gloss grey |
| F41SF168MOPR830DW | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41SF084MOPR830NB | 13,4W | 3000K | 1441 | No regulable | 840mm | Matte black RAL 9011 |
| F41SF112MOPR840DG | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Gloss grey |
| F41RE168MOPR840NW | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte white RAL 9010 |
| F41RE140MOPR840DW | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830DB | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41SF084MOPR840NW | 13,4W | 4000K | 1512 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF112MOPR840NG | 17,9W | 4000K | 2017 | No regulable | 1120mm | Gloss grey |
| F41SF168MOPR830NW | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte white RAL 9010 |
| F41SF168MOPR830DG | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Gloss grey |
| F41RE112MOPR840DG | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Gloss grey |
| F41RE084MOPR830DB | 13,4W | 3000K | 1441 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41SF168MOPR840NG | 26,9W | 4000K | 3026 | No regulable | 1680mm | Gloss grey |
| F41SF140MOPR840NW | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE168MOPR840NG | 26,9W | 4000K | 3026 | No regulable | 1680mm | Gloss grey |
| F41SF084MOPR830DG | 13,4W | 3000K | 1441 | Regulable DALI | 840mm | Gloss grey |
| F41RE084MOPR840NG | 13,4W | 4000K | 1512 | No regulable | 840mm | Gloss grey |
| F41SF168MOPR830NB | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF140MOPR840DG | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Gloss grey |
| F41RE084MOPR840DB | 13,4W | 4000K | 1512 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41RE112MOPR830NW | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR830DW | 13,4W | 3000K | 1441 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41RE168MOPR840DW | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41SF140MOPR830DB | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41SF084MOPR840DB | 13,4W | 4000K | 1512 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41SF112MOPR830DW | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR830DB | 13,4W | 3000K | 1441 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41RE140MOPR830DG | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Gloss grey |
| F41SF140MOPR840NG | 22,4W | 4000K | 2521 | No regulable | 1400mm | Gloss grey |
| F41SF112MOPR840NW | 17,9W | 4000K | 2017 | No regulable | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR840DG | 13,4W | 4000K | 1512 | Regulable DALI | 840mm | Gloss grey |
| F41RE084MOPR830NB | 13,4W | 3000K | 1441 | No regulable | 840mm | Matte black RAL 9011 |
| F41RE168MOPR830NB | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF168MOPR840DW | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41RE140MOPR830NG | 22,4W | 3000K | 2401 | No regulable | 1400mm | Gloss grey |
| F41SF168MOPR840NW | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte white RAL 9010 |
| F41RE112MOPR830DG | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Gloss grey |
| F41SF084MOPR830NG | 13,4W | 3000K | 1441 | No regulable | 840mm | Gloss grey |
| F41SF168MOPR840NB | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF140MOPR830DG | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Gloss grey |
| F41SF112MOPR840DW | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41RE140MOPR840NW | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR840NW | 17,9W | 4000K | 2017 | No regulable | 1120mm | Matte white RAL 9010 |
| F41RE140MOPR840DB | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41RE140MOPR840NB | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte black RAL 9011 |
| F41SF168MOPR840DB | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41RE084MOPR830DW | 13,4W | 3000K | 1441 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41SF084MOPR830NW | 13,4W | 3000K | 1441 | No regulable | 840mm | Matte white RAL 9010 |
| F41RE084MOPR840NW | 13,4W | 4000K | 1512 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF112MOPR830NW | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte white RAL 9010 |
| F41RE112MOPR840DB | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41SF084MOPR840DW | 13,4W | 4000K | 1512 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41RE168MOPR830DB | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41SF112MOPR840DB | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41SF140MOPR830DW | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830DW | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41SF168MOPR830NG | 26,9W | 3000K | 2881 | No regulable | 1680mm | Gloss grey |
| F41RE168MOPR830DW | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41SF084MOPR840NG | 13,4W | 4000K | 1512 | No regulable | 840mm | Gloss grey |
| F41RE168MOPR840DB | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41RE168MOPR830DG | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Gloss grey |
Accesorios
Montaje
Suspensión
