Fil 45 Direct Opal ComfortF41RE168MOPR830DGFIL45 REC 1680 3900 WW OP COMF DALI GR.
Estructura para empotrar modelo FIL45 REC 1680 de la marca LAMP. Fabricada en extrusión de aluminio reciclado con una tasa del 80%, con difusor opal confort formado por un policarbonato translúcido y lámina óptica para un control de la distribución lumínica y deslumbramiento inferior UGR <16. Modelo para LED MID-POWER, con temperatura 3000K con CRI80 y equipo electrónico incluido. Con un grado de protección IP20, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Horas de vida: 70.000h L80 B10. Acabados disponibles: Blanco, negro y gris.
- Potencia:
- 30,8W
- Temperatura de color:
- 3000K
- Flujo de salida:
- 2881
- Equipo:
- Regulable DALI
- Longitud:
- 1680mm
- Acabado:
- Gloss grey
Características
Certificados

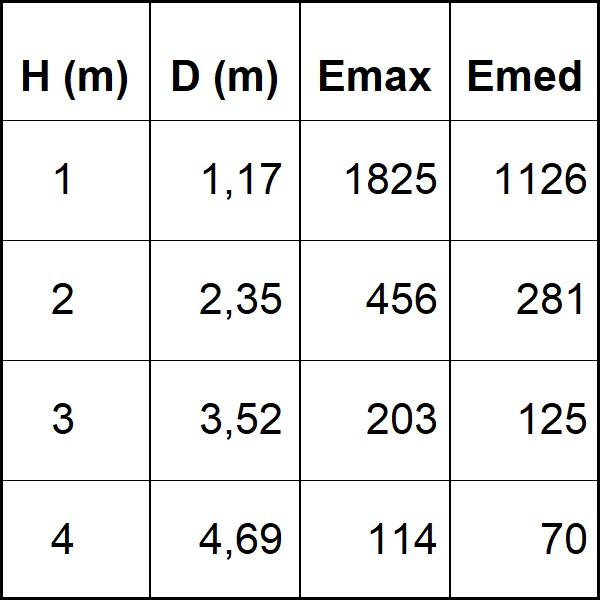

Datos fotométricos
¿Necesitas más información?
Variantes de este producto
| Código | W | K | lm out | Equipo | Longitud | Acabado |
|---|---|---|---|---|---|---|
| F41RE112MOPR840DW | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41RE140MOPR830DB | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41RE140MOPR830NB | 22,4W | 3000K | 2401 | No regulable | 1400mm | Matte black RAL 9011 |
| F41SF112MOPR830NB | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte black RAL 9011 |
| F41RE168MOPR840NB | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF084MOPR840NB | 13,5W | 4000K | 1512 | No regulable | 840mm | Matte black RAL 9011 |
| F41RE084MOPR830NG | 13,5W | 3000K | 1441 | No regulable | 840mm | Gloss grey |
| F41SF140MOPR830NW | 22,4W | 3000K | 2401 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830NG | 17,9W | 3000K | 1922 | No regulable | 1120mm | Gloss grey |
| F41RE140MOPR830NW | 22,4W | 3000K | 2401 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE168MOPR830NW | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte white RAL 9010 |
| F41SF140MOPR840DW | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830NB | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte black RAL 9011 |
| F41RE084MOPR830DG | 13,5W | 3000K | 1441 | Regulable DALI | 840mm | Gloss grey |
| F41RE112MOPR840NG | 17,9W | 4000K | 2017 | No regulable | 1120mm | Gloss grey |
| F41SF140MOPR840NB | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte black RAL 9011 |
| F41RE168MOPR830NG | 26,9W | 3000K | 2881 | No regulable | 1680mm | Gloss grey |
| F41RE084MOPR830NW | 13,5W | 3000K | 1441 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF112MOPR830DG | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Gloss grey |
| F41RE140MOPR840NG | 22,4W | 4000K | 2521 | No regulable | 1400mm | Gloss grey |
| F41RE084MOPR840DG | 13,5W | 4000K | 1512 | Regulable DALI | 840mm | Gloss grey |
| F41SF112MOPR840NB | 17,9W | 4000K | 2017 | No regulable | 1120mm | Matte black RAL 9011 |
| F41RE084MOPR840DW | 13,5W | 4000K | 1512 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41SF140MOPR840DB | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41SF168MOPR830DB | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41RE168MOPR840DG | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Gloss grey |
| F41SF112MOPR830DB | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41RE140MOPR840DG | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Gloss grey |
| F41SF168MOPR840DG | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Gloss grey |
| F41SF140MOPR830NG | 22,4W | 3000K | 2401 | No regulable | 1400mm | Gloss grey |
| F41RE140MOPR830DW | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41SF112MOPR830NG | 17,9W | 3000K | 1922 | No regulable | 1120mm | Gloss grey |
| F41SF168MOPR830DW | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41SF084MOPR830NB | 13,5W | 3000K | 1441 | No regulable | 840mm | Matte black RAL 9011 |
| F41SF112MOPR840DG | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Gloss grey |
| F41RE168MOPR840NW | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte white RAL 9010 |
| F41RE140MOPR840DW | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830DB | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41SF084MOPR840NW | 13,5W | 4000K | 1512 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF112MOPR840NG | 17,9W | 4000K | 2017 | No regulable | 1120mm | Gloss grey |
| F41SF168MOPR830NW | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte white RAL 9010 |
| F41SF168MOPR830DG | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Gloss grey |
| F41RE112MOPR840DG | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Gloss grey |
| F41RE084MOPR830DB | 13,5W | 3000K | 1441 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41SF168MOPR840NG | 26,9W | 4000K | 3026 | No regulable | 1680mm | Gloss grey |
| F41SF140MOPR840NW | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE168MOPR840NG | 26,9W | 4000K | 3026 | No regulable | 1680mm | Gloss grey |
| F41SF084MOPR830DG | 13,5W | 3000K | 1441 | Regulable DALI | 840mm | Gloss grey |
| F41RE084MOPR840NG | 13,5W | 4000K | 1512 | No regulable | 840mm | Gloss grey |
| F41SF168MOPR830NB | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF140MOPR840DG | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Gloss grey |
| F41RE084MOPR840DB | 13,5W | 4000K | 1512 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41RE112MOPR830NW | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR830DW | 13,5W | 3000K | 1441 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41RE168MOPR840DW | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41SF140MOPR830DB | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41SF084MOPR840DB | 13,5W | 4000K | 1512 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41SF112MOPR830DW | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR830DB | 13,5W | 3000K | 1441 | Regulable DALI | 840mm | Matte black RAL 9011 |
| F41RE140MOPR830DG | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Gloss grey |
| F41SF140MOPR840NG | 22,4W | 4000K | 2521 | No regulable | 1400mm | Gloss grey |
| F41SF112MOPR840NW | 17,9W | 4000K | 2017 | No regulable | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR840DG | 13,5W | 4000K | 1512 | Regulable DALI | 840mm | Gloss grey |
| F41RE084MOPR830NB | 13,5W | 3000K | 1441 | No regulable | 840mm | Matte black RAL 9011 |
| F41RE168MOPR830NB | 26,9W | 3000K | 2881 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF168MOPR840DW | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41RE140MOPR830NG | 22,4W | 3000K | 2401 | No regulable | 1400mm | Gloss grey |
| F41SF168MOPR840NW | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte white RAL 9010 |
| F41RE112MOPR830DG | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Gloss grey |
| F41SF084MOPR830NG | 13,5W | 3000K | 1441 | No regulable | 840mm | Gloss grey |
| F41SF168MOPR840NB | 26,9W | 4000K | 3026 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF140MOPR830DG | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Gloss grey |
| F41SF112MOPR840DW | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41RE140MOPR840NW | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR840NW | 17,9W | 4000K | 2017 | No regulable | 1120mm | Matte white RAL 9010 |
| F41RE140MOPR840DB | 22,4W | 4000K | 2521 | Regulable DALI | 1400mm | Matte black RAL 9011 |
| F41RE140MOPR840NB | 22,4W | 4000K | 2521 | No regulable | 1400mm | Matte black RAL 9011 |
| F41SF168MOPR840DB | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41RE084MOPR830DW | 13,5W | 3000K | 1441 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41SF084MOPR830NW | 13,5W | 3000K | 1441 | No regulable | 840mm | Matte white RAL 9010 |
| F41RE084MOPR840NW | 13,5W | 4000K | 1512 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF112MOPR830NW | 17,9W | 3000K | 1922 | No regulable | 1120mm | Matte white RAL 9010 |
| F41RE112MOPR840DB | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41SF084MOPR840DW | 13,5W | 4000K | 1512 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41RE168MOPR830DB | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41SF112MOPR840DB | 17,9W | 4000K | 2017 | Regulable DALI | 1120mm | Matte black RAL 9011 |
| F41SF140MOPR830DW | 22,4W | 3000K | 2401 | Regulable DALI | 1400mm | Matte white RAL 9010 |
| F41RE112MOPR830DW | 17,9W | 3000K | 1922 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41SF168MOPR830NG | 26,9W | 3000K | 2881 | No regulable | 1680mm | Gloss grey |
| F41RE168MOPR830DW | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41SF084MOPR840NG | 13,5W | 4000K | 1512 | No regulable | 840mm | Gloss grey |
| F41RE168MOPR840DB | 26,9W | 4000K | 3026 | Regulable DALI | 1680mm | Matte black RAL 9011 |
| F41RE168MOPR830DG | 26,9W | 3000K | 2881 | Regulable DALI | 1680mm | Gloss grey |
| F41RE112MOPRWBTDW | 28W | 2700-6500K | 1777 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41SF084MOPR940NB | 12W | 4000K | 1105 | No regulable | 840mm | Matte black RAL 9011 |
| F41SF112MOPR930NB | 16W | 3000K | 1404 | No regulable | 1120mm | Matte black RAL 9011 |
| F41SF112MOPRWB3NW | 25W | 3000K | 1559 | No regulable | 1120mm | Matte white RAL 9010 |
| F41RE112MOPR940DW | 16W | 4000K | 1473 | Regulable DALI | 1120mm | Matte white RAL 9010 |
| F41RE084MOPR940DW | 12W | 4000K | 1105 | Regulable DALI | 840mm | Matte white RAL 9010 |
| F41SF112MOPR940NW | 17,9W | 4000K | 1707 | No regulable | 1120mm | Matte white RAL 9010 |
| F41SF168MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41SF168MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF168MOPR940DW | - | 4000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF168MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF168MOPR930NW | - | 3000K | - | No regulable | - | Matte white RAL 9010 |
| F41SF168MOPR930NB | - | 3000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF168MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF168MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF084MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41SF084MOPR940DW | - | 4000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF084MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF084MOPR930NW | 13,5W | 3000K | 1210 | No regulable | 840mm | Matte white RAL 9010 |
| F41SF140MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41SF140MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF140MOPR940DW | - | 4000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF140MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF140MOPR930NW | - | 3000K | - | No regulable | - | Matte white RAL 9010 |
| F41SF140MOPR930NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF140MOPR930DW | - | 4000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF140MOPR930DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF112MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF112MOPR940DW | - | 4000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF112MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF112MOPR930NW | - | 3000K | - | No regulable | - | Matte white RAL 9010 |
| F41SF112MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF112MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41SF084MOPR930NB | - | 3000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF084MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41SF084MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE168MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE168MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41RE168MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE168MOPR930NB | - | 3000K | - | No regulable | - | Matte black RAL 9011 |
| F41RE168MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41RE168MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE140MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE140MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41RE140MOPR940DW | - | 4000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41RE140MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE140MOPR930NW | - | 3000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE140MOPR930NB | - | 3000K | - | No regulable | - | Matte black RAL 9011 |
| F41RE140MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41RE140MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE112MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE112MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41RE112MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE112MOPR930NW | - | 3000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE112MOPR930NB | - | 3000K | - | No regulable | - | Matte black RAL 9011 |
| F41RE112MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41RE112MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE084MOPR940NW | - | 4000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE084MOPR940NB | - | 4000K | - | No regulable | - | Matte black RAL 9011 |
| F41SF084MOIP930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE084MOPR940DB | - | 4000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE084MOPR930NW | - | 3000K | - | No regulable | - | Matte white RAL 9010 |
| F41RE084MOPR930NB | 13,4W | 3000K | 1441 | No regulable | 840mm | Matte black RAL 9011 |
| F41RE084MOPR930DW | - | 3000K | - | Regulable DALI | - | Matte white RAL 9010 |
| F41RE084MOPR930DB | - | 3000K | - | Regulable DALI | - | Matte black RAL 9011 |
| F41RE168MOPR940DW | 23W | 4000K | 2210 | Regulable DALI | 1680mm | Matte white RAL 9010 |
| F41RE168MOPR930NW | 26,9W | 3000K | 2420 | No regulable | 1680mm | Matte white RAL 9010 |
