Fil 45 Direct/IndirectF41SF196MOIO840NGFIL45 SUR 1960 7150 NW D/I OPAL GR.
Estructura de superficie para suspender o adosar modelo FIL45 SUR 1960 D/I de la marca LAMP. Fabricada en extrusión de aluminio reciclado con una tasa del 80%, con distribución directa-indirecta, con difusor de policarbonato opal. Modelo para LED MID-POWER, con temperatura de 4000K con CRI80 y equipo electrónico incorporado. Con un grado de protección IP20, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Horas de vida: 70.000h L80 B10. Acabados disponibles: Blanco, negro y gris. Declaración Ambiental de Producto - DAP (EPD®) disponible, según norma UNE-EN ISO 9001:2015 y UNE-EN ISO 14001:2015.
- Potencia:
- 46,5W
- Temperatura de color:
- 4000K
- Flujo de salida:
- 4657
- Equipo:
- No regulable
- Longitud:
- 1960mm
- Acabado:
- Gris satinado
Características
Certificados

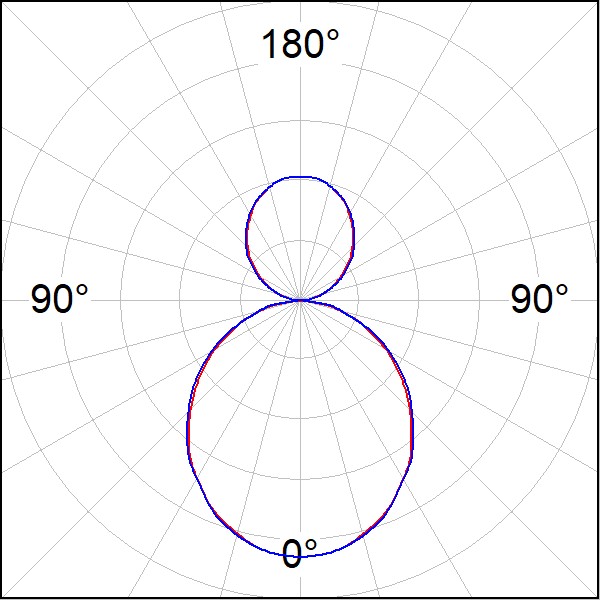

Datos fotométricos
¿Necesitas más información?
Variantes de este producto
| Código | W | K | lm out | Equipo | Longitud | Acabado |
|---|---|---|---|---|---|---|
| F41SF224MOIO840DG | 52,9W | 4000K | 5322 | Regulable DALI | 2240mm | Gris satinado |
| F41SF224MOIO840DW | 52,9W | 4000K | 5322 | Regulable DALI | 2240mm | Blanco mate RAL 9010 |
| F41SF224MOIO830NG | 52,9W | 3000K | 5099 | No regulable | 2240mm | Gris satinado |
| F41SF224MOIO830NB | 52,9W | 3000K | 5099 | No regulable | 2240mm | Negro mate RAL 9011 |
| F41SF224MOIO830DW | 52,9W | 3000K | 5099 | Regulable DALI | 2240mm | Blanco mate RAL 9010 |
| F41SF224MOIO830DG | 52,9W | 3000K | 5099 | Regulable DALI | 2240mm | Gris satinado |
| F41SF224MOIO830DB | 52,9W | 3000K | 5099 | Regulable DALI | 2240mm | Negro mate RAL 9011 |
| F41SF196MOIO840NW | 46,5W | 4000K | 4657 | No regulable | 1960mm | Blanco mate RAL 9010 |
| F41SF196MOIO840NG | 46,5W | 4000K | 4657 | No regulable | 1960mm | Gris satinado |
| F41SF196MOIO840NB | 46,5W | 4000K | 4657 | No regulable | 1960mm | Negro mate RAL 9011 |
| F41SF196MOIO840DW | 46,5W | 4000K | 4657 | Regulable DALI | 1960mm | Blanco mate RAL 9010 |
| F41SF196MOIO840DB | 46,5W | 4000K | 4657 | Regulable DALI | 1960mm | Negro mate RAL 9011 |
| F41SF196MOIO830NW | 46,5W | 3000K | 4462 | No regulable | 1960mm | Blanco mate RAL 9010 |
| F41SF196MOIO830NG | 46,5W | 3000K | 4462 | No regulable | 1960mm | Gris satinado |
| F41SF196MOIO830DG | 46,5W | 3000K | 4462 | Regulable DALI | 1960mm | Gris satinado |
| F41SF168MOIO840NG | 40,1W | 4000K | 3992 | No regulable | 1680mm | Gris satinado |
| F41SF168MOIO840NB | 40,1W | 4000K | 3992 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIO840DB | 40,1W | 4000K | 3992 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIO830NW | 40,1W | 3000K | 3824 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIO830DW | 40,1W | 3000K | 3824 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF140MOIO840NW | 33,3W | 4000K | 3326 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIO840NG | 33,3W | 4000K | 3326 | No regulable | 1400mm | Gris satinado |
| F41SF140MOIO840DW | 33,3W | 4000K | 3326 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIO840DG | 33,3W | 4000K | 3326 | Regulable DALI | 1400mm | Gris satinado |
| F41SF140MOIO840DB | 33,3W | 4000K | 3326 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIO830NG | 33,3W | 3000K | 3188 | No regulable | 1400mm | Gris satinado |
| F41SF140MOIO830NB | 33,3W | 3000K | 3188 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIO830DW | 33,3W | 3000K | 3188 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIO830DB | 33,3W | 3000K | 3188 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF112MOIO840NG | 28,3W | 4000K | 2661 | No regulable | 1120mm | Gris satinado |
| F41SF112MOIO840DB | 28,3W | 4000K | 2661 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIO830NW | 28,3W | 3000K | 2550 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIO830NG | 28,3W | 3000K | 2550 | No regulable | 1120mm | Gris satinado |
| F41SF112MOIO830DW | 28,3W | 3000K | 2550 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF084MOIO840NW | 22,4W | 4000K | 1996 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIO840NB | 22,4W | 4000K | 1996 | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF084MOIO840DW | 22,4W | 4000K | 1996 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIO840DG | 22,4W | 4000K | 1996 | Regulable DALI | 840mm | Gris satinado |
| F41SF084MOIO830NG | 22,1W | 3000K | 1913 | No regulable | 840mm | Gris satinado |
| F41SF084MOIO830DW | 22,1W | 3000K | 1913 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIO830DB | 22,1W | 3000K | 1913 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF224MOIO840NW | 52,9W | 4000K | 5322 | No regulable | 2240mm | Blanco mate RAL 9010 |
| F41SF224MOIO840NG | 52,9W | 4000K | 5322 | No regulable | 2240mm | Gris satinado |
| F41SF224MOIO840NB | 52,9W | 4000K | 5322 | No regulable | 2240mm | Negro mate RAL 9011 |
| F41SF224MOIO840DB | 52,9W | 4000K | 5322 | Regulable DALI | 2240mm | Negro mate RAL 9011 |
| F41SF224MOIO830NW | 52,9W | 3000K | 5099 | No regulable | 2240mm | Blanco mate RAL 9010 |
| F41SF196MOIO840DG | 46,5W | 4000K | 4657 | Regulable DALI | 1960mm | Gris satinado |
| F41SF196MOIO830NB | 46,5W | 3000K | 4462 | No regulable | 1960mm | Negro mate RAL 9011 |
| F41SF196MOIO830DW | 46,5W | 3000K | 4462 | Regulable DALI | 1960mm | Blanco mate RAL 9010 |
| F41SF196MOIO830DB | 46,5W | 3000K | 4462 | Regulable DALI | 1960mm | Negro mate RAL 9011 |
| F41SF168MOIO840NW | 40,1W | 4000K | 3992 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIO840DW | 40,1W | 4000K | 3992 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIO840DG | 40,1W | 4000K | 3992 | Regulable DALI | 1680mm | Gris satinado |
| F41SF168MOIO830NG | 40,1W | 3000K | 3824 | No regulable | 1680mm | Gris satinado |
| F41SF168MOIO830NB | 40,1W | 3000K | 3824 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIO830DG | 40,1W | 3000K | 3824 | Regulable DALI | 1680mm | Gris satinado |
| F41SF168MOIO830DB | 40,1W | 3000K | 3824 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF140MOIO840NB | 33,3W | 4000K | 3326 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIO830NW | 33,3W | 3000K | 3188 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIO830DG | 33,3W | 3000K | 3188 | Regulable DALI | 1400mm | Gris satinado |
| F41SF112MOIO840NW | 28,3W | 4000K | 2661 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIO840NB | 28,3W | 4000K | 2661 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIO840DW | 28,3W | 4000K | 2661 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIO840DG | 28,3W | 4000K | 2661 | Regulable DALI | 1120mm | Gris satinado |
| F41SF112MOIO830NB | 28,3W | 3000K | 2550 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIO830DG | 28,3W | 3000K | 2550 | Regulable DALI | 1120mm | Gris satinado |
| F41SF112MOIO830DB | 28,3W | 3000K | 2550 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF084MOIO840NG | 22,4W | 4000K | 1996 | No regulable | 840mm | Gris satinado |
| F41SF084MOIO840DB | 22,4W | 4000K | 1996 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF084MOIO830NW | 22,1W | 3000K | 1913 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIO830NB | 22,1W | 3000K | 1913 | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF084MOIO830DG | 22,1W | 3000K | 1913 | Regulable DALI | 840mm | Gris satinado |
| F41SF084MOIP830NB | 24,4W | 3000K | 2093 | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF084MOIP830NW | 24,4W | 3000K | 2093 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIP840DW | 24,4W | 4000K | 2376 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIP840NB | 24,4W | 4000K | 2376 | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF112MOIP830DB | 31,7W | 3000K | 2790 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIP830NB | 31,7W | 3000K | 2790 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIP830NW | 31,7W | 3000K | 2790 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIP840DB | 31,7W | 4000K | 3168 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIP840DW | 31,7W | 4000K | 3168 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIP840NB | 31,7W | 4000K | 3168 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF140MOIP830DG | 38,9W | 3000K | 3488 | Regulable DALI | 1400mm | Gris satinado |
| F41SF140MOIP830NB | 38,9W | 3000K | 3488 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP840DB | 38,9W | 4000K | 3959 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP840DW | 38,9W | 4000K | 3959 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIP840NG | 38,9W | 4000K | 3959 | No regulable | 1400mm | Gris satinado |
| F41SF168MOIP830DG | 46,2W | 3000K | 4186 | Regulable DALI | 1680mm | Gris satinado |
| F41SF168MOIP830NB | 46,2W | 3000K | 4186 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP830NG | 46,2W | 3000K | 4186 | No regulable | 1680mm | Gris satinado |
| F41SF168MOIP840DB | 46,2W | 4000K | 4753 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP840DG | 46,2W | 4000K | 4753 | Regulable DALI | 1680mm | Gris satinado |
| F41SF168MOIP840DW | 46,2W | 4000K | 4753 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIP840NG | 46,2W | 4000K | 4753 | No regulable | 1680mm | Gris satinado |
| F41SF084MOIP830DB | 24,4W | 3000K | 2093 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF084MOIP830DG | 24,4W | 3000K | 2093 | Regulable DALI | 840mm | Gris satinado |
| F41SF084MOIP830DW | 24,4W | 3000K | 2093 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIP830NG | 24,4W | 3000K | 2093 | No regulable | 840mm | Gris satinado |
| F41SF084MOIP840DB | 24,4W | 4000K | 2376 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF084MOIP840DG | 24,4W | 4000K | 2376 | Regulable DALI | 840mm | Gris satinado |
| F41SF084MOIP840NG | 24,4W | 4000K | 2376 | No regulable | 840mm | Gris satinado |
| F41SF084MOIP840NW | 24,4W | 4000K | 2376 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF112MOIP830DG | 31,7W | 3000K | 2790 | Regulable DALI | 1120mm | Gris satinado |
| F41SF112MOIP830DW | 31,7W | 3000K | 2790 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIP830NG | 31,7W | 3000K | 2790 | No regulable | 1120mm | Gris satinado |
| F41SF112MOIP840DG | 31,7W | 4000K | 3168 | Regulable DALI | 1120mm | Gris satinado |
| F41SF112MOIP840NG | 31,7W | 4000K | 3168 | No regulable | 1120mm | Gris satinado |
| F41SF112MOIP840NW | 31,7W | 4000K | 3168 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41SF140MOIP830DB | 38,9W | 3000K | 3488 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP830DW | 38,9W | 3000K | 3488 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIP830NG | 38,9W | 3000K | 3488 | No regulable | 1400mm | Gris satinado |
| F41SF140MOIP830NW | 38,9W | 3000K | 3488 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIP840NB | 38,9W | 4000K | 3959 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP840NW | 38,9W | 4000K | 3959 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF168MOIP830DB | 46,2W | 3000K | 4186 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP830DW | 46,2W | 3000K | 4186 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIP830NW | 46,2W | 3000K | 4186 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIP840NB | 46,2W | 4000K | 4753 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP840NW | 46,2W | 4000K | 4753 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF140MOIP840DG | 38,9W | 4000K | 3959 | Regulable DALI | 1400mm | Gris satinado |
| F41SF112MOIO8TWDW | 43,6W | TW | 3979 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF224MOIP8TWDW | - | - | - | - | - | - |
| F41SF168MOIP940NW | - | 4000K | - | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIP940NB | - | 4000K | - | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP940DW | 45,7W | 4000K | 3170 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIP940DB | - | 4000K | - | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP930NW | 46,2W | 3000K | 3550 | No regulable | 1680mm | Matte white RAL 9010 |
| F41SF168MOIP930NB | - | 3000K | - | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF168MOIP930DW | - | 3000K | - | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOIP930DB | - | 3000K | - | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF140MOIP940NB | - | 4000K | - | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP930NW | 38,9W | 3000K | 2960 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIP930NB | - | 3000K | - | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP930DW | - | 3000K | - | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIP930DB | - | 3000K | - | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP940DW | 37,9W | 4000K | 3170 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41SF140MOIP940DB | - | 4000K | - | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF140MOIP940NW | - | 4000K | - | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF112MOIP940NW | - | 4000K | - | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIP940NB | - | 4000K | - | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIP940DW | - | 4000K | - | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIP940DB | 31,8W | 4000K | 3168 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIP930NW | 31,7W | 3000K | 2790 | No regulable | 1120mm | Matte white RAL 9010 |
| F41SF112MOIP930NB | - | 3000K | - | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF112MOIP930DW | 31,8W | 3000K | 2790 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF112MOIP930DB | - | 3000K | - | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF084MOIP940NW | - | 4000K | - | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIP940NB | - | 4000K | - | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF084MOIP940DW | - | 4000K | - | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIP940DB | - | 4000K | - | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF084MOIP930NW | - | 3000K | - | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF084MOIP930NB | - | 3000K | - | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF084MOIP930DW | - | 3000K | - | Regulable DALI | 840mm | Blanco mate RAL 9010 |
Accesorios
Montaje
Suspensión
