Fil 45 R365F41SFCC3MOOP930DWFIL45 CR CV SUR R365 1300 9WW OP DA WH
Estructura de superficie para suspender o adosar modelo FIL45 CORNER CURVE SUR R365 de la marca LAMP. Fabricada en extrusión de aluminio reciclado con una tasa del 80%, con difusor de policarbonato opal. Modelo para LED MID-POWER, con temperatura de 3000K con CRI90 y equipo electrónico DALI incorporado. Con un grado de protección IP43, excepto en instalación suspendida que pasa a ser IP20, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Horas de vida: 72.000h L80 B10. Acabados disponibles blanco, negro y gris.
- Potencia:
- 9,3W
- Temperatura de color:
- 3000K
- Flujo de salida:
- 739
- Equipo:
- Regulable DALI
- Longitud:
- 365mm
- Acabado:
- Matte white RAL 9010
Características
Certificados

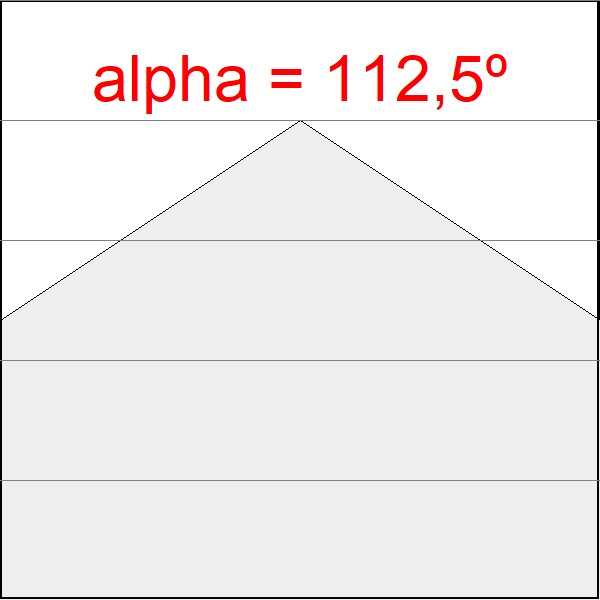

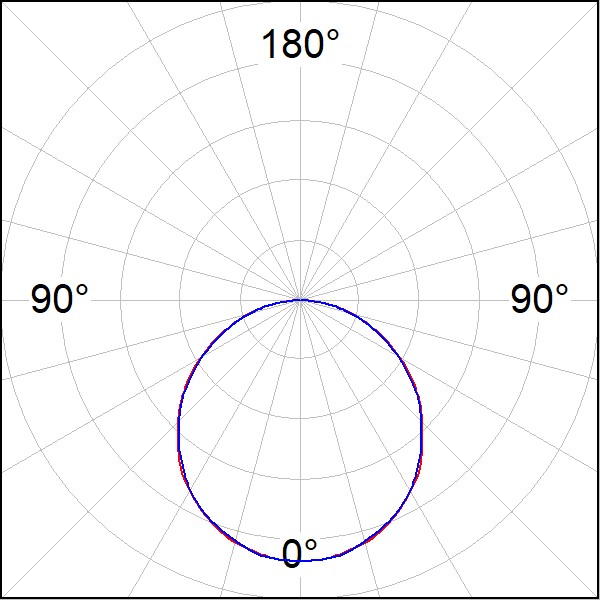

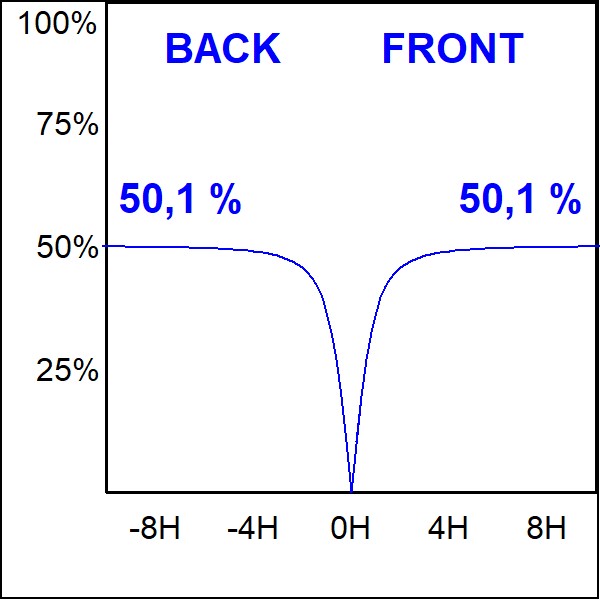

Datos fotométricos
¿Necesitas más información?
Variantes de este producto
| Código | W | K | lm out | Equipo | Longitud | Acabado |
|---|---|---|---|---|---|---|
| F41SFCC3MOOP930NG | 9,3W | 3000K | 739 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOPR830NG | 9,3W | 3000K | 960 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOPR830DG | 9,3W | 3000K | 960 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOOP830NW | 9,3W | 3000K | 861 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP830NG | 9,3W | 3000K | 861 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOPR940NW | 9,3W | 4000K | 867 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR840NG | 9,3W | 4000K | 1009 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOPR840NB | 9,3W | 4000K | 1009 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP940DG | 9,3W | 4000K | 776 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOOP940NG | 9,3W | 4000K | 776 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOPR930DW | 9,3W | 3000K | 824 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP930NB | 9,3W | 3000K | 739 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR940DG | 9,3W | 4000K | 867 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOOP830DW | 9,3W | 3000K | 861 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR940NG | 9,3W | 4000K | 867 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOOP940NB | 9,3W | 4000K | 776 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP940DW | 9,3W | 4000K | 776 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP930NW | 9,3W | 3000K | 739 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR830NB | 9,3W | 3000K | 960 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR840DG | 9,3W | 4000K | 1009 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOPR840NW | 9,3W | 4000K | 1009 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP830NB | 9,3W | 3000K | 861 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP840NW | 9,3W | 4000K | 903 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR930NW | 9,3W | 3000K | 824 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP840DG | 9,3W | 4000K | 903 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOPR830NW | 9,3W | 3000K | 960 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP930DW | 9,3W | 3000K | 739 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR830DB | 9,3W | 3000K | 960 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR930DG | 9,3W | 3000K | 824 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOPR830DW | 9,3W | 3000K | 960 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP840DW | 9,3W | 4000K | 903 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR930NB | 9,3W | 3000K | 824 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR930NG | 9,3W | 3000K | 824 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOPR940DB | 9,3W | 4000K | 867 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR930DB | 9,3W | 3000K | 824 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP840DB | 9,3W | 4000K | 903 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP840NG | 9,3W | 4000K | 903 | No regulable | 365mm | Gloss grey |
| F41SFCC3MOOP940DB | 9,3W | 4000K | 776 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR840DW | 9,3W | 4000K | 1009 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOOP830DG | 9,3W | 3000K | 861 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOPR940DW | 9,3W | 4000K | 867 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR840DB | 9,3W | 4000K | 1009 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP830DB | 9,3W | 3000K | 861 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP840NB | 9,3W | 4000K | 903 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP930DB | 9,3W | 3000K | 739 | Regulable DALI | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR940NB | 9,3W | 4000K | 867 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOOP930DG | 9,3W | 3000K | 739 | Regulable DALI | 365mm | Gloss grey |
| F41SFCC3MOOP940NW | 9,3W | 4000K | 776 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR935NW | 9,3W | 3500K | 836 | No regulable | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR935NB | 9,3W | 3500K | 836 | No regulable | 365mm | Matte black RAL 9011 |
| F41SFCC3MOPR935DW | 9,3W | 3500K | 836 | Regulable DALI | 365mm | Matte white RAL 9010 |
| F41SFCC3MOPR935DB | 9,3W | 3500K | 836 | Regulable DALI | 365mm | Matte black RAL 9011 |
