Seti

Gallery Description Products Downloads Related products

portada video seti

The SETI family of LED bollards was designed to light private areas and hotels. Due to its minimalist design, it blends in perfectly in any outdoor space in residential neighbourhoods.

SETI is available in 3 versions according to the bollard’s height and the type of lighting: SOFT or SPOT, with a colour temperature of 3000K. The SOFT model is furnished with a grille for ambient, and the SPOT model is designed to direct the light flow toward the ground with a marked beam of light. Depending on application needs, light toward either one or two sides may be chosen.

The entire family has an IP65 degree of protection and is made with aluminum profile extrusion with two outer finishes, texturized black and anthracite grey, and a texturized white or black inner finish.

Products

Seti

Seti soft

Seti soft

Seti spot

Seti spot

Seti soft 500

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341014	4W	3000K	27	-	Grey	500mm	500	Non-adjustable	Floor surface
10341012	4W	3000K	47	-	Black	500mm	500	Non-adjustable	Floor surface
10341004	3W	3000K	19	-	Grey	500mm	500	Non-adjustable	Floor surface
10341002	3W	3000K	39	-	Black	500mm	500	Non-adjustable	Floor surface

Seti soft 900

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341034	6W	3000K	47	-	Grey	900mm	900	Non-adjustable	Floor surface
10341032	6W	3000K	82	-	Black	900mm	900	Non-adjustable	Floor surface
10341024	6W	3000K	41	-	Grey	900mm	900	Non-adjustable	Floor surface
10341022	6W	3000K	83	-	Black	900mm	900	Non-adjustable	Floor surface

Seti soft 1200

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341054	13W	3000K	101	-	Grey	1200mm	1200	Non-adjustable	Floor surface
10341052	13W	3000K	176	-	Black	1200mm	1200	Non-adjustable	Floor surface
10341044	9W	3000K	88	-	Grey	1200mm	1200	Non-adjustable	Floor surface
10341042	9W	3000K	116	-	Black	1200mm	1200	Non-adjustable	Floor surface

Seti spot 500

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341114	4.2W	3000K	160	-	Grey	500mm	500	Non-adjustable	Floor surface
10341112	4.2W	3000K	214	-	Black	500mm	500	Non-adjustable	Floor surface
10341104	2.4W	3000K	80	-	Grey	500mm	500	Non-adjustable	Floor surface
10341102	2.4W	3000K	107	-	Black	500mm	500	Non-adjustable	Floor surface

Seti spot 900

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341134	4.2W	3000K	160	-	Grey	900mm	900	Non-adjustable	Floor surface
10341132	4.2W	3000K	214	-	Black	900mm	900	Non-adjustable	Floor surface
10341124	2.4W	3000K	80	-	Grey	900mm	900	Non-adjustable	Floor surface
10341122	2.4W	3000K	107	-	Black	900mm	900	Non-adjustable	Floor surface

Seti spot 1200

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341154	4.2W	3000K	160	-	Grey	1200mm	1200	Non-adjustable	Floor surface
10341152	4.2W	3000K	214	-	Black	1200mm	1200	Non-adjustable	Floor surface
10341144	2.4W	3000K	80	-	Grey	1200mm	1200	Non-adjustable	Floor surface
10341142	2.4W	3000K	107	-	Black	1200mm	1200	Non-adjustable	Floor surface

No results found for the current filters.

Downloads

ELU

Download all (2)

Installation instructions

Download all (2)

CAD symbols (DWG)

Download all (2)

BIM files

Download all (2)

IES

Download all (2)

Product sheets

Download all (2)

Do you need more information?
We can help you

Related products

B-side

b-side press

B-side 360

B-side led 360

Trace 65 100

Trace 65 100 horizontal

Trace 65 200

Trace 65 200 horizontal

Xtrema sign

Xtrema sign

Seti

Seti soft 50010341014SETI SOFT DB 500 WW ANT.

Bollard model SETI SOFT DB 500 WW ANT., LAMP brand. Made of exterior anthracite and interior textured black painted extruded aluminium. Model for LED MID-POWER, with warm white colour temperature and control gear included. IP65, IK08 protection rating. Insulation class II.

Power:: 4W
Color temperature:: 3000K
Lumen output:: 27
Gear:: Non-adjustable
Finishing:: Textured anthracite grey
Height:: 500mm

Features

Certificates

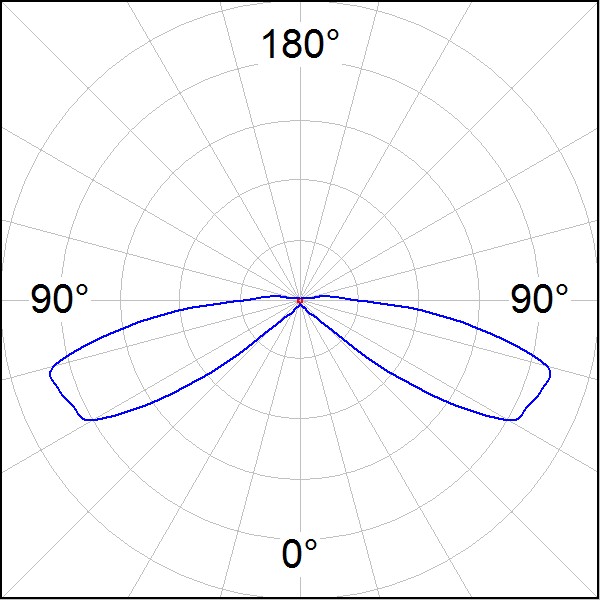

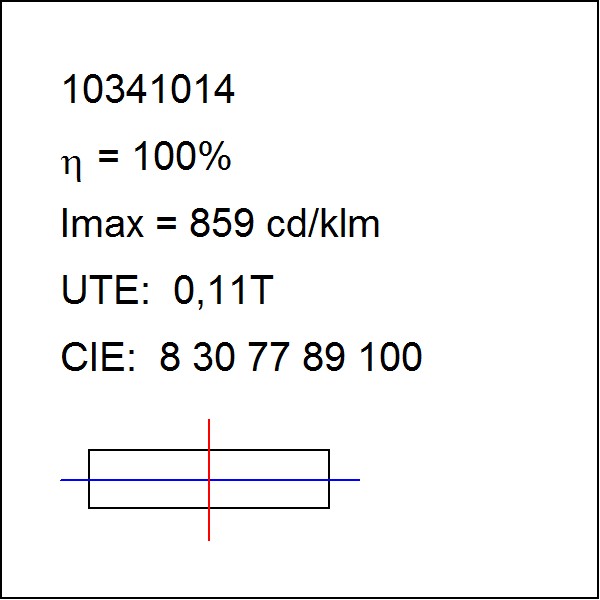

Photometric data

Do you need more information?

Product variants

Code	W	K	lm out	Gear	Finishing	Height	lm	Gear
10341014	4W	3000K	27	-	Grey	500mm	500	Non-adjustable
10341012	4W	3000K	47	-	Black	500mm	500	Non-adjustable
10341004	3W	3000K	19	-	Grey	500mm	500	Non-adjustable
10341002	3W	3000K	39	-	Black	500mm	500	Non-adjustable
