Ocult

Ocult trimless 9 modulesOD1TR918MF840NBOCULT TRIM 9 1800 NW MFL BK.

Fixed linear recessed downlight model OCULT TRIM 9 1800 NW MFL BK., LAMP brand. Body made of anodized aluminium to optimised heat dissipation and reflector made of ABS painted in black matt. With spring loaded clamping system. Model with LED HI-POWER with a neutral white colour temperature and control gear included. Optical system designed to obtain high visual comfort (UGR<3). With Medium Flood optics. Insulation class II.
Overture:
24º
Power:
18W
Color temperature:
4000K
Lumen output:
1620
Gear:
Non-adjustable
Finishing:
9011 textured
Lumen LED:
1800

Features

Certificates

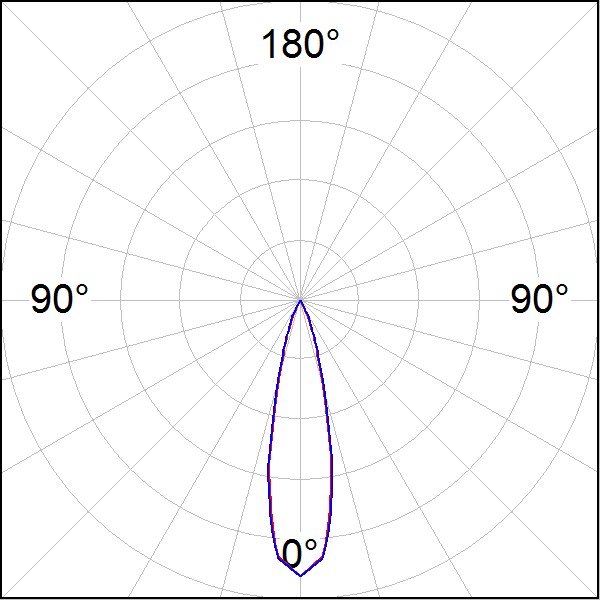

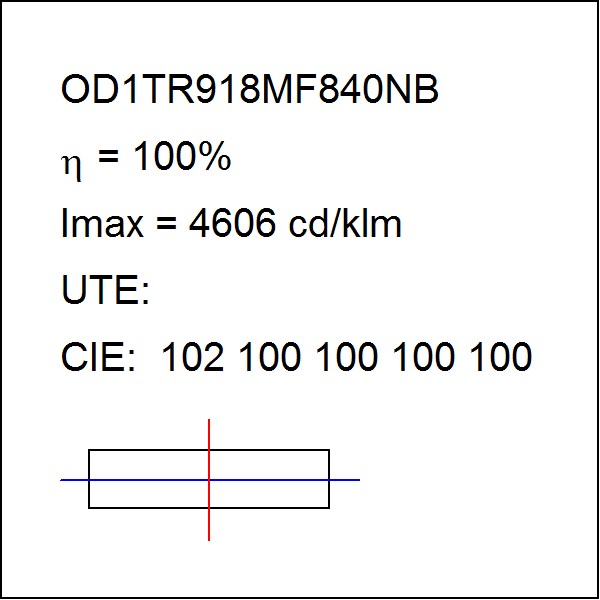

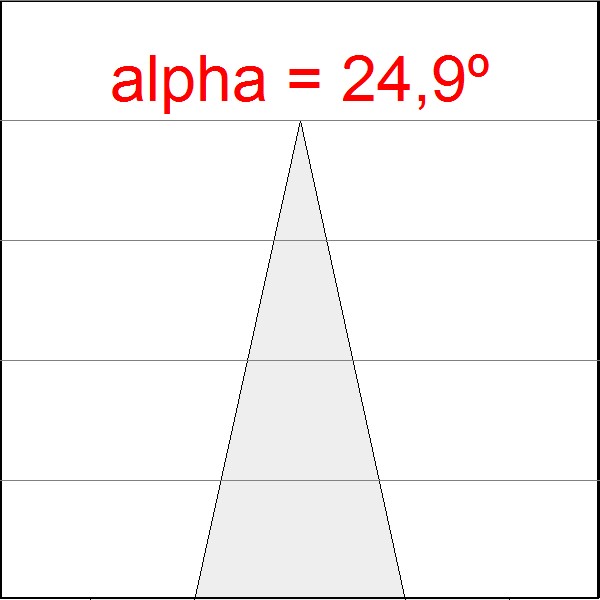

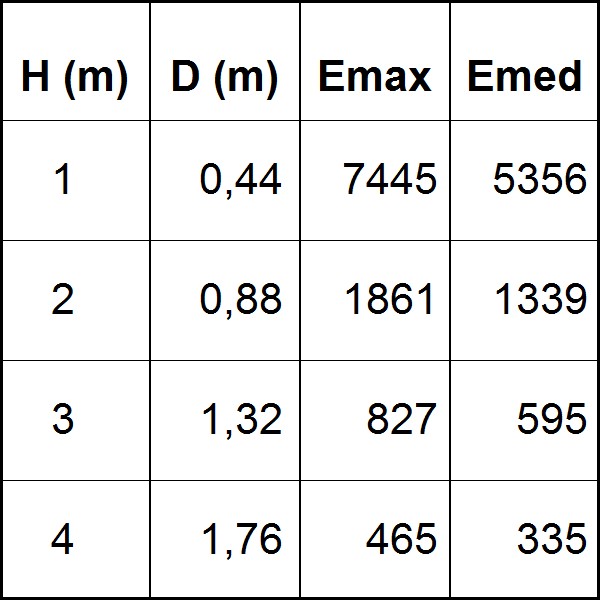

Photometric data

Do you need more information?

Product variants

CodeWKlm outGearFinishinglm
OD1TR918WF840NB48º18W4000K1647Non-adjustable9011 textured1800
OD1TR918WF840DB48º18W4000K1647Adjustable DALI9011 textured1800
OD1TR918WF830NB48º18W3000K1647Non-adjustable9011 textured1800
OD1TR918WF830DB48º18W3000K1647Adjustable DALI9011 textured1800
OD1TR918MF840NB24º18W4000K1620Non-adjustable9011 textured1800
OD1TR918MF840DB24º18W4000K1620Adjustable DALI9011 textured1800
OD1TR918MF830NB24º18W3000K1620Non-adjustable9011 textured1800
OD1TR918MF830DB24º18W3000K1620Adjustable DALI9011 textured1800
