Ocult trimless 12 modulesOD1TR1222MF840DBOCULT TRIM 12 2400 NW MFL DALI BK.

Fixed linear recessed downlight model OCULT TRIM 12 2400 NW MFL BK., LAMP brand. Body made of anodized aluminium to optimised heat dissipation and reflector made of ABS painted in black matt. With spring loaded clamping system. Model with LED HI-POWER with a neutral white colour temperature and control gear included. Optical system designed to obtain high visual comfort (UGR<3). With Medium Flood optics. Insulation class II.
Overture:
24º
Power:
24W
Color temperature:
4000K
Lumen output:
2160
Gear:
Adjustable DALI
Finishing:
Texturised black RAL 9011
Lumen LED:
2400

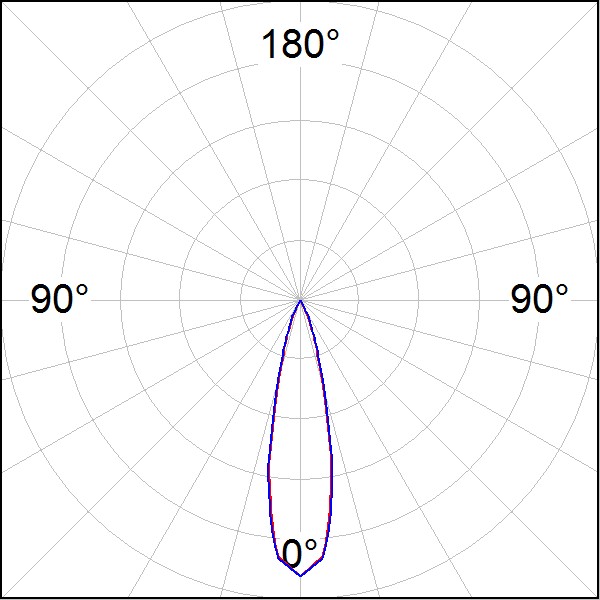

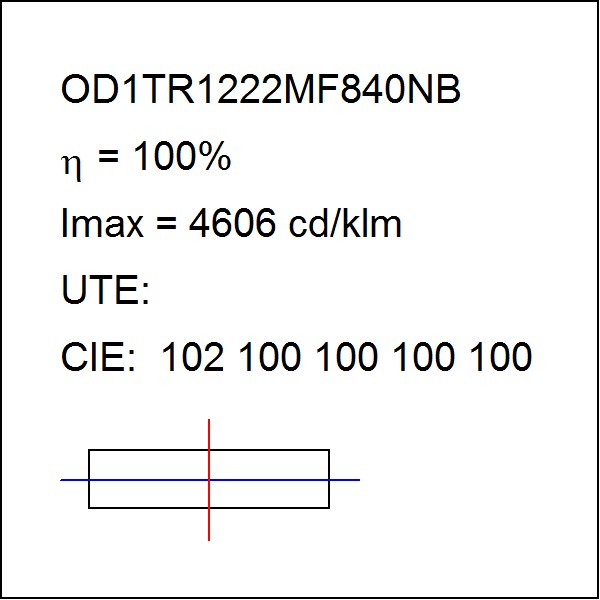

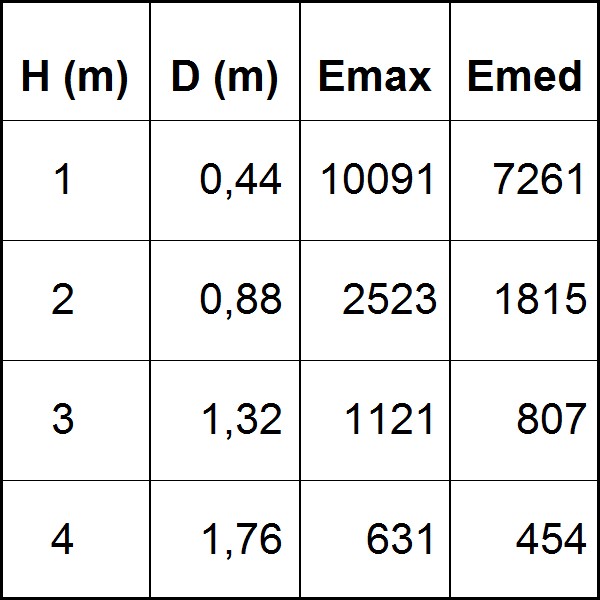

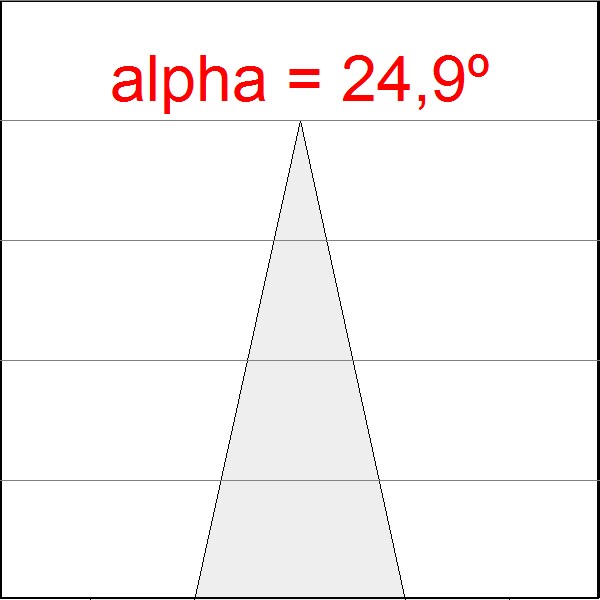

Photometric data

Do you need more information?

Product variants

CodeWKlm outGearFinishinglm
OD1TR1222WF840NB48º24W4000K2196Non-adjustableTexturised black RAL 90112400
OD1TR1222WF840DB48º24W4000K2196Adjustable DALITexturised black RAL 90112400
OD1TR1222WF830NB48º24W3000K2196Non-adjustableTexturised black RAL 90112400
OD1TR1222WF830DB48º24W3000K2196Adjustable DALITexturised black RAL 90112400
OD1TR1222MF840NB24º24W4000K2160Non-adjustableTexturised black RAL 90112400
OD1TR1222MF840DB24º24W4000K2160Adjustable DALITexturised black RAL 90112400
OD1TR1222MF830NB24º24W3000K2160Non-adjustableTexturised black RAL 90112400
OD1TR1222MF830DB24º24W3000K2160Adjustable DALITexturised black RAL 90112400
