Ocult 12 modulesOD1RE1222MF830NBWOCULT REC 12 2400 WW MFL BK/WH.

Fixed linear recessed downlight model OCULT REC 12 2400 WW MFL BK/WH., LAMP brand. Body made of anodized aluminium to optimised heat dissipation. External frame made of injected aluminium painted in textured white and reflector made of ABS painted in black matt. With spring loaded clamping system. Model with LED HI-POWER with a warm white colour temperature and control gear included.Glare rating <19 (for 4h, 8h 70/50/20). With Medium Flood optics. Insulation class II.
Color temperature:
Lumen output:
Texturised white RAL 9010

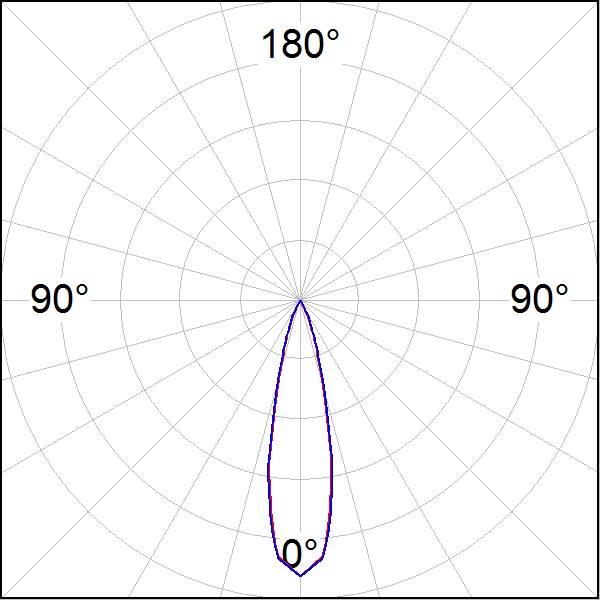

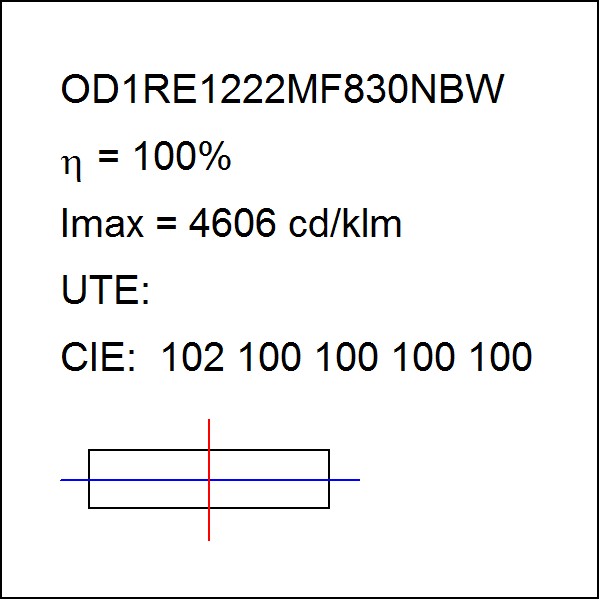

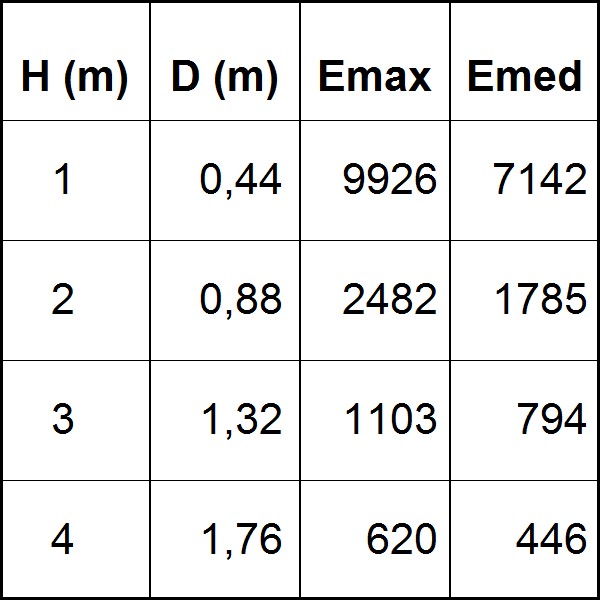

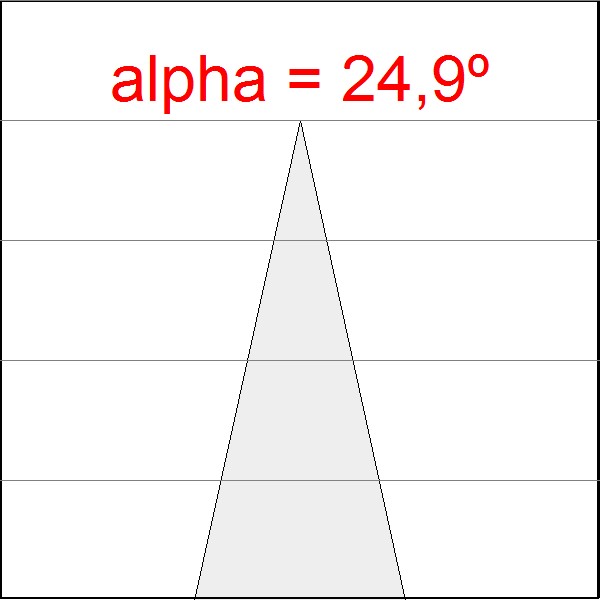

Photometric data

Do you need more information?

Product variants

CodeWKlm outGearFinishing
OD1RE1222MF840NBW24º24W4000K2160Non-adjustableTexturised white RAL 9010
OD1RE1222WF840DBW48º24W4000K2196Adjustable DALITexturised white RAL 9010
OD1RE1222WF830NBW48º24W3000K2196Non-adjustableTexturised white RAL 9010
OD1RE1222WF830DBW48º24W3000K2196Adjustable DALITexturised white RAL 9010
OD1RE1222WF840NBW48º24W4000K2196Non-adjustableTexturised white RAL 9010
OD1RE1222MF840DBW24º24W4000K2160Adjustable DALITexturised white RAL 9010
OD1RE1222MF830NBW24º24W3000K2160Non-adjustableTexturised white RAL 9010
OD1RE1222MF830DBW24º24W3000K2160Adjustable DALITexturised white RAL 9010
OD1RE1222WF830NBB48º24W3000K2196Non-adjustableTexturised black RAL 9011
OD1RE1222WF830DBB48º24W3000K2196Adjustable DALITexturised black RAL 9011
OD1RE1222MF840NBB24º24W4000K2160Non-adjustableTexturised black RAL 9011
OD1RE1222MF840DBB24º24W4000K2160Adjustable DALITexturised black RAL 9011
OD1RE1222MF830NBB24º24W3000K2160Non-adjustableTexturised black RAL 9011
OD1RE1222MF830DBB24º24W3000K2160Adjustable DALITexturised black RAL 9011
OD1RE1222WF840NBB48º24W4000K2196Non-adjustableTexturised black RAL 9011
OD1RE1222WF840DBB48º24W4000K2196Adjustable DALITexturised black RAL 9011
