SPIM3TK40SP940NWIMAG G3 TRACK 4000 9NW SP WH

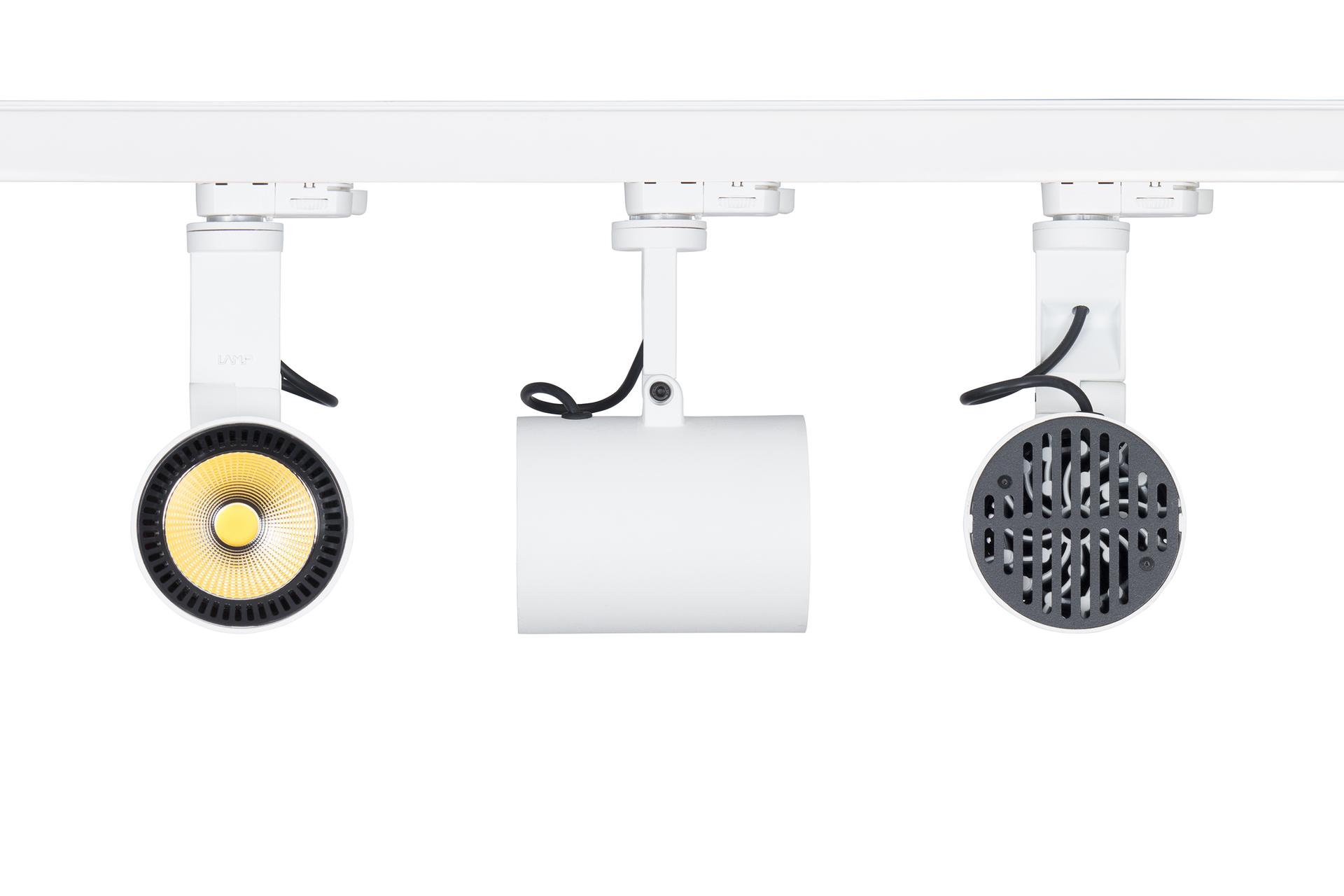

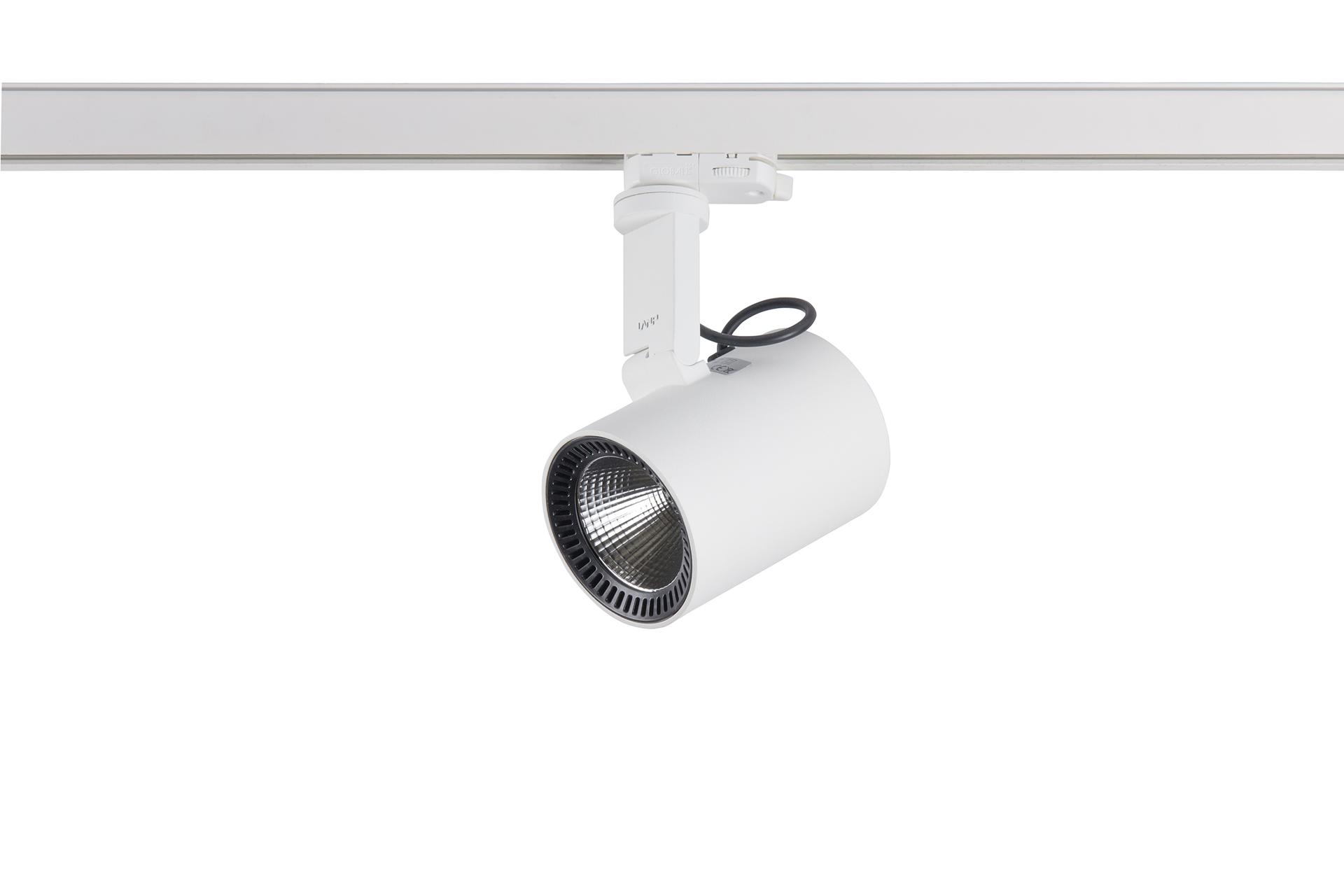

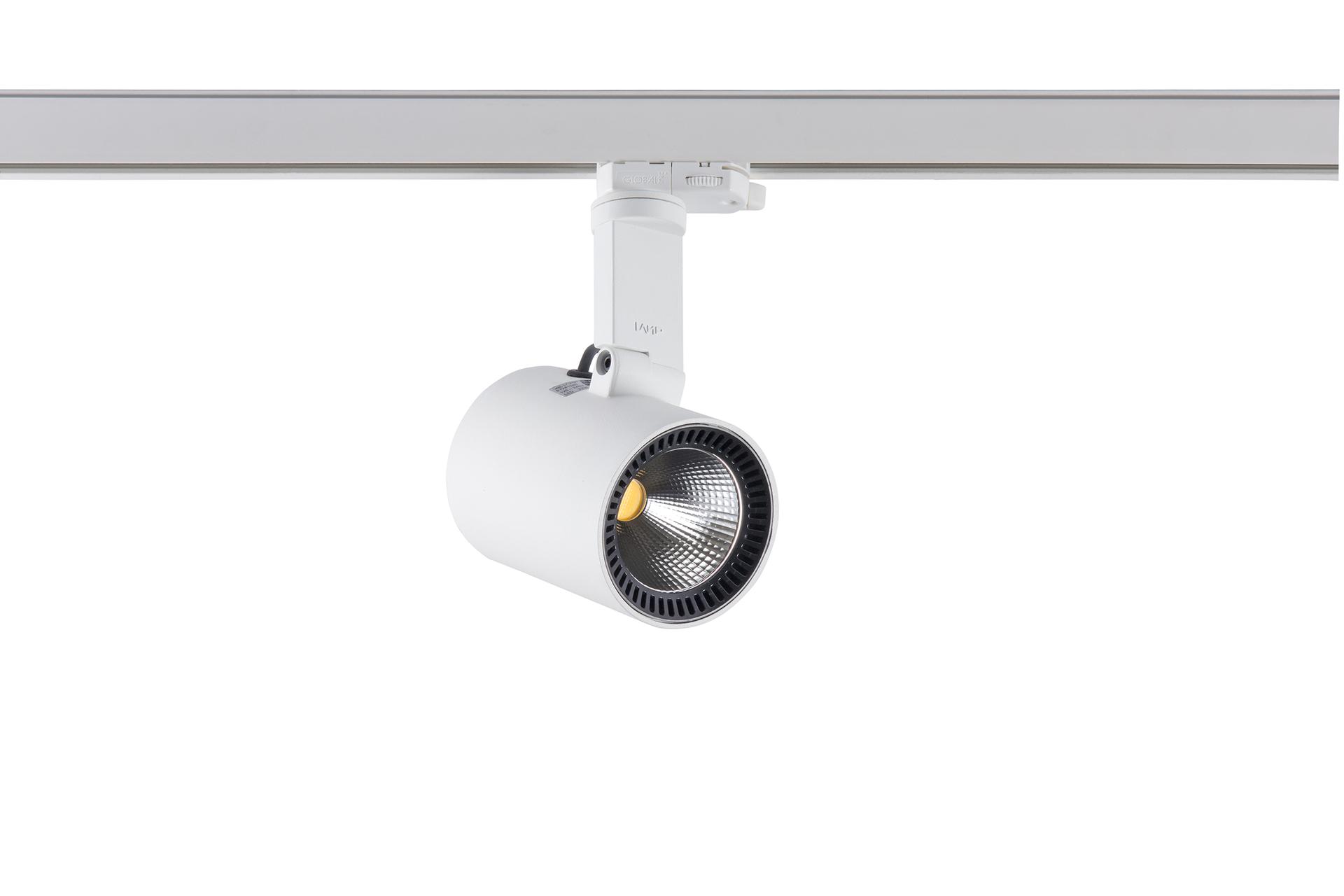

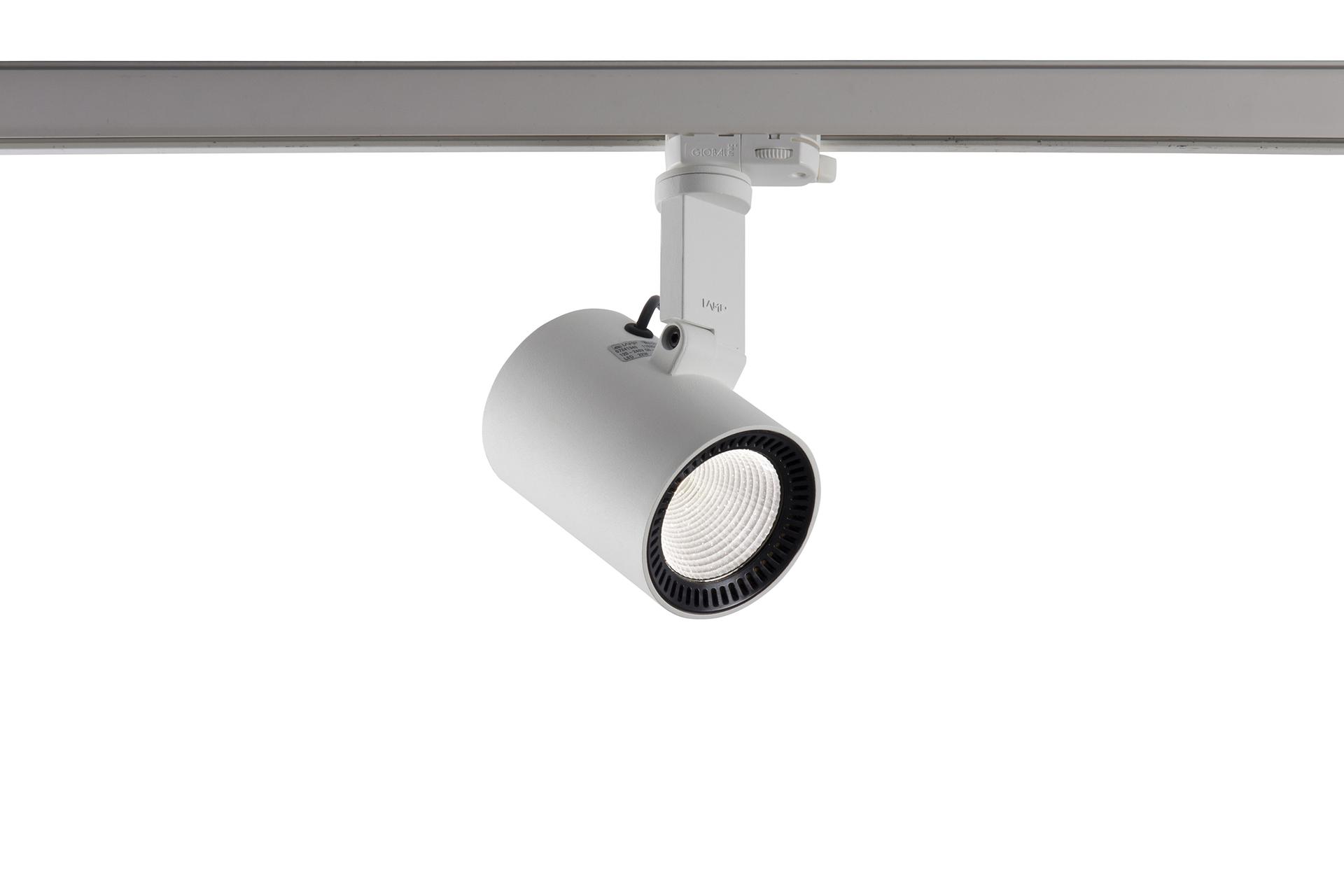

Multi-directional three-phase track projector model IMAG G3 TRACK 4000 9NW SP WH., LAMP brand. Manufactured with aluminium die casting and polycarbonate finished in texturized white. Passive dissipation for thermal management. Model for COB LED CRI90, with neutral white colour temperature and control gear included. High quality aluminium Spot reflector. Insulation class II. Lifetime 50.000 L80 B10
- Overture:
- 16º
- Power:
- 42,3W
- Color temperature:
- 4000K
- CRI:
- 90
- Lumen output:
- 3205
- Gear:
- Non-adjustable
- Finishing:
- Texturised matt white RAL 9016
Features
Certificates

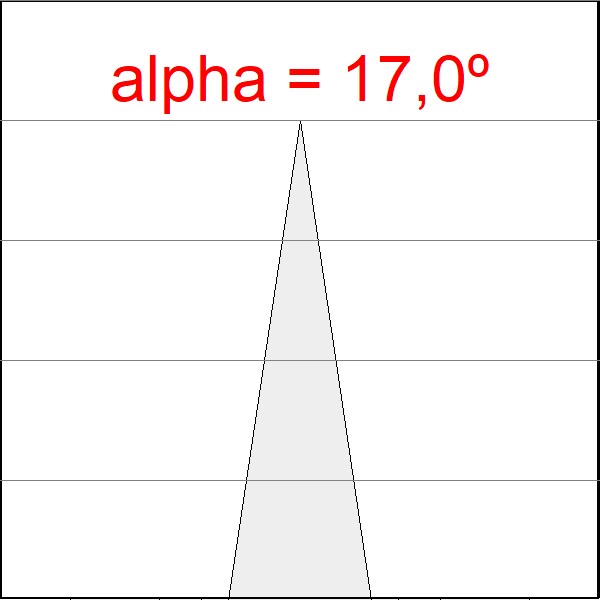

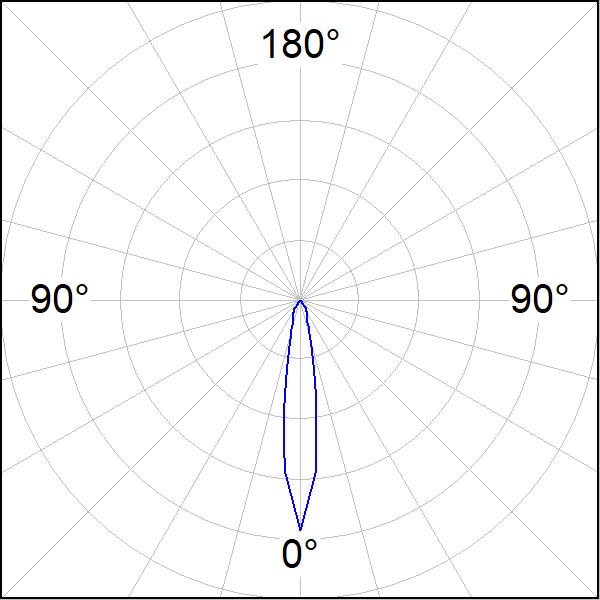

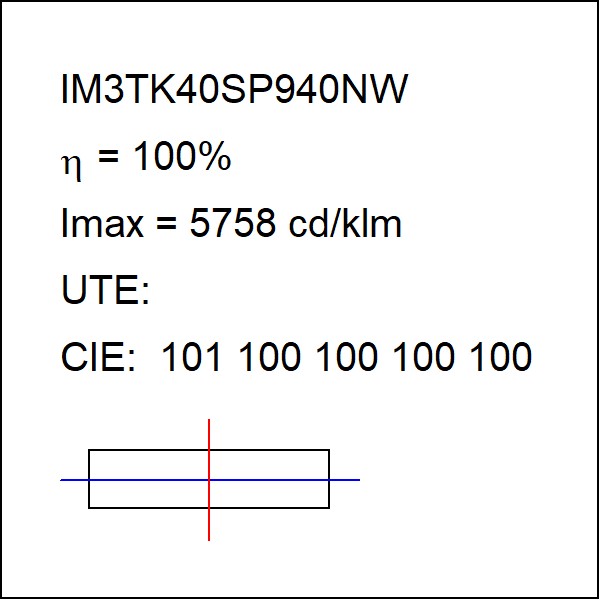

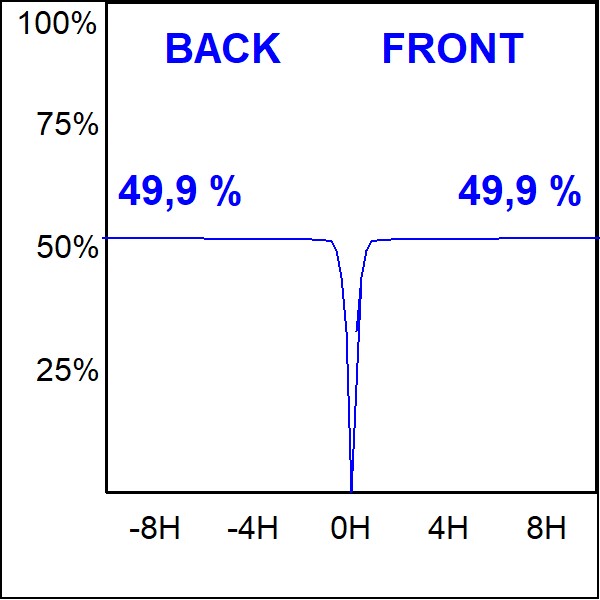

Photometric data
Do you need more information?
Product variants
| Code | ∢ | W | K | CRI | lm out | Gear | Finishing |
|---|---|---|---|---|---|---|---|
| IM3TK40SP930NW | 16º | 42,3W | 3000K | 90 | 3008 | - | Texturised matt white RAL 9016 |
| IM3TK40SP940NW | 16º | 42,3W | 4000K | 90 | 3205 | - | Texturised matt white RAL 9016 |
| IM3TK20SP930NW | 16º | 16W | 3000K | 90 | 1416 | - | Texturised matt white RAL 9016 |
| IM3TK20SP940NW | 16º | 16W | 4000K | 90 | 1509 | - | Texturised matt white RAL 9016 |
| IM3TK30SP930NW | 16º | 28,8W | 3000K | 90 | 2303 | - | Texturised matt white RAL 9016 |
| IM3TK30SP940NW | 16º | 28,8W | 4000K | 90 | 2454 | - | Texturised matt white RAL 9016 |
| IM3TK30SP930NB | 16º | 28,8W | 3000K | 90 | 2303 | - | Graphite |
| IM3TK40SP940NB | 16º | 42,3W | 4000K | 90 | 3205 | - | Graphite |
| IM3TK40SP930NB | 16º | 42,3W | 3000K | 90 | 3008 | - | Graphite |
| IM3TK30SP940NB | 16º | 28,8W | 4000K | 90 | 2454 | - | Graphite |
| IM3TK20SP940NB | 16º | 16W | 4000K | 90 | 1509 | - | Graphite |
| IM3TK20SP930NB | 16º | 16W | 3000K | 90 | 1416 | - | Graphite |
Accessories
Suspension
Support
Optical
Assembly
- TKATLIDNBTRACK ACC. INT LEFT T JOINT BK.
- TKATLIDNGTRACK ACC. INT LEFT T JOINT GR.
- TKATLIDNWTRACK ACC. INT LEFT T JOINT WH.
- TKATLODNBTRACK ACC. EXT LEFT T JOINT BK.
- TKATLODNGTRACK ACC. EXT LEFT T JOINT GR.
- TKATLODNWTRACK ACC. EXT LEFT T JOINT WH.
- TKATRIDNBTRACK ACC. INT RIGHT T JOINT BK.
- TKATRIDNGTRACK ACC. INT RIGHT T JOINT GR.
- TKATRIDNWTRACK ACC. INT RIGHT T JOINT WH.
- TKATRODNBTRACK ACC. EXT RIGHT T JOINT BK.
- TKATRODNGTRACK ACC. EXT RIGHT T JOINT GR.
- TKATRODNWTRACK ACC. EXT RIGHT T JOINT WH.
