Imag

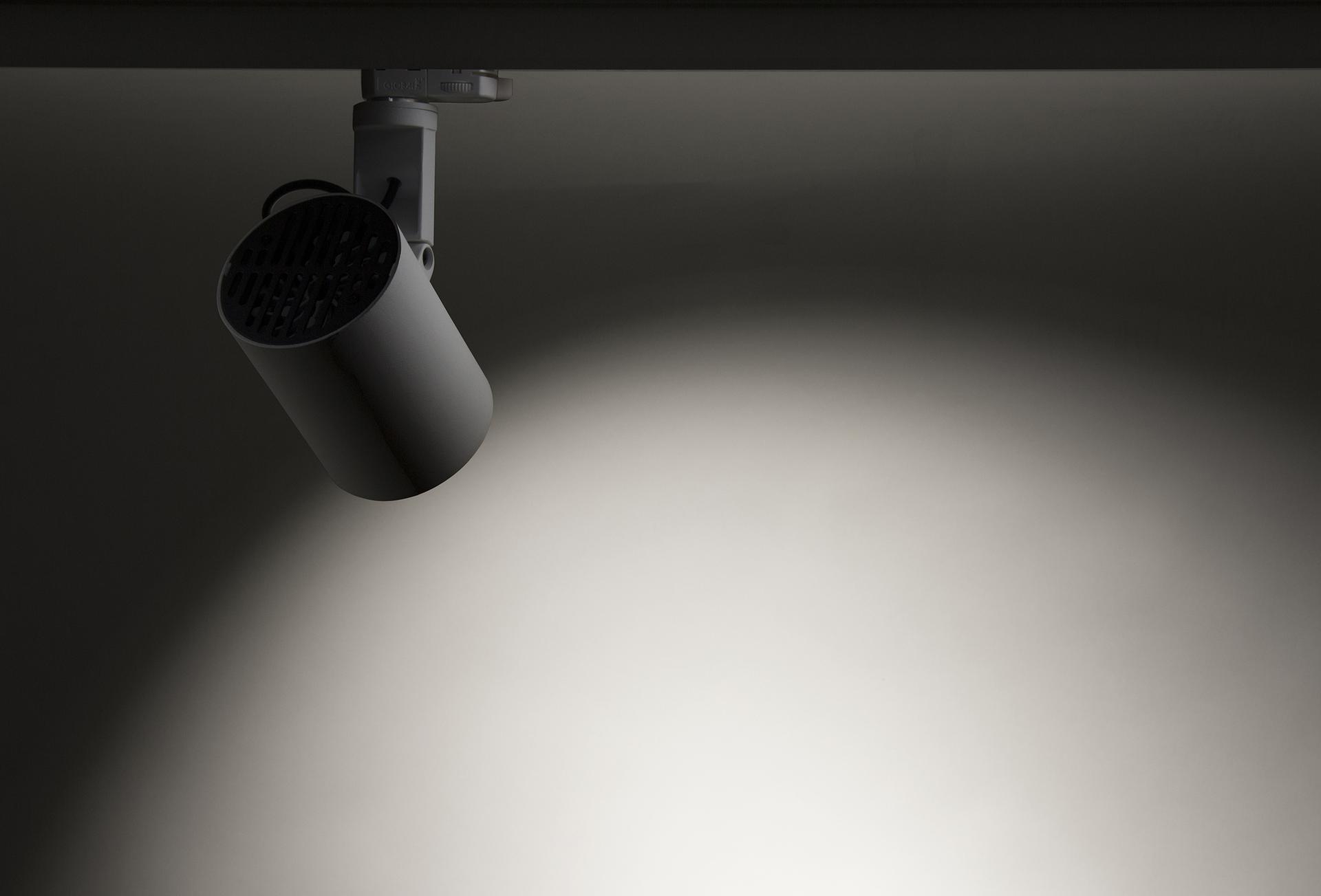

Imag is an indoor projector family for accent lighting. It is available in 3 versions: for three-phase track, wall or ceiling mounting and LED powered to AC current directly. Models for COB LED, with luminous packages of approximately 1,400, 2,000, 3,000, 4,000 and 5,000 lm with warm or neutral white colour temperature also with Vibrant White technology with different levels of luminous flux. With Spot, Medium Flood, Flood and Wide Flood optics.

Made of lacquered aluminium injection, high purity aluminium reflector and heat sink for a proper thermal management. Available in 2 finishes: texturized white and texturized graphite.

Controllable under the Casambi protocol.

Custom-made possibilities

Dimmable 1-10V

Dimmable PUSH

Dimmable TRIAC

Dimmable DALI

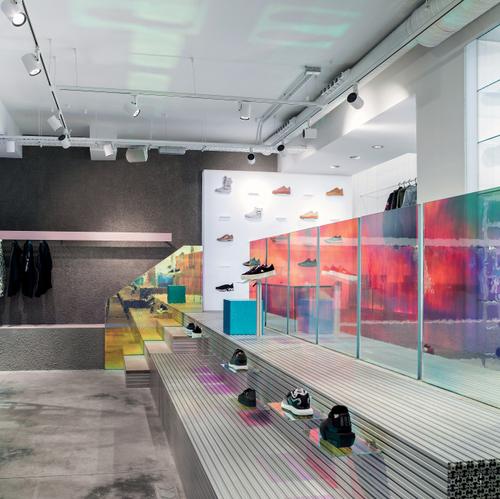

LED for RETAIL

(VW, meat, fish, bread, fruit)

Colour rendering index

CRI 90

Light applications

Products

Imag

3 Products

Imag g2 track

Imag g2 surface

Imag direct

Imag g2 track

Code	∢	W	K	CRI	lm out	Gear	Finishing	lm	Gear
10843092	18º	30W	3000K	80	3489	-	Graphite	4000	Non-adjustable	Track
10843090	18º	30W	3000K	80	3489	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10843082	33º	26W	3000K	80	2662	-	Graphite	3000	Non-adjustable	Track
10843080	33º	26W	3000K	80	2662	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10843072	22º	26W	3000K	80	2646	-	Graphite	3000	Non-adjustable	Track
10843070	22º	26W	3000K	80	2646	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10843062	16º	26W	3000K	80	2493	-	Graphite	3000	Non-adjustable	Track
10843060	16º	26W	3000K	80	2493	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10843052	33º	15W	3000K	80	1798	-	Graphite	2000	Non-adjustable	Track
10843050	33º	15W	3000K	80	1798	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10843042	22º	15W	3000K	80	1787	-	Graphite	2000	Non-adjustable	Track
10843040	22º	15W	3000K	80	1787	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10843032	16º	15W	3000K	80	1684	-	Graphite	2000	Non-adjustable	Track
10843030	16º	15W	3000K	80	1684	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10843112	35º	30W	3000K	80	3689	-	Graphite	4000	Non-adjustable	Track
10843110	35º	30W	3000K	80	3689	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10843102	24º	30W	3000K	80	3600	-	Graphite	4000	Non-adjustable	Track
10843100	24º	30W	3000K	80	3600	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10843282	36º	44W	3000K	80	4783	-	Graphite	5000	Non-adjustable	Track
10843280	36º	44W	3000K	80	4783	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10843272	26º	44W	3000K	80	4795	-	Graphite	5000	Non-adjustable	Track
10843270	26º	44W	3000K	80	4795	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10843262	20º	44W	3000K	80	4699	-	Graphite	5000	Non-adjustable	Track
10843260	20º	44W	3000K	80	4699	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10843552	56º	30W	3000K	80	3732	-	Graphite	4000	Non-adjustable	Track
10843550	56º	30W	3000K	80	3732	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10843532	57º	26W	3000K	80	2984	-	Graphite	3000	Non-adjustable	Track
10843530	57º	26W	3000K	80	2984	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10843512	57º	15W	3000K	80	2016	-	Graphite	2000	Non-adjustable	Track
10843510	57º	15W	3000K	80	2016	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10844092	18º	30W	4000K	80	3800	-	Graphite	4000	Non-adjustable	Track
10844090	18º	30W	4000K	80	3800	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10844082	33º	26W	4000K	80	2859	-	Graphite	3000	Non-adjustable	Track
10844080	33º	26W	4000K	80	2859	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10844072	22º	26W	4000K	80	2845	-	Graphite	3000	Non-adjustable	Track
10844070	22º	26W	4000K	80	2845	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10844062	16º	26W	4000K	80	2715	-	Graphite	3000	Non-adjustable	Track
10844060	16º	26W	4000K	80	2715	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10844052	33º	15W	4000K	80	1922	-	Graphite	2000	Non-adjustable	Track
10844050	33º	15W	4000K	80	1922	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10844042	22º	15W	4000K	80	1910	-	Graphite	2000	Non-adjustable	Track
10844040	22º	15W	4000K	80	1910	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10844032	16º	15W	4000K	80	1800	-	Graphite	2000	Non-adjustable	Track
10844030	16º	15W	4000K	80	1800	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10844562	56º	44W	4000K	80	5047	-	Graphite	5000	Non-adjustable	Track
10844560	56º	44W	4000K	80	5047	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10844552	56º	30W	4000K	80	4057	-	Graphite	4000	Non-adjustable	Track
10844550	56º	30W	4000K	80	4057	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10844532	57º	26W	4000K	80	3108	-	Graphite	3000	Non-adjustable	Track
10844530	57º	26W	4000K	80	3108	-	Texturised matt white RAL 9016	3000	Non-adjustable	Track
10844512	57º	15W	4000K	80	2100	-	Graphite	2000	Non-adjustable	Track
10844510	57º	15W	4000K	80	2100	-	Texturised matt white RAL 9016	2000	Non-adjustable	Track
10844282	36º	44W	4000K	80	4893	-	Graphite	5000	Non-adjustable	Track
10844280	36º	44W	4000K	80	4893	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10844272	26º	44W	4000K	80	4964	-	Graphite	5000	Non-adjustable	Track
10844270	26º	44W	4000K	80	4964	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10844262	20º	44W	4000K	80	4895	-	Graphite	5000	Non-adjustable	Track
10844260	20º	44W	4000K	80	4895	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10844112	35º	30W	4000K	80	4017	-	Graphite	4000	Non-adjustable	Track
10844110	35º	30W	4000K	80	4017	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10844102	24º	30W	4000K	80	3920	-	Graphite	4000	Non-adjustable	Track
10844100	24º	30W	4000K	80	3920	-	Texturised matt white RAL 9016	4000	Non-adjustable	Track
10843562	56º	44W	3000K	80	4845	-	Graphite	5000	Non-adjustable	Track
10843560	56º	44W	3000K	80	4845	-	Texturised matt white RAL 9016	5000	Non-adjustable	Track
10843250	33º	30W	3000K	90	2822	-	White	3000	Non-adjustable	Track
10843242	22º	30W	3000K	90	2805	-	Graphite	3000	Non-adjustable	Track
10843240	22º	30W	3000K	90	2805	-	White	3000	Non-adjustable	Track
10843232	16º	30W	3000K	90	2643	-	Graphite	3000	Non-adjustable	Track
10843230	16º	30W	3000K	90	2643	-	White	3000	Non-adjustable	Track
10843212	22º	19W	3000K	90	1945	-	Graphite	2000	Non-adjustable	Track
10843202	16º	19W	3000K	90	1833	-	Graphite	2000	Non-adjustable	Track
10843200	16º	19W	3000K	90	1833	-	White	2000	Non-adjustable	Track

Imag g2 surface

Code	∢	W	K	CRI	lm out	Gear	Finishing	lm	Gear
10843330	16º	15W	3000K	80	1684	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10843332	16º	15W	3000K	80	1684	-	Graphite	2000	Non-adjustable	Ceiling surface
10844330	16º	15W	4000K	80	1800	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10844332	16º	15W	4000K	80	1800	-	Graphite	2000	Non-adjustable	Ceiling surface
10843360	16º	26W	3000K	80	2493	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10843362	16º	26W	3000K	80	2493	-	Graphite	3000	Non-adjustable	Ceiling surface
10844360	16º	26W	4000K	80	2715	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10844362	16º	26W	4000K	80	2715	-	Graphite	3000	Non-adjustable	Ceiling surface
10843390	18º	30W	3000K	80	3489	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10843392	18º	30W	3000K	80	3489	-	Graphite	4000	Non-adjustable	Ceiling surface
10844390	18º	30W	4000K	80	3800	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10844392	18º	30W	4000K	80	3800	-	Graphite	4000	Non-adjustable	Ceiling surface
10843420	20º	44W	3000K	80	4699	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10843422	20º	44W	3000K	80	4699	-	Graphite	5000	Non-adjustable	Ceiling surface
10844420	20º	44W	4000K	80	4895	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10844422	20º	44W	4000K	80	4895	-	Graphite	5000	Non-adjustable	Ceiling surface
10843340	22º	15W	3000K	80	1787	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10843342	22º	15W	3000K	80	1787	-	Graphite	2000	Non-adjustable	Ceiling surface
10844340	22º	15W	4000K	80	1910	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10844342	22º	15W	4000K	80	1910	-	Graphite	2000	Non-adjustable	Ceiling surface
10843370	22º	26W	3000K	80	2646	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10843372	22º	26W	3000K	80	2646	-	Graphite	3000	Non-adjustable	Ceiling surface
10844370	22º	26W	4000K	80	2845	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10844372	22º	26W	4000K	80	2845	-	Graphite	3000	Non-adjustable	Ceiling surface
10843400	24º	30W	3000K	80	3600	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10843402	24º	30W	3000K	80	3600	-	Graphite	4000	Non-adjustable	Ceiling surface
10844400	24º	30W	4000K	80	3920	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10844402	24º	30W	4000K	80	3920	-	Graphite	4000	Non-adjustable	Ceiling surface
10843430	26º	44W	3000K	80	4795	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10843432	26º	44W	3000K	80	4795	-	Graphite	5000	Non-adjustable	Ceiling surface
10844430	26º	44W	4000K	80	4964	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10844432	26º	44W	4000K	80	4964	-	Graphite	5000	Non-adjustable	Ceiling surface
10843350	33º	15W	3000K	80	1798	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10843352	33º	15W	3000K	80	1798	-	Graphite	2000	Non-adjustable	Ceiling surface
10844350	33º	15W	4000K	80	1922	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10844352	33º	15W	4000K	80	1922	-	Graphite	2000	Non-adjustable	Ceiling surface
10843380	33º	26W	3000K	80	2662	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10843382	33º	26W	3000K	80	2662	-	Graphite	3000	Non-adjustable	Ceiling surface
10844380	33º	26W	4000K	80	2859	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10844382	33º	26W	4000K	80	2859	-	Graphite	3000	Non-adjustable	Ceiling surface
10843410	35º	30W	3000K	80	3689	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10843412	35º	30W	3000K	80	3689	-	Graphite	4000	Non-adjustable	Ceiling surface
10844410	35º	30W	4000K	80	4017	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10844412	35º	30W	4000K	80	4017	-	Graphite	4000	Non-adjustable	Ceiling surface
10843440	36º	44W	3000K	80	4783	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10843442	36º	44W	3000K	80	4783	-	Graphite	5000	Non-adjustable	Ceiling surface
10844440	36º	44W	4000K	80	4893	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10844442	36º	44W	4000K	80	4893	-	Graphite	5000	Non-adjustable	Ceiling surface
10843610	57º	15W	3000K	80	2016	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10843612	57º	15W	3000K	80	2016	-	Graphite	2000	Non-adjustable	Ceiling surface
10844610	57º	15W	4000K	80	2100	-	Texturised matt white RAL 9016	2000	Non-adjustable	Ceiling surface
10844612	57º	15W	4000K	80	2100	-	Graphite	2000	Non-adjustable	Ceiling surface
10843620	57º	26W	3000K	80	2984	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10844620	57º	26W	4000K	80	3108	-	Texturised matt white RAL 9016	3000	Non-adjustable	Ceiling surface
10844622	57º	26W	4000K	80	3108	-	Graphite	3000	Non-adjustable	Ceiling surface
10843630	56º	30W	3000K	80	3732	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10843632	56º	30W	3000K	80	3732	-	Graphite	4000	Non-adjustable	Ceiling surface
10844630	56º	30W	4000K	80	4057	-	Texturised matt white RAL 9016	4000	Non-adjustable	Ceiling surface
10844632	56º	30W	4000K	80	4057	-	Graphite	4000	Non-adjustable	Ceiling surface
10843640	56º	44W	3000K	80	4845	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10843642	56º	44W	3000K	80	4845	-	Graphite	5000	Non-adjustable	Ceiling surface
10844640	56º	44W	4000K	80	5047	-	Texturised matt white RAL 9016	5000	Non-adjustable	Ceiling surface
10844642	56º	44W	4000K	80	5047	-	Graphite	5000	Non-adjustable	Ceiling surface
10843622	57º	26W	3000K	80	2984	-	Graphite	3000	Non-adjustable	Ceiling surface

Imag direct

Code	∢	W	K	CRI	lm out	Gear	Finishing	lm	Gear
10803040	23º	20W	3000K	80	1691	Without gear (main supply)	Texturised matt white RAL 9016	2000	Without gear (main supply)	Track
10803042	23º	20W	3000K	80	1691	Without gear (main supply)	Graphite	2000	Without gear (main supply)	Track
10804040	23º	20W	4000K	80	1789	Without gear (main supply)	Texturised matt white RAL 9016	2000	Without gear (main supply)	Track
10804042	23º	20W	4000K	80	1789	Without gear (main supply)	Graphite	2000	Without gear (main supply)	Track
10803070	30º	30W	3000K	80	2534	Without gear (main supply)	Texturised matt white RAL 9016	3000	Without gear (main supply)	Track
10803072	30º	30W	3000K	80	2534	Without gear (main supply)	Graphite	3000	Without gear (main supply)	Track
10804070	30º	30W	4000K	80	2680	Without gear (main supply)	Texturised matt white RAL 9016	3000	Without gear (main supply)	Track
10804072	30º	30W	4000K	80	2680	Without gear (main supply)	Graphite	3000	Without gear (main supply)	Track
10803050	33º	20W	3000K	80	1722	Without gear (main supply)	Texturised matt white RAL 9016	2000	Without gear (main supply)	Track
10803052	33º	20W	3000K	80	1722	Without gear (main supply)	Graphite	2000	Without gear (main supply)	Track
10804050	33º	20W	4000K	80	1822	Without gear (main supply)	Texturised matt white RAL 9016	2000	Without gear (main supply)	Track
10804052	33º	20W	4000K	80	1822	Without gear (main supply)	Graphite	2000	Without gear (main supply)	Track
10803080	40º	30W	3000K	80	2559	Without gear (main supply)	Texturised matt white RAL 9016	3000	Without gear (main supply)	Track
10803082	40º	30W	3000K	80	2559	Without gear (main supply)	Graphite	3000	Without gear (main supply)	Track
10804080	40º	30W	4000K	80	2707	Without gear (main supply)	Texturised matt white RAL 9016	3000	Without gear (main supply)	Track
10804082	40º	30W	4000K	80	2707	Without gear (main supply)	Graphite	3000	Without gear (main supply)	Track
