Kombic 100 Downlight

Kombic 100 Surface ON / OFF OpticK11SF1540WFWB4NBBKOMBIC 100 SF 1200 IP43 WBN WFL BK/BK

Flux de sortida:: -
Acabat:: Negro mate RAL 9011

Característiques

Certificats

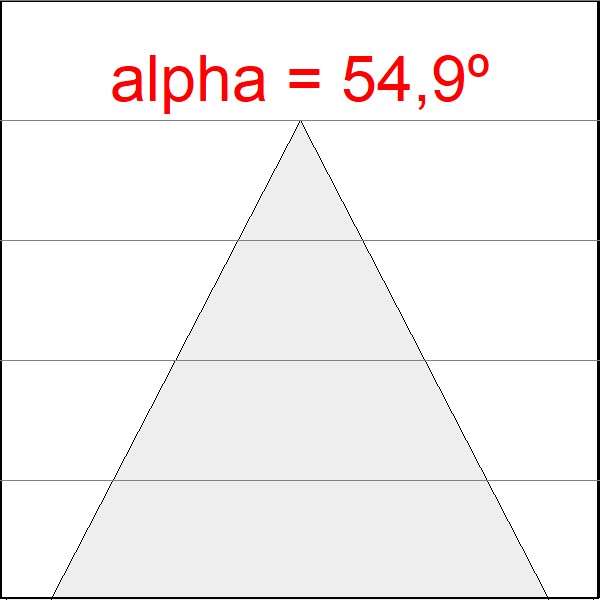

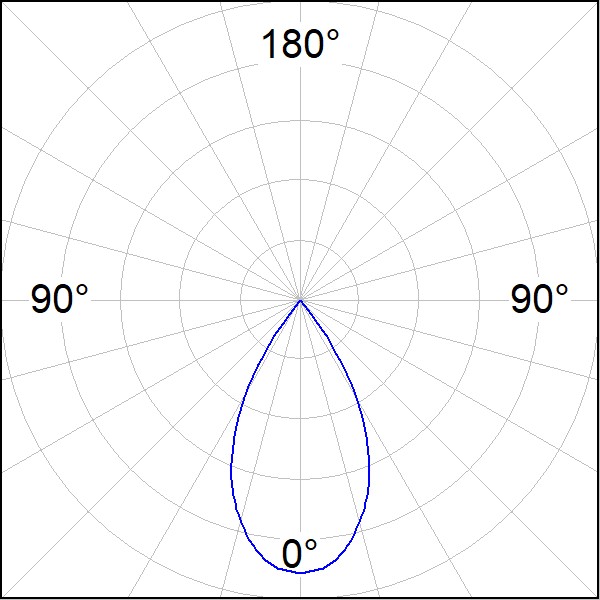

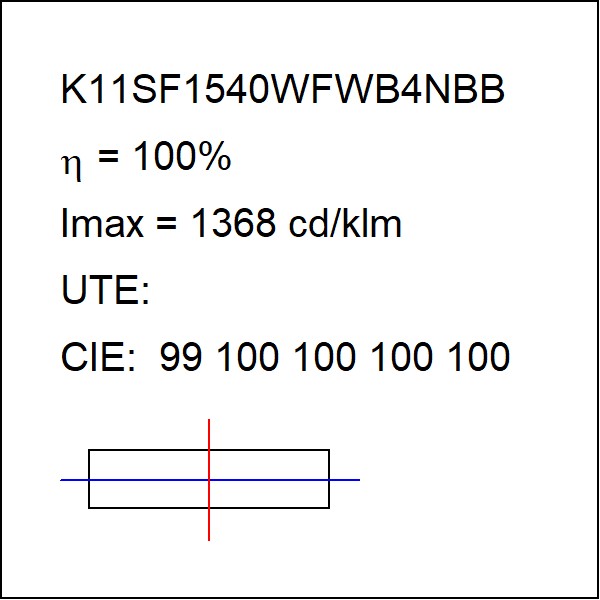

Dades fotomètriques

Necessites mès informació?

Variants d'aquest producte

Codi	W	K	lm out	Equip	Acabat
K11SF2540WF840NWW	14W	4000K	1765	-	Matte white RAL 9010
K11SF2540WF840NWB	14W	4000K	1765	-	Matte white RAL 9010
K11SF2540WF840NMW	14W	4000K	1748	-	metalized polycarbonate mate
K11SF2540WF840NMB	14W	4000K	1748	-	metalized polycarbonate mate
K11SF2540WF840NBW	14W	4000K	1694	-	Matte black RAL 9011
K11SF2540WF830NWW	14W	3000K	1722	-	Matte white RAL 9010
K11SF2540WF830NWB	14W	3000K	1722	-	Matte white RAL 9010
K11SF2540WF830NMW	14W	3000K	1705	-	metalized polycarbonate mate
K11SF2540WF830NMB	14W	3000K	1705	-	metalized polycarbonate mate
K11SF2540WF830NBW	14W	3000K	1652	-	Matte black RAL 9011
K11SF2540WF830NBB	14W	3000K	1652	-	Matte black RAL 9011
K11SF2040WF840NWW	10W	4000K	1286	-	Matte white RAL 9010
K11SF2040WF840NWB	10W	4000K	1286	-	Matte white RAL 9010
K11SF2040WF840NMW	10W	4000K	1274	-	metalized polycarbonate mate
K11SF2040WF840NMB	10W	4000K	1274	-	metalized polycarbonate mate
K11SF2040WF840NBW	10W	4000K	1234	-	Matte black RAL 9011
K11SF2040WF840NBB	10W	4000K	1234	-	Matte black RAL 9011
K11SF2040WF830NWW	10W	3000K	1286	-	Matte white RAL 9010
K11SF2040WF830NWB	10W	3000K	1286	-	Matte white RAL 9010
K11SF2040WF830NMW	10W	3000K	1274	-	metalized polycarbonate mate
K11SF2040WF830NMB	10W	3000K	1274	-	metalized polycarbonate mate
K11SF2040WF830NBW	10W	3000K	1234	-	Matte black RAL 9011
K11SF2040WF830NBB	10W	3000K	1234	-	Matte black RAL 9011
K11SF2540WF840NBB	14W	4000K	1694	-	Matte black RAL 9011
K11SF1540WF940NWW	10W	4000K	1134	-	Matte white RAL 9010
K11SF2040WF927NBB	14W	2700K	1341	-	Matte black RAL 9011
K11SF2040WF930NWW	14W	3000K	1470	-	Matte white RAL 9010
K11SF2040WF940DBB	14W	4000K	1457	DALI	Matte black RAL 9011
K11SF1540WFWB3NWW	13,9W	3000K	857	-	Blanco mate RAL 9010
K11SF2040WF9TWDWW	20,7W	2700-6500K	1050	DALI	Blanco mate RAL 9010
K11SF2040WF9TWDBW	20,7W	2700-6500K	1001	DALI	Negro mate RAL 9011
K11SF2040WF9TWDMB	20,7W	2700-6500K	1050	DALI	Policarbonato metalizado mate
K11SF2040WF9TWDMW	20,7W	2700-6500K	1050	DALI	Policarbonato metalizado mate
K11SF2040WF9TWDBB	20,7W	2700-6500K	1001	DALI	Matte black RAL 9011
K11SF2040WF9TWDWB	20,7W	2700-6500K	1050	DALI	Blanco mate RAL 9010
K11SF2040WF940NBB	14W	4000K	1457	-	Matte black RAL 9011
K11SF1540WF930DBB	10W	3000K	1054	DALI	Matte black RAL 9011
K11SF1540WF930NBB	10W	3000K	1054	-	Matte black RAL 9011
K11SF2040WF930DBB	14W	3000K	1410	DALI	Matte black RAL 9011
K11SF1540WF930DWW	10W	3000K	1098	DALI	Matte white RAL 9010
K11SF2040WF830DWW	10W	3000K	1286	DALI	Matte white RAL 9010
K11SF2040WF927DWW	14W	2700K	1397	DALI	Matte white RAL 9010
K11SF2540WF840DWB	14W	4000K	1765	DALI	Matte white RAL 9010
K11SF2540WF840DMW	14W	4000K	1748	DALI	metalized polycarbonate mate
K11SF2540WF840DBW	14W	4000K	1694	DALI	Matte black RAL 9011
K11SF2540WF840DBB	14W	4000K	1694	DALI	Matte black RAL 9011
K11SF2540WF830DWW	14W	3000K	1722	DALI	Matte white RAL 9010
K11SF2540WF830DMW	14W	3000K	1705	DALI	metalized polycarbonate mate
K11SF2540WF830DBW	14W	3000K	1652	DALI	Matte black RAL 9011
K11SF2040WF840DWW	10W	4000K	1286	DALI	Matte white RAL 9010
K11SF2040WF840DMW	10W	4000K	1274	DALI	metalized polycarbonate mate
K11SF2040WF840DMB	10W	4000K	1274	DALI	metalized polycarbonate mate
K11SF2040WF830DWB	10W	3000K	1286	DALI	Matte white RAL 9010
K11SF2040WF830DMW	10W	3000K	1274	DALI	metalized polycarbonate mate
K11SF2040WF830DMB	10W	3000K	1274	DALI	metalized polycarbonate mate
K11SF2040WF830DBW	10W	3000K	1234	DALI	Matte black RAL 9011
K11SF2540WF840DWW	14W	4000K	1765	DALI	Matte white RAL 9010
K11SF2540WF840DMB	14W	4000K	1748	DALI	metalized polycarbonate mate
K11SF2540WF830DWB	14W	3000K	1722	DALI	Matte white RAL 9010
K11SF2540WF830DMB	14W	3000K	1705	DALI	metalized polycarbonate mate
K11SF2540WF830DBB	14W	3000K	1652	DALI	Matte black RAL 9011
K11SF2040WF840DWB	10W	4000K	1286	DALI	Matte white RAL 9010
K11SF2040WF840DBW	10W	4000K	1234	DALI	Matte black RAL 9011
K11SF2040WF840DBB	10W	4000K	1234	DALI	Matte black RAL 9011
K11SF2040WF830DBB	10W	3000K	1234	DALI	Matte black RAL 9011
K11SF2040WF927NWW	14W	2700K	1397	-	Matte white RAL 9010
K11SF2040WF840NBBE	-	-	-	-	-
K11SF2040WF830NBBE	-	-	-	-	-
K11SF1540WF930NMB	10W	3000K	1088	-	metalized polycarbonate mate
K11SF2040WF930DBW	14W	3000K	1410	DALI	Matte black RAL 9011
K11SF2040WF940NWW	14W	4000K	1519	-	Matte white RAL 9010
K11SF1540WF927DBB	10W	2700K	1002	DALI	Matte black RAL 9011
K11SF1540WF927DBW	10W	2700K	1002	-	Matte black RAL 9011
K11SF1540WF927DMB	10W	2700K	1034	-	metalized polycarbonate mate
K11SF1540WF927DMW	10W	2700K	1034	-	metalized polycarbonate mate
K11SF1540WF927DWB	10W	2700K	1044	-	Matte white RAL 9010
K11SF1540WF927DWW	10W	2700K	1044	-	Matte white RAL 9010
K11SF1540WF927NBW	10W	2700K	1002	-	Matte black RAL 9011
K11SF1540WF927NMB	10W	2700K	1034	-	metalized polycarbonate mate
K11SF1540WF927NMW	10W	2700K	1034	-	metalized polycarbonate mate
K11SF1540WF927NWB	10W	2700K	1044	-	Matte white RAL 9010
K11SF1540WF927NWW	10W	2700K	1044	-	Matte white RAL 9010
K11SF1540WF930DBW	10W	3000K	1054	-	Matte black RAL 9011
K11SF1540WF930DMB	10W	3000K	1088	DALI	metalized polycarbonate mate
K11SF1540WF930DMW	10W	3000K	1088	-	metalized polycarbonate mate
K11SF1540WF930DWB	10W	3000K	1098	-	Matte white RAL 9010
K11SF1540WF930NBW	10W	3000K	1054	-	Matte black RAL 9011
K11SF1540WF930NMW	10W	3000K	1088	-	metalized polycarbonate mate
K11SF1540WF930NWB	10W	3000K	1098	-	Matte white RAL 9010
K11SF1540WF930NWW	10W	3000K	1098	-	Matte white RAL 9010
K11SF1540WF940DBB	10W	4000K	1089	DALI	Matte black RAL 9011
K11SF1540WF940DBW	10W	4000K	1089	-	Matte black RAL 9011
K11SF1540WF940DMB	10W	4000K	1124	DALI	metalized polycarbonate mate
K11SF1540WF940DMW	10W	4000K	1124	-	metalized polycarbonate mate
K11SF1540WF940DWB	10W	4000K	1134	-	Matte white RAL 9010
K11SF1540WF940DWW	10W	4000K	1134	DALI	Matte white RAL 9010
K11SF1540WF940NBB	10W	4000K	1089	-	Matte black RAL 9011
K11SF1540WF940NBW	10W	4000K	1089	-	Matte black RAL 9011
K11SF1540WF940NMB	10W	4000K	1124	-	metalized polycarbonate mate
K11SF1540WF940NMW	10W	4000K	1124	-	metalized polycarbonate mate
K11SF1540WF940NWB	10W	4000K	1134	-	Matte white RAL 9010
K11SF1540WFWB3DBB	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB3DBW	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB3DMB	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB3DMW	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB3DWB	-	-	-	-	Blanco mate RAL 9010
K11SF1540WFWB3DWW	-	-	-	-	Blanco mate RAL 9010
K11SF1540WFWB3NBB	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB3NBW	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB3NMB	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB3NMW	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB3NWB	-	-	-	-	Blanco mate RAL 9010
K11SF1540WFWB4DBB	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB4DBW	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB4DMB	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB4DMW	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB4DWB	-	-	-	-	Blanco mate RAL 9010
K11SF1540WFWB4DWW	-	-	-	-	Blanco mate RAL 9010
K11SF1540WFWB4NBB	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB4NBW	-	-	-	-	Negro mate RAL 9011
K11SF1540WFWB4NMB	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB4NMW	-	-	-	-	Policarbonato metalizado mate
K11SF1540WFWB4NWB	-	-	-	-	Blanco mate RAL 9010
K11SF1540WFWB4NWW	-	-	-	-	Blanco mate RAL 9010

Accessoris

Suspensión

K11SUADLATBKKOMBIC 100 SF ADAPT. LATERAL CABLE BK

K11SUADLATWHKOMBIC 100 SF ADAPT. LATERAL CABLE WH

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats Ext.
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	9	90	27	2700 K	N	ON/OFF	R	Bright	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	OP	Opal	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	OP	Opal	8	80	30	3000 K
											40	4000 K

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats Ext.
K11	SF	Surface	20	2000lm	40	IP 43	OP	Opal	9	90	TW	Tunable White	D	DALI	R	Bright	W	White 02
															M	Metalized Matt	B	Black 02
															W	White

Família	Instal·lació		Lm LED		IP		Òptica		K		Equip		Acabats Reflectors		Acabats Ext.
K11	SF	Surface	15	1500lm	40	IP 43	OP	Opal	WB3	3000 WB	N	ON/OFF	R	Bright	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats Ext.
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
											30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
											40	4000 K			W	White
			20	2000lm	40	IP 43	WF	WFL 50º	9	90	27	2700 K
											30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500lm	40	IP 43	WF	WFL 50º	8	80	30	3000 K
											40	4000 K

Família	Instal·lació		Lm LED		IP		Òptica		K		Equip		Acabats Reflectors		Acabats Ext.
K11	SF	Surface	15	1500lm	40	IP 43	WF	WFL 50º	WB3	3000 WB	N	ON/OFF	B	Black	W	White 02
			20	2000lm					WB4	4000 WB	D	DALI	M	Metalized Matt	B	Black 02
													W	White

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats Ext.
K11	SF	Surface	15	1500 lm	23	IP 23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	W	White 02
	TK	Track					RW	Wide Flood			30	3000 K	D	DALI	M	Metalized Matt	B	Black 02
	ST	Sus. Track									40	4000 K			W	White
			20	2000 lm	23	IP 23	RF	Flood	9	90	27	2700 K
							RW	Wide Flood			30	3000 K
											40	4000 K
									8	80	30	3000 K
											40	4000 K
			25	2500 lm	23	IP 23	RF	Flood	8	80	30	3000 K
							RW	Wide Flood			40	4000 K

Família	Instal·lació		LmLED		IP		Òptica		IRC		K		Equip		Acabat Reflector		Acabat Exterior
K11	TK	Track	15	1500lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K	N	ON/OFF	B	Black	W	White
	ST	Suspended Track									30	3000K	D	DALI	M	Metalized Matt	B	Black
											40	4000K			W	White
			20	2000lm	40	IP40	WF	Wide Flood 50º	9	90	27	2700K
			25	2500lm							30	3000K
											40	4000K
									8	80	30	3000K
											40	4000K

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats
K11	RD	Round	15	1500lm	40	IP 43	OP	Opal	8	80	27	2700K	N	ON/OFF	R	Bright	W	White 02
	SQ	Square	20	2000lm					9	90	30	3000K	D	DALI	M	Metalized Matt
			25	2500lm							35	3500K			W	White
											40	4000K

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats
K11	RD	Round	20	2000lm	65	IP 65	OP	Opal	8	80	30	3000 K	N	ON/OFF	W	White	W	White 02
			25	2500lm							40	4000 K	D	DALI

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats
K11	RD	Round	15	1500lm	40	IP 43: WF	WF	WFL 50º	9	90	27	2700K	N	ON/OFF	B	Black	B	Black 02
	SQ	Square									30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	9	90	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
			20	2000lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	M	Metalized Matt	W	White 02
									9	90	30	3000K	D	DALI	W	White
											40	4000K			B	Black	B	Black 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF			W	White 02
							EL	Elliptic	9	90	30	3000K	D	DALI	M	Metalized Matt	W	White 02
											40	4000K			W	White
			25	2500lm	40	IP 43: WF	WF	WFL 50º	8	80	27	2700K	N	ON/OFF	B	Black	B	Black 02
											30	3000K	D	DALI			W	White 02
											40	4000K			M	Metalized Matt	W	White 02
					43	IP 43: WW EL	WW	Wallwasher	8	80	27	2700K	N	ON/OFF	W	White
							EL	Elliptic			30	3000K	D	DALI	B	Black	B	Black 02
											40	4000K					W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White

Família	Instal·lació		LmLED		IP		Òptica		IRC		K		Equip		Acabat refl.		Acabat Ext.
K11	RO	Round Orientable	15	1500lm	40	IP 43	WF	Wide Flood	9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			20	2000lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02
									9	CRI90	27	2700K	N	On/Off	B	Black	B	Black 02
											30	3000K	D	DALI	W	White	W	White 02
											40	4000K
			25	2500lm	40	IP 43	WF	Wide Flood	8	CRI80	30	3000K	N	On/Off	B	Black	B	Black 02
											40	4000K	D	DALI	W	White	W	White 02

Família	Instal·lació		Lm LED		IP		Òptica		IRC		K		Equip		Acabats Reflectors		Acabats Ext.
K11	RD	Round	15	1500lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			30	3000 K	D	DALI			W	White 02
											40	4000 K			M	Metalized Matt	W	White 02
			20	2000lm	23	IP23	RF	Flood	9	90	27	2700 K	N	ON/OFF	W	White
							RW	Wide Flood			30	3000 K	D	DALI	B	Black	B	Black 02
											40	4000 K					W	White 02
									8	80	30	3000 K	N	ON/OFF	M	Metalized Matt	W	White 02
											40	4000 K	D	DALI	W	White
			25	2500lm	23	IP23	RF	Flood	8	80	30	3000 K	N	ON/OFF	B	Black	B	Black 02
							RW	Wide Flood			40	4000 K	D	DALI			W	White 02
															M	Metalized Matt	W	White 02
															W	White
															B	Black	B	Black 02
																	W	White 02
															M	Metalized Matt	W	White 02
															W	White
