Duit

DuitDT1SF180AOOP8400BDUIT SUR 1800 1800 NW OPAL BK.

Name: DUIT SUR 1800 1800 NW OPAL BK.
Brand: Lamp
SKU: DT1SF180AOOP8400B

Linear luminaire module of 1800 mm for structure adaptation, model DUIT SUR 1800 NW OPAL BK. LAMP brand. Body made of extruded PC, with a fast connection system between modules. Model with LED MID-POWER, with 4000K temperature color and CRI80. Linear optics, OPAL. IP65/IP67 and IK08, IK10 with installation profiles degree of protection. Insulation class III. LED life hour: 50. 000h B10. BUG Rate: B0 U1 G0, ULOR: 0%.

Features

Certificates

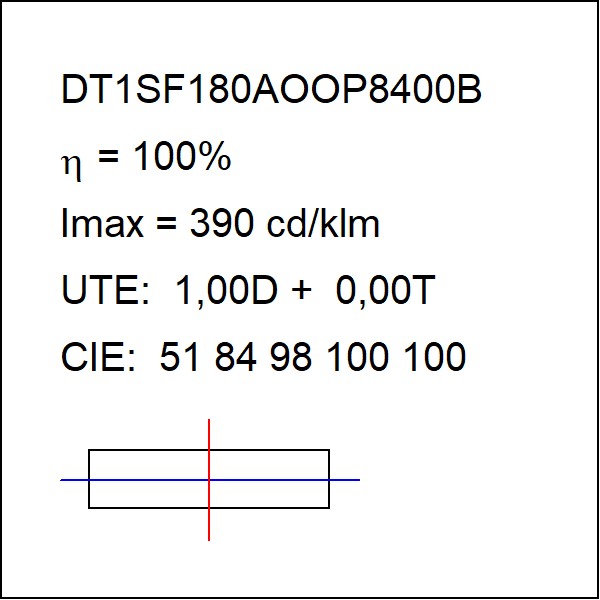

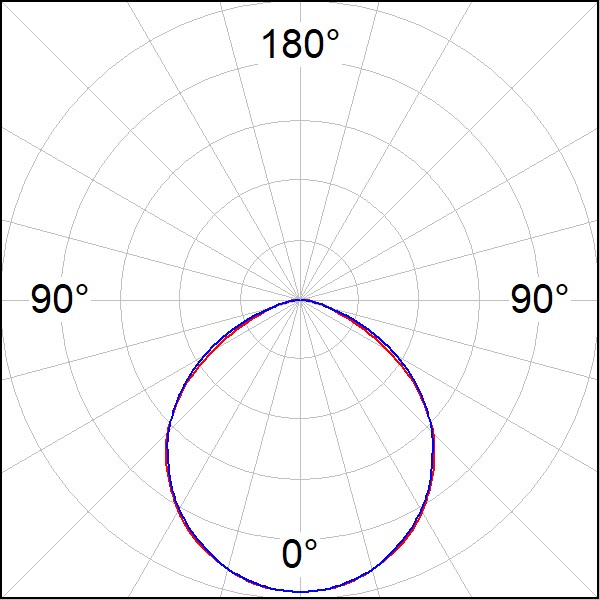

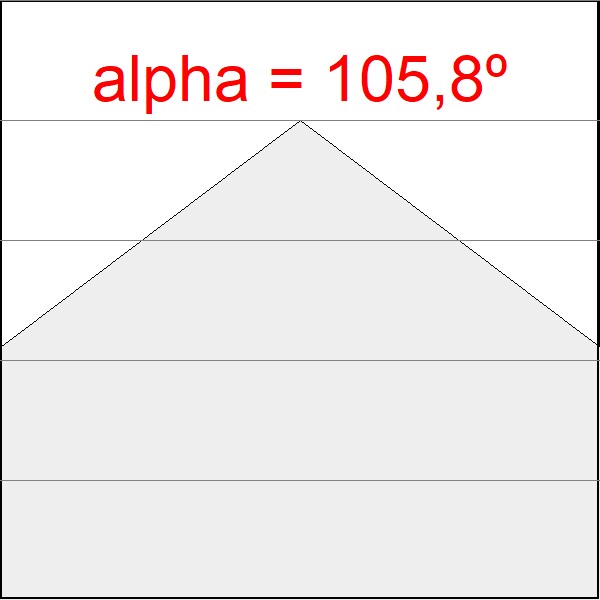

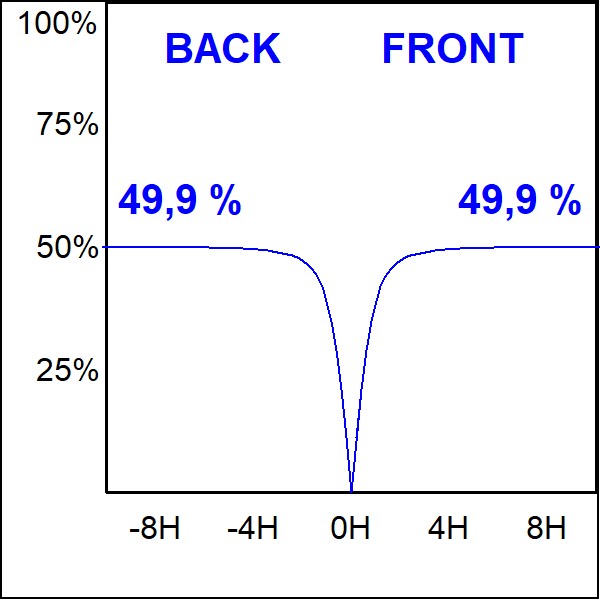

Photometric data

Do you need more information?

Product variants

Code
DT1SF900AOWW8300B
DT1SF900AOWF8300B
DT1SF900AOOP8300B
DT1SF900AOGZ8300B
DT1SF600AOWW8300B
DT1SF600AOWF8300B
DT1SF600AOOP8300B
DT1SF600AOGZ8300B
DT1SF300AOWW8300B
DT1SF300AOWF8300B
DT1SF300AOOP8300B
DT1SF300AOGZ8300B
DT1SF180AOWW8300B
DT1SF180AOWF8300B
DT1SF180AOOP8300B
DT1SF180AOGZ8300B
DT1SF150AOWW8300B
DT1SF150AOWF8300B
DT1SF150AOOP8300B
DT1SF150AOGZ8300B
DT1SF120AOWW8400B
DT1SF120AOWW8300B
DT1SF120AOWW8270B
DT1SF120AOWF8400B
DT1SF120AOWF8300B
DT1SF120AOWF8270B
DT1SF120AOOP8400B
DT1SF120AOOP8300B
DT1SF120AOOP8270B
DT1SF120AOGZ8300B
DT1SF120AOGZ8270B
DT1SF120AOGZ8AB0B
DT1SF120AOWW8AB0B
DT1SF150AOGZ8400B
DT1SF180AOOP8400B
DT1SF300AOWW8AB0B
DT1SF600AOWW8400B
DT1SF150AOWW8400B
DT1SF120AOGZ8400B
DT1SF900AOGZ8AB0B
DT1SF150AOWF8270B
DT1SF300AOWF8270B
DT1SF180LOWW8270B
DT1SF300LOWW8270B
DT1SF300LOGZ8270B
DT1SF120LOWW8AB0B
DT1SF120LOGZ8AB0B
DT1SF120LOGZ8270B
DT1SF120LOGZ8300B
DT1SF120LOGZ8400B
DT1SF120LOWF8270B
DT1SF120LOWF8300B
DT1SF120LOWF8400B
DT1SF120LOWW8270B
DT1SF120LOWW8300B
DT1SF120LOWW8400B
DT1SF150LOGZ8300B
DT1SF150LOWF8300B
DT1SF150LOWF8400B
DT1SF150LOWW8300B
DT1SF180LOGZ8300B
DT1SF180LOWF8300B
DT1SF180LOWF8400B
DT1SF180LOWW8300B
DT1SF300LOGZ8300B
DT1SF300LOWF8300B
DT1SF300LOWF8400B
DT1SF300LOWW8300B
DT1SF600LOGZ8300B
DT1SF600LOWF8300B
DT1SF600LOWF8400B
DT1SF600LOWW8300B
DT1SF900LOGZ8300B
DT1SF900LOWF8300B
DT1SF900LOWF8400B
DT1SF900LOWW8300B
DT1SF300LOWW8AB0B
DT1SF900LOWW8AB0B
DT1SF900LOWW8400B
DT1SF900LOWW8270B
DT1SF900LOWF8270B
DT1SF900LOGZ8AB0B
DT1SF900LOGZ8400B
DT1SF900LOGZ8270B
DT1SF900AOWW8AB0B
DT1SF900AOWW8400B
DT1SF900AOWW8270B
DT1SF900AOWF8400B
DT1SF900AOWF8270B
DT1SF900AOOP8400B
DT1SF900AOOP8270B
DT1SF900AOGZ8400B
DT1SF900AOGZ8270B
DT1SF600LOWW8AB0B
DT1SF600LOWW8400B
DT1SF600LOWW8270B
DT1SF600LOWF8270B
DT1SF600LOGZ8AB0B
DT1SF600LOGZ8400B
DT1SF600LOGZ8270B
DT1SF600AOWW8AB0B
DT1SF600AOWW8270B
DT1SF600AOWF8400B
DT1SF600AOWF8270B
DT1SF600AOOP8400B
DT1SF600AOOP8270B
DT1SF600AOGZ8AB0B
DT1SF600AOGZ8400B
DT1SF600AOGZ8270B
DT1SF300LOWW8400B
DT1SF300LOWF8270B
DT1SF300LOGZ8AB0B
DT1SF300LOGZ8400B
DT1SF300AOWW8400B
DT1SF300AOWW8270B
DT1SF300AOWF8400B
DT1SF300AOOP8400B
DT1SF300AOOP8270B
DT1SF300AOGZ8AB0B
DT1SF300AOGZ8400B
DT1SF300AOGZ8270B
DT1SF180LOWW8AB0B
DT1SF180LOWW8400B
DT1SF180LOWF8270B
DT1SF180LOGZ8AB0B
DT1SF180LOGZ8400B
DT1SF180LOGZ8270B
DT1SF180AOWW8AB0B
DT1SF180AOWW8400B
DT1SF180AOWW8270B
DT1SF180AOWF8400B
DT1SF180AOWF8270B
DT1SF180AOOP8270B
DT1SF180AOGZ8AB0B
DT1SF180AOGZ8400B
DT1SF180AOGZ8270B
DT1SF150LOWW8AB0B
DT1SF150LOWW8400B
DT1SF150LOWW8270B
DT1SF150LOWF8270B
DT1SF150LOGZ8AB0B
DT1SF150LOGZ8400B
DT1SF150LOGZ8270B
DT1SF150AOWW8AB0B
DT1SF150AOWW8270B
DT1SF150AOWF8400B
DT1SF150AOOP8400B
DT1SF150AOOP8270B
DT1SF150AOGZ8AB0B
DT1SF150AOGZ8270B

Accessories

Family	Installation		Format		Lm LED/m		Optic		CRI		K		Gear		Finishes
DT1	SF	Surface	300	300mm	AO	1000lm	WF	WFL	8	80	27	2700 K	0	0	B	Black
			600	600mm			OP	Opal			30	3000 K
			900	900mm							40	4000 K
			120	1200mm			WW	Wall Washer	8	80	27	2700 K
			150	1500mm			GZ	Grazer			30	3000 K
			180	1800mm							40	4000 K
											AB	Amber
					LO	2160lm	WF	WFL	8	80	27	2700 K
											30	3000 K
											40	4000 K
							WW	Wall Washer	8	80	27	2700 K
							GZ	Grazer			30	3000 K
											40	4000 K
											AB	Amber
