Moody | Lighting and Luminaires | LAMP

Moody is a family of recessed LED downlights for HOSPITALITY interior lighting applications that stands out for its versatility.

The family is made up of two CORES of two different outputs: CORE Moody 800 and CORE Moody 1700, with different beam angles (SP, MFL, FL), three colour temperatures (2700K, 3000K or 4000K) and two CRIs (CRI 80 for 3000 and 4000; and CRI 90 for 2700K).

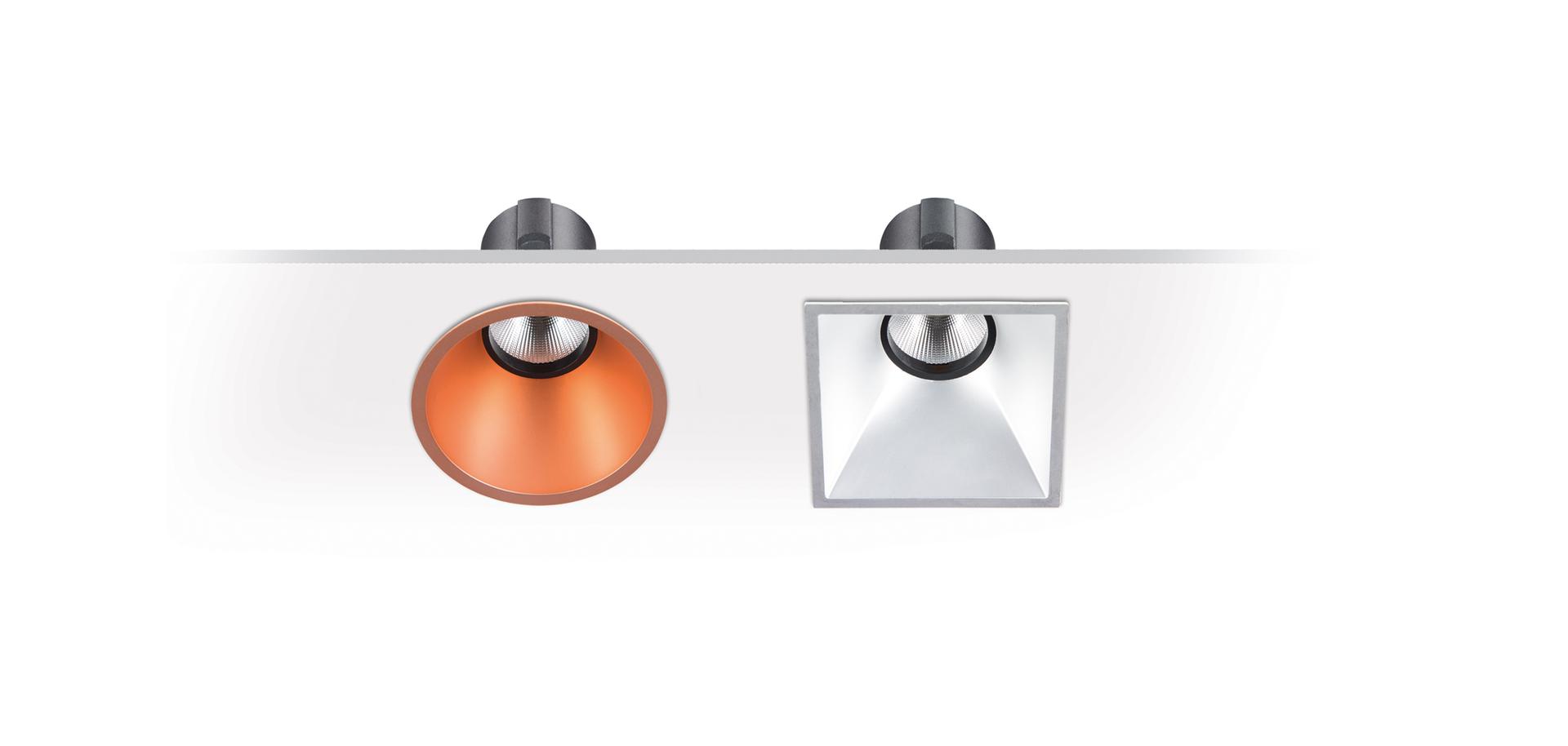

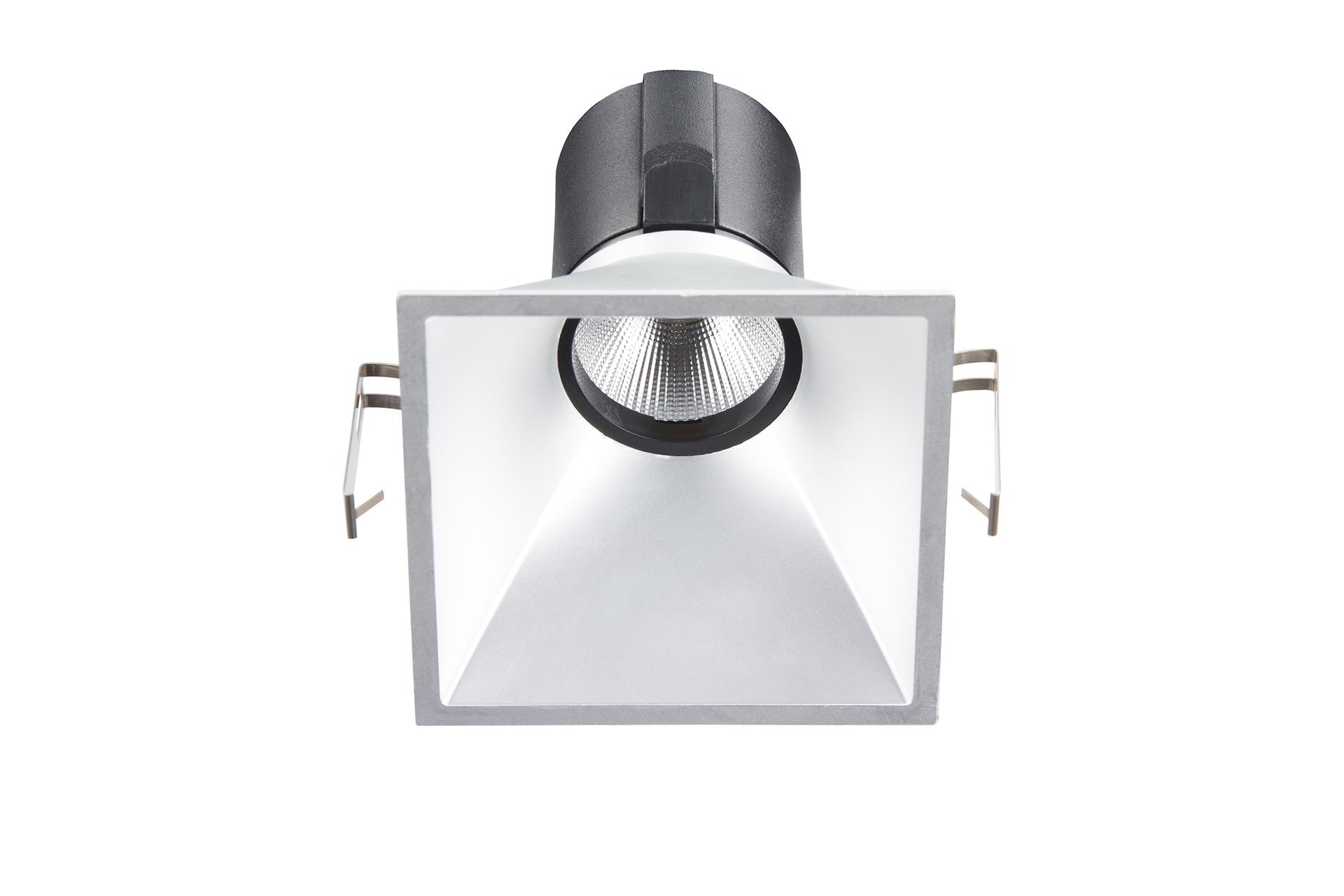

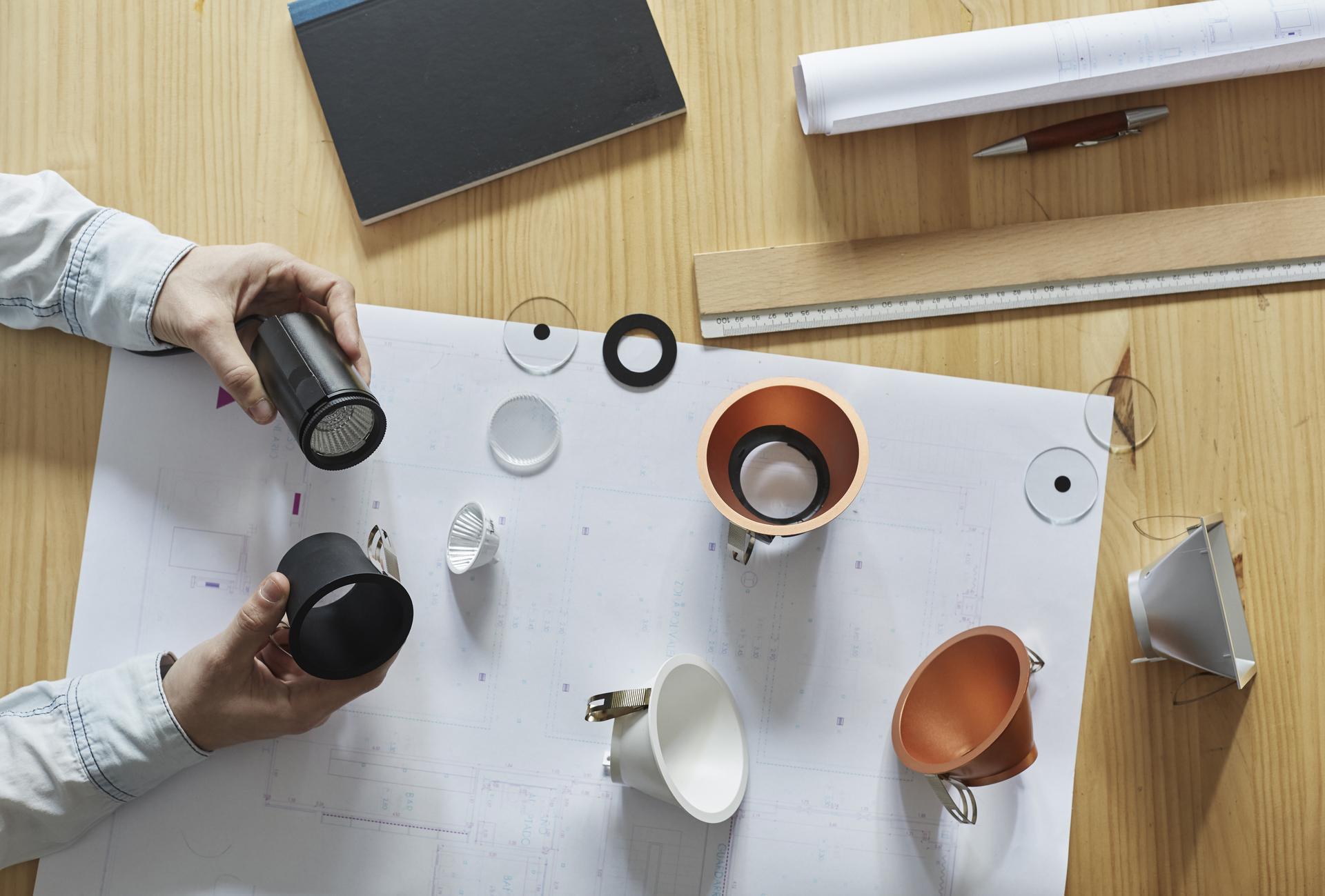

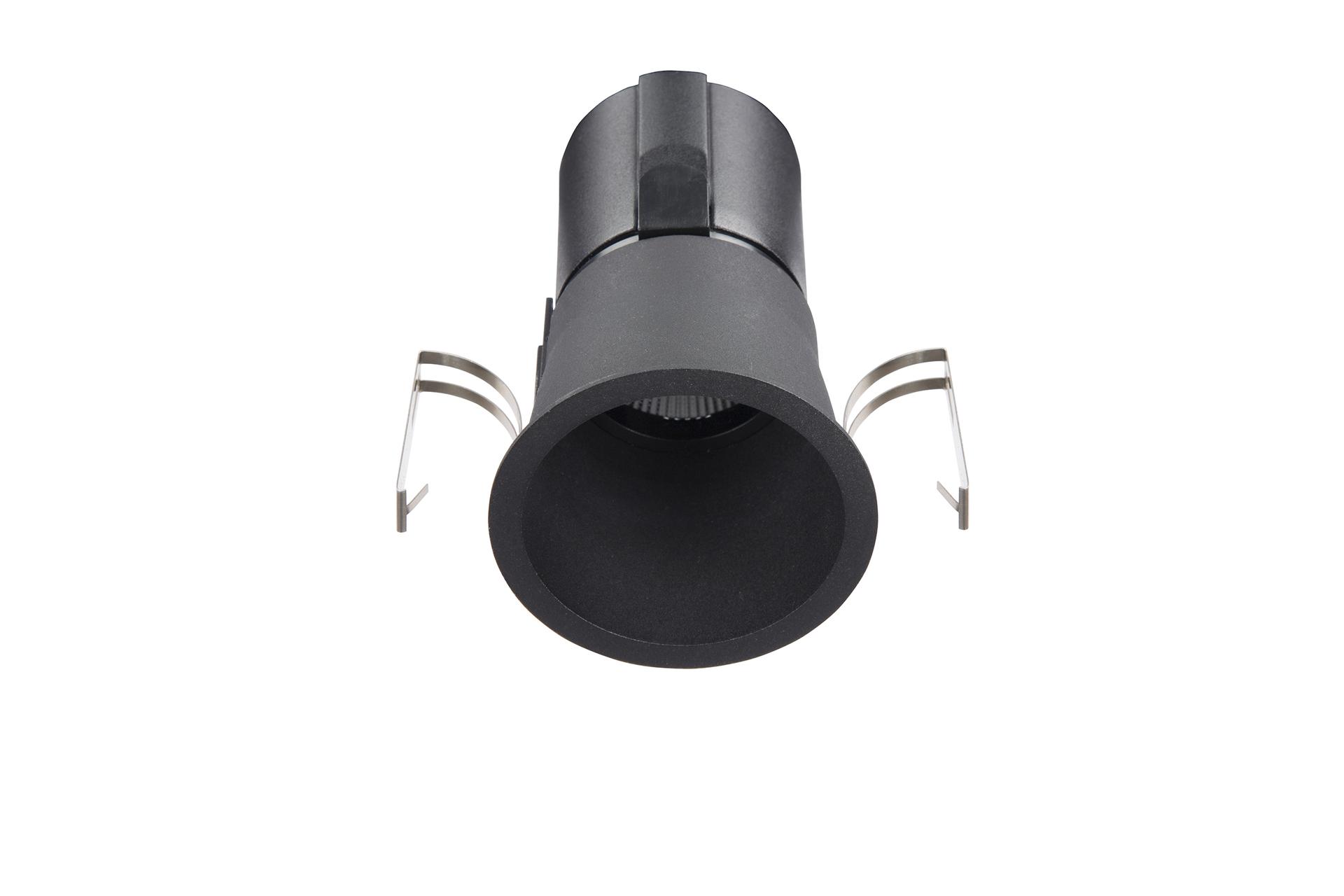

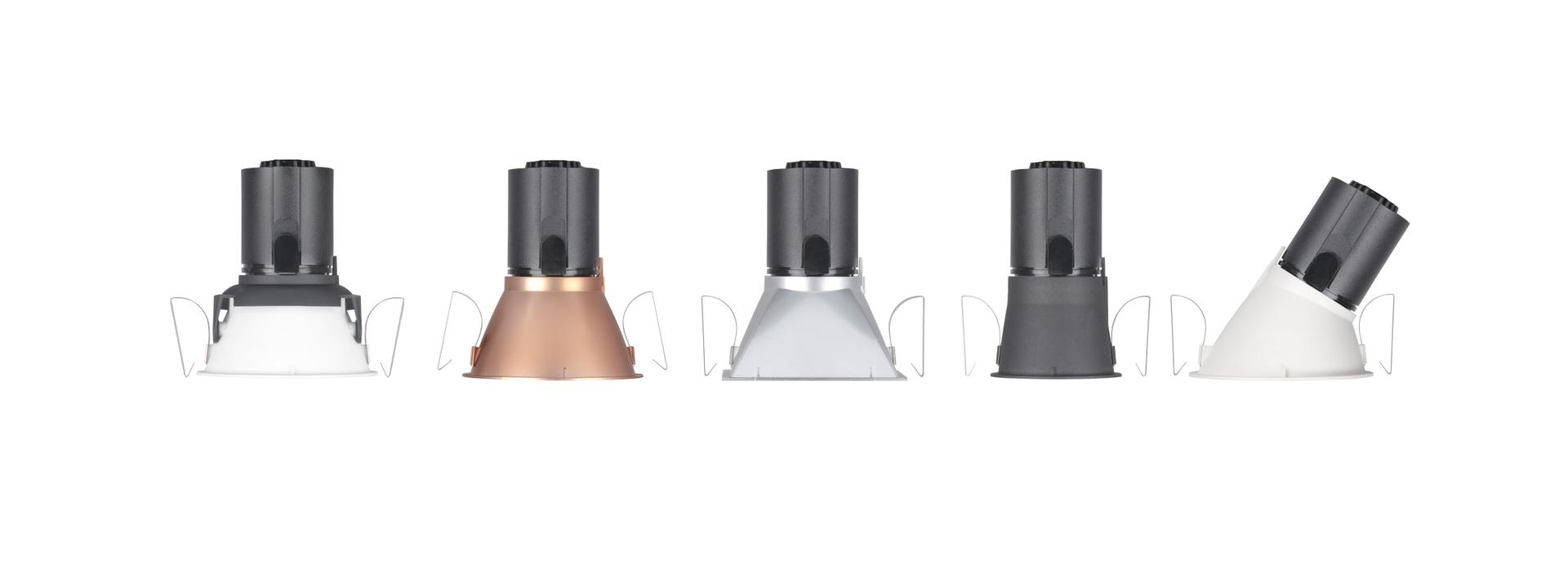

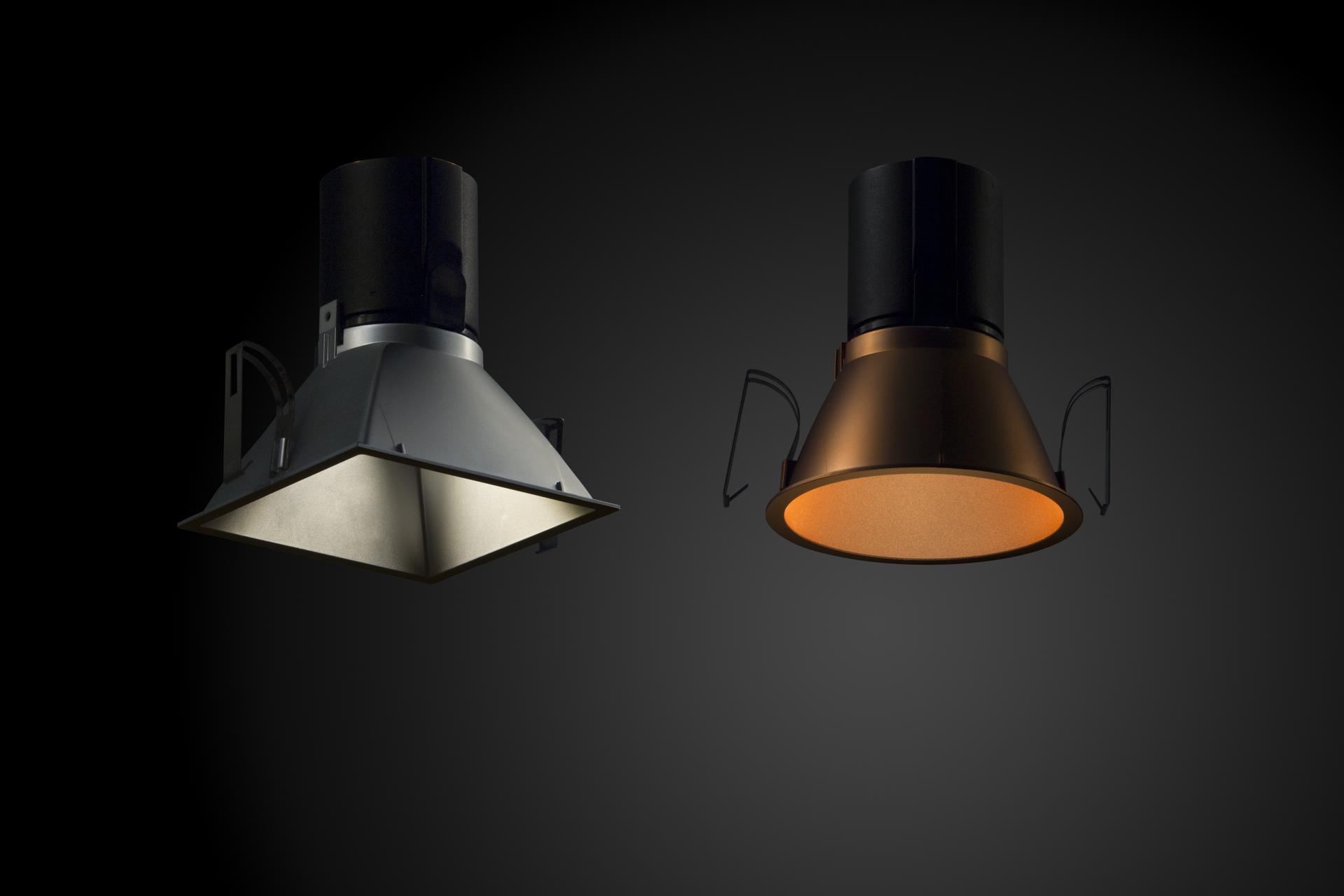

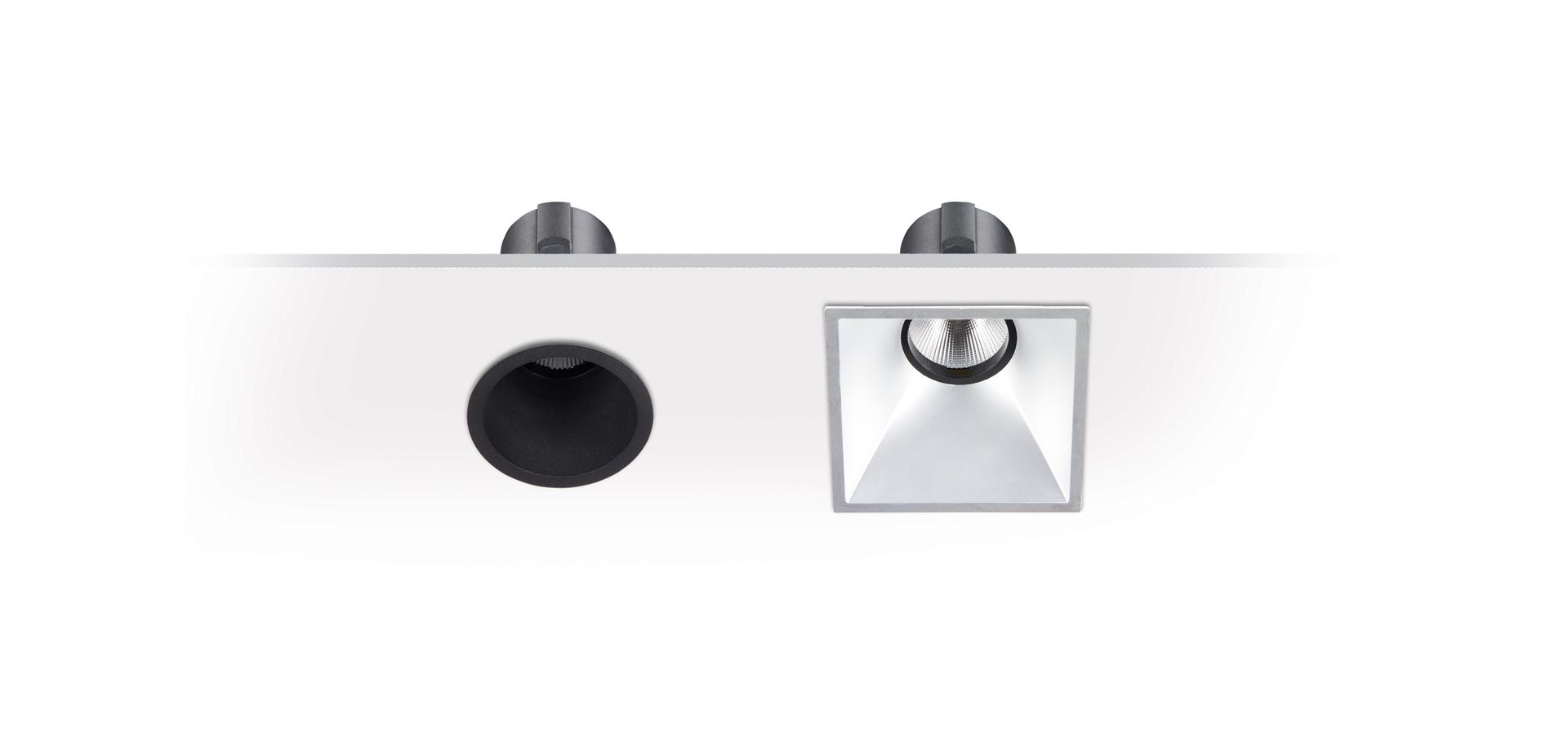

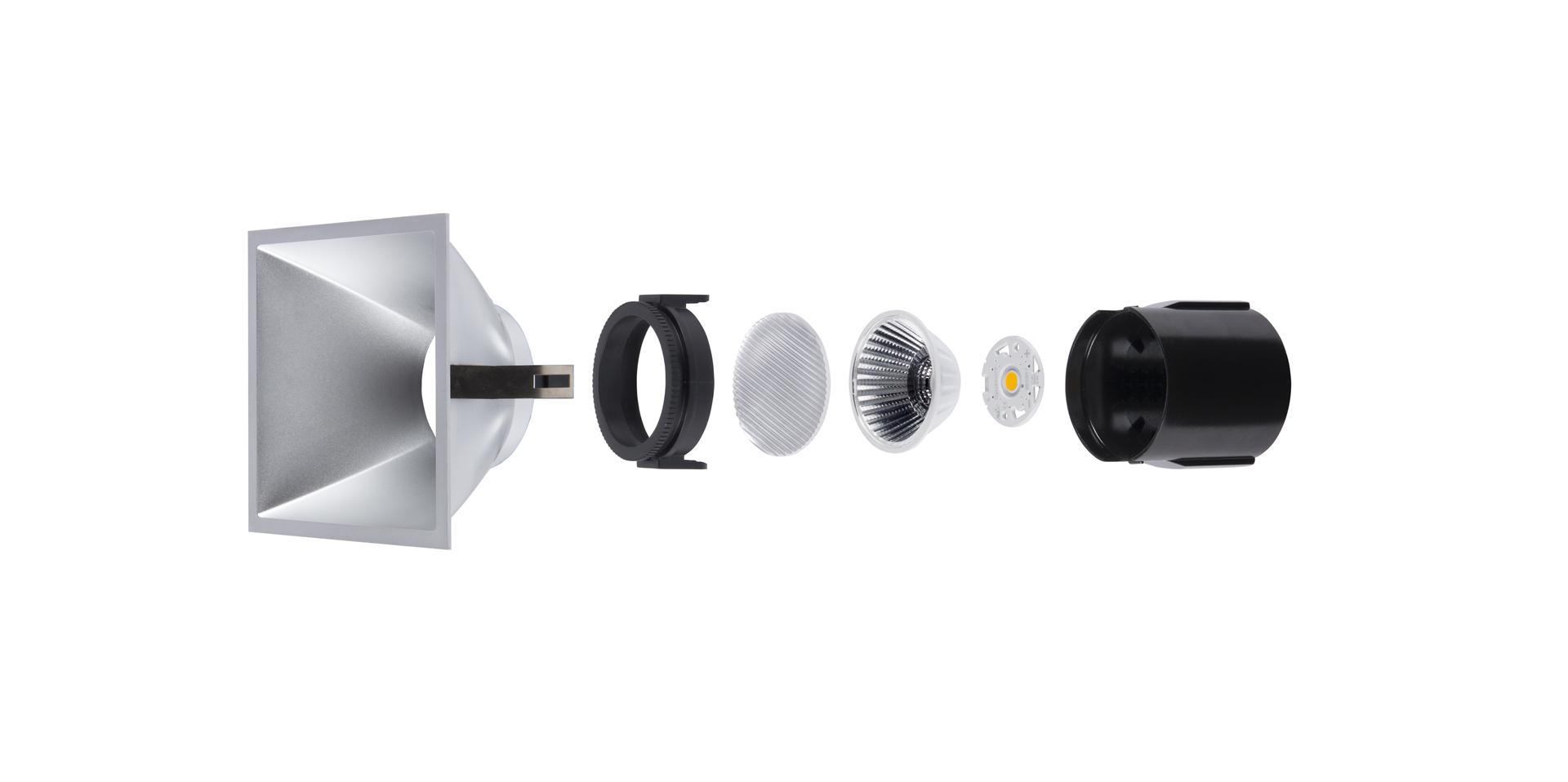

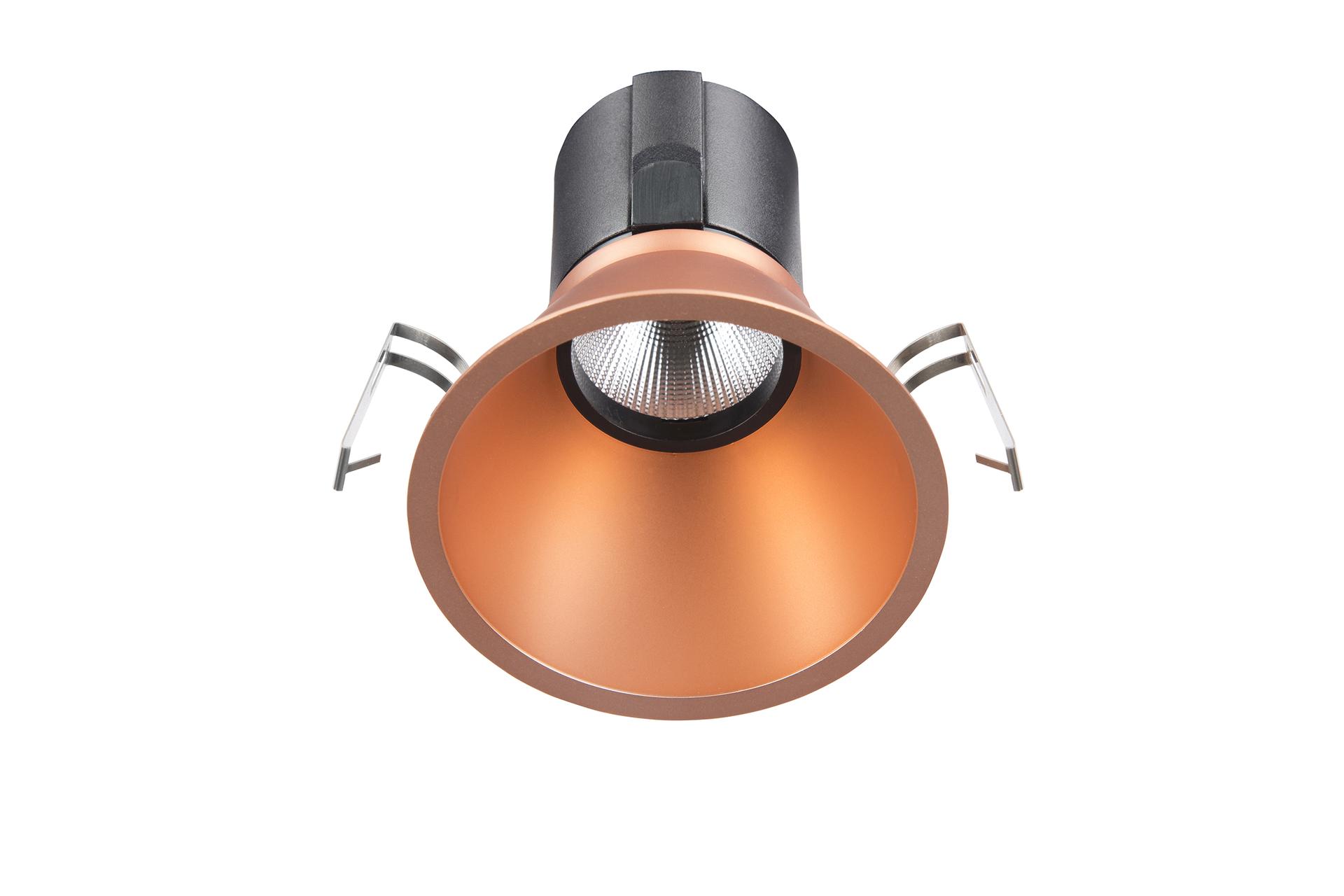

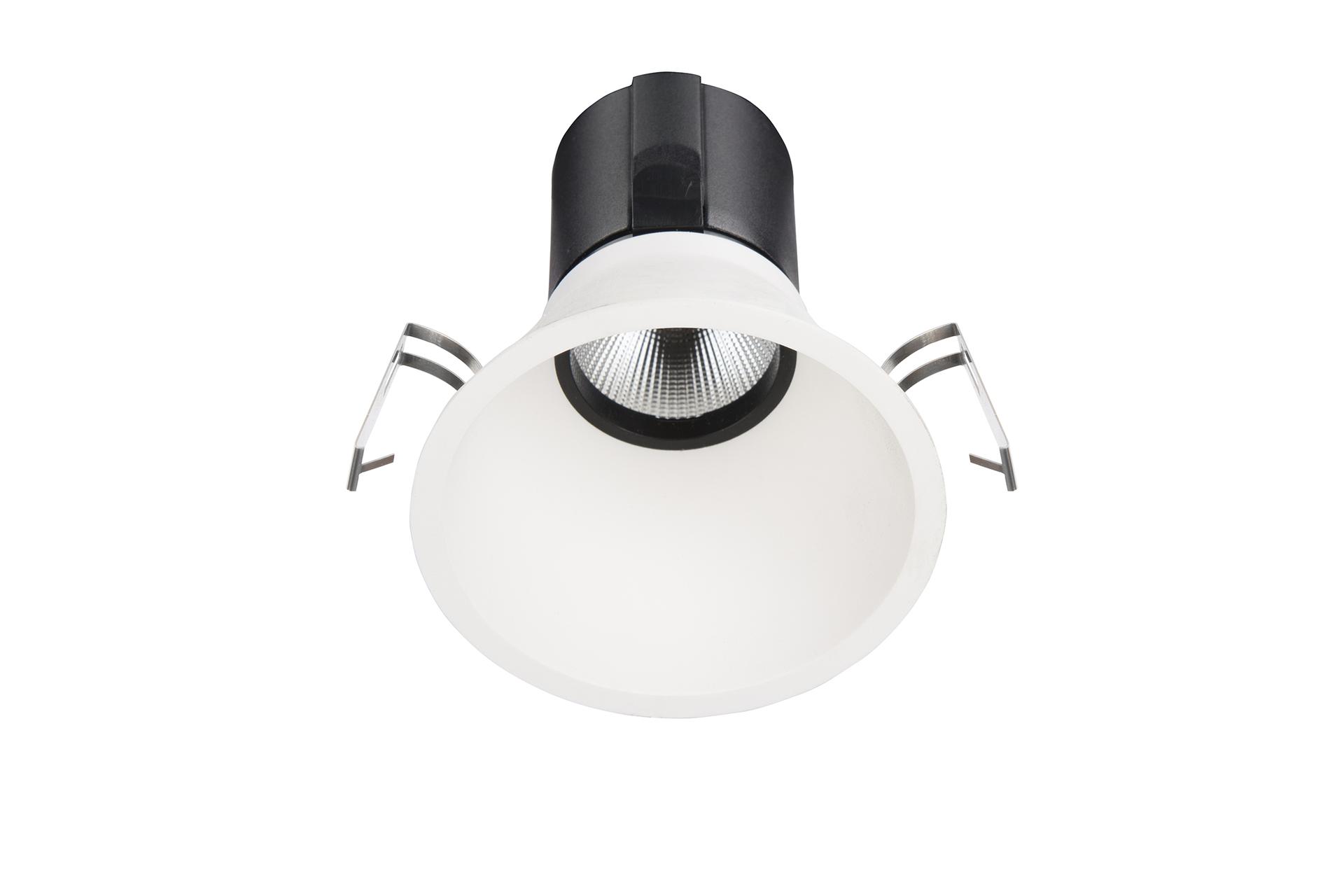

The body is made of injected aluminium with a cataphoresis surface treatment and incorporates the COB technology. The CORE is to be combined with the Moody reflector, with a choice of 5 different possibilities: fixed, adjustable, asymmetrical round, fixed square or mini round. The reflector is made of injected polycarbonate, and is available in texturized white, texturized black, silver metallized or copper metallized.

With an IP20 and IP55 protection levels and class II insulation.

Controllable under the Casambi protocol.

Products

Moody Core 800
Moody Core 800
FamilyLm LEDOpticCRIKGearFinishes
MO208800lmSPSP 17º990272700 KTTRIACBBlack 07
FLFL 36º880303000 KDDALI
WFWFL 55º404000 K
Code configurator
Moody Core 1700
Moody Core 800
FamilyLm LEDOpticCRIKGearFinishes
MO2151700lmSPSP 17º990272700 KTTRIACBBlack 07
FLFL 36º880303000 KDDALI
WFWFL 55º404000 K
Code configurator
Moody Pendular
Moody Pendular
FamilyInstallationLm LEDOpticCRIKGearInt. FinishesExt. Finishes
MO2SUSuspended201800lmMFMFL 25º880272700 KNON/OFFBBlackWWhite
FLFL 34º303000 KBBlack
404000 K
Code configurator

Custom-made possibilities

Dimmable 1-10V
Dimmable 1-10V
Dimmable PUSH
Dimmable PUSH
Bluetooth control
Bluetooth control
Colour rendering index
Colour rendering index

CRI 90 /​ 80

Tunable White
Tunable White
Finishes
Finishes

Light applications

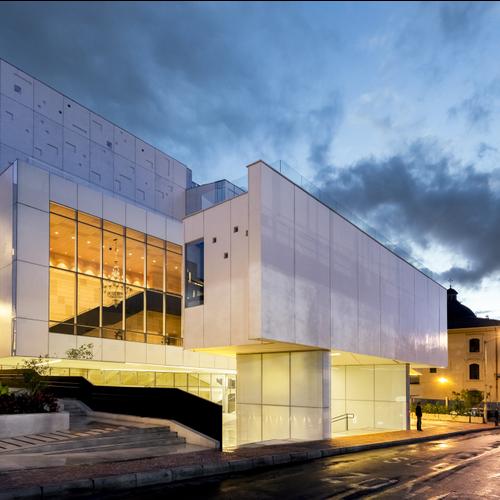

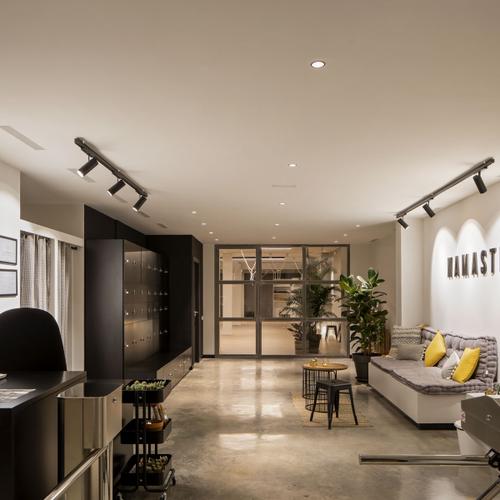

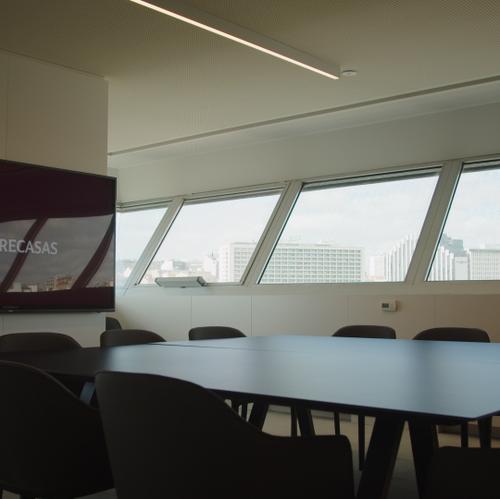

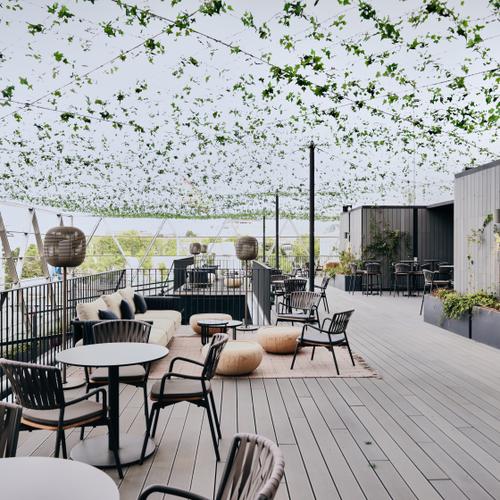

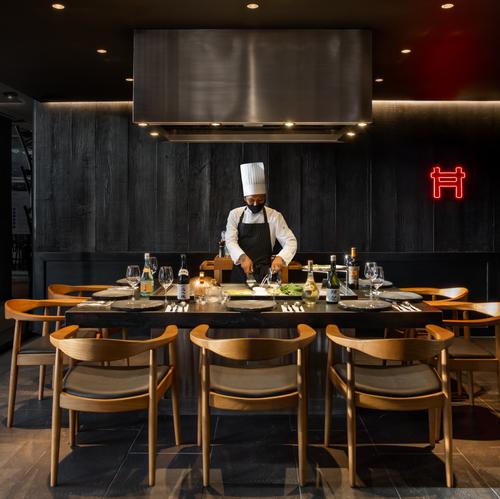

Installations

Museo Tysen

Centre Pompidou

Malaga,Spain

Lamp Solution

Oficines Minera Angloamerican

Minera Angloamerican Offices

Santiago, Chile,Chile

Lamp Solution

Maui

Clinica Manrique Pedraza

Manrique Pedraza Clinic

Santander,Spain

Lamp Solution
