Estructura superficie para suspender o adosar modelo FIL35 SUR 1120 de la marca LAMP. Fabricada en extrusión de aluminio reciclado con una tasa del 80%, con difusor opal confort formado por un policarbonato translúcido y lámina óptica para un control de la distribución lumínica y deslumbramiento UGR<19. Modelo para LED MID-POWER, con temperatura de 3000K con CRI80 y equipo Dali electrónico incorporado. Con un grado de protección IP43, excepto en instalación suspendida que pasa a ser IP20, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Horas de vida: 70.000 L80 B10. Acabados disponibles: Blanco, negro y gris. Declaración Ambiental de Producto - DAP (EPD®) disponible, según norma UNE-EN ISO 9001:2015 y UNE-EN ISO 14001:2015.
- Plum:
- 18W
- Temperatura de color:
- 3000K
- Flux de sortida:
- 1571
- Equip:
- Regulable DALI
- Acabat:
- Blanco mate RAL 9010
- Longitud:
- 1120mm
Característiques
Certificats

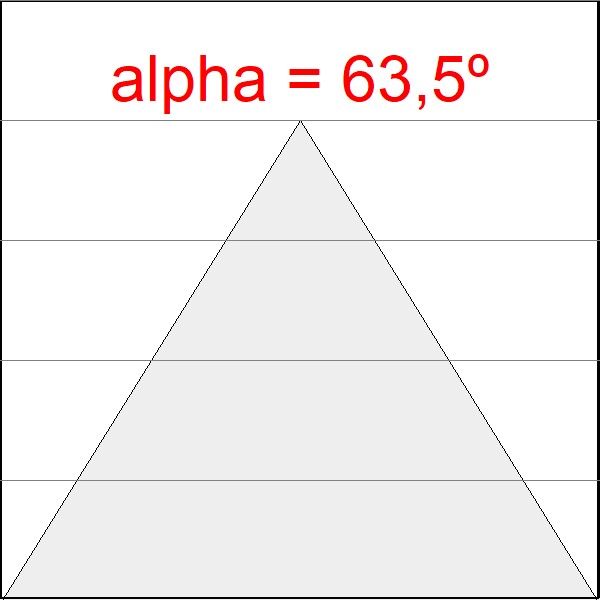

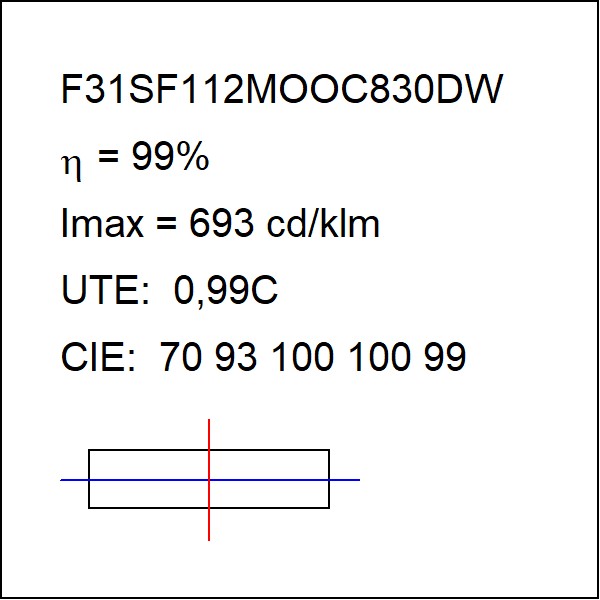

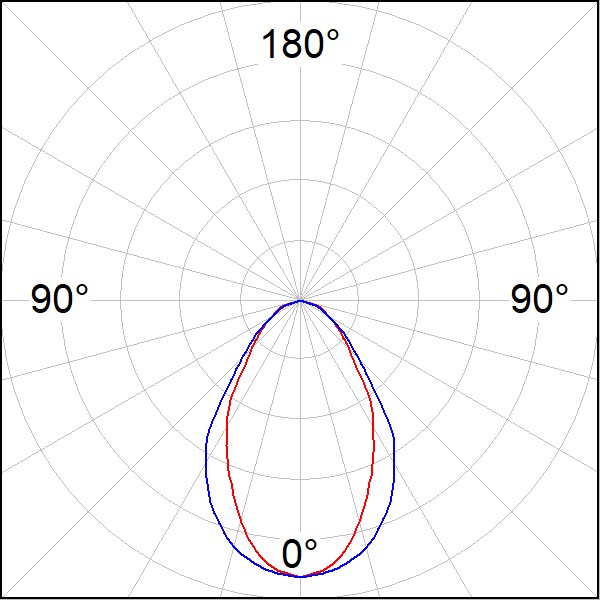

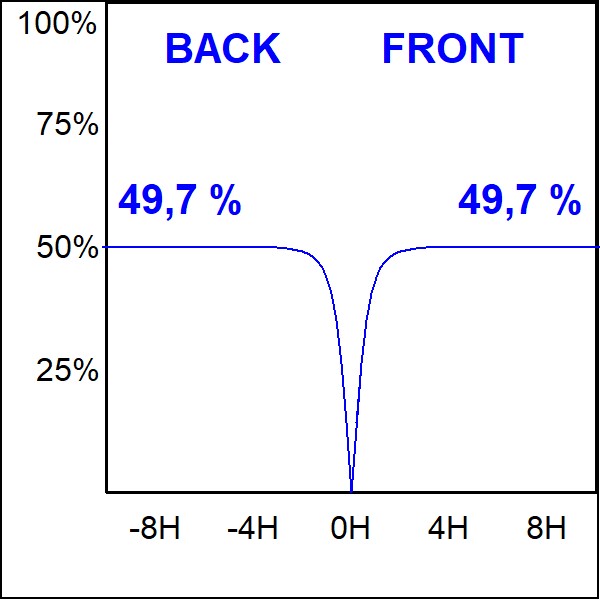

Dades fotomètriques
Necessites mès informació?
Variants d'aquest producte
Codi | Plum | K | lm out | Equip | Acabat | Longitud |
---|---|---|---|---|---|---|
F31SF140LOOC840NB | 14,4W | 4000K | 1390 | No regulable | Negro mate RAL 9011 | 1400mm |
F31SF112MOOC840NG | 18W | 4000K | 1630 | No regulable | Gris satinado | 1120mm |
F31SF084LOOC840DB | 8,8W | 4000K | 834 | Regulable DALI | Negro mate RAL 9011 | 840mm |
F31SF112LOOC830DW | 12,1W | 3000K | 1068 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31RE168LOOC830DG | 17,1W | 3000K | 1601 | Regulable DALI | Gris satinado | 1680mm |
F31SF112LOOC840NG | 12,1W | 4000K | 1112 | No regulable | Gris satinado | 1120mm |
F31RE084LOOC830DW | 8,8W | 3000K | 801 | Regulable DALI | Blanco mate RAL 9010 | 840mm |
F31RE112LOOC830DB | 12,1W | 3000K | 1068 | Regulable DALI | Negro mate RAL 9011 | 1120mm |
F31SF084LOOC830DG | 8,8W | 3000K | 801 | Regulable DALI | Gris satinado | 840mm |
F31RE168LOOC830DB | 17,1W | 3000K | 1601 | Regulable DALI | Negro mate RAL 9011 | 1680mm |
F31SF112LOOC840DB | 12,1W | 4000K | 1112 | Regulable DALI | Negro mate RAL 9011 | 1120mm |
F31TR112LOOC830NW | 12,1W | 3000K | 1068 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31SF112MOOC830DW | 18W | 3000K | 1571 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31SF084LOOC830NG | 8,8W | 3000K | 801 | No regulable | Gris satinado | 840mm |
F31RE140LOOC830DW | 14,4W | 3000K | 1334 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31RE140LOOC830DG | 14,4W | 3000K | 1334 | Regulable DALI | Gris satinado | 1400mm |
F31SF168LOOC840NG | 17,1W | 4000K | 1668 | No regulable | Gris satinado | 1680mm |
F31RE084LOOC830DB | 8,8W | 3000K | 801 | Regulable DALI | Negro mate RAL 9011 | 840mm |
F31SF112MOOC830DB | 18W | 3000K | 1571 | Regulable DALI | Negro mate RAL 9011 | 1120mm |
F31SF140LOOC840DW | 14,4W | 4000K | 1390 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31SF084LOOC840NB | 8,8W | 4000K | 834 | No regulable | Negro mate RAL 9011 | 840mm |
F31RE084LOOC840NB | 8,8W | 4000K | 834 | No regulable | Negro mate RAL 9011 | 840mm |
F31TR112LOOC840DW | 12,1W | 4000K | 1112 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31RE140LOOC830NB | 14,4W | 3000K | 1334 | No regulable | Negro mate RAL 9011 | 1400mm |
F31RE140LOOC830NG | 14,4W | 3000K | 1334 | No regulable | Gris satinado | 1400mm |
F31RE112LOOC830NW | 12,1W | 3000K | 1068 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31RE112LOOC830NB | 12,1W | 3000K | 1068 | No regulable | Negro mate RAL 9011 | 1120mm |
F31SF140LOOC830DW | 14,4W | 3000K | 1334 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31RE140LOOC840NG | 14,4W | 4000K | 1390 | No regulable | Gris satinado | 1400mm |
F31SF168LOOC830NB | 17,1W | 3000K | 1601 | No regulable | Negro mate RAL 9011 | 1680mm |
F31SF084LOOC840NW | 8,8W | 4000K | 834 | No regulable | Blanco mate RAL 9010 | 840mm |
F31SF112LOOC840NB | 12,1W | 4000K | 1112 | No regulable | Negro mate RAL 9011 | 1120mm |
F31RE168LOOC840DW | 17,1W | 4000K | 1668 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31SF112LOOC830NG | 12,1W | 3000K | 1068 | No regulable | Gris satinado | 1120mm |
F31RE112LOOC830DG | 12,1W | 3000K | 1068 | Regulable DALI | Gris satinado | 1120mm |
F31SF168LOOC840DG | 17,1W | 4000K | 1668 | Regulable DALI | Gris satinado | 1680mm |
F31SF112LOOC840NW | 12,1W | 4000K | 1112 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31SF168LOOC830DB | 17,1W | 3000K | 1601 | Regulable DALI | Negro mate RAL 9011 | 1680mm |
F31RE112LOOC830NG | 12,1W | 3000K | 1068 | No regulable | Gris satinado | 1120mm |
F31RE168LOOC840NG | 17,1W | 4000K | 1668 | No regulable | Gris satinado | 1680mm |
F31SF084LOOC840DG | 8,8W | 4000K | 834 | Regulable DALI | Gris satinado | 840mm |
F31SF168LOOC830NG | 17,1W | 3000K | 1601 | No regulable | Gris satinado | 1680mm |
F31SF140LOOC830NB | 14,4W | 3000K | 1334 | No regulable | Negro mate RAL 9011 | 1400mm |
F31RE140LOOC830DB | 14,4W | 3000K | 1334 | Regulable DALI | Negro mate RAL 9011 | 1400mm |
F31RE168LOOC830DW | 17,1W | 3000K | 1601 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31RE112LOOC840DB | 12,1W | 4000K | 1112 | Regulable DALI | Negro mate RAL 9011 | 1120mm |
F31RE084LOOC840NG | 8,8W | 4000K | 834 | No regulable | Gris satinado | 840mm |
F31RE084LOOC830NG | 8,8W | 3000K | 801 | No regulable | Gris satinado | 840mm |
F31SF140LOOC840NW | 14,4W | 4000K | 1390 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31SF140MOOC840DB | 21,2W | 4000K | 2038 | Regulable DALI | Negro mate RAL 9011 | 1400mm |
F31SF140MOOC830DW | 21,2W | 3000K | 1964 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31RE112LOOC840NG | 12,1W | 4000K | 1112 | No regulable | Gris satinado | 1120mm |
F31SF084LOOC830NB | 8,8W | 3000K | 801 | No regulable | Negro mate RAL 9011 | 840mm |
F31RE168LOOC840NB | 17,1W | 4000K | 1668 | No regulable | Negro mate RAL 9011 | 1680mm |
F31SF140LOOC830DG | 14,4W | 3000K | 1334 | Regulable DALI | Gris satinado | 1400mm |
F31TR168LOOC840DW | 17,1W | 4000K | 1668 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31TR140LOOC830NW | 14,4W | 3000K | 1334 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31TR140LOOC840NW | 14,4W | 4000K | 1390 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31RE140LOOC840DW | 14,4W | 4000K | 1390 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31RE084LOOC840DG | 8,8W | 4000K | 834 | Regulable DALI | Gris satinado | 840mm |
F31RE168LOOC840NW | 17,1W | 4000K | 1668 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31RE168LOOC830NW | 17,1W | 3000K | 1601 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31RE084LOOC830NB | 8,8W | 3000K | 801 | No regulable | Negro mate RAL 9011 | 840mm |
F31TR140LOOC830DW | 14,4W | 3000K | 1334 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31SF084LOOC830DW | 8,8W | 3000K | 801 | Regulable DALI | Blanco mate RAL 9010 | 840mm |
F31RE168LOOC830NB | 17,1W | 3000K | 1601 | No regulable | Negro mate RAL 9011 | 1680mm |
F31SF112LOOC830NW | 12,1W | 3000K | 1068 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31RE140LOOC840DB | 14,4W | 4000K | 1390 | Regulable DALI | Negro mate RAL 9011 | 1400mm |
F31SF168LOOC840DB | 17,1W | 4000K | 1668 | Regulable DALI | Negro mate RAL 9011 | 1680mm |
F31RE168LOOC840DB | 17,1W | 4000K | 1668 | Regulable DALI | Negro mate RAL 9011 | 1680mm |
F31SF140LOOC840DB | 14,4W | 4000K | 1390 | Regulable DALI | Negro mate RAL 9011 | 1400mm |
F31RE140LOOC840DG | 14,4W | 4000K | 1390 | Regulable DALI | Gris satinado | 1400mm |
F31TR168LOOC830NW | 17,1W | 3000K | 1601 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31RE112LOOC840DG | 12,1W | 4000K | 1112 | Regulable DALI | Gris satinado | 1120mm |
F31SF168LOOC840DW | 17,1W | 4000K | 1668 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31RE140LOOC840NW | 14,4W | 4000K | 1390 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31RE112LOOC840DW | 12,1W | 4000K | 1112 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31TR084LOOC830NW | 8,8W | 3000K | 801 | No regulable | Blanco mate RAL 9010 | 840mm |
F31SF140LOOC840NG | 14,4W | 4000K | 1390 | No regulable | Gris satinado | 1400mm |
F31TR084LOOC830DW | 8,8W | 3000K | 801 | Regulable DALI | Blanco mate RAL 9010 | 840mm |
F31RE168LOOC840DG | 17,1W | 4000K | 1668 | Regulable DALI | Gris satinado | 1680mm |
F31SF168LOOC840NW | 17,1W | 4000K | 1668 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31SF112LOOC840DW | 12,1W | 4000K | 1112 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31SF112LOOC830NB | 12,1W | 3000K | 1068 | No regulable | Negro mate RAL 9011 | 1120mm |
F31SF168LOOC830DW | 17,1W | 3000K | 1601 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31RE140LOOC840NB | 14,4W | 4000K | 1390 | No regulable | Negro mate RAL 9011 | 1400mm |
F31SF140LOOC830DB | 14,4W | 3000K | 1334 | Regulable DALI | Negro mate RAL 9011 | 1400mm |
F31SF140LOOC840DG | 14,4W | 4000K | 1390 | Regulable DALI | Gris satinado | 1400mm |
F31TR168LOOC830DW | 17,1W | 3000K | 1601 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31SF140MOOC840NW | 21,2W | 4000K | 2038 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31TR112LOOC830DW | 12,1W | 3000K | 1068 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31SF168LOOC840NB | 17,1W | 4000K | 1668 | No regulable | Negro mate RAL 9011 | 1680mm |
F31TR168LOOC840NW | 17,1W | 4000K | 1668 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31RE084LOOC840DW | 8,8W | 4000K | 834 | Regulable DALI | Blanco mate RAL 9010 | 840mm |
F31SF084LOOC830DB | 8,8W | 3000K | 801 | Regulable DALI | Negro mate RAL 9011 | 840mm |
F31SF084LOOC840DW | 8,8W | 4000K | 834 | Regulable DALI | Blanco mate RAL 9010 | 840mm |
F31RE084LOOC830DG | 8,8W | 3000K | 801 | Regulable DALI | Gris satinado | 840mm |
F31RE112LOOC830DW | 12,1W | 3000K | 1068 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
F31TR084LOOC840NW | 8,8W | 4000K | 834 | No regulable | Blanco mate RAL 9010 | 840mm |
F31TR140LOOC840DW | 14,4W | 4000K | 1390 | Regulable DALI | Blanco mate RAL 9010 | 1400mm |
F31RE084LOOC840NW | 8,8W | 4000K | 834 | No regulable | Blanco mate RAL 9010 | 840mm |
F31RE112LOOC840NB | 12,1W | 4000K | 1112 | No regulable | Negro mate RAL 9011 | 1120mm |
F31SF168LOOC830DG | 17,1W | 3000K | 1601 | Regulable DALI | Gris satinado | 1680mm |
F31TR084LOOC840DW | 8,8W | 4000K | 834 | Regulable DALI | Blanco mate RAL 9010 | 840mm |
F31SF112MOOC830NW | 18W | 3000K | 1571 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31RE112LOOC840NW | 12,1W | 4000K | 1112 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31SF112MOOC840DB | 18W | 4000K | 1630 | Regulable DALI | Negro mate RAL 9011 | 1120mm |
F31SF140LOOC830NG | 14,4W | 3000K | 1334 | No regulable | Gris satinado | 1400mm |
F31SF084LOOC830NW | 8,8W | 3000K | 801 | No regulable | Blanco mate RAL 9010 | 840mm |
F31SF140LOOC830NW | 14,4W | 3000K | 1334 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31SF168LOOC830NW | 17,1W | 3000K | 1601 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31RE140LOOC830NW | 14,4W | 3000K | 1334 | No regulable | Blanco mate RAL 9010 | 1400mm |
F31RE084LOOC840DB | 8,8W | 4000K | 834 | Regulable DALI | Negro mate RAL 9011 | 840mm |
F31SF112LOOC830DB | 12,1W | 3000K | 1068 | Regulable DALI | Negro mate RAL 9011 | 1120mm |
F31RE168LOOC830NG | 17,1W | 3000K | 1601 | No regulable | Gris satinado | 1680mm |
F31SF112LOOC830DG | 12,1W | 3000K | 1068 | Regulable DALI | Gris satinado | 1120mm |
F31SF112LOOC840DG | 12,1W | 4000K | 1112 | Regulable DALI | Gris satinado | 1120mm |
F31SF084LOOC840NG | 8,8W | 4000K | 834 | No regulable | Gris satinado | 840mm |
F31TR112LOOC840NW | 12,1W | 4000K | 1112 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31RE084LOOC830NW | 8,8W | 3000K | 801 | No regulable | Blanco mate RAL 9010 | 840mm |
F31SF168MOOC840NW | 25,2W | 4000K | 2445 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31SF084MOOC840NB | 13,5W | 4000K | 1223 | No regulable | Negro mate RAL 9011 | 840mm |
F31SF168MOOC840DW | 25,2W | 4000K | 2445 | Regulable DALI | Blanco mate RAL 9010 | 1680mm |
F31SF168MOOC840DB | 25,2W | 4000K | 2445 | Regulable DALI | Negro mate RAL 9011 | 1680mm |
F31SF084MOOC840DB | 13,5W | 4000K | 1223 | Regulable DALI | Negro mate RAL 9011 | 840mm |
F31SF168MOOC830NW | 25,2W | 3000K | 2357 | No regulable | Blanco mate RAL 9010 | 1680mm |
F31SF084MOOC830NW | 13,5W | 3000K | 1179 | No regulable | Blanco mate RAL 9010 | 840mm |
F31SF112MOOC840NW | 18W | 4000K | 1630 | No regulable | Blanco mate RAL 9010 | 1120mm |
F31SF084MOOC840NW | 13,5W | 4000K | 1223 | No regulable | Blanco mate RAL 9010 | 840mm |
F31SF112MOOC840DW | 18W | 4000K | 1630 | Regulable DALI | Blanco mate RAL 9010 | 1120mm |
