MOODY is a family of recessed LED downlights for HOSPITALITY interior lighting applications that stands out for its versatility.

The family is made up of two CORES of two different outputs: CORE MOODY 500 and CORE MOODY 1200, with different beam angles (SP, MFL, FL), three colour temperatures (2700K, 3000K or 4000K) and two CRIs (CRI 80 for 3000 and 4000; and CRI 90 for 2700K).

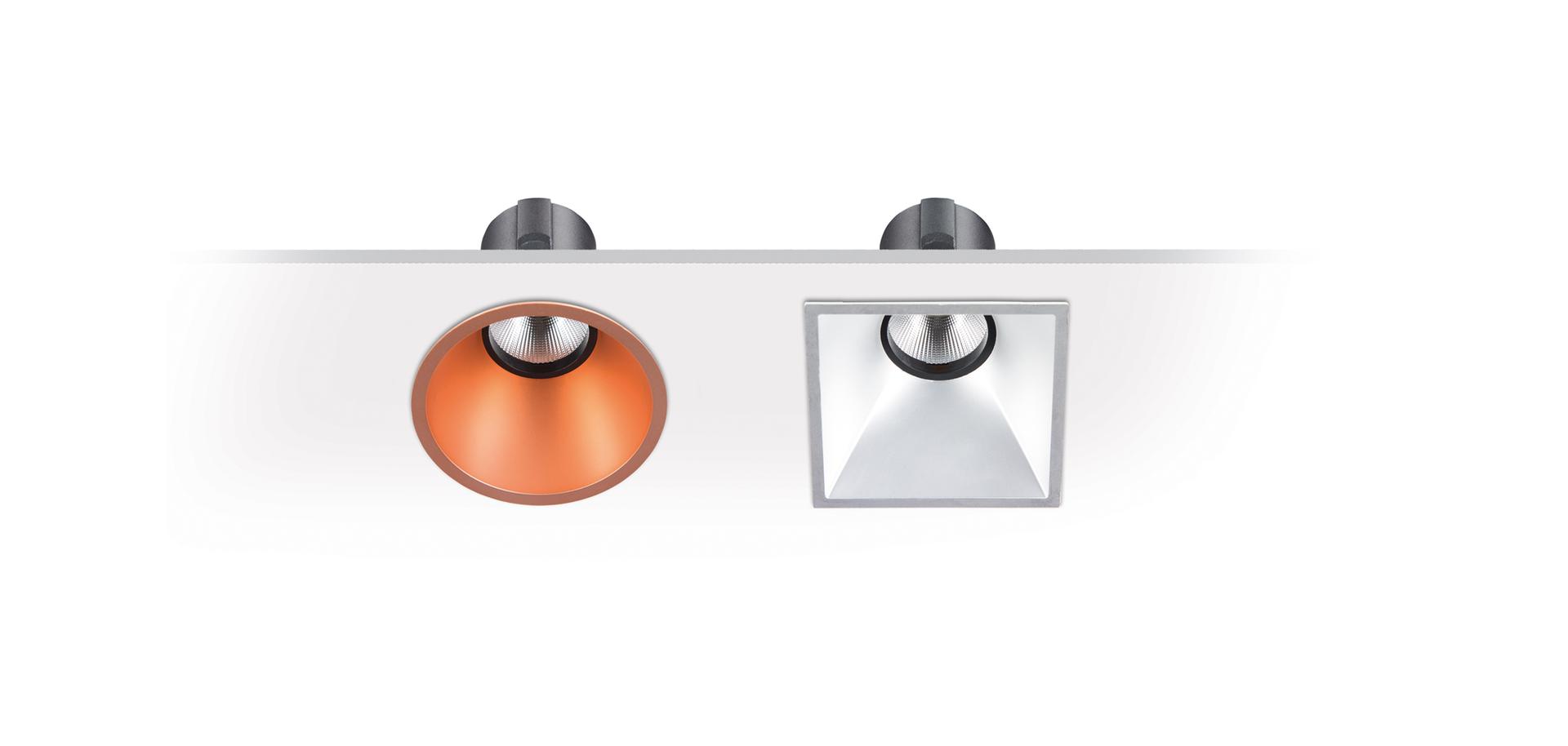

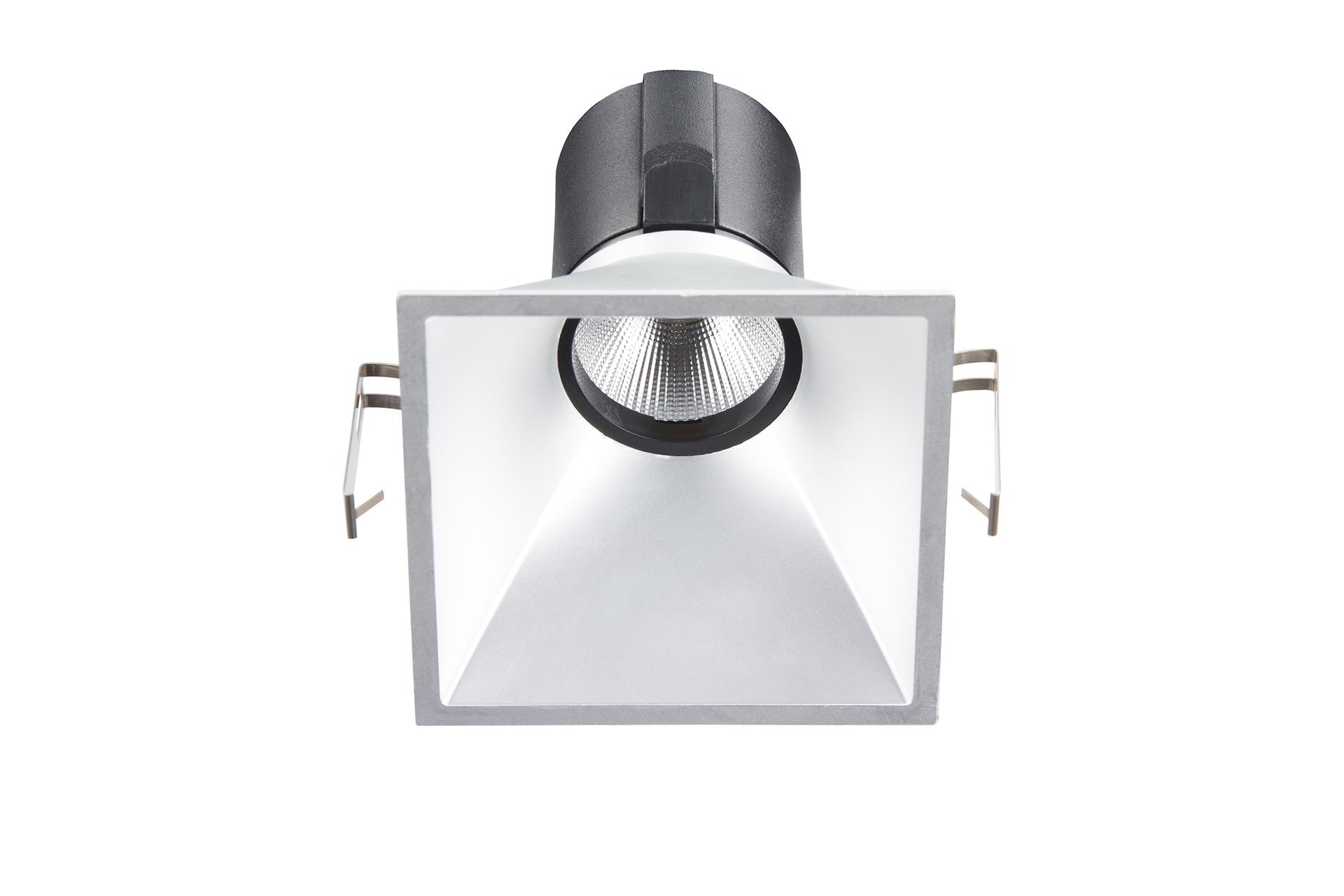

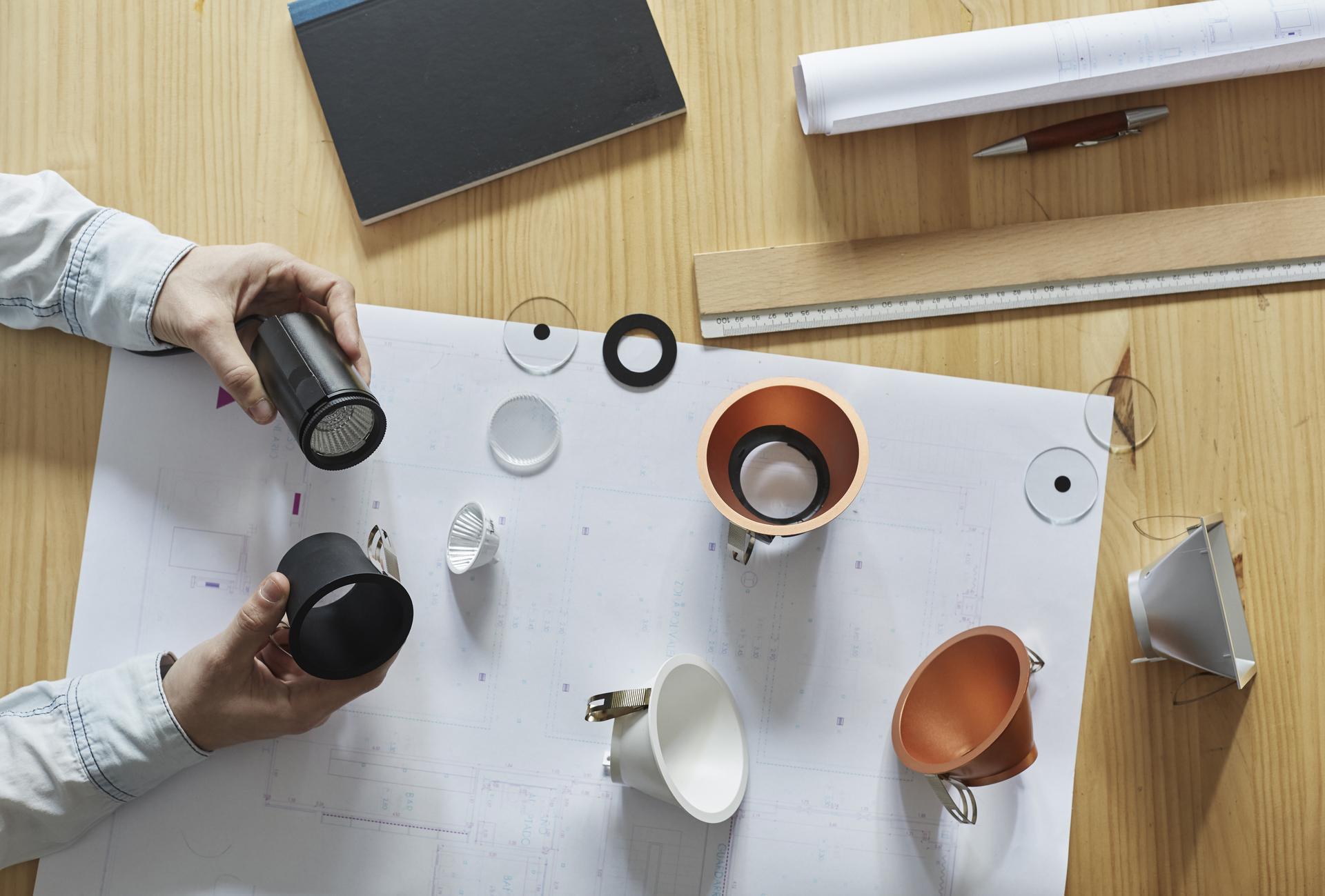

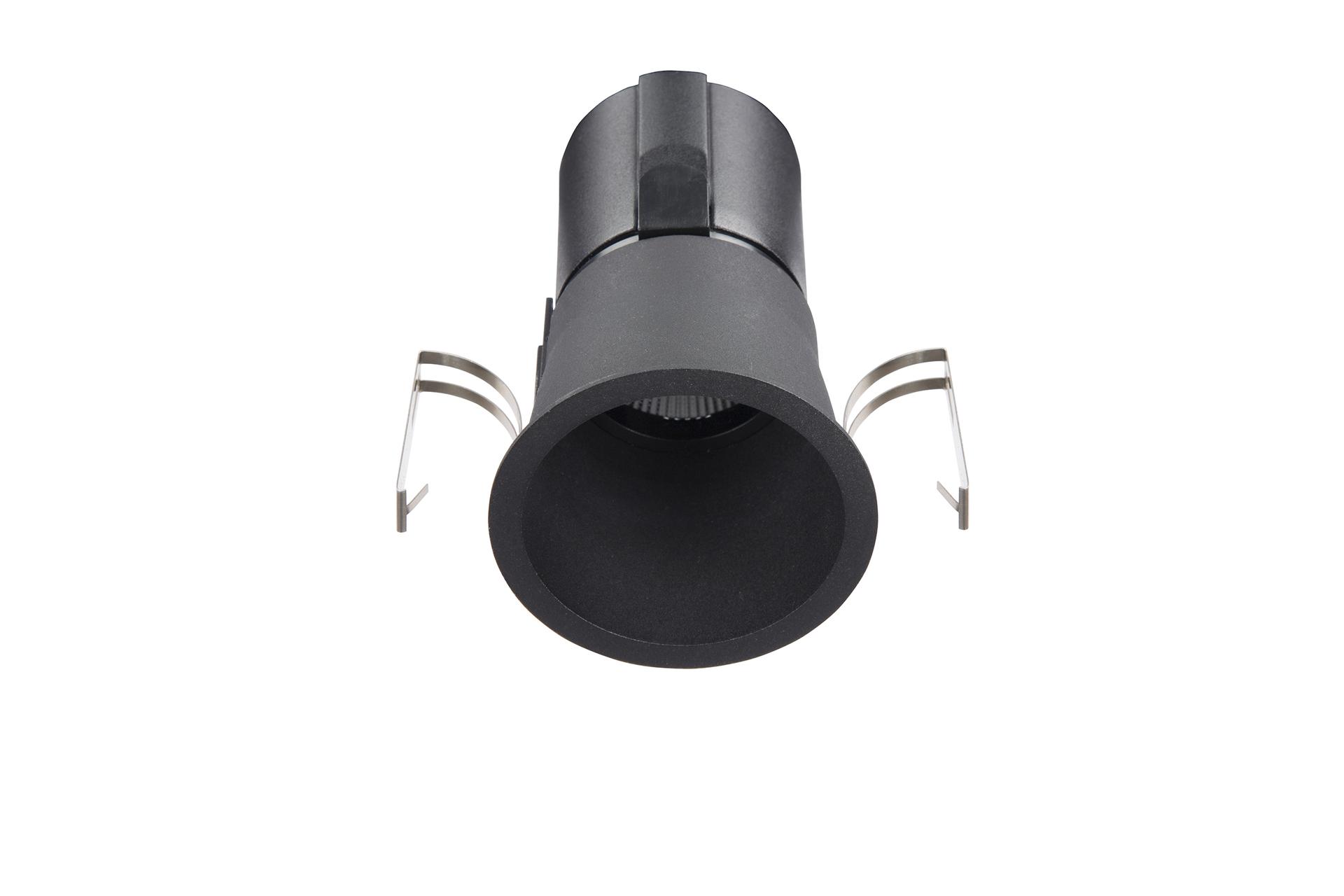

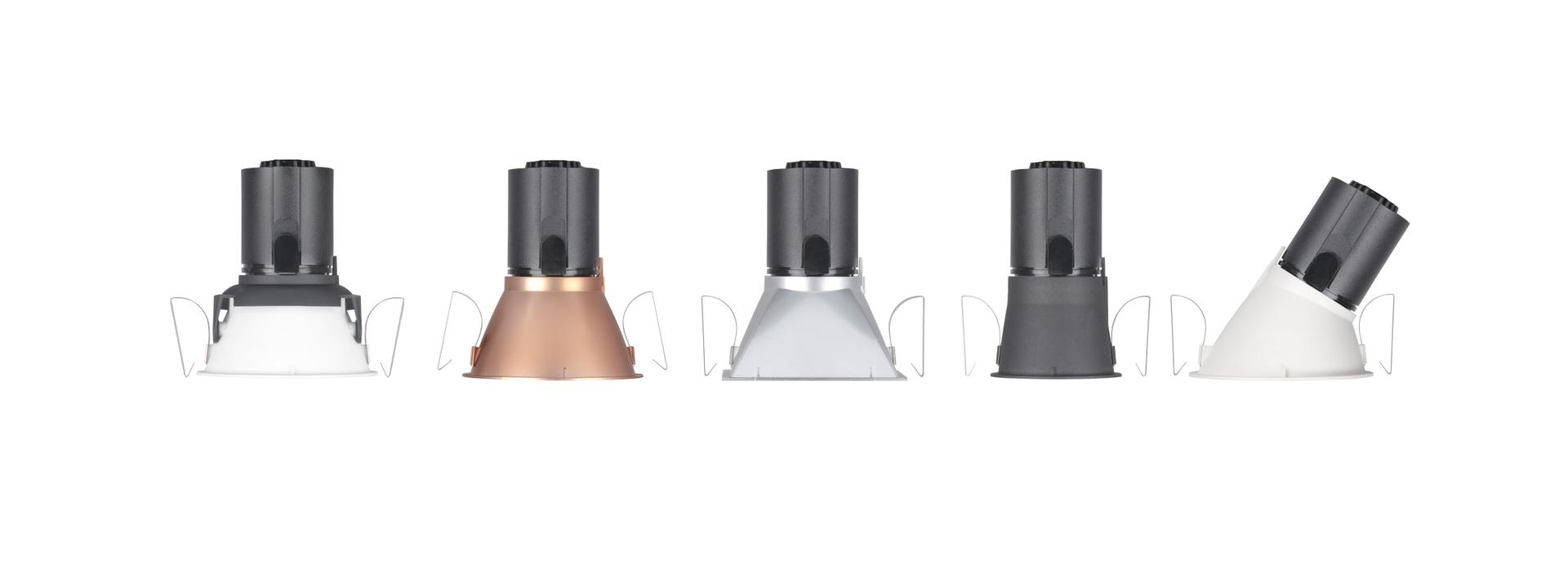

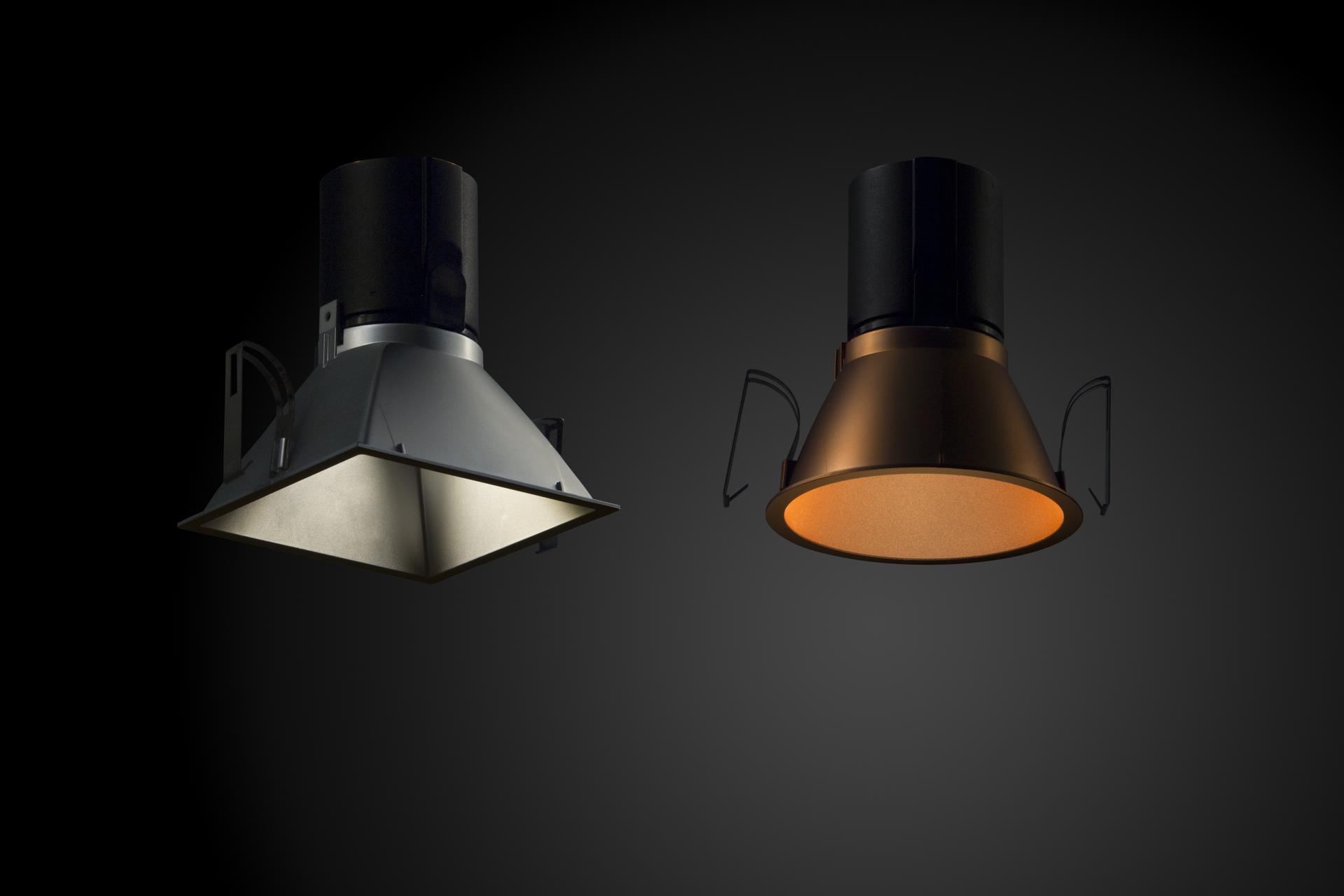

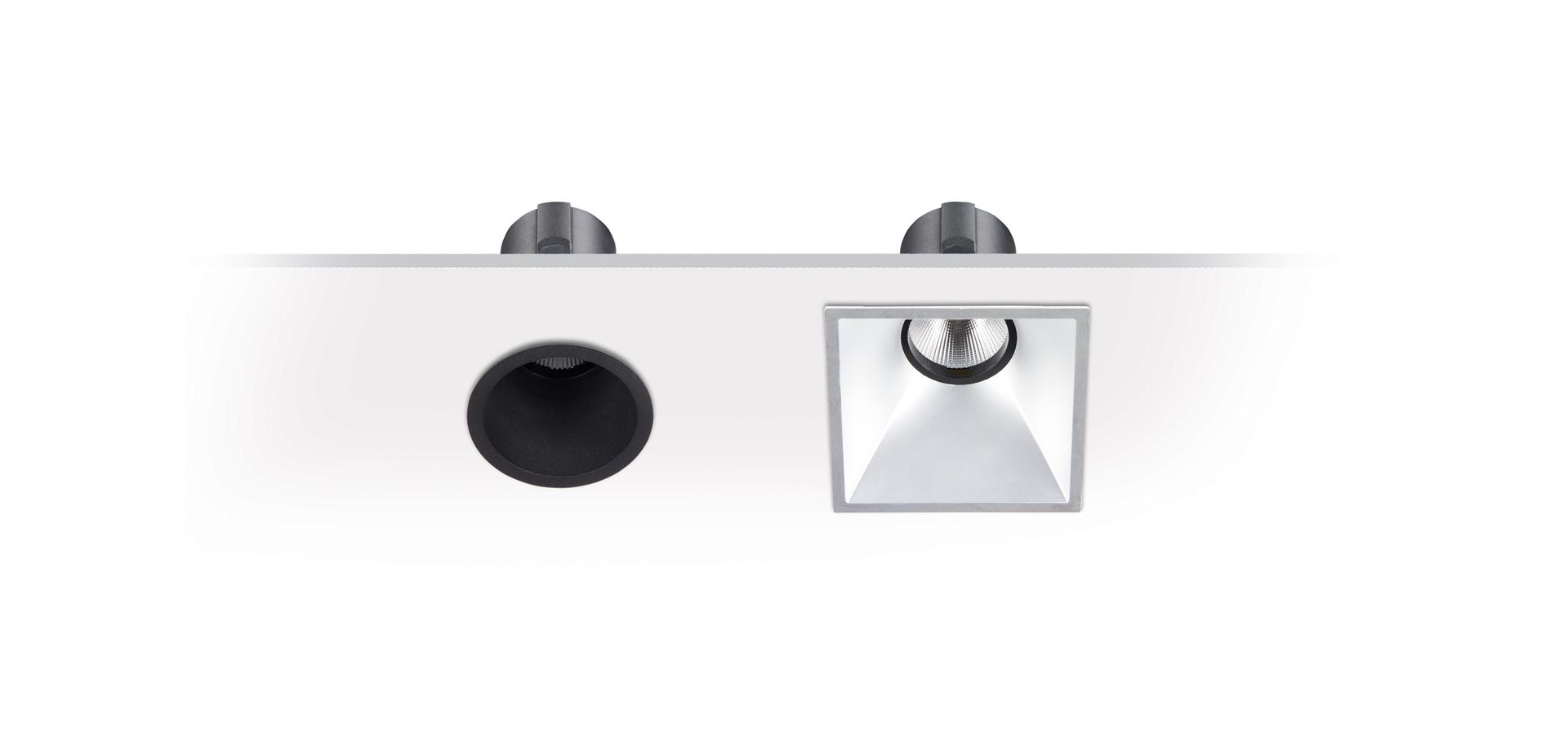

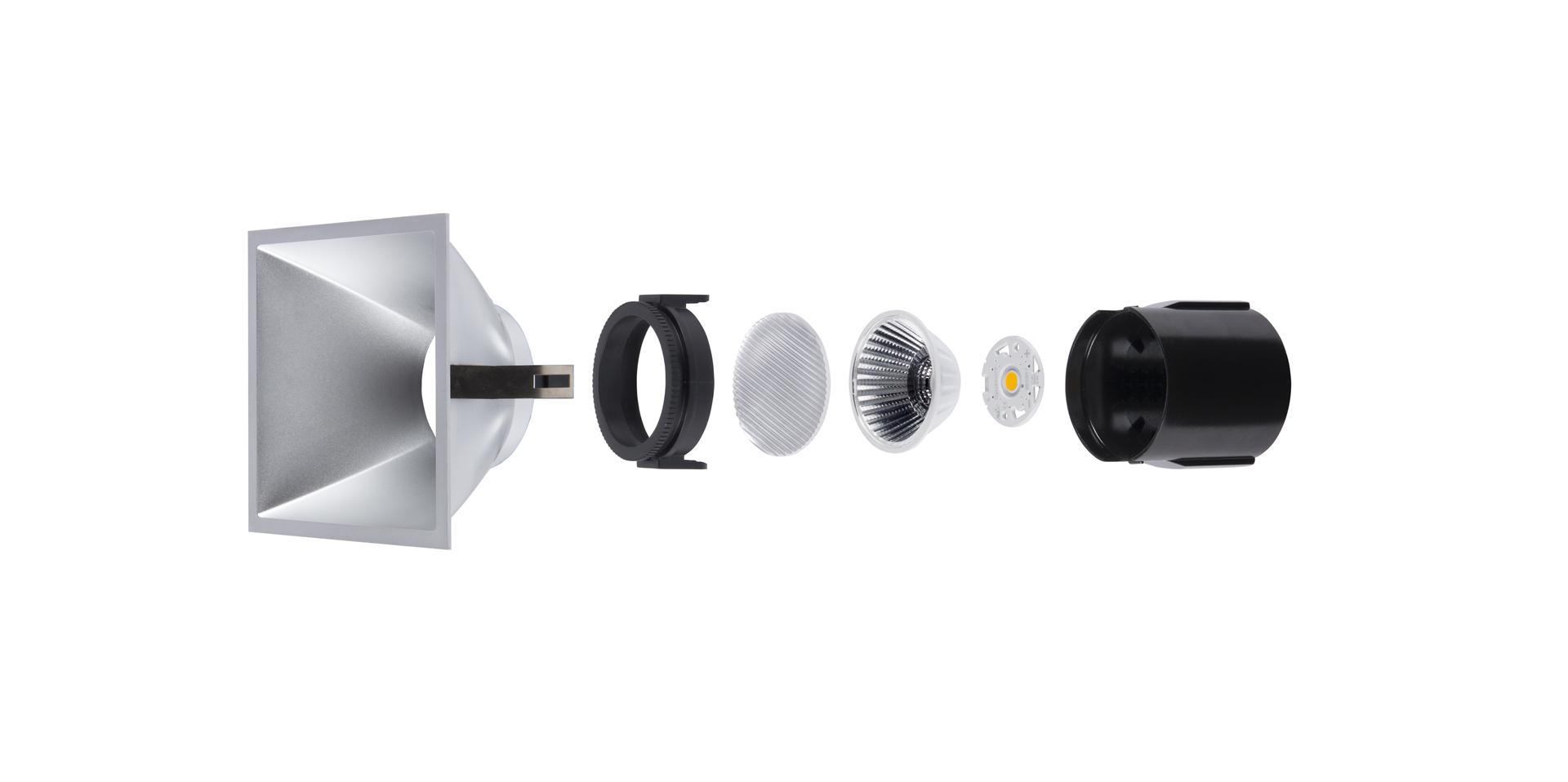

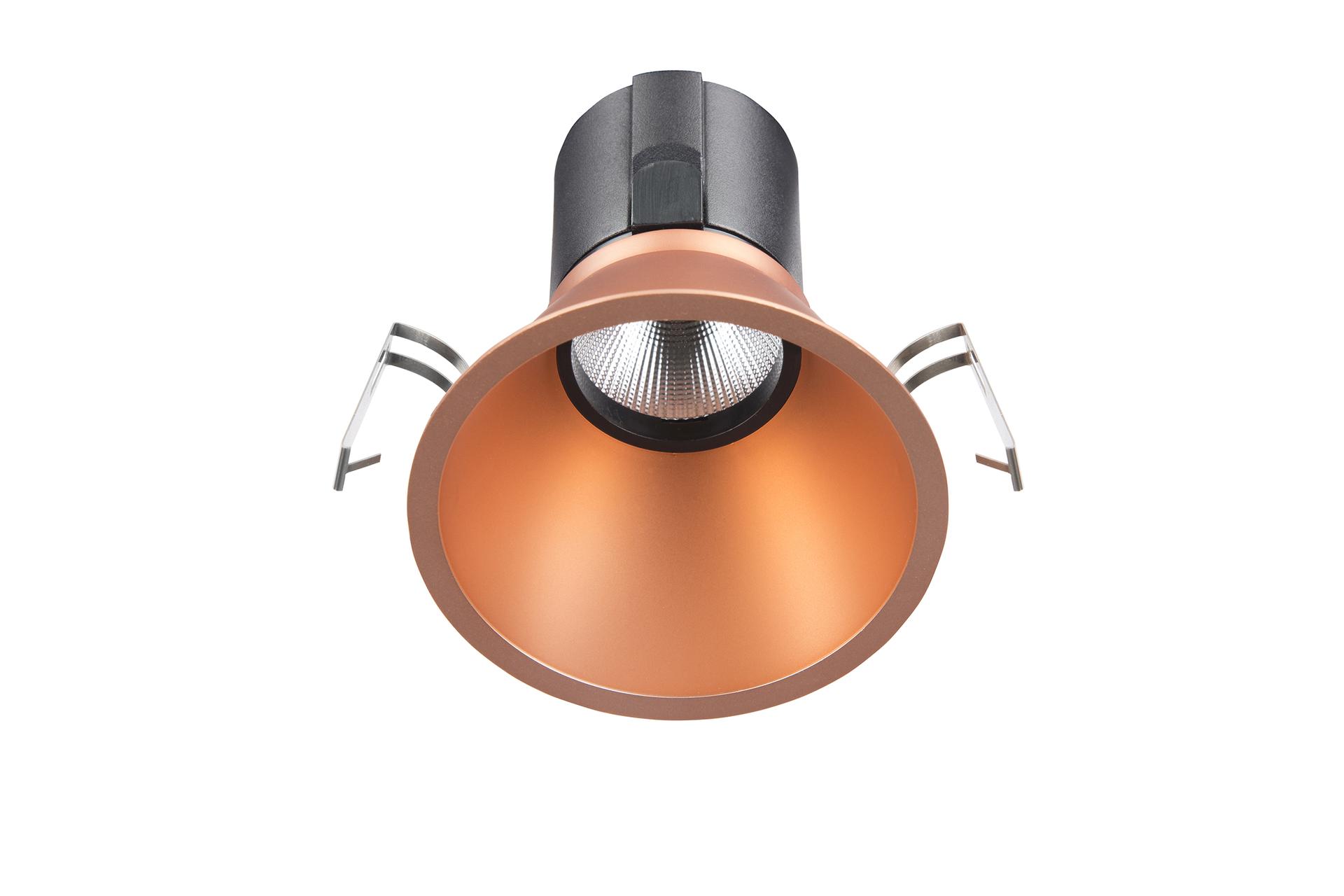

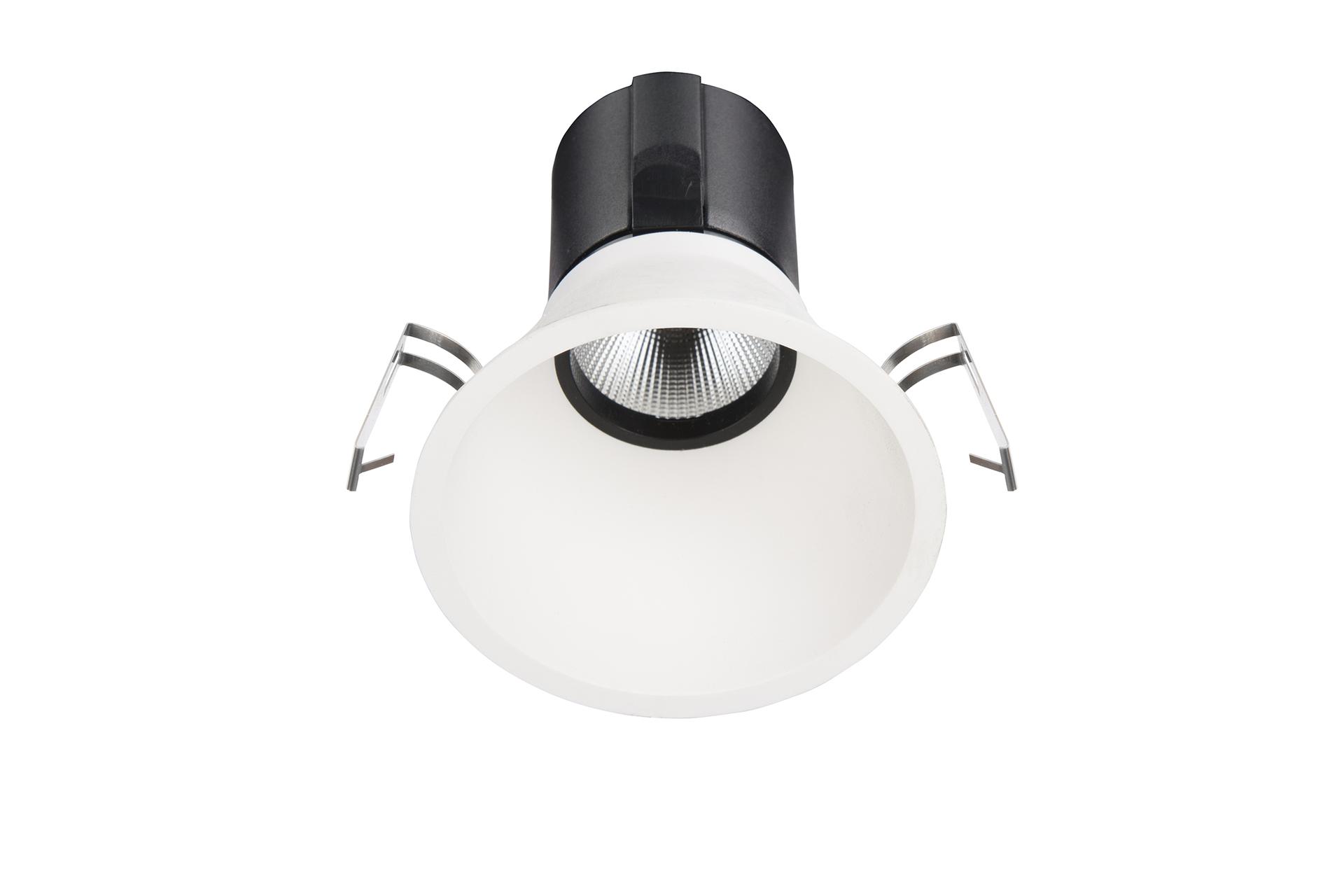

The body is made of injected aluminium with a cataphoresis surface treatment and incorporates the COB technology. The CORE is to be combined with the MOODY reflector, with a choice of 5 different possibilities: fixed, adjustable, asymmetrical round, fixed square or mini round. The reflector is made of injected polycarbonate, and is available in texturized white, texturized black, silver metallized or copper metallized.

With an IP20 protection level and class II insulation.

Light applications

Products

Moody core 500
CodeWCRIlmGearFinishinglmGear
1068201231º7W2700ºK90398DALIBlack500Adjustable DALI
1068400222º7W4000ºK80547DALIBlack500Adjustable DALI
1068301231º7W3000ºK80497DALIBlack500Adjustable DALI
1068401231º7W4000ºK80534DALIBlack500Adjustable DALI
1068300222º7W3000ºK80509DALIBlack500Adjustable DALI
1068202254º7W2700ºK90369DALIBlack500Adjustable DALI
1068302254º7W3000ºK80461DALIBlack500Adjustable DALI
1068402254º7W4000ºK80496DALIBlack500Adjustable DALI
1068200222º7W2700ºK90408DALIBlack500Adjustable DALI
1064300222º7W3000ºK80509-Black500Non-adjustable
1064301231º7W3000ºK80497-Black500Non-adjustable
1064302254º7W3000ºK80461-Black500Non-adjustable
1064400222º7W4000ºK80547-Black500Non-adjustable
1064401231º7W4000ºK80534-Black500Non-adjustable
1064402254º7W4000ºK80496-Black500Non-adjustable
1064201231º7W2700ºK90398-Black500Non-adjustable
1064200222º7W2700ºK90408-Black500Non-adjustable
1064202254º7W2700ºK90369-Black500Non-adjustable
Moody core 1200
CodeWCRIlmGearFinishinglmGear
1064203219º12W2700ºK90691-Black1200Non-adjustable
1068203219º11W2700ºK90739DALIBlack1200Adjustable DALI
1064303219º11W3000ºK80922-Black1200Non-adjustable
1068303219º11W3000ºK80922DALIBlack1200Adjustable DALI
1064403219º12W4000ºK80927-Black1200Non-adjustable
1068403219º11W4000ºK80992DALIBlack1200Adjustable DALI
1064204233º12W2700ºK90682-Black1200Non-adjustable
1068204233º11W2700ºK90729DALIBlack1200Adjustable DALI
1064304233º11W3000ºK80911-Black1200Non-adjustable
1068304233º11W3000ºK80911DALIBlack1200Adjustable DALI
1064404233º12W4000ºK80915-Black1200Non-adjustable
1068404233º11W4000ºK80979DALIBlack1200Adjustable DALI
1064205258º12W2700ºK90603-Black1200Non-adjustable
1068205258º11W2700ºK90645DALIBlack1200Adjustable DALI
1064305258º11W3000ºK80805-Black1200Non-adjustable
1068305258º11W3000ºK80805DALIBlack1200Adjustable DALI
1064405258º12W4000ºK80809-Black1200Non-adjustable
1068405258º11W4000ºK80866DALIBlack1200Adjustable DALI

No results found for the current filters.

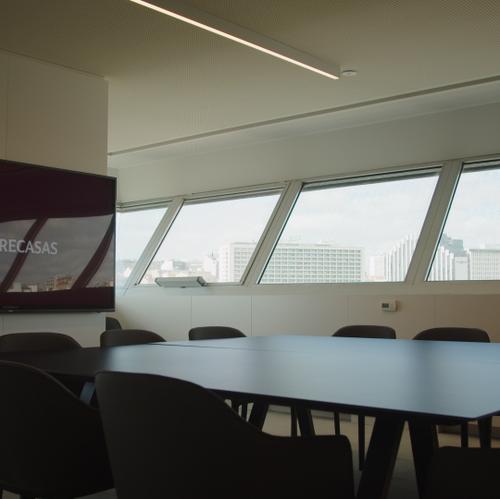

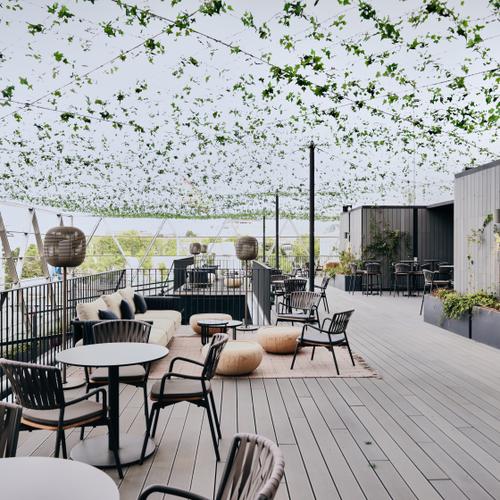

Installations

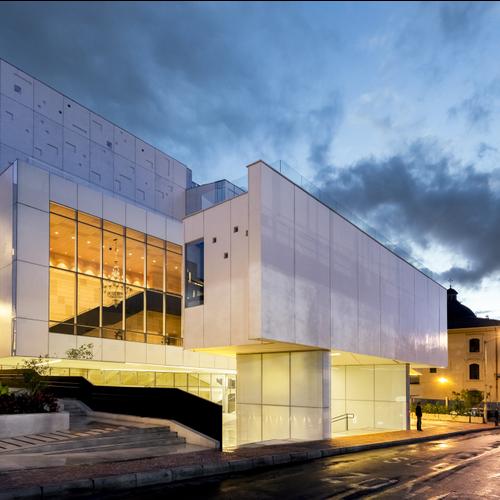

Museo Tysen
