Fil 70 DirectF71RE120HOPR830NWFIL 70 PRISM REC 4400 WW WH.
Estructura para empotrar modelo FIL 70 PRISM REC 4400 WW WH. de la marca LAMP. Perfil fabricado en extrusión de aluminio lacado en color blanco mate con difusor de policarbonato prismático. Modelo para LED MID-POWER, con temperatura de color blanco cálido y equipo electrónico incorporado. Índice de deslumbramiento <19 (para 4h, 8h 70/50/20). Con un grado de protección IP42, IK06. Clase de aislamiento I. Seguridad fotobiológica grupo 0.
- Potencia:
- 28W
- Temperatura de color:
- 3000K
- Flujo de salida:
- 3506
- Equipo:
- No regulable
- Longitud:
- 1162mm
- Acabado (corta):
- Matte white RAL 9010
Características
Certificados

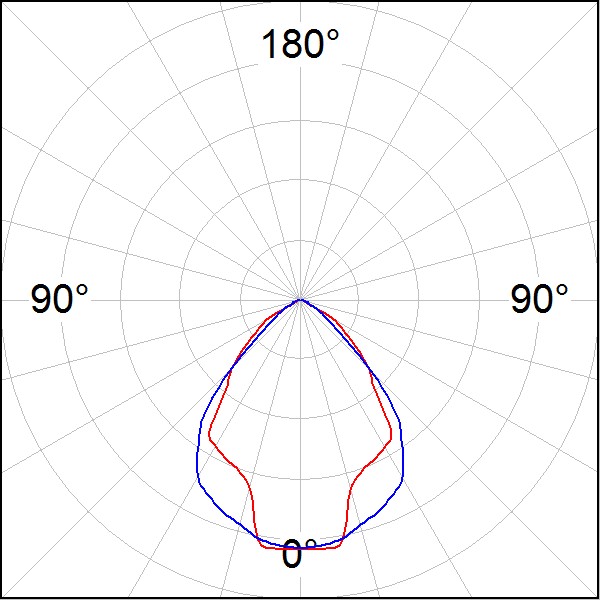

Datos fotométricos
¿Necesitas más información?
Variantes de este producto
| Código | W | K | lm out | Equipo | Longitud | Acabado |
|---|---|---|---|---|---|---|
| F71SF120LOOP830DG | 17W | 3000K | 1992 | DALI | 1162mm | Gloss grey |
| F71SF120LOOP830DW | 17W | 3000K | 1992 | DALI | 1162mm | Matte white RAL 9010 |
| F71SF120LOOP840DG | 17W | 4000K | 2143 | DALI | 1162mm | Gloss grey |
| F71SF120HOOP830DW | 28W | 3000K | 3370 | DALI | 1162mm | Matte white RAL 9010 |
| F71SF120HOOP840DG | 28W | 4000K | 3545 | DALI | 1162mm | Gloss grey |
| F71SF120HOOP840DW | 28W | 4000K | 3545 | DALI | 1162mm | Matte white RAL 9010 |
| F71SF170LOOP830DG | 25W | 3000K | 2988 | DALI | 1743mm | Gloss grey |
| F71SF170LOOP830DW | 25W | 3000K | 2988 | DALI | 1743mm | Matte white RAL 9010 |
| F71SF170LOOP840DG | 25W | 4000K | 3215 | DALI | 1743mm | Gloss grey |
| F71SF170HOOP830DG | 41W | 3000K | 5055 | DALI | 1743mm | Gloss grey |
| F71SF170HOOP830DW | 41W | 3000K | 5055 | DALI | 1743mm | Matte white RAL 9010 |
| F71SF170HOOP840DG | 41W | 4000K | 5318 | DALI | 1743mm | Gloss grey |
| F71SF170LOOP830NG | 25W | 3000K | 2988 | - | 1743mm | Gloss grey |
| F71SF170LOOP840NW | 25W | 4000K | 3215 | - | 1743mm | Matte white RAL 9010 |
| F71SF170LOOP840NG | 25W | 4000K | 3215 | - | 1743mm | Gloss grey |
| F71SF170LOOP840DW | 25W | 4000K | 3215 | DALI | 1743mm | Matte white RAL 9010 |
| F71SF170LOOP830NW | 25W | 3000K | 2988 | - | 1743mm | Matte white RAL 9010 |
| F71SF170HOOP840NW | 41W | 4000K | 5318 | - | 1743mm | Matte white RAL 9010 |
| F71SF170HOOP840NG | 41W | 4000K | 5318 | - | 1743mm | Gloss grey |
| F71SF170HOOP840DW | 41W | 4000K | 5318 | DALI | 1743mm | Matte white RAL 9010 |
| F71SF170HOOP830NW | 41W | 3000K | 5055 | - | 1743mm | Matte white RAL 9010 |
| F71SF170HOOP830NG | 41W | 3000K | 5055 | - | 1743mm | Gloss grey |
| F71SF120LOOP840NW | 17W | 4000K | 2143 | - | 1162mm | Matte white RAL 9010 |
| F71SF120LOOP840NG | 17W | 4000K | 2143 | - | 1162mm | Gloss grey |
| F71SF120LOOP840DW | 17W | 4000K | 2143 | DALI | 1162mm | Matte white RAL 9010 |
| F71SF120LOOP830NW | 17W | 3000K | 1992 | - | 1162mm | Matte white RAL 9010 |
| F71SF120LOOP830NG | 17W | 3000K | 1992 | - | 1162mm | Gloss grey |
| F71SF120HOOP840NW | 28W | 4000K | 3545 | - | 1162mm | Matte white RAL 9010 |
| F71SF120HOOP840NG | 28W | 4000K | 3545 | - | 1162mm | Gloss grey |
| F71SF120HOOP830NW | 28W | 3000K | 3370 | - | 1162mm | Matte white RAL 9010 |
| F71SF120HOOP830NG | 28W | 3000K | 3370 | - | 1162mm | Gloss grey |
| F71SF120HOOP830DG | 28W | 3000K | 3370 | DALI | 1162mm | Gloss grey |
| F71RE170LOPR840NW | 25W | 4000K | 3450 | - | 1743mm | Matte white RAL 9010 |
| F71RE170LOPR840NG | 25W | 4000K | 3450 | - | 1743mm | Gloss grey |
| F71RE170LOPR830NW | 25W | 3000K | 3328 | - | 1743mm | Matte white RAL 9010 |
| F71RE170LOPR830NG | 25W | 3000K | 3328 | - | 1743mm | Gloss grey |
| F71RE170HOPR840NW | 41W | 4000K | 5452 | - | 1743mm | Matte white RAL 9010 |
| F71RE170HOPR840NG | 41W | 4000K | 5452 | - | 1743mm | Gloss grey |
| F71RE170HOPR830NW | 41W | 3000K | 5260 | - | 1743mm | Matte white RAL 9010 |
| F71RE170HOPR830NG | 41W | 3000K | 5260 | - | 1743mm | Gloss grey |
| F71RE120LOPR840NW | 17W | 4000K | 2300 | - | 1162mm | Matte white RAL 9010 |
| F71RE120LOPR840NG | 17W | 4000K | 2300 | - | 1162mm | Gloss grey |
| F71RE120LOPR830NW | 17W | 3000K | 2218 | - | 1162mm | Matte white RAL 9010 |
| F71RE120LOPR830NG | 17W | 3000K | 2218 | - | 1162mm | Gloss grey |
| F71RE120HOPR840NW | 28W | 4000K | 3635 | - | 1162mm | Matte white RAL 9010 |
| F71RE120HOPR840NG | 28W | 4000K | 3635 | - | 1162mm | Gloss grey |
| F71RE120HOPR830NW | 28W | 3000K | 3506 | - | 1162mm | Matte white RAL 9010 |
| F71RE120HOPR830NG | 28W | 3000K | 3506 | - | 1162mm | Gloss grey |
| F71RE170LOOP840NW | 25W | 4000K | 3215 | - | 1743mm | Matte white RAL 9010 |
| F71RE170LOOP840NG | 25W | 4000K | 3215 | - | 1743mm | Gloss grey |
| F71RE170HOOP840NW | 41W | 4000K | 5318 | - | 1743mm | Matte white RAL 9010 |
| F71RE170HOOP840NG | 41W | 4000K | 5318 | - | 1743mm | Gloss grey |
| F71RE170HOOP830NW | 41W | 3000K | 5055 | - | 1743mm | Matte white RAL 9010 |
| F71RE170HOOP830NG | 41W | 3000K | 5055 | - | 1743mm | Gloss grey |
| F71RE120LOOP840NW | 17W | 4000K | 2143 | - | 1162mm | Matte white RAL 9010 |
| F71RE120LOOP840NG | 17W | 4000K | 2143 | - | 1162mm | Gloss grey |
| F71RE120LOOP830NG | 17W | 3000K | 1992 | - | 1162mm | Gloss grey |
| F71RE120HOOP840NW | 28W | 4000K | 3545 | - | 1162mm | Matte white RAL 9010 |
| F71RE120HOOP840NG | 28W | 4000K | 3545 | - | 1162mm | Gloss grey |
| F71RE120HOOP830NW | 28W | 3000K | 3370 | - | 1162mm | Matte white RAL 9010 |
| F71RE120HOOP830NG | 28W | 3000K | 3370 | - | 1162mm | Gloss grey |
| F71RE170HOOP840DW | 41W | 4000K | 5318 | DALI | 1743mm | Matte white RAL 9010 |
| F71RE170HOOP840DG | 41W | 4000K | 5318 | DALI | 1743mm | Gloss grey |
| F71RE170HOOP830DW | 41W | 3000K | 5055 | DALI | 1743mm | Matte white RAL 9010 |
| F71RE170HOOP830DG | 41W | 3000K | 5055 | DALI | 1743mm | Gloss grey |
| F71RE170LOOP840DW | 25W | 4000K | 3215 | DALI | 1743mm | Matte white RAL 9010 |
| F71RE170LOOP840DG | 25W | 4000K | 3215 | DALI | 1743mm | Gloss grey |
| F71RE170LOOP830DW | 25W | 3000K | 2988 | DALI | 1743mm | Matte white RAL 9010 |
| F71RE170LOOP830DG | 25W | 3000K | 2988 | DALI | 1743mm | Gloss grey |
| F71RE170LOOP830NW | 25W | 3000K | 2988 | - | 1743mm | Matte white RAL 9010 |
| F71RE170LOOP830NG | 25W | 3000K | 2988 | - | 1743mm | Gloss grey |
| F71RE120HOOP840DW | 28W | 4000K | 3545 | DALI | 1162mm | Matte white RAL 9010 |
| F71RE120HOOP840DG | 28W | 4000K | 3545 | DALI | 1162mm | Gloss grey |
| F71RE120HOOP830DW | 28W | 3000K | 3370 | DALI | 1162mm | Matte white RAL 9010 |
| F71RE120HOOP830DG | 28W | 3000K | 3370 | DALI | 1162mm | Gloss grey |
| F71RE120LOOP840DW | 17W | 4000K | 2143 | DALI | 1162mm | Matte white RAL 9010 |
| F71RE120LOOP840DG | 17W | 4000K | 2143 | DALI | 1162mm | Gloss grey |
| F71RE120LOOP830DW | 17W | 3000K | 1992 | DALI | 1162mm | Matte white RAL 9010 |
| F71RE120LOOP830DG | 17W | 3000K | 1992 | DALI | 1162mm | Gloss grey |
| F71RE120LOOP830NW | 17W | 3000K | 1992 | - | 1162mm | Matte white RAL 9010 |
| F71SF170LOPR840NW | 25W | 4000K | 3450 | - | 1743mm | Matte white RAL 9010 |
| F71SF170LOPR840NG | 25W | 4000K | 3450 | - | 1743mm | Gloss grey |
| F71SF170LOPR830NW | 25W | 3000K | 3328 | - | 1743mm | Matte white RAL 9010 |
| F71SF170LOPR830NG | 25W | 3000K | 3328 | - | 1743mm | Gloss grey |
| F71SF170HOPR840NW | 41W | 4000K | 5452 | - | 1743mm | Matte white RAL 9010 |
| F71SF170HOPR840NG | 41W | 4000K | 5452 | - | 1743mm | Gloss grey |
| F71SF170HOPR830NW | 41W | 3000K | 5260 | - | 1743mm | Matte white RAL 9010 |
| F71SF170HOPR830NG | 41W | 3000K | 5260 | - | 1743mm | Gloss grey |
| F71SF120LOPR840NW | 17W | 4000K | 2300 | - | 1162mm | Matte white RAL 9010 |
| F71SF120LOPR840NG | 17W | 4000K | 2300 | - | 1162mm | Gloss grey |
| F71SF120LOPR830NW | 17W | 3000K | 2218 | - | 1162mm | Matte white RAL 9010 |
| F71SF120LOPR830NG | 17W | 3000K | 2218 | - | 1162mm | Gloss grey |
| F71SF120HOPR840NW | 28W | 4000K | 3635 | - | 1162mm | Matte white RAL 9010 |
| F71SF120HOPR840NG | 28W | 4000K | 3635 | - | 1162mm | Gloss grey |
| F71SF120HOPR830NW | 28W | 3000K | 3506 | - | 1162mm | Matte white RAL 9010 |
| F71SF120HOPR830NG | 28W | 3000K | 3506 | - | 1162mm | Gloss grey |
