Fil 70 DirectF71RE170HOPR830NGFIL 70 PRISM REC 6600 WW GR.
Estructura para empotrar modelo FIL 70 PRISM REC 6600 WW GR. de la marca LAMP. Perfil fabricado en extrusión de aluminio lacado en color gris satinado con difusor de policarbonato prismático. Modelo para LED MID-POWER, con temperatura de color blanco c álido y equipo electrónico incorporado. Índice de deslumbramiento <19 (para 4h, 8h 70/50/20). Con un grado de protección IP43, IK06. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Declaración Ambiental de Producto - DAP (EPD®) disponible, según norma UNE-EN ISO 9001:2015 y UNE-EN ISO 14001:2015.
- Potència:
- 42,8W
- Temperatura de color:
- 3000K
- Flux de sortida:
- 5260
- Equip:
- No regulable
- Longitud:
- 1743mm
- Acabat (curta):
- Gris
Característiques
Certificats

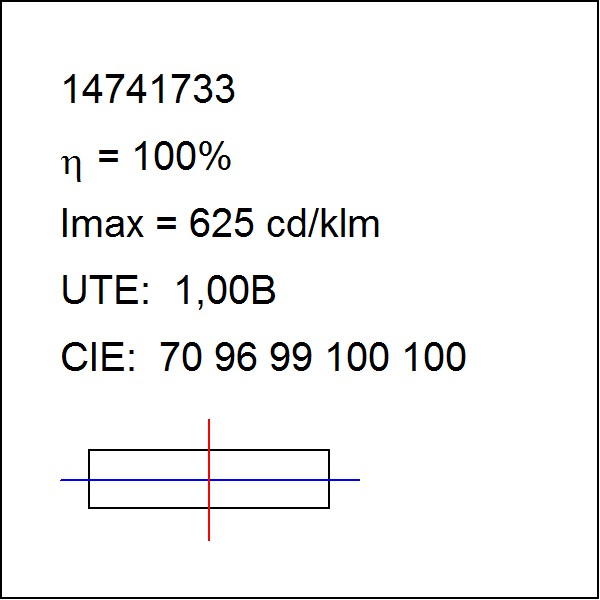

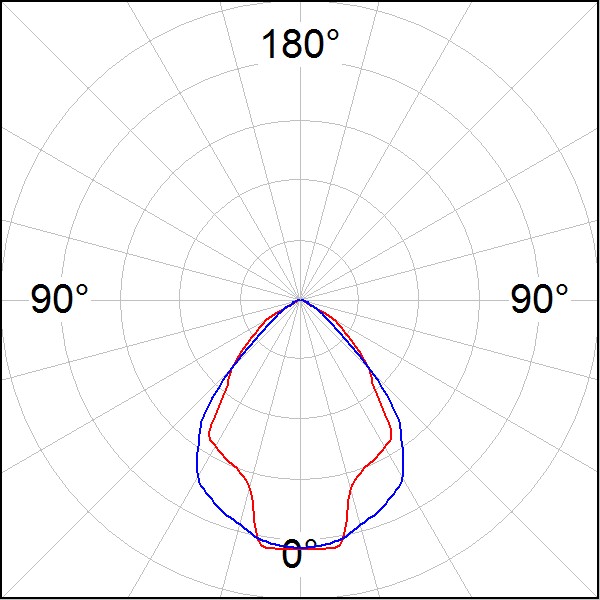

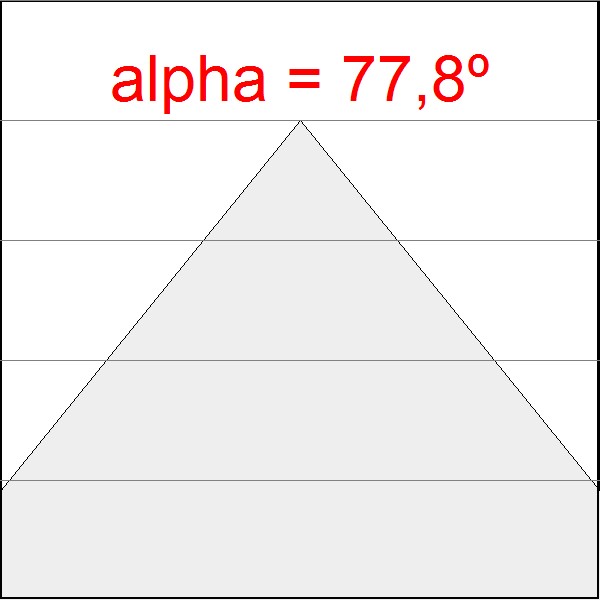

Dades fotomètriques
Necessites mès informació?
Variants d'aquest producte
| Codi | W | K | lm out | Equip | Longitud | Acabat |
|---|---|---|---|---|---|---|
| F71SF120HOPR830NG | 29,9W | 3000K | 3506 | - | 1162mm | Gris |
| F71SF120HOPR830NW | 29,9W | 3000K | 3506 | - | 1162mm | Blanc |
| F71SF120HOPR840NG | 28,6W | 4000K | 3635 | - | 1162mm | Gloss grey |
| F71SF120HOPR840NW | 28,6W | 4000K | 3635 | - | 1162mm | Blanc |
| F71SF120LOPR830NG | 19,4W | 3000K | 2218 | - | 1162mm | Gris |
| F71SF120LOPR830NW | 19,4W | 3000K | 2218 | - | 1162mm | Matte white RAL 9010 |
| F71SF120LOPR840NG | 19,4W | 4000K | 2300 | - | 1162mm | Gris |
| F71SF120LOPR840NW | 19,4W | 4000K | 2300 | - | 1162mm | Blanc |
| F71SF170HOPR830NG | 42,8W | 3000K | 5260 | - | 1743mm | Gris |
| F71SF170HOPR830NW | 42,8W | 3000K | 5260 | - | 1743mm | Blanc |
| F71SF170HOPR840NG | 42,8W | 4000K | 5452 | - | 1743mm | Gris |
| F71SF170HOPR840NW | 42,8W | 4000K | 5452 | - | 1743mm | Blanc |
| F71SF170LOPR830NG | 26,8W | 3000K | 3328 | - | 1743mm | Gris |
| F71SF170LOPR830NW | 26,8W | 3000K | 3328 | - | 1743mm | Blanc |
| F71SF170LOPR840NG | 26,8W | 4000K | 3450 | - | 1743mm | Gris |
| F71SF170LOPR840NW | 26,8W | 4000K | 3450 | - | 1743mm | Blanc |
| F71RE120LOOP830NW | 19,2W | 3000K | 1992 | - | 1162mm | Blanc |
| F71RE120LOOP830DG | 19,2W | 3000K | 1992 | DALI | 1162mm | Gris |
| F71RE120LOOP830DW | 19,2W | 3000K | 1992 | DALI | 1162mm | Blanc |
| F71RE120LOOP840DG | 19,2W | 4000K | 2143 | DALI | 1162mm | Gris |
| F71RE120LOOP840DW | 19,2W | 4000K | 2143 | DALI | 1162mm | Blanc |
| F71RE120HOOP830DG | 30,7W | 3000K | 3370 | DALI | 1162mm | Gris |
| F71RE120HOOP830DW | 30,7W | 3000K | 3370 | DALI | 1162mm | Blanc |
| F71RE120HOOP840DG | 28,6W | 4000K | 3545 | DALI | 1162mm | Gris |
| F71RE120HOOP840DW | 28,6W | 4000K | 3545 | DALI | 1162mm | Blanc |
| F71RE170LOOP830NG | 29,7W | 3000K | 2988 | - | 1743mm | Gris |
| F71RE170LOOP830NW | 29,7W | 3000K | 2988 | - | 1743mm | Blanc |
| F71RE170LOOP830DG | 29,7W | 3000K | 2988 | DALI | 1743mm | Gris |
| F71RE170LOOP830DW | 29,7W | 3000K | 2988 | DALI | 1743mm | Blanc |
| F71RE170LOOP840DG | 26.8W | 4000K | 3215 | DALI | 1743mm | Gris |
| F71RE170LOOP840DW | 26.8W | 4000K | 3215 | DALI | 1743mm | Blanc |
| F71RE170HOOP830DG | 45,8W | 3000K | 5055 | DALI | 1743mm | Gris |
| F71RE170HOOP830DW | 45,8W | 3000K | 5055 | DALI | 1743mm | Blanc |
| F71RE170HOOP840DG | 45,8W | 4000K | 5318 | DALI | 1743mm | Gris |
| F71RE170HOOP840DW | 45,8W | 4000K | 5318 | DALI | 1743mm | Blanc |
| F71RE120HOOP830NG | 30,7W | 3000K | 3370 | - | 1162mm | Gris |
| F71RE120HOOP830NW | 30,7W | 3000K | 3370 | - | 1162mm | Blanc |
| F71RE120HOOP840NG | 28,6W | 4000K | 3545 | - | 1162mm | Gris |
| F71RE120HOOP840NW | 28,6W | 4000K | 3545 | - | 1162mm | Blanc |
| F71RE120LOOP830NG | 19,2W | 3000K | 1992 | - | 1162mm | Gris |
| F71RE120LOOP840NG | 19,2W | 4000K | 2143 | - | 1162mm | Gris |
| F71RE120LOOP840NW | 19,2W | 4000K | 2143 | - | 1162mm | Blanc |
| F71RE170HOOP830NG | 45,8W | 3000K | 5055 | - | 1743mm | Gris |
| F71RE170HOOP830NW | 45,8W | 3000K | 5055 | - | 1743mm | Blanc |
| F71RE170HOOP840NG | 45,8W | 4000K | 5318 | - | 1743mm | Gris |
| F71RE170HOOP840NW | 45,8W | 4000K | 5318 | - | 1743mm | Blanc |
| F71RE170LOOP840NG | 26.8W | 4000K | 3215 | - | 1743mm | Gris |
| F71RE170LOOP840NW | 26.8W | 4000K | 3215 | - | 1743mm | Blanc |
| F71RE120HOPR830NG | 29,9W | 3000K | 3506 | - | 1162mm | Gris |
| F71RE120HOPR830NW | 29,9W | 3000K | 3506 | - | 1162mm | Blanc |
| F71RE120HOPR840NG | 28,6W | 4000K | 3635 | - | 1162mm | Gris |
| F71RE120HOPR840NW | 28,6W | 4000K | 3635 | - | 1162mm | Blanc |
| F71RE120LOPR830NG | 19,4W | 3000K | 2218 | - | 1162mm | Gris |
| F71RE120LOPR830NW | 19,4W | 3000K | 2218 | - | 1162mm | Blanc |
| F71RE120LOPR840NG | 19,4W | 4000K | 2300 | - | 1162mm | Gris |
| F71RE120LOPR840NW | 19,4W | 4000K | 2300 | - | 1162mm | Blanc |
| F71RE170HOPR830NG | 42,8W | 3000K | 5260 | - | 1743mm | Gris |
| F71RE170HOPR830NW | 42,8W | 3000K | 5260 | - | 1743mm | Blanc |
| F71RE170HOPR840NG | 42,8W | 4000K | 5452 | - | 1743mm | Gris |
| F71RE170HOPR840NW | 42,8W | 4000K | 5452 | - | 1743mm | Blanc |
| F71RE170LOPR830NG | 26,8W | 3000K | 3328 | - | 1743mm | Gris |
| F71RE170LOPR830NW | 26,8W | 3000K | 3328 | - | 1743mm | Blanc |
| F71RE170LOPR840NG | 26,8W | 4000K | 3450 | - | 1743mm | Gris |
| F71RE170LOPR840NW | 26,8W | 4000K | 3450 | - | 1743mm | Blanc |
| F71SF120HOOP830DG | 30,7W | 3000K | 3370 | DALI | 1162mm | Gris |
| F71SF120HOOP830NG | 30,7W | 3000K | 3370 | - | 1162mm | Gris |
| F71SF120HOOP830NW | 30,7W | 3000K | 3370 | - | 1162mm | Blanc |
| F71SF120HOOP840NG | 28,6W | 4000K | 3545 | - | 1162mm | Gris |
| F71SF120HOOP840NW | 28,6W | 4000K | 3545 | - | 1162mm | Blanc |
| F71SF120LOOP830NG | 19,2W | 3000K | 1992 | - | 1162mm | Gris |
| F71SF120LOOP830NW | 19,2W | 3000K | 1992 | - | 1162mm | Blanc |
| F71SF120LOOP840DW | 19,2W | 4000K | 2143 | DALI | 1162mm | Blanc |
| F71SF120LOOP840NG | 19,2W | 4000K | 2143 | - | 1162mm | Gris |
| F71SF120LOOP840NW | 19,2W | 4000K | 2143 | - | 1162mm | Blanc |
| F71SF170HOOP830NG | 45,8W | 3000K | 5055 | - | 1743mm | Gris |
| F71SF170HOOP830NW | 45,8W | 3000K | 5055 | - | 1743mm | Blanc |
| F71SF170HOOP840DW | 45,8W | 4000K | 5318 | DALI | 1743mm | Blanc |
| F71SF170HOOP840NG | 45,8W | 4000K | 5318 | - | 1743mm | Gris |
| F71SF170HOOP840NW | 45,8W | 4000K | 5318 | - | 1743mm | Blanc |
| F71SF170LOOP830NW | 29,7W | 3000K | 2988 | - | 1743mm | Blanc |
| F71SF170LOOP840DW | 26.8W | 4000K | 3215 | DALI | 1743mm | Blanc |
| F71SF170LOOP840NG | 26.8W | 4000K | 3215 | - | 1743mm | Gris |
| F71SF170LOOP840NW | 26.8W | 4000K | 3215 | - | 1743mm | Blanc |
| F71SF170LOOP830NG | 29,7W | 3000K | 2988 | - | 1743mm | Gris |
| F71SF170HOOP840DG | 45,8W | 4000K | 5318 | DALI | 1743mm | Gris |
| F71SF170HOOP830DW | 45,8W | 3000K | 5055 | DALI | 1743mm | Blanc |
| F71SF170HOOP830DG | 45,8W | 3000K | 5055 | DALI | 1743mm | Gris |
| F71SF170LOOP840DG | 26.8W | 4000K | 3215 | DALI | 1743mm | Gris |
| F71SF170LOOP830DW | 29,7W | 3000K | 2988 | DALI | 1743mm | Blanc |
| F71SF170LOOP830DG | 29,7W | 3000K | 2988 | DALI | 1743mm | Gris |
| F71SF120HOOP840DW | 28,6W | 4000K | 3545 | DALI | 1162mm | Blanc |
| F71SF120HOOP840DG | 28,6W | 4000K | 3545 | DALI | 1162mm | Gris |
| F71SF120HOOP830DW | 30,7W | 3000K | 3370 | DALI | 1162mm | Blanc |
| F71SF120LOOP840DG | 19,2W | 4000K | 2143 | DALI | 1162mm | Gris |
| F71SF120LOOP830DW | 19,2W | 3000K | 1992 | DALI | 1162mm | Blanc |
| F71SF120LOOP830DG | 19,2W | 3000K | 1992 | DALI | 1162mm | Gris |
