Fil 50F52SF120MOOP830NGFIL 50 G2 OPAL SUS 3000 WW GR.
Estructura superficie para suspender o adosar modelo FIL 50 SUR 1137 de la marca LAMP. Fabricada en extrusión de aluminio reciclado con una tasa del 80%, con difusor de policarbonato opal. Modelo para LED MID-POWER, con temperatura de 3000K con CRI80 y equipo electrónico incorporado. Con un grado de protección IP42, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Horas de vida: 70.000 L80 B10. Acabados disponibles: Blanco y gris.
- Potencia:
- 19W
- Temperatura de color:
- 3000K
- Flujo de salida:
- 1900
- Equipo:
- No regulable
- Longitud:
- 1137mm
- Acabado:
- Gloss grey
Características
Certificados

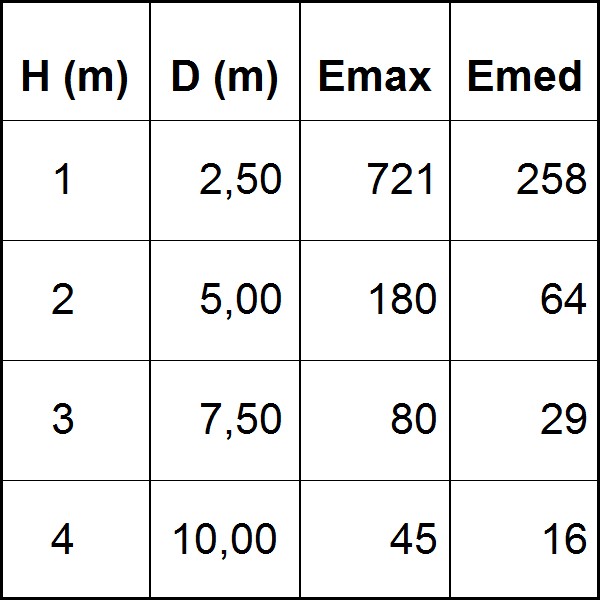

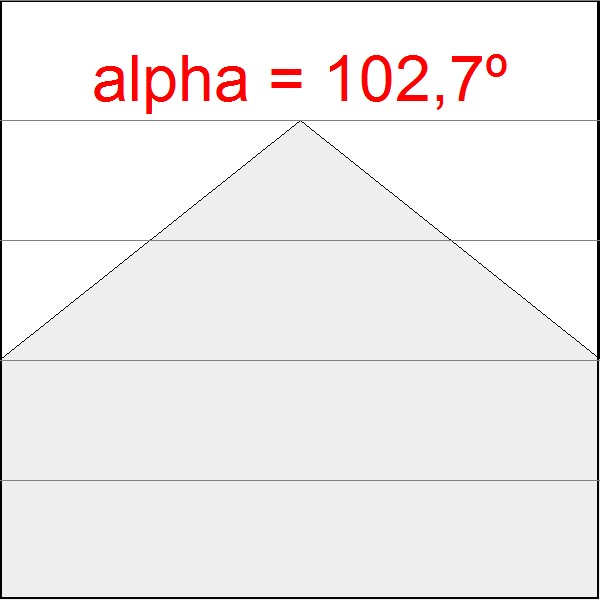

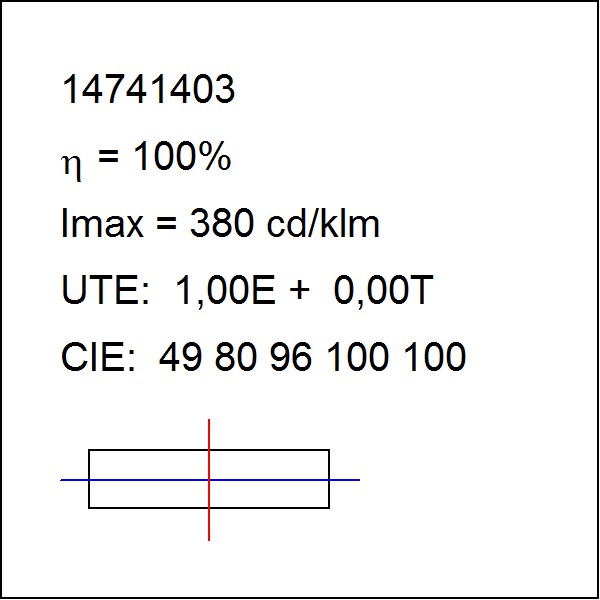

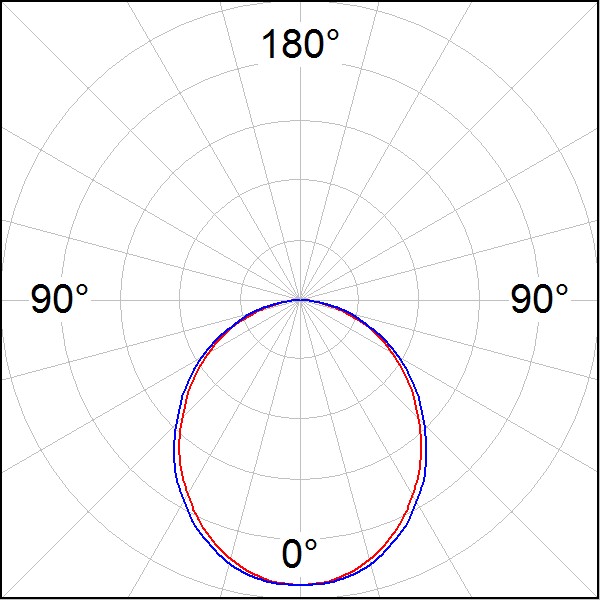

Datos fotométricos
¿Necesitas más información?
Variantes de este producto
| Código | W | K | lm out | Equipo | Longitud | Acabado |
|---|---|---|---|---|---|---|
| F52SF120HOOP830NG | 37W | 3000K | 3566 | - | 1137mm | Gloss grey |
| F52SF120HOOP830NW | 37W | 3000K | 3566 | - | 1137mm | Matte white RAL 9010 |
| F52SF120HOOP840NG | 37W | 4000K | 3761 | - | 1137mm | Gloss grey |
| F52SF120HOOP840NW | 37W | 4000K | 3761 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP830DG | 19W | 3000K | 1900 | DALI | 1137mm | Gloss grey |
| F52SF120MOOP830DW | 19W | 3000K | 1900 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP830NG | 19W | 3000K | 1900 | - | 1137mm | Gloss grey |
| F52SF120MOOP830NW | 19W | 3000K | 1900 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP840DG | 19W | 4000K | 2004 | DALI | 1137mm | Gloss grey |
| F52SF120MOOP840DW | 19W | 4000K | 2004 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP840NG | 19W | 4000K | 2004 | - | 1137mm | Gloss grey |
| F52SF120MOOP840NW | 19W | 4000K | 2004 | - | 1137mm | Matte white RAL 9010 |
| F52SF170HOOP830NG | 55W | 3000K | 5349 | - | 1700mm | Gloss grey |
| F52SF170HOOP830NW | 55W | 3000K | 5349 | - | 1700mm | Matte white RAL 9010 |
| F52SF170HOOP840NG | 55W | 4000K | 5642 | - | 1700mm | Gloss grey |
| F52SF170HOOP840NW | 55W | 4000K | 5642 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP830NG | 28W | 3000K | 2850 | - | 1700mm | Gloss grey |
| F52SF170MOOP830NW | 28W | 3000K | 2850 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP840NG | 28W | 4000K | 3006 | - | 1700mm | Gloss grey |
| F52SF170MOOP840NW | 28W | 4000K | 3006 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP840DW | 28W | 4000K | 3006 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP840DG | 28W | 4000K | 3006 | DALI | 1700mm | Gloss grey |
| F52SF170MOOP830DW | 28W | 3000K | 2850 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP830DG | 28W | 3000K | 2850 | DALI | 1700mm | Gloss grey |
| F52RC170MOPR830DG | 28W | 3000K | 2918 | DALI | 1700mm | Gloss grey |
| F52RC170MOPR830DW | 28W | 3000K | 2918 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR840DG | 28W | 4000K | 3075 | DALI | 1700mm | Gloss grey |
| F52RC170MOPR840DW | 28W | 4000K | 3075 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR840NW | 28W | 4000K | 3075 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR840NG | 28W | 4000K | 3075 | - | 1700mm | Gloss grey |
| F52RC170MOPR830NW | 28W | 3000K | 2918 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR830NG | 28W | 3000K | 2918 | - | 1700mm | Gloss grey |
| F52RC170HOPR840NW | 55W | 4000K | 5913 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOPR840NG | 55W | 4000K | 5913 | - | 1700mm | Gloss grey |
| F52RC170HOPR830NW | 55W | 3000K | 5610 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOPR830NG | 55W | 3000K | 5610 | - | 1700mm | Gloss grey |
| F52RC120MOPR840NW | 19W | 4000K | 2050 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR840NG | 19W | 4000K | 2050 | - | 1137mm | Gloss grey |
| F52RC120MOPR840DW | 19W | 4000K | 2050 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR840DG | 19W | 4000K | 2050 | DALI | 1137mm | Gloss grey |
| F52RC120MOPR830NW | 19W | 3000K | 1945 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR830NG | 19W | 3000K | 1945 | - | 1137mm | Gloss grey |
| F52RC120MOPR830DW | 19W | 3000K | 1945 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR830DG | 19W | 3000K | 1945 | DALI | 1137mm | Gloss grey |
| F52RC120MOOP830DG | 19W | 3000K | 1900 | DALI | 1137mm | Gloss grey |
| F52RC120HOPR840NW | 37W | 4000K | 3942 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOPR840NG | 37W | 4000K | 3942 | - | 1137mm | Gloss grey |
| F52RC120HOPR830NW | 37W | 3000K | 3740 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOPR830NG | 37W | 3000K | 3740 | - | 1137mm | Gloss grey |
| F52RC170MOOP830DW | 28W | 3000K | 2850 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP840DG | 28W | 4000K | 3006 | DALI | 1700mm | Gloss grey |
| F52RC170MOOP830DG | 28W | 3000K | 2850 | DALI | 1700mm | Gloss grey |
| F52RC170MOOP840DW | 28W | 4000K | 3006 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP840NW | 28W | 4000K | 3006 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP840NG | 28W | 4000K | 3006 | - | 1700mm | Gloss grey |
| F52RC170MOOP830NW | 28W | 3000K | 2850 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP830NG | 28W | 3000K | 2850 | - | 1700mm | Gloss grey |
| F52RC170HOOP840NW | 55W | 4000K | 5642 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOOP840NG | 55W | 4000K | 5642 | - | 1700mm | Gloss grey |
| F52RC170HOOP830NW | 55W | 3000K | 5349 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOOP830NG | 55W | 3000K | 5349 | - | 1700mm | Gloss grey |
| F52RC120MOOP840NW | 19W | 4000K | 2004 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOOP840NG | 19W | 4000K | 2004 | - | 1137mm | Gloss grey |
| F52RC120MOOP840DW | 19W | 4000K | 2004 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120MOOP840DG | 19W | 4000K | 2004 | DALI | 1137mm | Gloss grey |
| F52RC120MOOP830NW | 19W | 3000K | 1900 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOOP830NG | 19W | 3000K | 1900 | - | 1137mm | Gloss grey |
| F52RC120MOOP830DW | 19W | 3000K | 1900 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120HOOP840NW | 37W | 4000K | 3761 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOOP840NG | 37W | 4000K | 3761 | - | 1137mm | Gloss grey |
| F52RC120HOOP830NW | 37W | 3000K | 3566 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOOP830NG | 37W | 3000K | 3566 | - | 1137mm | Gloss grey |
| F52SF120HOPR830NG | 37W | 3000K | 3740 | - | 1137mm | Gloss grey |
| F52SF170MOPR830DG | 28W | 3000K | 2918 | DALI | 1700mm | Gloss grey |
| F52SF170MOPR830DW | 28W | 3000K | 2918 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR840DG | 28W | 4000K | 3075 | DALI | 1700mm | Gloss grey |
| F52SF170MOPR840DW | 28W | 4000K | 3075 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR840NW | 28W | 4000K | 3075 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR840NG | 28W | 4000K | 3075 | - | 1700mm | Gloss grey |
| F52SF170MOPR830NW | 28W | 3000K | 2918 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR830NG | 28W | 3000K | 2918 | - | 1700mm | Gloss grey |
| F52SF170HOPR840NW | 55W | 4000K | 5913 | - | 1700mm | Matte white RAL 9010 |
| F52SF170HOPR840NG | 55W | 4000K | 5913 | - | 1700mm | Gloss grey |
| F52SF170HOPR830NW | 55W | 3000K | 5610 | - | 1700mm | Matte white RAL 9010 |
| F52SF170HOPR830NG | 55W | 3000K | 5610 | - | 1700mm | Gloss grey |
| F52SF120MOPR840NW | 19W | 4000K | 2050 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR840NG | 19W | 4000K | 2050 | - | 1137mm | Gloss grey |
| F52SF120MOPR840DW | 19W | 4000K | 2050 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR840DG | 19W | 4000K | 2050 | DALI | 1137mm | Gloss grey |
| F52SF120MOPR830NW | 19W | 3000K | 1945 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR830NG | 19W | 3000K | 1945 | - | 1137mm | Gloss grey |
| F52SF120MOPR830DW | 19W | 3000K | 1945 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR830DG | 19W | 3000K | 1945 | DALI | 1137mm | Gloss grey |
| F52SF120HOPR840NW | 37W | 4000K | 3942 | - | 1137mm | Matte white RAL 9010 |
| F52SF120HOPR840NG | 37W | 4000K | 3942 | - | 1137mm | Gloss grey |
| F52SF120HOPR830NW | 37W | 3000K | 3740 | - | 1137mm | Matte white RAL 9010 |
Accesorios
Montaje
Suspensión
