Trace

Gallery Description Products Downloads Installations Related products

The range of wall recessed luminaires TRACE, is fully integrated, giving prominence in the space to be lit. This range of luminaires is very suitable for flooding walkways, stairs or rooms that require comfortable lighting. The variety of designs makes it possible to create countless different patterns on the wall. The family consists of an indoor model with IP40 and an outdoor model with IP65.

TRACE consists of four versions, of two different dimensions, which allow making luminous compositions on the wall. Made in bended iron metalsheet, with matt black serigraphed tempered glass, for LED technology with warm white colour temperature and control gear included.

With texturized white lacquered aluminium symmetric or asymmetric reflector and luminous support fixed at 90º respect the ground to generate an indirect and comforting lighting.

A recessed box accessory is necessary for installation.

Custom-made possibilities

4000 K

Finished and custom-made in serigraphy

Products

Trace

4 Products

Trace 200 vertical 70

Trace 100 horizontal

Trace 200 vertical 120

Trace 200 horizontal

Trace 200 vertical 70

Code	W	K	lm out	Gear	Finishing	lm	Gear
5641622	1.5W	3000K	94	-	Black	150	Non-adjustable	Wall recessed

Trace 100 horizontal

Code	W	K	lm out	Gear	Finishing	lm	Gear
5641602	1.5W	3000K	68	-	Black	150	Non-adjustable	Wall recessed

Trace 200 vertical 120

Code	W	K	lm out	Gear	Finishing	lm	Gear
5641632	3W	3000K	156	-	Black	300	Non-adjustable	Wall recessed

Trace 200 horizontal

Code	W	K	lm out	Gear	Finishing	lm	Gear
5641612	1.5W	3000K	92	-	Black	150	Non-adjustable	Wall recessed

No results found for the current filters.

Downloads

ELU

Download all (4)

Installation instructions

CAD symbols (DWG)

BIM files

IES

Product sheets

Energy efficiency labels

Download all (4)

Do you need more information?
We can help you

Contact

Installations

Papalote Museum

Mexico City,Mexico

Lamp Solution

Trace 100 horizontal

Papalote Museum

Mexico City,Mexico

Lamp Solution

Trace 100 horizontal

Papalote Museum

Mexico City,Mexico

Lamp Solution

Trace 100 horizontal

Papalote Museum

Mexico City,Mexico

Lamp Solution

Trace 100 horizontal

Related products

Mun dark 120

Mun dark 300

Mun dark 180

Ambient

Trace 65 100

Trace 65 200

Trace

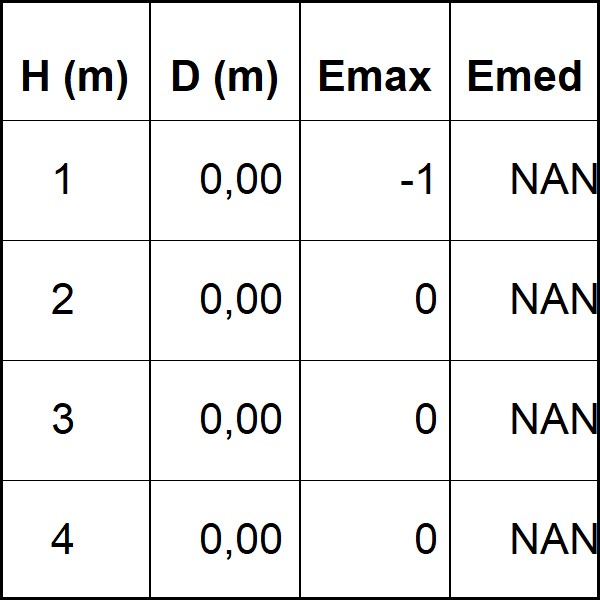

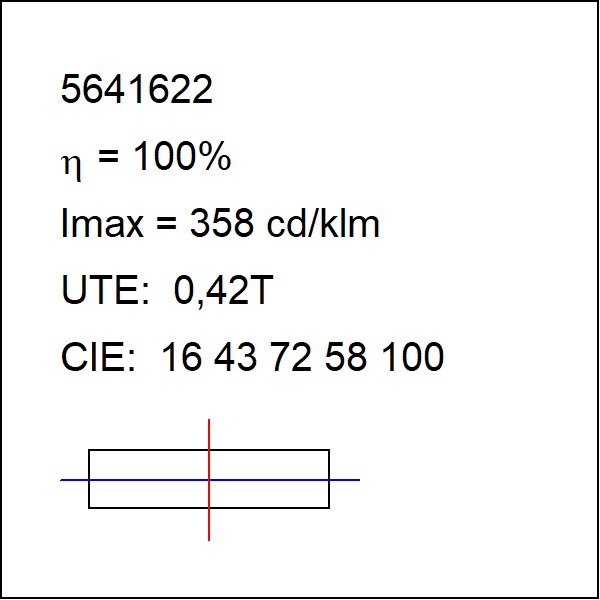

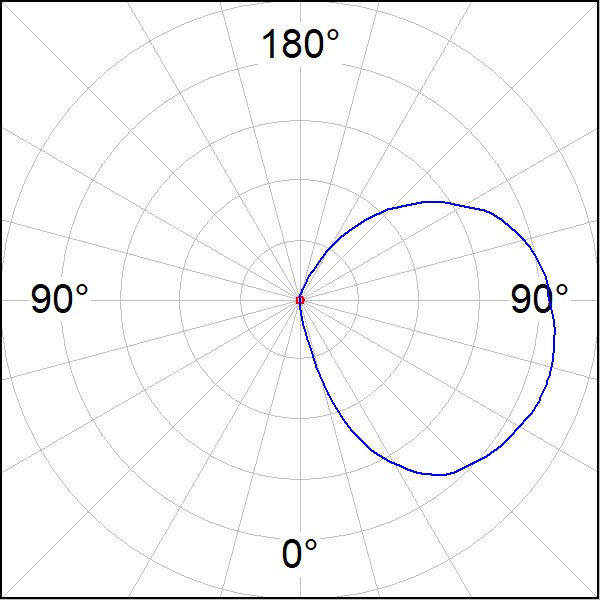

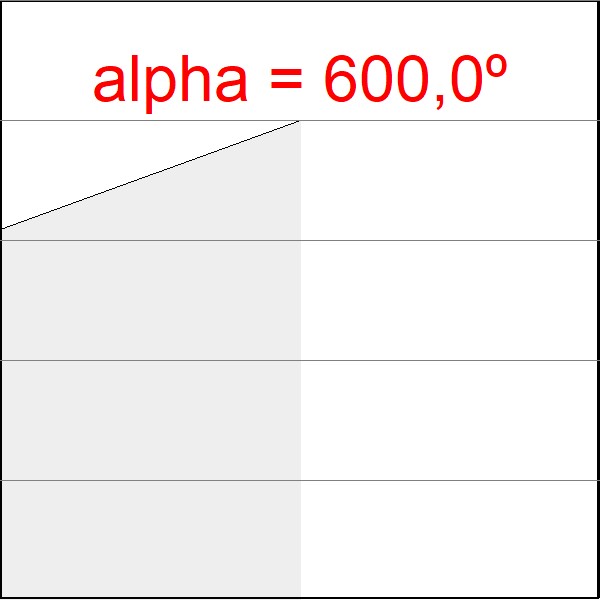

Trace 200 vertical 705641622TRACE 200 VERT 70 WW BK.

Name: TRACE 200 VERT 70 WW BK.
Brand: Lamp
SKU: 5641622

Wall-recessed luminaire model TRACE 200 VERT 70 WW BK., LAMP brand. Body made of bended iron metalsheet and matt black serigraphed tempered glass. Model for MID-POWER LED with warm white colour temperature and control gear included. Texturised white lacquered aluminium asymmetric reflector. IP40 protection rating. Insulation class I.
