Shot

Shot 290SH22965SP730NGSHOT 290 G2 6500 WW SP GR.

Outdoor projector model SHOT 290 G2 6500 WW SP GR. LAMP brand. Manufactured with texturized grey lacquered die cast aluminium, with tempered glass, stainless steel screws and silicone gasket. Passive dissipation for thermal management. Model for LED HI-POWER, warm white colour temperature and control gear included. With Spot optics. IP65, IK08 protection rating. Insulation class I.

Overture:: 12º
Power:: 44W
Color temperature:: 3000K
Lumen output:: 4457
Gear:: Non-adjustable
Finishing:: Texturised grey

Features

Certificates

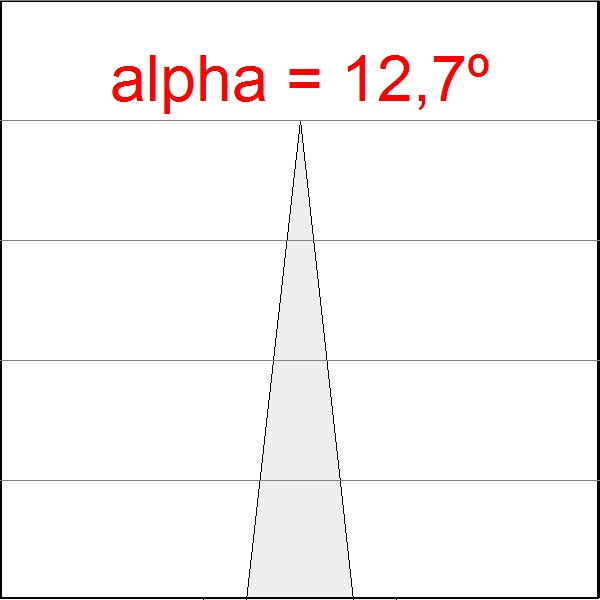

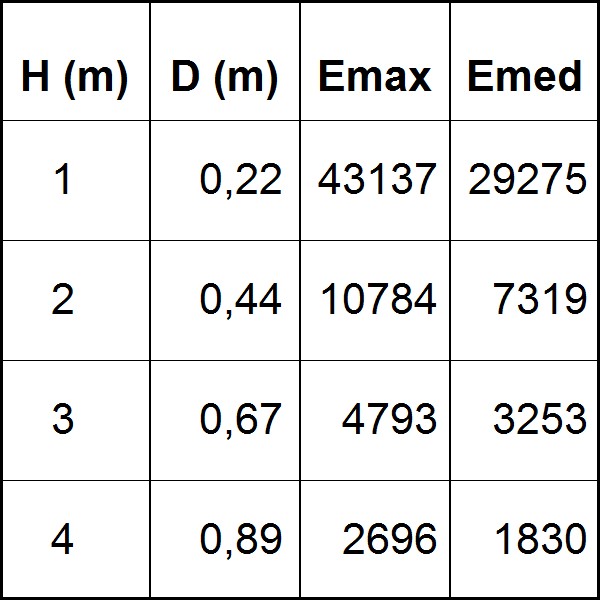

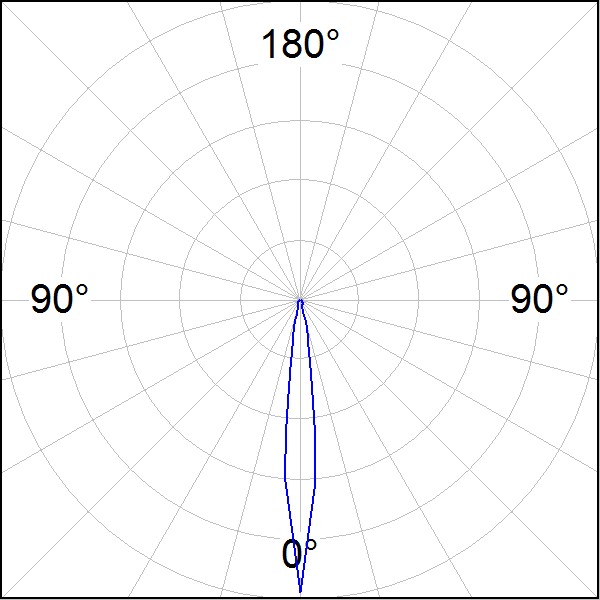

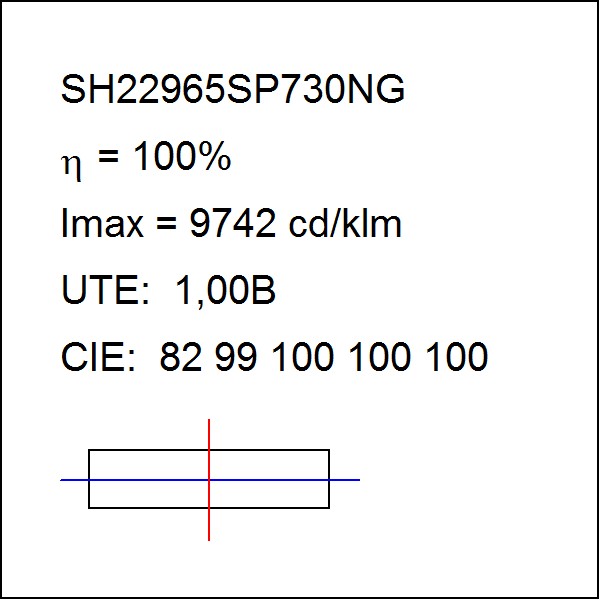

Photometric data

Do you need more information?

Product variants

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
SH22965MF730NG	22º	44W	3000K	4520	-	Grey	6500	Non-adjustable
SH22965MF740NG	22º	44W	4000K	4758	-	Grey	6500	Non-adjustable
SH22965SP730NG	12º	44W	3000K	4457	-	Grey	6500	Non-adjustable
SH22965SP740NG	12º	44W	4000K	4692	-	Grey	6500	Non-adjustable

Accessories

Support

COARIN060AACC. CO ARM IND 60-135 ANT.

COARIN060GACC. CO ARM IND 60-135 GR.

COARLOINT080AACC. CO ARM LONG INT ANT.

COARLOINT080GACC. CO ARM LONG INT GR.

COARSHINT080AACC. CO ARM SHORT INT ANT.

COARSHINT080GACC. CO ARM SHORT INT GR.

FXARWAAACC. FX ARM WALL ANT.

FXARWAGACC. FX ARM WALL GR.

Optical

SH29SC297BSHOT 290 ACC. ANTIGLARE SCREEN

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MC209SP840NA	19º	6W	4000K	720	-	Textured anthracite	900	Non-adjustable	Floor surface\|Wall surface
MC209SP830NA	19º	6W	3000K	720	-	Textured anthracite	900	Non-adjustable	Floor surface\|Wall surface
MC209MF840NA	28º	6W	4000K	609	-	Textured anthracite	900	Non-adjustable	Floor surface\|Wall surface
MC209MF830NA	28º	6W	3000K	609	-	Textured anthracite	900	Non-adjustable	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MC209MF830NG	28º	6W	3000K	609	-	Grey	900	Non-adjustable	Floor surface\|Wall surface
MC209MF840NG	28º	6W	4000K	609	-	Grey	900	Non-adjustable	Floor surface\|Wall surface
MC209SP830NG	19º	6W	3000K	720	-	Grey	900	Non-adjustable	Floor surface\|Wall surface
MC209SP840NG	19º	6W	4000K	720	-	Grey	900	Non-adjustable	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MC209SP8400A	19º	6W	4000K	720	Without gear (requires external gear)	Textured anthracite	900	Without gear (requires external gear)	Floor surface\|Wall surface
MC209SP8300A	19º	6W	3000K	720	Without gear (requires external gear)	Textured anthracite	900	Without gear (requires external gear)	Floor surface\|Wall surface
MC209MF8400A	28º	6W	4000K	609	Without gear (requires external gear)	Textured anthracite	900	Without gear (requires external gear)	Floor surface\|Wall surface
MC209MF8300A	28º	6W	3000K	609	Without gear (requires external gear)	Textured anthracite	900	Without gear (requires external gear)	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MC209MF8300G	28º	6W	3000K	609	Without gear (requires external gear)	Grey	900	Without gear (requires external gear)	Floor surface\|Wall surface
MC209MF8400G	28º	6W	4000K	609	Without gear (requires external gear)	Grey	900	Without gear (requires external gear)	Floor surface\|Wall surface
MC209SP8300G	19º	6W	3000K	720	Without gear (requires external gear)	Grey	900	Without gear (requires external gear)	Floor surface\|Wall surface
MC209SP8400G	19º	6W	4000K	720	Without gear (requires external gear)	Grey	900	Without gear (requires external gear)	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MN215SP830NA	11º	10W	3000K	1146	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN215MF840NA	23º	10W	4000K	1097	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN240SP830NA	11º	30W	3000K	3032	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN240MF840NG	24º	30W	4000K	2937	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN240MF830NG	24º	30W	3000K	2937	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN230SP840NA	11º	20W	4000K	2215	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN230SP830NA	11º	20W	3000K	2215	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN230MF840NG	23º	20W	4000K	2155	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN215SP840NA	11º	10W	4000K	1146	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN240SP840NA	11º	30W	4000K	3032	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN240SP830NG	11º	30W	3000K	3032	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN240MF840NA	24º	30W	4000K	2937	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN240MF830NA	24º	30W	3000K	2937	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN230SP840NG	11º	20W	4000K	2215	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN230SP830NG	11º	20W	3000K	2215	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN230MF840NA	23º	20W	4000K	2155	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN230MF830NG	23º	20W	3000K	2155	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN230MF830NA	23º	20W	3000K	2155	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN215MF830NA	23º	10W	3000K	1097	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN240SP840NG	11º	30W	4000K	3032	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MN215MF830NG	23º	10W	3000K	1097	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface
MN215MF840NG	23º	10W	4000K	1097	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface
MN215SP830NG	11º	10W	3000K	1146	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface
MN215SP840NG	11º	10W	4000K	1146	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MN2BR40SP840NG	11º	30W	4000K	3032	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR40MF840NG	24º	30W	4000K	2937	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR40MF840NA	24º	30W	4000K	2937	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR40MF830NA	24º	30W	3000K	2937	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR30SP840NG	11º	20W	4000K	2215	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR30SP840NA	11º	20W	4000K	2215	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR30SP830NG	11º	20W	3000K	2215	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR30MF840NA	23º	20W	4000K	2155	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR30MF830NG	23º	20W	3000K	2155	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR30MF830NA	23º	20W	3000K	2155	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR15SP840NA	11º	10W	4000K	1146	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN2BR40SP840NA	11º	30W	4000K	3032	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR40SP830NG	11º	30W	3000K	3032	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR40SP830NA	11º	30W	3000K	3032	-	Textured anthracite	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR40MF830NG	24º	30W	3000K	2937	-	Grey	3800	Non-adjustable	Floor surface\|Wall surface
MN2BR30SP830NA	11º	20W	3000K	2215	-	Textured anthracite	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR30MF840NG	23º	20W	4000K	2155	-	Grey	2900	Non-adjustable	Floor surface\|Wall surface
MN2BR15SP830NA	11º	10W	3000K	1146	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN2BR15MF840NA	23º	10W	4000K	1097	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface
MN2BR15MF830NA	23º	10W	3000K	1097	-	Textured anthracite	1500	Non-adjustable	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
MN2BR15MF830NG	23º	10W	3000K	1097	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface
MN2BR15MF840NG	23º	10W	4000K	1097	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface
MN2BR15SP830NG	11º	10W	3000K	1146	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface
MN2BR15SP840NG	11º	10W	4000K	1146	-	Grey	1500	Non-adjustable	Floor surface\|Wall surface

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
SH270SP840NG	11º	56W	4000K	5419	-	Grey	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270SP840NA	11º	56W	4000K	5419	-	Textured anthracite	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270SP830NG	11º	56W	3000K	5419	-	Grey	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270SP830NA	11º	56W	3000K	5419	-	Textured anthracite	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270MF840NG	24º	56W	4000K	5396	-	Grey	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270MF840NA	24º	56W	4000K	5396	-	Textured anthracite	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270MF830NG	24º	56W	3000K	5396	-	Grey	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270MF830NA	24º	56W	3000K	5396	-	Textured anthracite	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH250SP840NA	11º	37W	4000K	4127	-	Textured anthracite	5000	Non-adjustable	Floor surface\|Wall surface\|Column
SH250SP830NA	11º	37W	3000K	4127	-	Textured anthracite	5000	Non-adjustable	Floor surface\|Wall surface\|Column
SH250MF840NA	23º	37W	4000K	4112	-	Textured anthracite	5000	Non-adjustable	Floor surface\|Wall surface\|Column
SH250MF830NA	23º	37W	3000K	4112	-	Textured anthracite	5000	Non-adjustable	Floor surface\|Wall surface\|Column

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
SH270ST840NG	-	56W	4000K	5050	-	Grey	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH270ST840NA	-	56W	4000K	5050	-	Textured anthracite	7200	Non-adjustable	Floor surface\|Wall surface\|Column
SH250ST840NA	-	37W	4000K	3850	-	Textured anthracite	5000	Non-adjustable	Floor surface\|Wall surface\|Column

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
SH250MF830NG	23º	37W	3000K	4112	-	Grey	5000	Non-adjustable	Floor surface\|Wall surface\|Column
SH250MF840NG	23º	37W	4000K	4112	-	Grey	5000	Non-adjustable	Floor surface\|Wall surface\|Column
SH250SP830NG	11º	37W	3000K	4127	-	Grey	5000	Non-adjustable	Floor surface\|Wall surface\|Column
SH250SP840NG	11º	37W	4000K	4127	-	Grey	5000	Non-adjustable	Floor surface\|Wall surface\|Column

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
SH23807MF730NG	23º	45W	3000K	5320	-	Grey	7000	Non-adjustable	Floor surface\|Wall surface\|Column
SH23807MF740NG	23º	45W	4000K	5600	-	Grey	7000	Non-adjustable	Floor surface\|Wall surface\|Column
SH23807SP730NG	12º	45W	3000K	5246	-	Grey	7000	Non-adjustable	Floor surface\|Wall surface\|Column
SH23807SP740NG	12º	45W	4000K	5522	-	Grey	7000	Non-adjustable	Floor surface\|Wall surface\|Column
SH23811MF730NG	23º	73W	3000K	7891	-	Grey	10500	Non-adjustable	Floor surface\|Wall surface\|Column
SH23811MF740NG	23º	73W	4000K	8306	-	Grey	10500	Non-adjustable	Floor surface\|Wall surface\|Column
SH23811SP730NG	12º	73W	3000K	7781	-	Grey	10500	Non-adjustable	Floor surface\|Wall surface\|Column
SH23811SP740NG	12º	73W	4000K	8191	-	Grey	10500	Non-adjustable	Floor surface\|Wall surface\|Column

Code	∢	W	K	lm out	Gear	Finishing	lm	Gear
SH23807ST740NG	-	45W	4000K	5754	-	Grey	7000	Non-adjustable	Floor surface\|Wall surface\|Column
SH23811ST740NG	-	73W	4000K	8535	-	Grey	10500	Non-adjustable	Floor surface\|Wall surface\|Column
