Plat IP40PL306035PR4040NWPLAT G3 600X600 3400 NW PRIS IP40 WH
Recessed or suspended luminaire model PLAT G3, LAMP brand. Made of matt white steel with prismatic polycarbonate diffuser. Model with MID-POWER LED, 4000K colour temperature and CRI 80. Control gear included. Glare rating <19 (for 4h, 8h 70/50/20). With a protection rating of IP40 (non-recessed part) and IP20 (recessed part), IK06. Insulation class II. Photobiological safety group 0. Lifetime: 70.000h L80 B10
- Power:
- 28W
- Color temperature:
- 4000K
- Lumen output:
- 3607
- Gear:
- Non-adjustable
- Finishing:
- Matte Traffic white RAL 9016
- Width:
- 596mm
- Length:
- 596mm
Features
Certificates

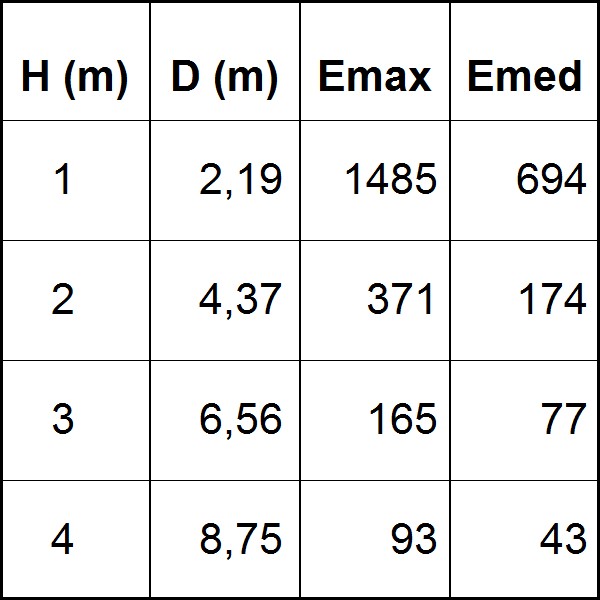

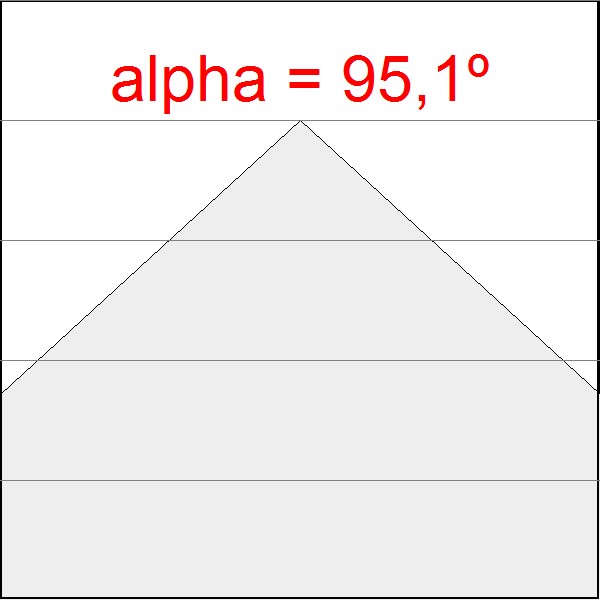

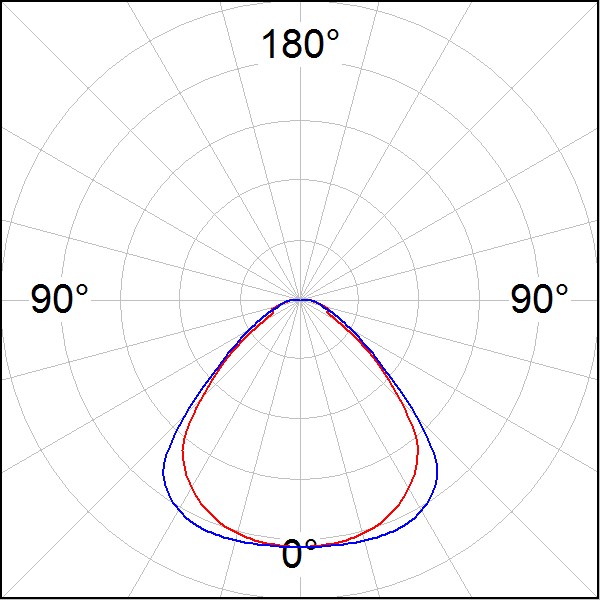

Photometric data
Do you need more information?
Product variants
| Code | W | K | lm out | Gear | Finishing | Width | Length |
|---|---|---|---|---|---|---|---|
| PL312035PR4040NW | 30W | 4000K | 3607 | - | White | 296mm | 1196mm |
| PL312035PR4040DW | 30W | 4000K | 3607 | DALI | White | 296mm | 1196mm |
| PL312035PR4030NW | 30W | 3000K | 3395 | - | White | 296mm | 1196mm |
| PL312035PR4030DW | 30W | 3000K | 3395 | DALI | White | 296mm | 1196mm |
| PL312035OP4040DW | 30W | 4000K | 3819 | DALI | White | 296mm | 1196mm |
| PL312035OP4030NW | 30W | 3000K | 3607 | - | White | 296mm | 1196mm |
| PL312035OP4030DW | 30W | 3000K | 3607 | DALI | White | 296mm | 1196mm |
| PL306035PR4040NW | 28W | 4000K | 3607 | - | White | 596mm | 596mm |
| PL306035PR4040DW | 28W | 4000K | 3607 | DALI | White | 596mm | 596mm |
| PL306035PR4030NW | 28W | 3000K | 3395 | - | White | 596mm | 596mm |
| PL306035PR4030DW | 28W | 3000K | 3395 | DALI | White | 596mm | 596mm |
| PL306035OP5440NW | 28W | 4000K | 3819 | - | White | 596mm | 596mm |
| PL306035OP5440DW | 28W | 4000K | 3819 | DALI | White | 596mm | 596mm |
| PL306035OP5430NW | 28W | 3000K | 3607 | - | White | 596mm | 596mm |
| PL306035OP5430DW | 28W | 3000K | 3607 | DALI | White | 596mm | 596mm |
| PL306035OP408TWDW | 31W | 2700-6500K | 4495 | Adjustable DALI DT8 | White | 596mm | 596mm |
| PL306035OP4040NW | 28W | 4000K | 3819 | - | White | 596mm | 596mm |
| PL306035OP4040DW | 28W | 4000K | 3819 | DALI | White | 596mm | 596mm |
| PL306035OP4030NW | 28W | 3000K | 3607 | - | White | 596mm | 596mm |
| PL306035OP4030DW | 28W | 3000K | 3607 | DALI | White | 596mm | 596mm |
| PL312035PR40940NW | 28W | 4000K | 3000 | - | - | 296mm | 1196mm |
| PL312035PR40940DW | 28W | 4000K | 3000 | DALI | - | 296mm | 1196mm |
| PL312035PR4035NW | 28W | 3500K | 3500 | - | - | 296mm | 1196mm |
| PL312035PR4035DW | 28W | 3500K | 3500 | DALI | - | 296mm | 1196mm |
| PL306035PR4035NW | 28W | 3500K | 3500 | - | - | 596mm | 596mm |
| PL306035PR4035DW | 28W | 3500K | 3500 | DALI | - | 596mm | 596mm |
| PL312040PR4035NW | 28W | 3500K | 3500 | - | - | 296mm | 1196mm |
| PL312040PR4035DW | 28W | 3500K | 3500 | DALI | - | 296mm | 1196mm |
| PL306040PR4035NW | 28W | 3500K | 3500 | - | - | 596mm | 596mm |
| PL306040PR4035DW | 28W | 3500K | 3500 | DALI | - | 596mm | 596mm |
