Imag g2 surface10843410IMAG G2 SUR 4000 WW FL WH.
Multi-directional for wall or ceiling mounting projector model IMAG G2 SUR 4000 WW FL WH., LAMP brand. Manufactured with aluminium die casting and polycarbonate finished in texturized white. Passive dissipation for thermal management. Model for COB LED, with warm white colour temperature and control gear included. High quality aluminium Flood reflector. Insulation class II.
- Overture:
- 35º
- Power:
- 30W
- Color temperature:
- 3000K
- CRI:
- 80
- Lumen output:
- 3689
- Gear:
- Non-adjustable
- Finishing:
- Texturised matt white RAL 9016
Features
Certificates

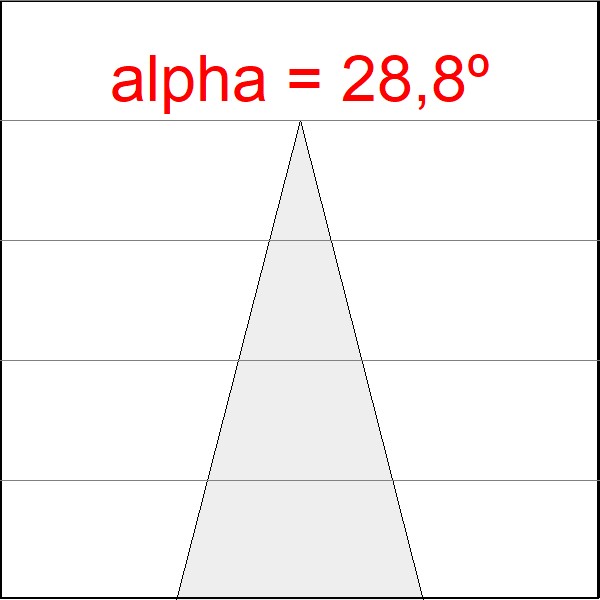

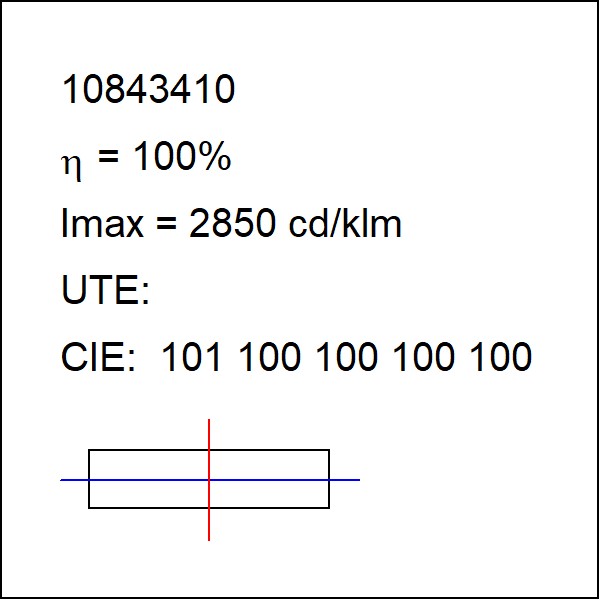

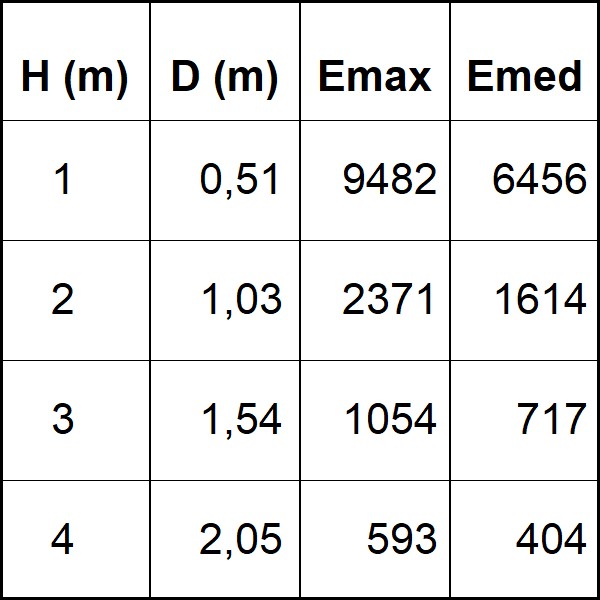

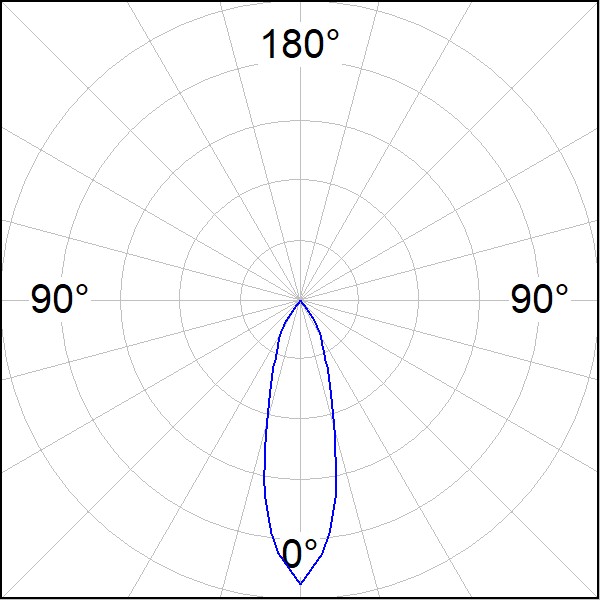

Photometric data
Do you need more information?
Product variants
| Code | ∢ | W | K | CRI | lm out | Gear | Finishing | lm | Gear |
|---|---|---|---|---|---|---|---|---|---|
| 10843330 | 16º | 15W | 3000K | 80 | 1684 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843332 | 16º | 15W | 3000K | 80 | 1684 | - | Graphite | 2000 | Non-adjustable |
| 10844330 | 16º | 15W | 4000K | 80 | 1800 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844332 | 16º | 15W | 4000K | 80 | 1800 | - | Graphite | 2000 | Non-adjustable |
| 10843360 | 16º | 26W | 3000K | 80 | 2493 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10843362 | 16º | 26W | 3000K | 80 | 2493 | - | Graphite | 3000 | Non-adjustable |
| 10844360 | 16º | 26W | 4000K | 80 | 2715 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844362 | 16º | 26W | 4000K | 80 | 2715 | - | Graphite | 3000 | Non-adjustable |
| 10843390 | 18º | 30W | 3000K | 80 | 3489 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843392 | 18º | 30W | 3000K | 80 | 3489 | - | Graphite | 4000 | Non-adjustable |
| 10844390 | 18º | 30W | 4000K | 80 | 3304 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844392 | 18º | 30W | 4000K | 80 | 3304 | - | Graphite | 4000 | Non-adjustable |
| 10843420 | 20º | 44W | 3000K | 80 | 4699 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843422 | 20º | 44W | 3000K | 80 | 4699 | - | Graphite | 5000 | Non-adjustable |
| 10844420 | 20º | 44W | 4000K | 80 | 4336 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844422 | 20º | 44W | 4000K | 80 | 4336 | - | Graphite | 5000 | Non-adjustable |
| 10843340 | 22º | 15W | 3000K | 80 | 1787 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843342 | 22º | 15W | 3000K | 80 | 1787 | - | Graphite | 2000 | Non-adjustable |
| 10844340 | 22º | 15W | 4000K | 80 | 1910 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844342 | 22º | 15W | 4000K | 80 | 1910 | - | Graphite | 2000 | Non-adjustable |
| 10843370 | 22º | 26W | 3000K | 80 | 2646 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10843372 | 22º | 26W | 3000K | 80 | 2646 | - | Graphite | 3000 | Non-adjustable |
| 10844370 | 22º | 26W | 4000K | 80 | 2845 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844372 | 22º | 26W | 4000K | 80 | 2845 | - | Graphite | 3000 | Non-adjustable |
| 10843400 | 24º | 30W | 3000K | 80 | 3600 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843402 | 24º | 30W | 3000K | 80 | 3600 | - | Graphite | 4000 | Non-adjustable |
| 10844400 | 24º | 30W | 4000K | 80 | 3449 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844402 | 24º | 30W | 4000K | 80 | 3449 | - | Graphite | 4000 | Non-adjustable |
| 10843430 | 26º | 44W | 3000K | 80 | 4795 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843432 | 26º | 44W | 3000K | 80 | 4795 | - | Graphite | 5000 | Non-adjustable |
| 10844430 | 26º | 44W | 4000K | 80 | 4526 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844432 | 26º | 44W | 4000K | 80 | 4526 | - | Graphite | 5000 | Non-adjustable |
| 10843350 | 33º | 15W | 3000K | 80 | 1798 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843352 | 33º | 15W | 3000K | 80 | 1798 | - | Graphite | 2000 | Non-adjustable |
| 10844350 | 33º | 15W | 4000K | 80 | 1922 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844352 | 33º | 15W | 4000K | 80 | 1922 | - | Graphite | 2000 | Non-adjustable |
| 10843380 | 33º | 26W | 3000K | 80 | 2662 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10843382 | 33º | 26W | 3000K | 80 | 2662 | - | Graphite | 3000 | Non-adjustable |
| 10844380 | 33º | 26W | 4000K | 80 | 2859 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844382 | 33º | 26W | 4000K | 80 | 2859 | - | Graphite | 3000 | Non-adjustable |
| 10843410 | 35º | 30W | 3000K | 80 | 3689 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843412 | 35º | 30W | 3000K | 80 | 3689 | - | Graphite | 4000 | Non-adjustable |
| 10844410 | 35º | 30W | 4000K | 80 | 3481 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844412 | 35º | 30W | 4000K | 80 | 3481 | - | Graphite | 4000 | Non-adjustable |
| 10843440 | 36º | 44W | 3000K | 80 | 4783 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843442 | 36º | 44W | 3000K | 80 | 4783 | - | Graphite | 5000 | Non-adjustable |
| 10844440 | 36º | 44W | 4000K | 80 | 4568 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844442 | 36º | 44W | 4000K | 80 | 4568 | - | Graphite | 5000 | Non-adjustable |
| 10843610 | 57º | 15W | 3000K | 80 | 2016 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843612 | 57º | 15W | 3000K | 80 | 2016 | - | Graphite | 2000 | Non-adjustable |
| 10844610 | 57º | 15W | 4000K | 80 | 2100 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844612 | 57º | 15W | 4000K | 80 | 2100 | - | Graphite | 2000 | Non-adjustable |
| 10843620 | 57º | 26W | 3000K | 80 | 2984 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844620 | 57º | 26W | 4000K | 80 | 3108 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844622 | 57º | 26W | 4000K | 80 | 3108 | - | Graphite | 3000 | Non-adjustable |
| 10843630 | 56º | 30W | 3000K | 80 | 3732 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843632 | 56º | 30W | 3000K | 80 | 3732 | - | Graphite | 4000 | Non-adjustable |
| 10844630 | 56º | 30W | 4000K | 80 | 3688 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844632 | 56º | 30W | 4000K | 80 | 3688 | - | Graphite | 4000 | Non-adjustable |
| 10843640 | 56º | 44W | 3000K | 80 | 4845 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843642 | 56º | 44W | 3000K | 80 | 4845 | - | Graphite | 5000 | Non-adjustable |
| 10844640 | 56º | 44W | 4000K | 80 | 4840 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844642 | 56º | 44W | 4000K | 80 | 4840 | - | Graphite | 5000 | Non-adjustable |
| 10843622 | 57º | 26W | 3000K | 80 | 2984 | - | Graphite | 3000 | Non-adjustable |
