Imag g2 surface10843612IMAG G2 SUR 2000 WW WFL GRH.
Multi-directional for wall or ceiling mounting projector model IMAG G2 SUR 2000 WW WFL GRH., LAMP brand. Manufactured with aluminium die casting and polycarbonate finished in texturized graphite. Passive dissipation for thermal management. Model for COB LED, with warm white colour temperature and control gear included. High quality aluminium Wide Flood reflector. Insulation class II.
- Overture:
- 57º
- Power:
- 15W
- Color temperature:
- 3000K
- CRI:
- 80
- Lumen output:
- 2016
- Gear:
- Non-adjustable
- Finishing:
- Texturised graphite RAL 7021
Features
Certificates

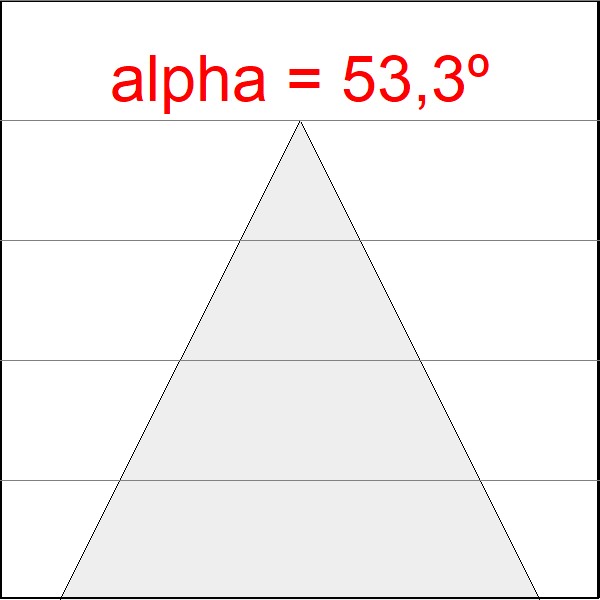

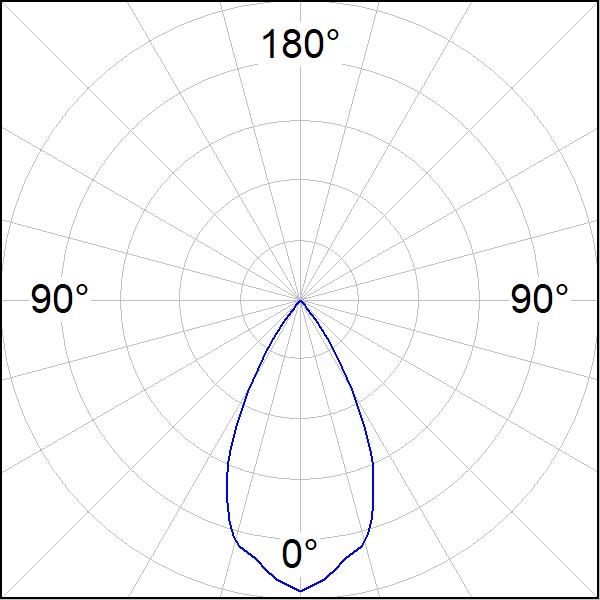

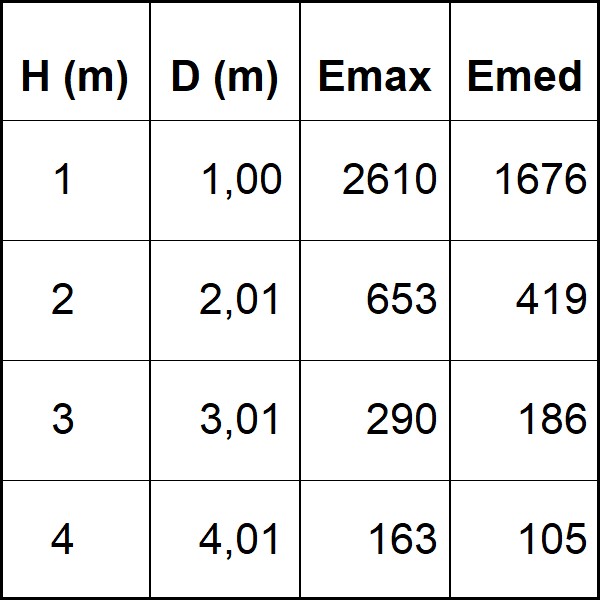

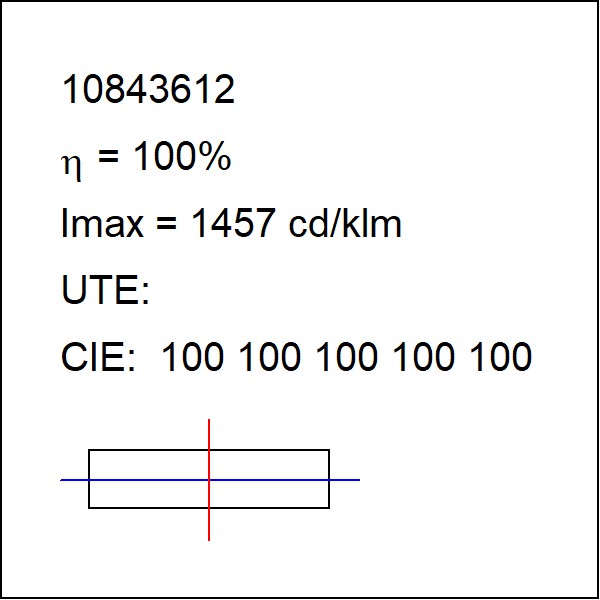

Photometric data
Do you need more information?
Product variants
| Code | ∢ | W | K | CRI | lm out | Gear | Finishing | lm | Gear |
|---|---|---|---|---|---|---|---|---|---|
| 10843330 | 16º | 15W | 3000K | 80 | 1684 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843332 | 16º | 15W | 3000K | 80 | 1684 | - | Graphite | 2000 | Non-adjustable |
| 10844330 | 16º | 15W | 4000K | 80 | 1800 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844332 | 16º | 15W | 4000K | 80 | 1800 | - | Graphite | 2000 | Non-adjustable |
| 10843360 | 16º | 26W | 3000K | 80 | 2493 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10843362 | 16º | 26W | 3000K | 80 | 2493 | - | Graphite | 3000 | Non-adjustable |
| 10844360 | 16º | 26W | 4000K | 80 | 2715 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844362 | 16º | 26W | 4000K | 80 | 2715 | - | Graphite | 3000 | Non-adjustable |
| 10843390 | 18º | 30W | 3000K | 80 | 3489 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843392 | 18º | 30W | 3000K | 80 | 3489 | - | Graphite | 4000 | Non-adjustable |
| 10844390 | 18º | 30W | 4000K | 80 | 3304 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844392 | 18º | 30W | 4000K | 80 | 3304 | - | Graphite | 4000 | Non-adjustable |
| 10843420 | 20º | 44W | 3000K | 80 | 4699 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843422 | 20º | 44W | 3000K | 80 | 4699 | - | Graphite | 5000 | Non-adjustable |
| 10844420 | 20º | 44W | 4000K | 80 | 4336 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844422 | 20º | 44W | 4000K | 80 | 4336 | - | Graphite | 5000 | Non-adjustable |
| 10843340 | 22º | 15W | 3000K | 80 | 1787 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843342 | 22º | 15W | 3000K | 80 | 1787 | - | Graphite | 2000 | Non-adjustable |
| 10844340 | 22º | 15W | 4000K | 80 | 1910 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844342 | 22º | 15W | 4000K | 80 | 1910 | - | Graphite | 2000 | Non-adjustable |
| 10843370 | 22º | 26W | 3000K | 80 | 2646 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10843372 | 22º | 26W | 3000K | 80 | 2646 | - | Graphite | 3000 | Non-adjustable |
| 10844370 | 22º | 26W | 4000K | 80 | 2845 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844372 | 22º | 26W | 4000K | 80 | 2845 | - | Graphite | 3000 | Non-adjustable |
| 10843400 | 24º | 30W | 3000K | 80 | 3600 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843402 | 24º | 30W | 3000K | 80 | 3600 | - | Graphite | 4000 | Non-adjustable |
| 10844400 | 24º | 30W | 4000K | 80 | 3449 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844402 | 24º | 30W | 4000K | 80 | 3449 | - | Graphite | 4000 | Non-adjustable |
| 10843430 | 26º | 44W | 3000K | 80 | 4795 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843432 | 26º | 44W | 3000K | 80 | 4795 | - | Graphite | 5000 | Non-adjustable |
| 10844430 | 26º | 44W | 4000K | 80 | 4526 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844432 | 26º | 44W | 4000K | 80 | 4526 | - | Graphite | 5000 | Non-adjustable |
| 10843350 | 33º | 15W | 3000K | 80 | 1798 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843352 | 33º | 15W | 3000K | 80 | 1798 | - | Graphite | 2000 | Non-adjustable |
| 10844350 | 33º | 15W | 4000K | 80 | 1922 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844352 | 33º | 15W | 4000K | 80 | 1922 | - | Graphite | 2000 | Non-adjustable |
| 10843380 | 33º | 26W | 3000K | 80 | 2662 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10843382 | 33º | 26W | 3000K | 80 | 2662 | - | Graphite | 3000 | Non-adjustable |
| 10844380 | 33º | 26W | 4000K | 80 | 2859 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844382 | 33º | 26W | 4000K | 80 | 2859 | - | Graphite | 3000 | Non-adjustable |
| 10843410 | 35º | 30W | 3000K | 80 | 3689 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843412 | 35º | 30W | 3000K | 80 | 3689 | - | Graphite | 4000 | Non-adjustable |
| 10844410 | 35º | 30W | 4000K | 80 | 3481 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844412 | 35º | 30W | 4000K | 80 | 3481 | - | Graphite | 4000 | Non-adjustable |
| 10843440 | 36º | 44W | 3000K | 80 | 4783 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843442 | 36º | 44W | 3000K | 80 | 4783 | - | Graphite | 5000 | Non-adjustable |
| 10844440 | 36º | 44W | 4000K | 80 | 4568 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844442 | 36º | 44W | 4000K | 80 | 4568 | - | Graphite | 5000 | Non-adjustable |
| 10843610 | 57º | 15W | 3000K | 80 | 2016 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10843612 | 57º | 15W | 3000K | 80 | 2016 | - | Graphite | 2000 | Non-adjustable |
| 10844610 | 57º | 15W | 4000K | 80 | 2100 | - | Texturised matt white RAL 9016 | 2000 | Non-adjustable |
| 10844612 | 57º | 15W | 4000K | 80 | 2100 | - | Graphite | 2000 | Non-adjustable |
| 10843620 | 57º | 26W | 3000K | 80 | 2984 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844620 | 57º | 26W | 4000K | 80 | 3108 | - | Texturised matt white RAL 9016 | 3000 | Non-adjustable |
| 10844622 | 57º | 26W | 4000K | 80 | 3108 | - | Graphite | 3000 | Non-adjustable |
| 10843630 | 56º | 30W | 3000K | 80 | 3732 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10843632 | 56º | 30W | 3000K | 80 | 3732 | - | Graphite | 4000 | Non-adjustable |
| 10844630 | 56º | 30W | 4000K | 80 | 3688 | - | Texturised matt white RAL 9016 | 4000 | Non-adjustable |
| 10844632 | 56º | 30W | 4000K | 80 | 3688 | - | Graphite | 4000 | Non-adjustable |
| 10843640 | 56º | 44W | 3000K | 80 | 4845 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10843642 | 56º | 44W | 3000K | 80 | 4845 | - | Graphite | 5000 | Non-adjustable |
| 10844640 | 56º | 44W | 4000K | 80 | 4840 | - | Texturised matt white RAL 9016 | 5000 | Non-adjustable |
| 10844642 | 56º | 44W | 4000K | 80 | 4840 | - | Graphite | 5000 | Non-adjustable |
| 10843622 | 57º | 26W | 3000K | 80 | 2984 | - | Graphite | 3000 | Non-adjustable |
