Hance 1000 TrackHS1TK10SS840NBWHANCE TRACK 220 1000 NW SSP WH.
Multi-directional to adapt to three-phase track projector model HANCE TRACK 220 1000 NW SSP WH., LAMP brand. Made of textured white color painted injected aluminium. Passive dissipation for a proper thermal management. Model for LED HI-POWER, with neutral white colour temperature and control gear included. With Superspot optics. Insulation class I.
- Overture:
- 10º
- Power:
- 7W
- Color temperature:
- 4000K
- CRI:
- 80
- Lumen output:
- 689
- Gear:
- Non-adjustable
- Finishing:
- Texturised white RAL 9010
- Lumen LED:
- 1000
Features
Certificates

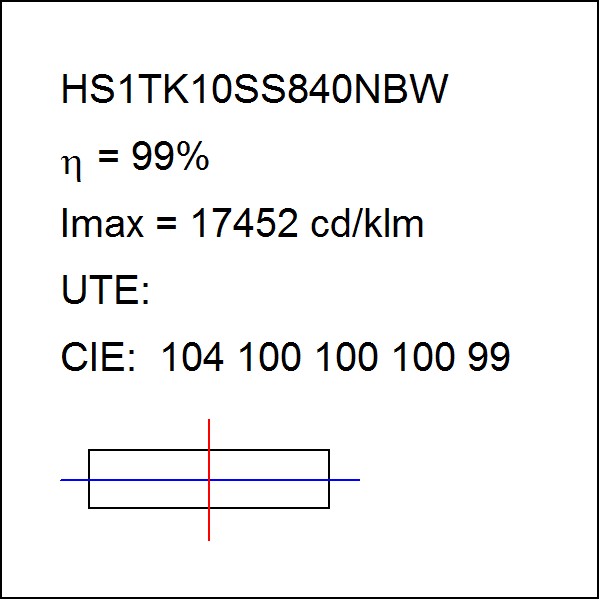

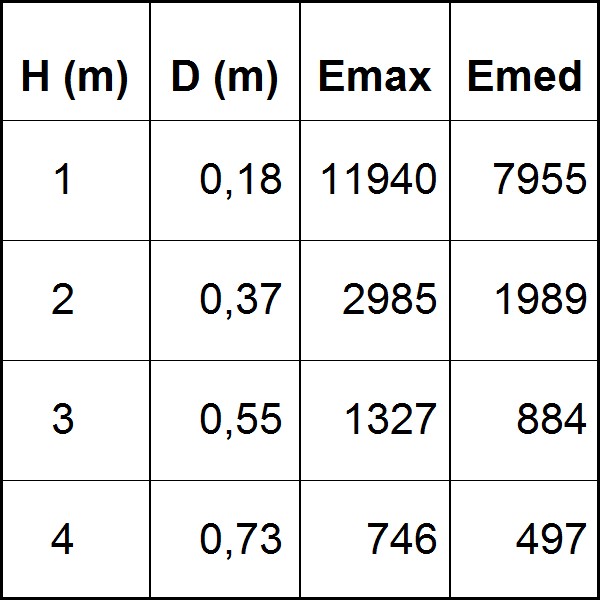

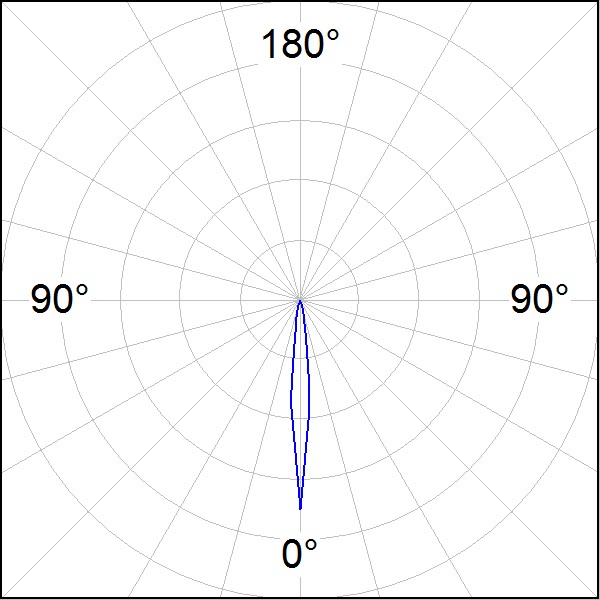

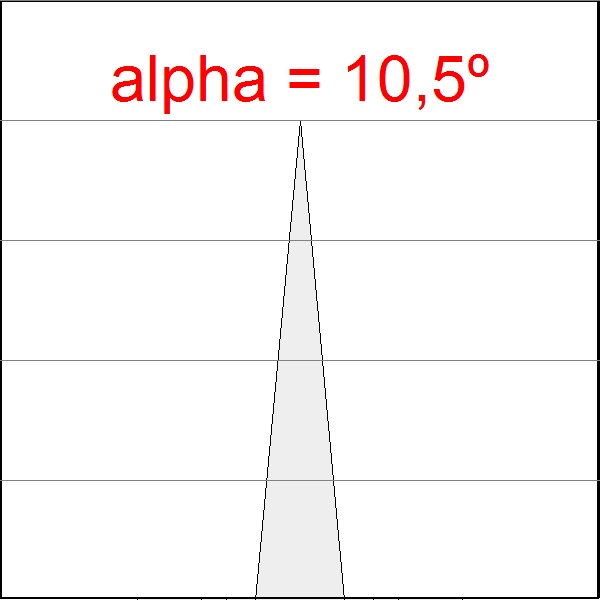

Photometric data
Do you need more information?
Product variants
| Code | ∢ | W | K | CRI | lm out | Gear | Finishing | lm |
|---|---|---|---|---|---|---|---|---|
| HS1TK10FL840NBW | 37º | 7W | 4000K | 80 | 675 | Non-adjustable | 9010 textured | 1000 |
| HS1TK10MF830NBB | 23º | 7W | 3000K | 80 | 751 | Non-adjustable | Texturised black RAL 9011 | 1000 |
| HS1TK10FL840NBB | 37º | 7W | 4000K | 80 | 675 | Non-adjustable | 9011 textured | 1000 |
| HS1TK10FL830NBW | 37º | 7W | 3000K | 80 | 639 | Non-adjustable | Texturised white RAL 9010 | 1000 |
| HS1TK10FL830NBB | 37º | 7W | 3000K | 80 | 639 | Non-adjustable | Texturised black RAL 9011 | 1000 |
| HS1TK10MF830NBW | 23º | 7W | 3000K | 80 | 751 | Non-adjustable | Texturised white RAL 9010 | 1000 |
| HS1TK10SP840NBW | 17º | 7W | 4000K | 80 | 778 | Non-adjustable | 9010 textured | 1000 |
| HS1TK10SP840NBB | 17º | 7W | 4000K | 80 | 778 | Non-adjustable | 9011 textured | 1000 |
| HS1TK10SP830NBW | 17º | 7W | 3000K | 80 | 736 | Non-adjustable | Texturised white RAL 9010 | 1000 |
| HS1TK10SP830NBB | 17º | 7W | 3000K | 80 | 736 | Non-adjustable | Texturised black RAL 9011 | 1000 |
| HS1TK10MF840NBW | 23º | 7W | 4000K | 80 | 794 | Non-adjustable | 9010 textured | 1000 |
| HS1TK10MF840NBB | 23º | 7W | 4000K | 80 | 794 | Non-adjustable | 9011 textured | 1000 |
| HS1TK10SS840NBW | 10º | 7W | 4000K | 80 | 689 | Non-adjustable | Texturised white RAL 9010 | 1000 |
| HS1TK10SS840NBB | 10º | 7W | 4000K | 80 | 689 | Non-adjustable | Texturised black RAL 9011 | 1000 |
| HS1TK10SS830NBW | 10º | 7W | 3000K | 80 | 638 | Non-adjustable | Texturised white RAL 9010 | 1000 |
| HS1TK10SS830NBB | 10º | 7W | 3000K | 80 | 638 | Non-adjustable | Texturised black RAL 9011 | 1000 |
Accessories
Suspension
Optical
Assembly
- 4605180TRACK ACC. EXT RIGHT T JOINT WH.
- 4605182TRACK ACC. EXT RIGHT T JOINT BK.
- 4605183TRACK ACC. EXT RIGHT T JOINT GR.
- 4605190TRACK ACC. EXT LEFT T JOINT WH.
- 4605192TRACK ACC. EXT LEFT T JOINT BK.
- 4605193TRACK ACC. EXT LEFT T JOINT GR.
- 4605220TRACK ACC. INT RIGHT T JOINT WH.
- 4605222TRACK ACC. INT RIGHT T JOINT BK.
- 4605223TRACK ACC. INT RIGHT T JOINT GR.
- 4605230TRACK ACC. INT LEFT T JOINT WH.
- 4605232TRACK ACC. INT LEFT T JOINT BK.
- 4605233TRACK ACC. INT LEFT T JOINT GR.
