Fil led prismatic recessed14780550FIL LED G2 PRISM REC 3000 NW DALI WH.
Recessed luminaire model FIL LED G2 PRISM REC 3000 NW WH., LAMP brand. Made of satin white painted extruded aluminium with prismatic polycarbonate diffuser. Model for MID-POWER LED, neutral white colour temperature and control gear included.Glare rating <19 (for 4h, 8h 70/50/20). With a IP42, IK07 protection rating. Insulation class I. Photobiological safety group 0.
- Power:
- 19W
- Color temperature:
- 4000K
- Lumen output:
- 2050
- Gear:
- Adjustable DALI
- Length:
- 1137mm
- Finishing:
- Matte white RAL 9010
Features
Certificates

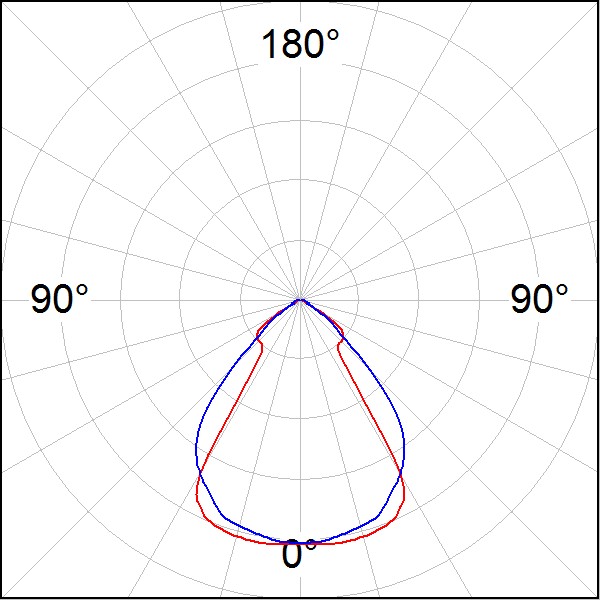

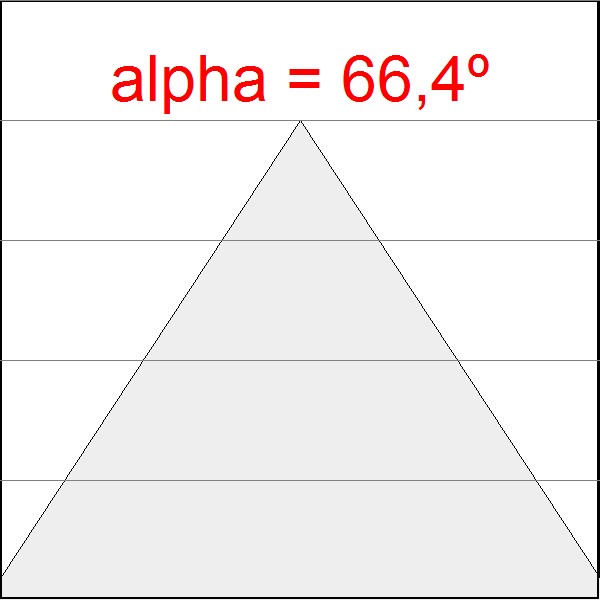

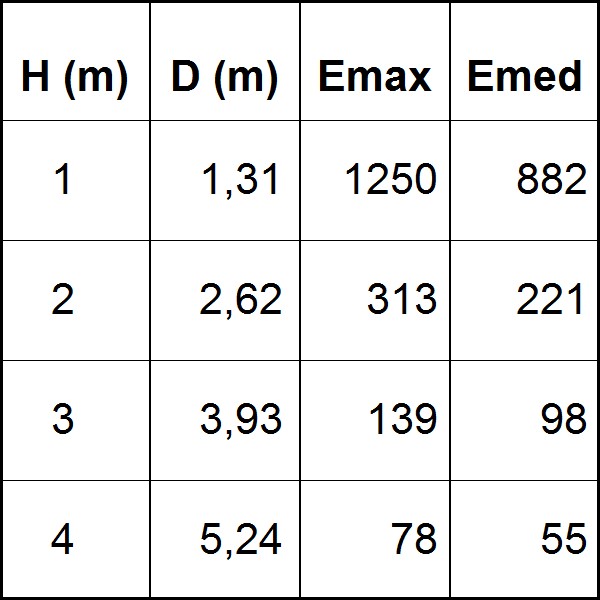

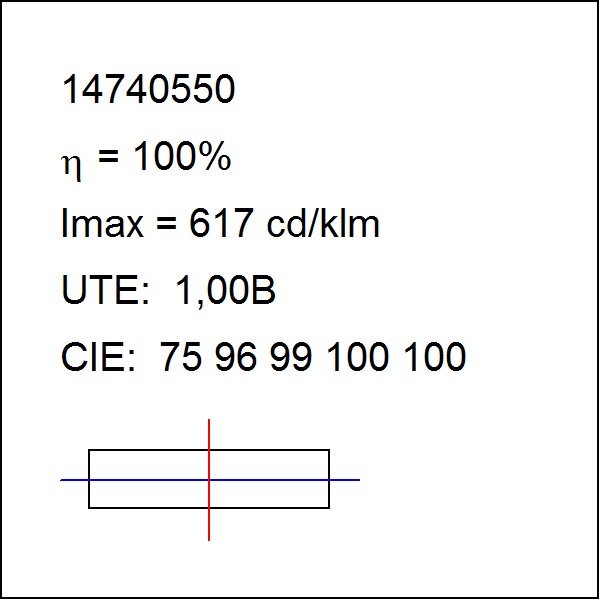

Photometric data
Do you need more information?
Product variants
| Code | W | K | lm out | Gear | Length | Finishing | lm | Gear |
|---|---|---|---|---|---|---|---|---|
| 14741553 | 19W | 3000K | 1945 | - | 1137mm | Grey | 3000 | Non-adjustable |
| 14741550 | 19W | 3000K | 1945 | - | 1137mm | White | 3000 | Non-adjustable |
| 14781553 | 19W | 3000K | 1945 | DALI | 1137mm | Grey | 3000 | Adjustable DALI |
| 14781550 | 19W | 3000K | 1945 | DALI | 1137mm | White | 3000 | Adjustable DALI |
| 14740553 | 19W | 4000K | 2050 | - | 1137mm | Grey | 3000 | Non-adjustable |
| 14740550 | 19W | 4000K | 2050 | - | 1137mm | White | 3000 | Non-adjustable |
| 14780553 | 19W | 4000K | 2050 | DALI | 1137mm | Grey | 3000 | Adjustable DALI |
| 14780550 | 19W | 4000K | 2050 | DALI | 1137mm | White | 3000 | Adjustable DALI |
| 14741573 | 37W | 3000K | 3740 | - | 1137mm | Grey | 6000 | Non-adjustable |
| 14741570 | 37W | 3000K | 3740 | - | 1137mm | White | 6000 | Non-adjustable |
| 14740573 | 37W | 4000K | 3942 | - | 1137mm | Grey | 6000 | Non-adjustable |
| 14740570 | 37W | 4000K | 3942 | - | 1137mm | White | 6000 | Non-adjustable |
| 14741563 | 28W | 3000K | 2918 | - | 1700mm | Grey | 4600 | Non-adjustable |
| 14741560 | 28W | 3000K | 2918 | - | 1700mm | White | 4600 | Non-adjustable |
| 14781563 | 28W | 3000K | 2918 | DALI | 1700mm | Grey | 4600 | Adjustable DALI |
| 14781560 | 28W | 3000K | 2918 | DALI | 1700mm | White | 4600 | Adjustable DALI |
| 14740563 | 28W | 4000K | 3075 | - | 1700mm | Grey | 4600 | Non-adjustable |
| 14740560 | 28W | 4000K | 3075 | - | 1700mm | White | 4600 | Non-adjustable |
| 14780563 | 28W | 4000K | 3075 | DALI | 1700mm | Grey | 4600 | Adjustable DALI |
| 14780560 | 28W | 4000K | 3075 | DALI | 1700mm | White | 4600 | Adjustable DALI |
| 14741583 | 55W | 3000K | 5610 | - | 1700mm | Grey | 9200 | Non-adjustable |
| 14741580 | 55W | 3000K | 5610 | - | 1700mm | White | 9200 | Non-adjustable |
| 14740583 | 55W | 4000K | 5913 | - | 1700mm | Grey | 9200 | Non-adjustable |
| 14740580 | 55W | 4000K | 5913 | - | 1700mm | White | 9200 | Non-adjustable |
