Dot

Dot spot system7001422DOT SPOT 800 WW SP WH/GRP.

Multi-directional projection module to adapt to Dot structure, model DOT SPOT 800 WW SP WH/GRP., LAMP brand. Structure made of white-lacquered extruded aluminium and spotlight made of graphite-lacquered injected aluminium. Passive heat dissipation for a proper thermal management. Model for COB LED, warm white colour temperature powered to AC current directly. With Spot reflector in high purity aluminium. Insulation class I.
Overture:
15º
Power:
8W
Color temperature:
3000K
CRI:
80
Lumen output:
848
Gear:
Without gear (main supply)
Finishing:
Matte white

Features

Certificates

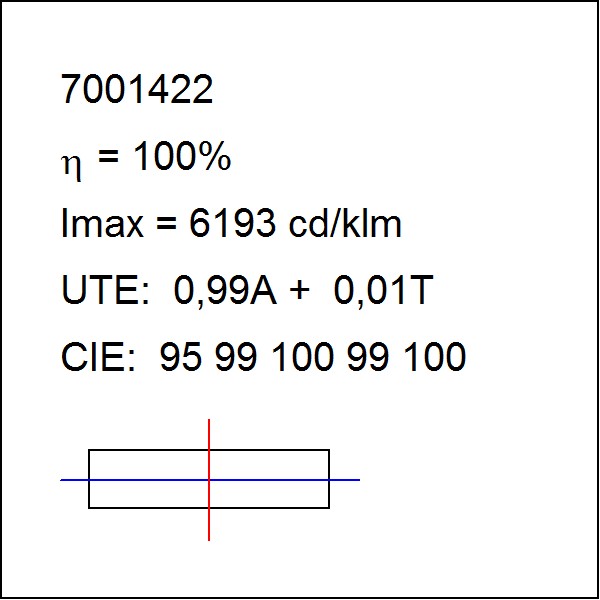

Photometric data

Do you need more information?

Product variants

CodeWKCRIlm outGearFinishinglmGear
700145220º20W3000K801775Without gear (main supply)Silver2000Without gear (main supply)
700145120º20W3000K801775Without gear (main supply)Silver2000Without gear (main supply)
700145020º20W3000K801775Without gear (main supply)Silver2000Without gear (main supply)
700144215º8W3000K80848Without gear (main supply)Silver800Without gear (main supply)
700144115º8W3000K80848Without gear (main supply)Silver800Without gear (main supply)
700144015º8W3000K80848Without gear (main supply)Silver800Without gear (main supply)
700143220º20W3000K801775Without gear (main supply)White2000Without gear (main supply)
700143120º20W3000K801775Without gear (main supply)White2000Without gear (main supply)
700143020º20W3000K801775Without gear (main supply)White2000Without gear (main supply)
700142215º8W3000K80848Without gear (main supply)White800Without gear (main supply)
700142115º8W3000K80848Without gear (main supply)White800Without gear (main supply)
700142015º8W3000K80848Without gear (main supply)White800Without gear (main supply)
