Fil 45 Direct TechF41RE224MOTE840DBFIL45 REC 2240 5200 NW TECH DALI BK.
Estructura para empotrar modelo FIL45 REC 2240 5200 NW TECH BK. de la marca LAMP. Fabricada en extrusión de aluminio pintado en color negro mate con reflector de policarbonato metalizado tech. Modelo para LED MID-POWER, con temperatura de color blanco ne utro y equipo electrónico incorporado. Con un grado de protección IP20, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0.
- Potència:
- 31W
- Temperatura de color:
- 4000K
- Flux de sortida:
- 3924
- Equip:
- Regulable DALI
- Longitud:
- 2240mm
- Acabat:
- Negro mate RAL 9011
Característiques
Certificats

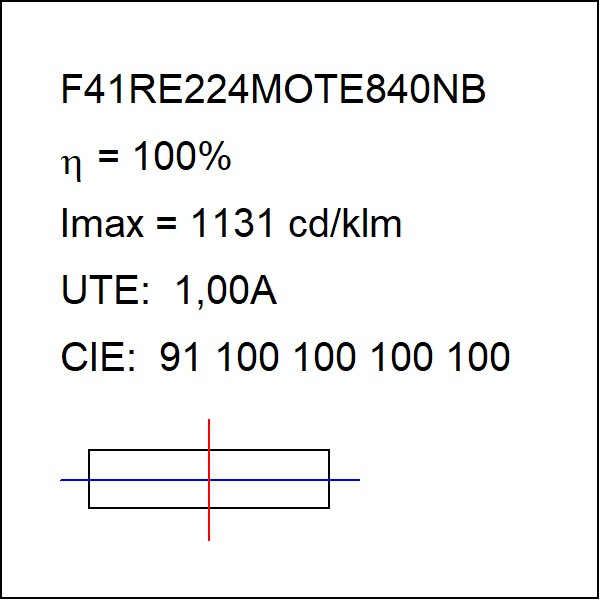

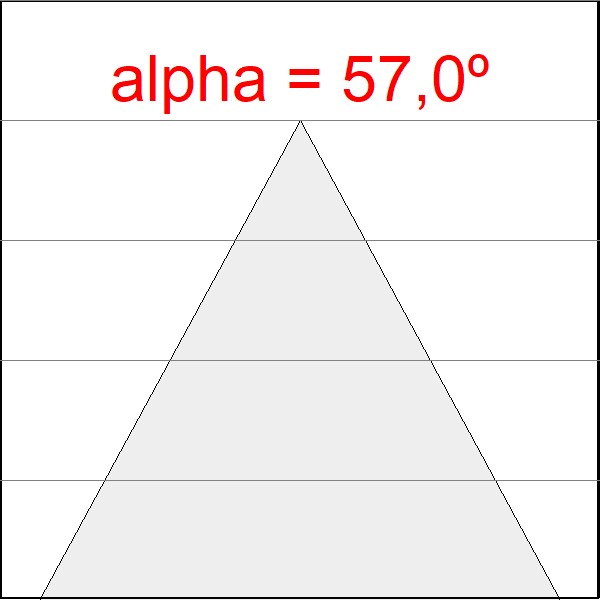

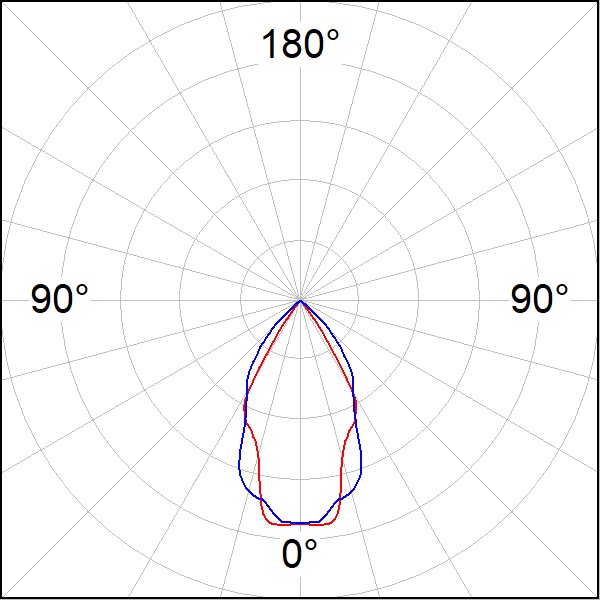

Dades fotomètriques
Necessites mès informació?
Variants d'aquest producte
| Codi | W | K | lm out | Equip | Longitud | Acabat |
|---|---|---|---|---|---|---|
| F41SF168MOTE840DB | 23W | 4000K | 2943 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41RE196MOTE840NB | 27W | 4000K | 3433 | No regulable | 1960mm | Negro mate RAL 9011 |
| F41SF112MOTE840NB | 16W | 4000K | 1961 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF196MOTE840DW | 27W | 4000K | 3433 | Regulable DALI | 1960mm | Blanco mate RAL 9010 |
| F41SF140MOTE830NB | 19W | 3000K | 2340 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF196MOTE840NB | 27W | 4000K | 3433 | No regulable | 1960mm | Negro mate RAL 9011 |
| F41SF084MOTE840NG | 12W | 4000K | 1472 | No regulable | 840mm | Gris satinado |
| F41SF084MOTE830DG | 12W | 3000K | 1404 | Regulable DALI | 840mm | Gris satinado |
| F41SF168MOTE840NW | 23W | 4000K | 2943 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF084MOTE830DW | 12W | 3000K | 1404 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF224MOTE840DB | 31W | 4000K | 3924 | Regulable DALI | 2240mm | Negro mate RAL 9011 |
| F41RE168MOTE840NG | 23W | 4000K | 2943 | No regulable | 1680mm | Gris satinado |
| F41SF084MOTE830NB | 12W | 3000K | 1404 | No regulable | 840mm | Negro mate RAL 9011 |
| F41RE112MOTE830DW | 16W | 3000K | 1872 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF196MOTE840DB | 27W | 4000K | 3433 | Regulable DALI | 1960mm | Negro mate RAL 9011 |
| F41SF168MOTE830DW | 23W | 3000K | 2808 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF168MOTE830NG | 23W | 3000K | 2808 | No regulable | 1680mm | Gris satinado |
| F41SF084MOTE840DW | 12W | 4000K | 1472 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF084MOTE830NW | 12W | 3000K | 1404 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF140MOTE840NG | 19W | 4000K | 2452 | No regulable | 1400mm | Gris satinado |
| F41SF084MOTE840DB | 12W | 4000K | 1472 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41RE084MOTE840NG | 12W | 4000K | 1472 | No regulable | 840mm | Gris satinado |
| F41RE112MOTE840NB | 16W | 4000K | 1961 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF112MOTE830DG | 16W | 3000K | 1872 | Regulable DALI | 1120mm | Gris satinado |
| F41SF112MOTE830DB | 16W | 3000K | 1872 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41SF224MOTE840NW | 31W | 4000K | 3924 | No regulable | 2240mm | Blanco mate RAL 9010 |
| F41RE084MOTE840DW | 12W | 4000K | 1472 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41RE168MOTE840NB | 23W | 4000K | 2943 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF112MOTE830DW | 16W | 3000K | 1872 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41RE196MOTE840NG | 27W | 4000K | 3433 | No regulable | 1960mm | Gris satinado |
| F41SF196MOTE840DG | 27W | 4000K | 3433 | Regulable DALI | 1960mm | Gris satinado |
| F41SF112MOTE830NB | 16W | 3000K | 1872 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41SF224MOTE830DW | 31W | 3000K | 3744 | Regulable DALI | 2240mm | Blanco mate RAL 9010 |
| F41RE224MOTE840DG | 31W | 4000K | 3924 | Regulable DALI | 2240mm | Gris satinado |
| F41SF112MOTE830NG | 16W | 3000K | 1872 | No regulable | 1120mm | Gris satinado |
| F41RE140MOTE840NG | 19W | 4000K | 2452 | No regulable | 1400mm | Gris satinado |
| F41SF168MOTE840NB | 23W | 4000K | 2943 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41SF140MOTE830DW | 19W | 3000K | 2340 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41RE112MOTE830DB | 16W | 3000K | 1872 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41RE196MOTE830NB | 27W | 3000K | 3276 | No regulable | 1960mm | Negro mate RAL 9011 |
| F41RE140MOTE830NG | 19W | 3000K | 2340 | No regulable | 1400mm | Gris satinado |
| F41SF112MOTE840DG | 16W | 4000K | 1961 | Regulable DALI | 1120mm | Gris satinado |
| F41SF140MOTE830DB | 19W | 3000K | 2340 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF084MOTE840NB | 12W | 4000K | 1472 | No regulable | 840mm | Negro mate RAL 9011 |
| F41SF140MOTE830NG | 19W | 3000K | 2340 | No regulable | 1400mm | Gris satinado |
| F41SF140MOTE830NW | 19W | 3000K | 2340 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41RE224MOTE840NW | 31W | 4000K | 3924 | No regulable | 2240mm | Blanco mate RAL 9010 |
| F41SF140MOTE840DB | 19W | 4000K | 2452 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41SF168MOTE830DB | 23W | 3000K | 2808 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF168MOTE830DG | 23W | 3000K | 2808 | Regulable DALI | 1680mm | Gris satinado |
| F41RE084MOTE830NG | 12W | 3000K | 1404 | No regulable | 840mm | Gris satinado |
| F41SF140MOTE830DG | 19W | 3000K | 2340 | Regulable DALI | 1400mm | Gris satinado |
| F41SF168MOTE830NB | 23W | 3000K | 2808 | No regulable | 1680mm | Matte black RAL 9011 |
| F41SF196MOTE830NB | 27W | 3000K | 3276 | No regulable | 1960mm | Negro mate RAL 9011 |
| F41SF168MOTE840DW | 23W | 4000K | 2943 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41SF224MOTE830DB | 31W | 3000K | 3744 | Regulable DALI | 2240mm | Negro mate RAL 9011 |
| F41RE084MOTE830DB | 12W | 3000K | 1404 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF224MOTE830NB | 31W | 3000K | 3744 | No regulable | 2240mm | Negro mate RAL 9011 |
| F41SF140MOTE840NB | 19W | 4000K | 2452 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF168MOTE830NW | 23W | 3000K | 2808 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF224MOTE830NG | 31W | 3000K | 3744 | No regulable | 2240mm | Gris satinado |
| F41RE196MOTE830NG | 27W | 3000K | 3276 | No regulable | 1960mm | Gris satinado |
| F41SF168MOTE840DG | 23W | 4000K | 2943 | Regulable DALI | 1680mm | Gris satinado |
| F41RE196MOTE830DG | 27W | 3000K | 3276 | Regulable DALI | 1960mm | Gris satinado |
| F41RE140MOTE840NW | 19W | 4000K | 2452 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41SF224MOTE830NW | 31W | 3000K | 3744 | No regulable | 2240mm | Blanco mate RAL 9010 |
| F41RE168MOTE830DG | 23W | 3000K | 2808 | Regulable DALI | 1680mm | Gris satinado |
| F41RE112MOTE830DG | 16W | 3000K | 1872 | Regulable DALI | 1120mm | Gris satinado |
| F41RE196MOTE830DB | 27W | 3000K | 3276 | Regulable DALI | 1960mm | Negro mate RAL 9011 |
| F41RE168MOTE830NG | 23W | 3000K | 2808 | No regulable | 1680mm | Gris satinado |
| F41SF196MOTE840NG | 27W | 4000K | 3433 | No regulable | 1960mm | Gris satinado |
| F41SF084MOTE840DG | 12W | 4000K | 1472 | Regulable DALI | 840mm | Gris satinado |
| F41RE224MOTE840NB | 31W | 4000K | 3924 | No regulable | 2240mm | Negro mate RAL 9011 |
| F41SF112MOTE840DW | 16W | 4000K | 1961 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41SF224MOTE840DG | 31W | 4000K | 3924 | Regulable DALI | 2240mm | Gris satinado |
| F41SF196MOTE830DG | 27W | 3000K | 3276 | Regulable DALI | 1960mm | Gris satinado |
| F41RE168MOTE830DB | 23W | 3000K | 2808 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41RE196MOTE840NW | 27W | 4000K | 3433 | No regulable | 1960mm | Blanco mate RAL 9010 |
| F41SF112MOTE830NW | 16W | 3000K | 1872 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41RE168MOTE830DW | 23W | 3000K | 2808 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41RE168MOTE830NB | 23W | 3000K | 2808 | No regulable | 1680mm | Negro mate RAL 9011 |
| F41RE140MOTE840DG | 19W | 4000K | 2452 | Regulable DALI | 1400mm | Gris satinado |
| F41RE140MOTE840NB | 19W | 4000K | 2452 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41RE224MOTE840NG | 31W | 4000K | 3924 | No regulable | 2240mm | Gris satinado |
| F41RE168MOTE830NW | 23W | 3000K | 2808 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41RE168MOTE840DB | 23W | 4000K | 2943 | Regulable DALI | 1680mm | Negro mate RAL 9011 |
| F41SF112MOTE840DB | 16W | 4000K | 1961 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41RE168MOTE840DG | 23W | 4000K | 2943 | Regulable DALI | 1680mm | Gris satinado |
| F41RE196MOTE840DG | 27W | 4000K | 3433 | Regulable DALI | 1960mm | Gris satinado |
| F41SF196MOTE840NW | 27W | 4000K | 3433 | No regulable | 1960mm | Blanco mate RAL 9010 |
| F41RE084MOTE830DG | 12W | 3000K | 1404 | Regulable DALI | 840mm | Gris satinado |
| F41RE112MOTE840NG | 16W | 4000K | 1961 | No regulable | 1120mm | Gris satinado |
| F41RE224MOTE840DW | 31W | 4000K | 3924 | Regulable DALI | 2240mm | Blanco mate RAL 9010 |
| F41SF084MOTE830DB | 12W | 3000K | 1404 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41RE140MOTE830DB | 19W | 3000K | 2340 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41RE084MOTE830NB | 12W | 3000K | 1404 | No regulable | 840mm | Negro mate RAL 9011 |
| F41RE168MOTE840NW | 23W | 4000K | 2943 | No regulable | 1680mm | Blanco mate RAL 9010 |
| F41SF196MOTE830DW | 27W | 3000K | 3276 | Regulable DALI | 1960mm | Blanco mate RAL 9010 |
| F41RE084MOTE840NW | 12W | 4000K | 1472 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41SF140MOTE840DW | 19W | 4000K | 2452 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41RE140MOTE830NW | 19W | 3000K | 2340 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41RE196MOTE830DW | 27W | 3000K | 3276 | Regulable DALI | 1960mm | Blanco mate RAL 9010 |
| F41SF168MOTE840NG | 23W | 4000K | 2943 | No regulable | 1680mm | Gris satinado |
| F41SF196MOTE830NW | 27W | 3000K | 3276 | No regulable | 1960mm | Blanco mate RAL 9010 |
| F41RE112MOTE830NW | 16W | 3000K | 1872 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41RE084MOTE840DB | 12W | 4000K | 1472 | Regulable DALI | 840mm | Negro mate RAL 9011 |
| F41SF140MOTE840DG | 19W | 4000K | 2452 | Regulable DALI | 1400mm | Gris satinado |
| F41RE112MOTE830NB | 16W | 3000K | 1872 | No regulable | 1120mm | Negro mate RAL 9011 |
| F41RE084MOTE840DG | 12W | 4000K | 1472 | Regulable DALI | 840mm | Gris satinado |
| F41RE168MOTE840DW | 23W | 4000K | 2943 | Regulable DALI | 1680mm | Blanco mate RAL 9010 |
| F41RE196MOTE830NW | 27W | 3000K | 3276 | No regulable | 1960mm | Blanco mate RAL 9010 |
| F41RE140MOTE840DW | 19W | 4000K | 2452 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41RE196MOTE840DB | 27W | 4000K | 3433 | Regulable DALI | 1960mm | Negro mate RAL 9011 |
| F41RE224MOTE840DB | 31W | 4000K | 3924 | Regulable DALI | 2240mm | Negro mate RAL 9011 |
| F41RE112MOTE830NG | 16W | 3000K | 1872 | No regulable | 1120mm | Gris satinado |
| F41RE084MOTE830NW | 12W | 3000K | 1404 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41RE196MOTE840DW | 27W | 4000K | 3433 | Regulable DALI | 1960mm | Blanco mate RAL 9010 |
| F41SF112MOTE840NW | 16W | 4000K | 1961 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41RE112MOTE840DB | 16W | 4000K | 1961 | Regulable DALI | 1120mm | Negro mate RAL 9011 |
| F41RE224MOTE830DG | 31W | 3000K | 3744 | Regulable DALI | 2240mm | Gris satinado |
| F41RE224MOTE830DW | 31W | 3000K | 3744 | Regulable DALI | 2240mm | Blanco mate RAL 9010 |
| F41SF224MOTE840NG | 31W | 4000K | 3924 | No regulable | 2240mm | Gris satinado |
| F41RE112MOTE840DW | 16W | 4000K | 1961 | Regulable DALI | 1120mm | Blanco mate RAL 9010 |
| F41RE224MOTE830NG | 31W | 3000K | 3744 | No regulable | 2240mm | Gris satinado |
| F41SF140MOTE840NW | 19W | 4000K | 2452 | No regulable | 1400mm | Blanco mate RAL 9010 |
| F41RE140MOTE840DB | 19W | 4000K | 2452 | Regulable DALI | 1400mm | Negro mate RAL 9011 |
| F41RE224MOTE830NW | 31W | 3000K | 3744 | No regulable | 2240mm | Blanco mate RAL 9010 |
| F41RE112MOTE840NW | 16W | 4000K | 1961 | No regulable | 1120mm | Blanco mate RAL 9010 |
| F41RE112MOTE840DG | 16W | 4000K | 1961 | Regulable DALI | 1120mm | Gris satinado |
| F41SF224MOTE840DW | 31W | 4000K | 3924 | Regulable DALI | 2240mm | Blanco mate RAL 9010 |
| F41RE140MOTE830DG | 19W | 3000K | 2340 | Regulable DALI | 1400mm | Gris satinado |
| F41SF224MOTE830DG | 31W | 3000K | 3744 | Regulable DALI | 2240mm | Gris satinado |
| F41SF084MOTE830NG | 12W | 3000K | 1404 | No regulable | 840mm | Gris satinado |
| F41RE140MOTE830DW | 19W | 3000K | 2340 | Regulable DALI | 1400mm | Blanco mate RAL 9010 |
| F41RE084MOTE830DW | 12W | 3000K | 1404 | Regulable DALI | 840mm | Blanco mate RAL 9010 |
| F41SF112MOTE840NG | 16W | 4000K | 1961 | No regulable | 1120mm | Gris satinado |
| F41RE140MOTE830NB | 19W | 3000K | 2340 | No regulable | 1400mm | Negro mate RAL 9011 |
| F41SF196MOTE830DB | 27W | 3000K | 3276 | Regulable DALI | 1960mm | Negro mate RAL 9011 |
| F41SF196MOTE830NG | 27W | 3000K | 3276 | No regulable | 1960mm | Gris satinado |
| F41RE224MOTE830DB | 31W | 3000K | 3744 | Regulable DALI | 2240mm | Negro mate RAL 9011 |
| F41SF084MOTE840NW | 12W | 4000K | 1472 | No regulable | 840mm | Blanco mate RAL 9010 |
| F41RE224MOTE830NB | 31W | 3000K | 3744 | No regulable | 2240mm | Negro mate RAL 9011 |
| F41SF224MOTE840NB | 31W | 4000K | 3924 | No regulable | 2240mm | Negro mate RAL 9011 |
| F41RE084MOTE840NB | 12W | 4000K | 1472 | No regulable | 840mm | Negro mate RAL 9011 |
