Fil 50F52RC120HOPR830NGFIL 50 G2 PRISM REC 6000 WW GR.
Estructura para empotrar modelo FIL 50 REC 1137 de la marca LAMP. Fabricada en extrusión de aluminio reciclado con una tasa del 80%, con difusor de policarbonato prismatico, para un control de la distribución lumínica y deslumbramiento inferior UGR19. Modelo para LED MID-POWER, con temperatura de 3000K con CRI80 y equipo electrónico incorporado. Con un grado de protección IP42, IK07. Clase de aislamiento I. Seguridad fotobiológica grupo 0. Horas de vida: 70.000 L80 B10. Acabados disponibles: Blanco y gris.
- Potència:
- 37W
- Temperatura de color:
- 3000K
- Flux de sortida:
- 3740
- Equip:
- No regulable
- Longitud:
- 1137mm
- Acabat:
- Gloss grey
Característiques
Certificats

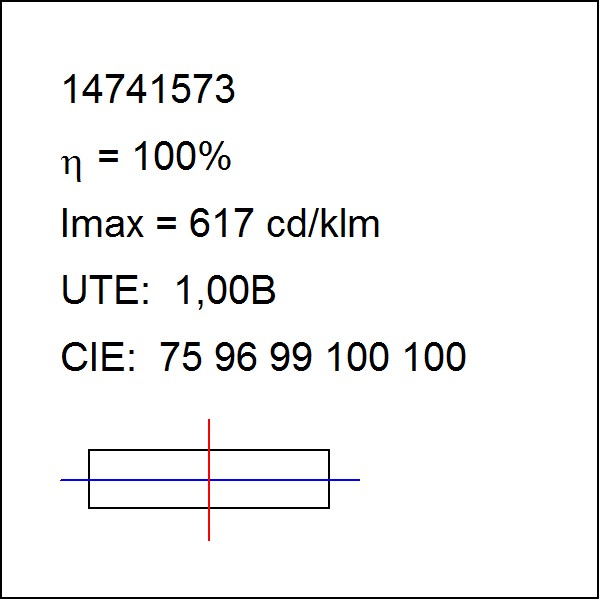

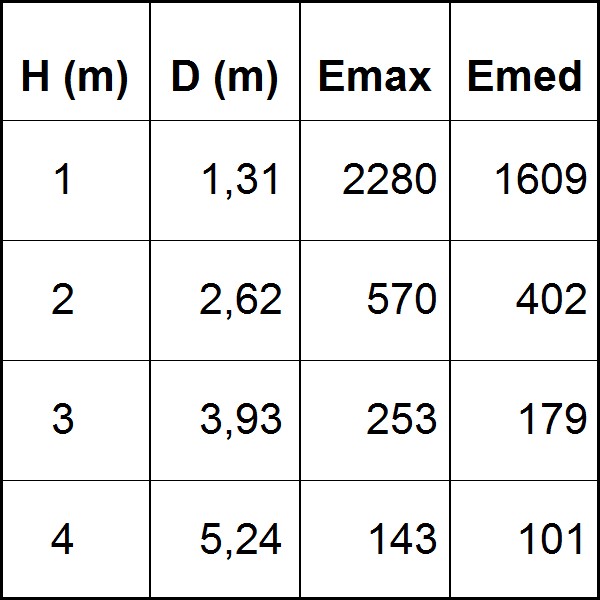

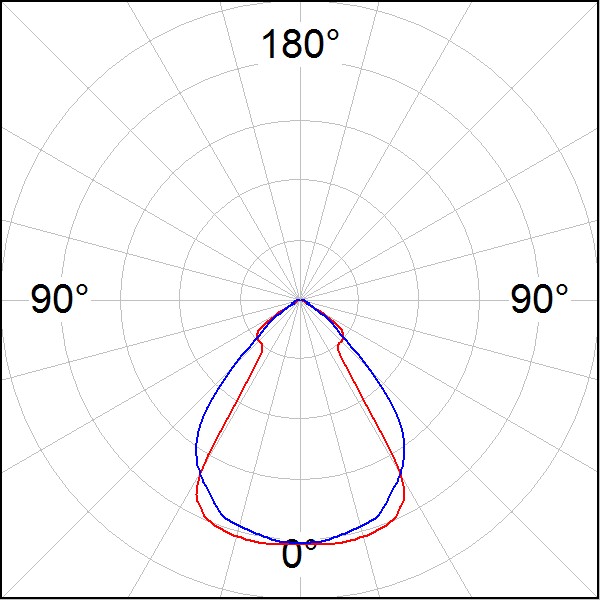

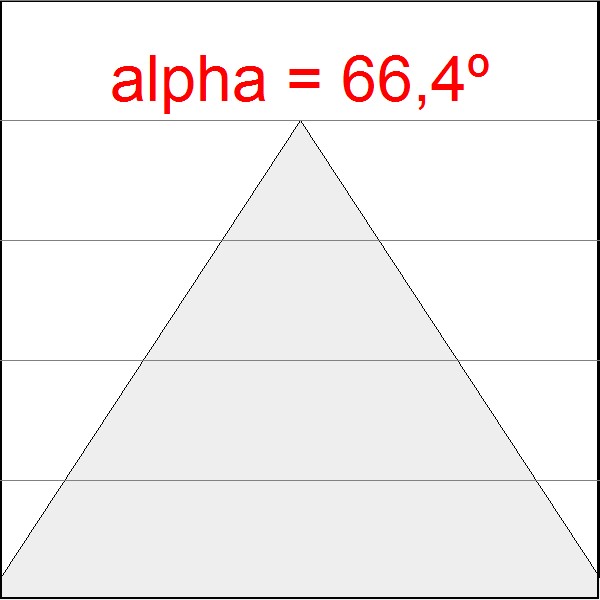

Dades fotomètriques
Necessites mès informació?
Variants d'aquest producte
| Codi | W | K | lm out | Equip | Longitud | Acabat |
|---|---|---|---|---|---|---|
| F52SF120HOOP830NG | 37W | 3000K | 3566 | - | 1137mm | Gloss grey |
| F52SF120HOOP830NW | 37W | 3000K | 3566 | - | 1137mm | Matte white RAL 9010 |
| F52SF120HOOP840NG | 37W | 4000K | 3761 | - | 1137mm | Gloss grey |
| F52SF120HOOP840NW | 37W | 4000K | 3761 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP830DG | 19W | 3000K | 1900 | DALI | 1137mm | Gloss grey |
| F52SF120MOOP830DW | 19W | 3000K | 1900 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP830NG | 19W | 3000K | 1900 | - | 1137mm | Gloss grey |
| F52SF120MOOP830NW | 19W | 3000K | 1900 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP840DG | 19W | 4000K | 2004 | DALI | 1137mm | Gloss grey |
| F52SF120MOOP840DW | 19W | 4000K | 2004 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOOP840NG | 19W | 4000K | 2004 | - | 1137mm | Gloss grey |
| F52SF120MOOP840NW | 19W | 4000K | 2004 | - | 1137mm | Matte white RAL 9010 |
| F52SF170HOOP830NG | 55W | 3000K | 5349 | - | 1700mm | Gloss grey |
| F52SF170HOOP830NW | 55W | 3000K | 5349 | - | 1700mm | Matte white RAL 9010 |
| F52SF170HOOP840NG | 55W | 4000K | 5642 | - | 1700mm | Gloss grey |
| F52SF170HOOP840NW | 55W | 4000K | 5642 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP830NG | 28W | 3000K | 2850 | - | 1700mm | Gloss grey |
| F52SF170MOOP830NW | 28W | 3000K | 2850 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP840NG | 28W | 4000K | 3006 | - | 1700mm | Gloss grey |
| F52SF170MOOP840NW | 28W | 4000K | 3006 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP840DW | 28W | 4000K | 3006 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP840DG | 28W | 4000K | 3006 | DALI | 1700mm | Gloss grey |
| F52SF170MOOP830DW | 28W | 3000K | 2850 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOOP830DG | 28W | 3000K | 2850 | DALI | 1700mm | Gloss grey |
| F52RC170MOPR830DG | 28W | 3000K | 2918 | DALI | 1700mm | Gloss grey |
| F52RC170MOPR830DW | 28W | 3000K | 2918 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR840DG | 28W | 4000K | 3075 | DALI | 1700mm | Gloss grey |
| F52RC170MOPR840DW | 28W | 4000K | 3075 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR840NW | 28W | 4000K | 3075 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR840NG | 28W | 4000K | 3075 | - | 1700mm | Gloss grey |
| F52RC170MOPR830NW | 28W | 3000K | 2918 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOPR830NG | 28W | 3000K | 2918 | - | 1700mm | Gloss grey |
| F52RC170HOPR840NW | 55W | 4000K | 5913 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOPR840NG | 55W | 4000K | 5913 | - | 1700mm | Gloss grey |
| F52RC170HOPR830NW | 55W | 3000K | 5610 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOPR830NG | 55W | 3000K | 5610 | - | 1700mm | Gloss grey |
| F52RC120MOPR840NW | 19W | 4000K | 2050 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR840NG | 19W | 4000K | 2050 | - | 1137mm | Gloss grey |
| F52RC120MOPR840DW | 19W | 4000K | 2050 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR840DG | 19W | 4000K | 2050 | DALI | 1137mm | Gloss grey |
| F52RC120MOPR830NW | 19W | 3000K | 1945 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR830NG | 19W | 3000K | 1945 | - | 1137mm | Gloss grey |
| F52RC120MOPR830DW | 19W | 3000K | 1945 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120MOPR830DG | 19W | 3000K | 1945 | DALI | 1137mm | Gloss grey |
| F52RC120MOOP830DG | 19W | 3000K | 1900 | DALI | 1137mm | Gloss grey |
| F52RC120HOPR840NW | 37W | 4000K | 3942 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOPR840NG | 37W | 4000K | 3942 | - | 1137mm | Gloss grey |
| F52RC120HOPR830NW | 37W | 3000K | 3740 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOPR830NG | 37W | 3000K | 3740 | - | 1137mm | Gloss grey |
| F52RC170MOOP830DW | 28W | 3000K | 2850 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP840DG | 28W | 4000K | 3006 | DALI | 1700mm | Gloss grey |
| F52RC170MOOP830DG | 28W | 3000K | 2850 | DALI | 1700mm | Gloss grey |
| F52RC170MOOP840DW | 28W | 4000K | 3006 | DALI | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP840NW | 28W | 4000K | 3006 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP840NG | 28W | 4000K | 3006 | - | 1700mm | Gloss grey |
| F52RC170MOOP830NW | 28W | 3000K | 2850 | - | 1700mm | Matte white RAL 9010 |
| F52RC170MOOP830NG | 28W | 3000K | 2850 | - | 1700mm | Gloss grey |
| F52RC170HOOP840NW | 55W | 4000K | 5642 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOOP840NG | 55W | 4000K | 5642 | - | 1700mm | Gloss grey |
| F52RC170HOOP830NW | 55W | 3000K | 5349 | - | 1700mm | Matte white RAL 9010 |
| F52RC170HOOP830NG | 55W | 3000K | 5349 | - | 1700mm | Gloss grey |
| F52RC120MOOP840NW | 19W | 4000K | 2004 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOOP840NG | 19W | 4000K | 2004 | - | 1137mm | Gloss grey |
| F52RC120MOOP840DW | 19W | 4000K | 2004 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120MOOP840DG | 19W | 4000K | 2004 | DALI | 1137mm | Gloss grey |
| F52RC120MOOP830NW | 19W | 3000K | 1900 | - | 1137mm | Matte white RAL 9010 |
| F52RC120MOOP830NG | 19W | 3000K | 1900 | - | 1137mm | Gloss grey |
| F52RC120MOOP830DW | 19W | 3000K | 1900 | DALI | 1137mm | Matte white RAL 9010 |
| F52RC120HOOP840NW | 37W | 4000K | 3761 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOOP840NG | 37W | 4000K | 3761 | - | 1137mm | Gloss grey |
| F52RC120HOOP830NW | 37W | 3000K | 3566 | - | 1137mm | Matte white RAL 9010 |
| F52RC120HOOP830NG | 37W | 3000K | 3566 | - | 1137mm | Gloss grey |
| F52SF120HOPR830NG | 37W | 3000K | 3740 | - | 1137mm | Gloss grey |
| F52SF170MOPR830DG | 28W | 3000K | 2918 | DALI | 1700mm | Gloss grey |
| F52SF170MOPR830DW | 28W | 3000K | 2918 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR840DG | 28W | 4000K | 3075 | DALI | 1700mm | Gloss grey |
| F52SF170MOPR840DW | 28W | 4000K | 3075 | DALI | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR840NW | 28W | 4000K | 3075 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR840NG | 28W | 4000K | 3075 | - | 1700mm | Gloss grey |
| F52SF170MOPR830NW | 28W | 3000K | 2918 | - | 1700mm | Matte white RAL 9010 |
| F52SF170MOPR830NG | 28W | 3000K | 2918 | - | 1700mm | Gloss grey |
| F52SF170HOPR840NW | 55W | 4000K | 5913 | - | 1700mm | Matte white RAL 9010 |
| F52SF170HOPR840NG | 55W | 4000K | 5913 | - | 1700mm | Gloss grey |
| F52SF170HOPR830NW | 55W | 3000K | 5610 | - | 1700mm | Matte white RAL 9010 |
| F52SF170HOPR830NG | 55W | 3000K | 5610 | - | 1700mm | Gloss grey |
| F52SF120MOPR840NW | 19W | 4000K | 2050 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR840NG | 19W | 4000K | 2050 | - | 1137mm | Gloss grey |
| F52SF120MOPR840DW | 19W | 4000K | 2050 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR840DG | 19W | 4000K | 2050 | DALI | 1137mm | Gloss grey |
| F52SF120MOPR830NW | 19W | 3000K | 1945 | - | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR830NG | 19W | 3000K | 1945 | - | 1137mm | Gloss grey |
| F52SF120MOPR830DW | 19W | 3000K | 1945 | DALI | 1137mm | Matte white RAL 9010 |
| F52SF120MOPR830DG | 19W | 3000K | 1945 | DALI | 1137mm | Gloss grey |
| F52SF120HOPR840NW | 37W | 4000K | 3942 | - | 1137mm | Matte white RAL 9010 |
| F52SF120HOPR840NG | 37W | 4000K | 3942 | - | 1137mm | Gloss grey |
| F52SF120HOPR830NW | 37W | 3000K | 3740 | - | 1137mm | Matte white RAL 9010 |
